SNES 2CHIP 50/60 HZ SWITCHLESS MOD + LED
MOD::
DeviceSuper Nintendo
DifficultyVery difficult
Time1 - 2 hours
Steps19
This guide is by Krisander 1998 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide shows you how to mod your super nintendo region free without a switch and with new LED lights.

btw. This mod doesn't work on 1 Chip SNES or SNES Mini, only works on original 2 Chip SNES. Check for text on the board to confirm your model.

Tools: Gamebit 4.5mm; Phillips #2 Screwdriver; Tweezers; Double-Sided Tape; Desoldering Pump; Metal Spudger; Universal Programmer; Flush Cutter; Soldering Iron; Desoldering Braid

Parts: Wire Wrapping Wire; Heat Shrink Tubing Assortment; Resistor 220 Ohm; 5 mm Through-Hole 3Pin Led Light, Red-Green Dual Color


STEP 1::
[step 1 photo]

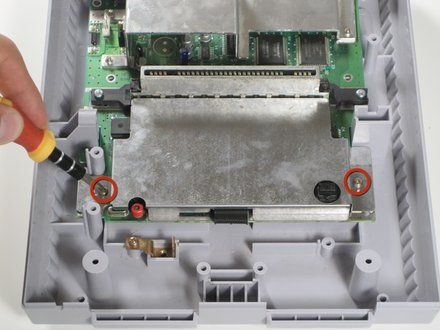

• Remove the two Phillips two 11.6mm screws that connect the front shield to the motherboard.

STEP 2::
[step 2 photo]

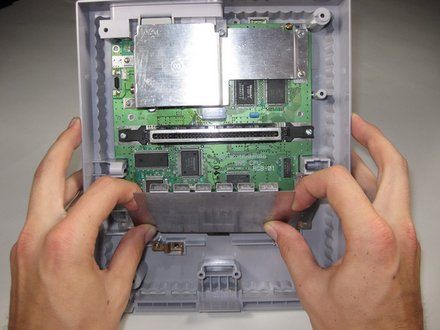

• Lift the front shield straight up to remove it from the motherboard.

STEP 3::
[step 3 photo]

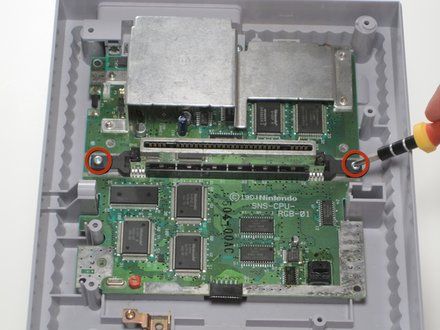

• Remove the two silver 15.6 mm Phillips #2 screws on either side of the 62 pin connector.

STEP 4::
[step 4 photo]

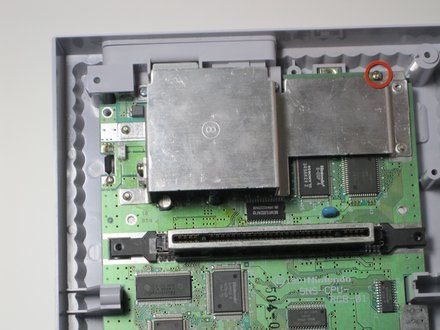

• Remove the 11.8 mm Phillips #2 screw near the rear of the SNES.

STEP 5::
[step 5 photo]

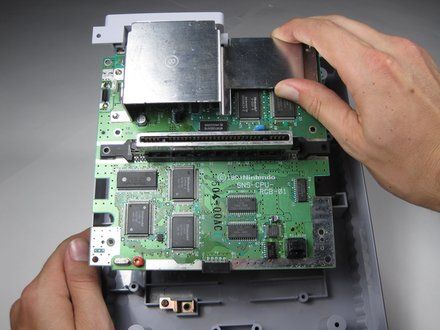

• Lift the motherboard straight up to remove it.

STEP 6 :: THE TWO CHIPS::
[step 6 photo]

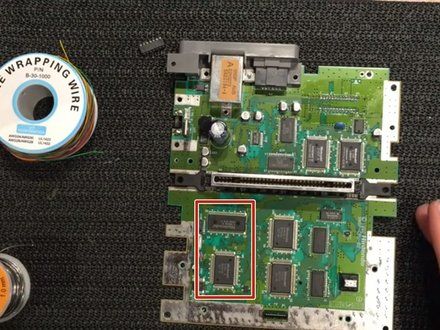

• The Two Chips that you need on your Super Nintendo
• NOTE: This mod only works on original Super Nintendo with 2 Chips, this mod doesn't work on the 1 Chip Snes.

STEP 7 :: THE LOCKOUT CHIP::
[step 7 photo] [step 7 photo]

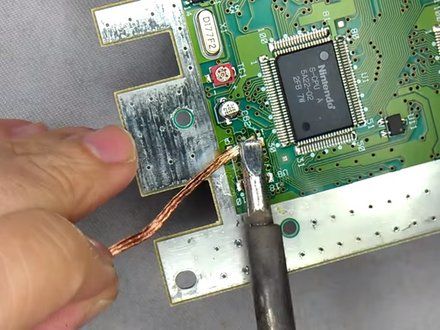

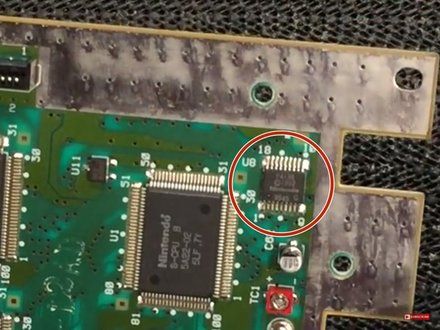

• Remove the Lock Out chip (use the solder gun (https://www.ifixit.com/en-ca/products/desoldering-pump))
• REMINDER: After removing the lock out chip there will probably be leftover of solder where the chip used to be so try to remove the soldier as good as you can
• NOTE: To remove the solder leftover, you can use the soldering iron and solder wick.

STEP 8 :: PPU 2::
[step 8 photo] [step 8 photo]

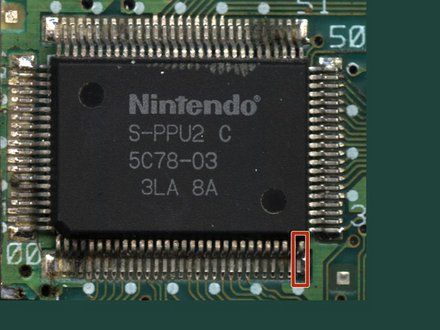

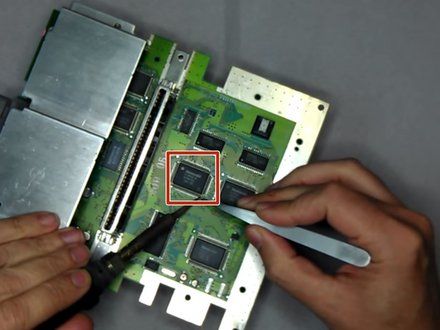

• Lift up the PPU2 Pin 30 from the Motherboard

STEP 9 :: PPU 1::
[step 9 photo] [step 9 photo]

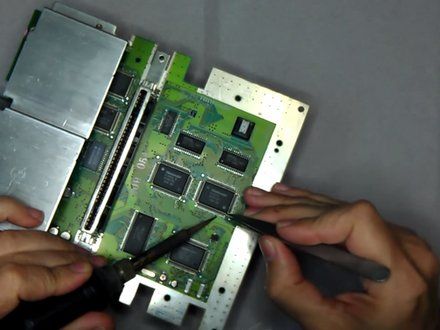

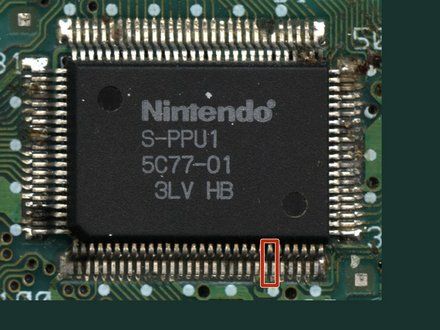

• Now lift up Pin 24 on PPU 1

STEP 10 :: WIRE TIME::
[step 10 photo]

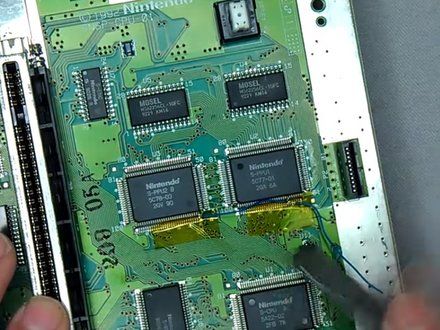

• Wire the lifted pins (PPU 2 Pin 30 & PPU1 Pin 24) together
• NOTE: You need to use a Soldering Iron to wire the pins together
• NOTE: You can also use tape to hold the wires down to the motherboard

STEP 11 :: PROGRAM::
[step 11 photo]

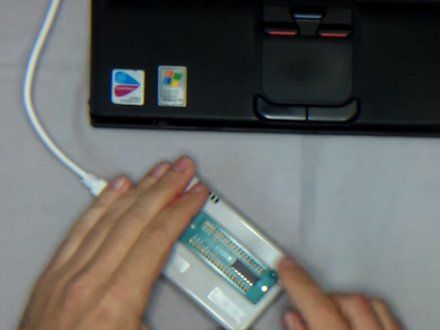

• Now you have to put the PIC16F630 Chip into the programmer and Flash the chip with the Super CIC File.
• File can be downloaded here: http://sd2snes.de/files/supercic.zip (http://sd2snes.de/files/supercic.zip)

STEP 12 :: THE PINS::
[step 12 photo] [step 12 photo] [step 12 photo]

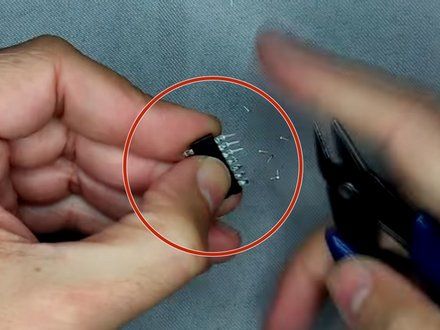

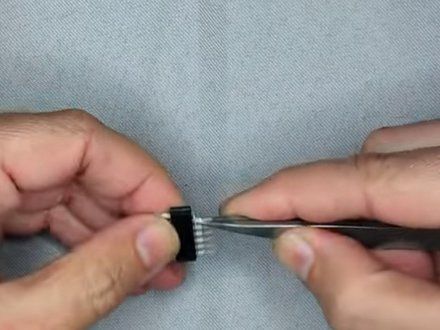

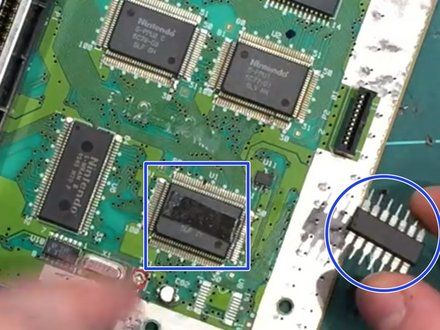

• Bend the pins outwards
• Then clip the pins
• Use double sided tape and put it on top of the CPU and put the Super CIC on top of the double sided tape.

STEP 13 :: THE WIRES::
[step 13 photo] [step 13 photo] [step 13 photo]

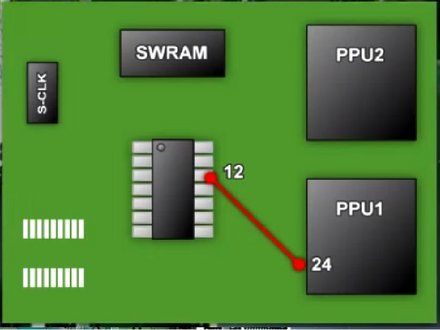

• Pic 1: Solder a wire from Super CIC Pin 12 to PPU1 Pin 24

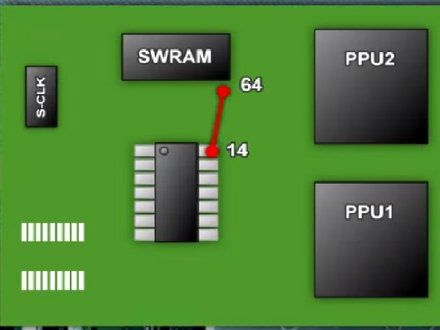

• Pic 2: Solder a wire from Super CIC Pin 14 to SWRAM Pin 64

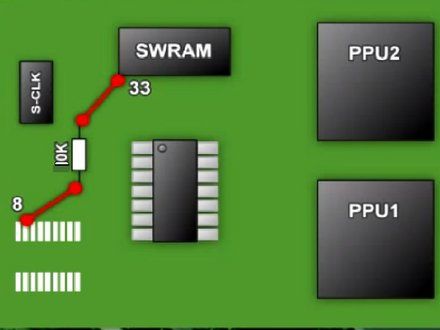

• Pic 3: Solder the 10k Ohm Resistor to the pin 8 (where the old CIC used to be) and to SWRAM Pin 33

STEP 14 :: THE WIRES PART 2::
[step 14 photo] [step 14 photo] [step 14 photo]

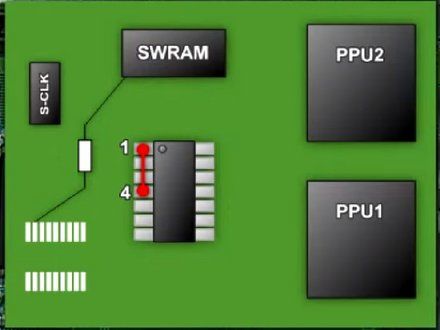

• Pic 1: Solder a Wire from Super CIC Pin 1 to 4 on the same chip.

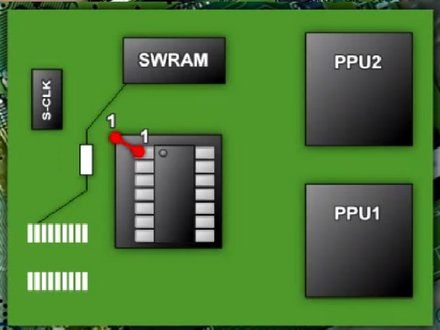

• Pic 2: Solder a wire from Super CIC Pin 1 to the CPU Pin 1

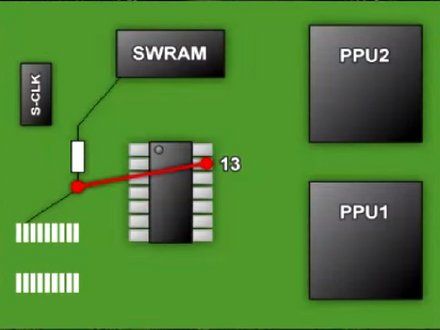

• Pic 3: Solder a wire from Super CIC Pin 13 to the End Point of the Resistor

STEP 15 :: THE WIRES PART 3::
[step 15 photo] [step 15 photo] [step 15 photo]

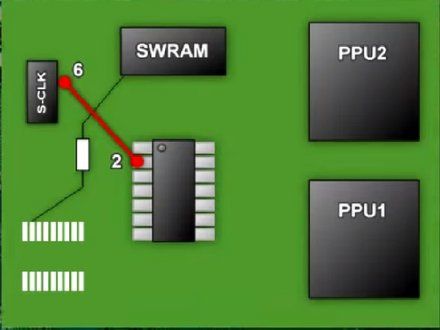

• Pic 1: Sother a wire from Super CIC Pin 2 to S-CLK Pin 6

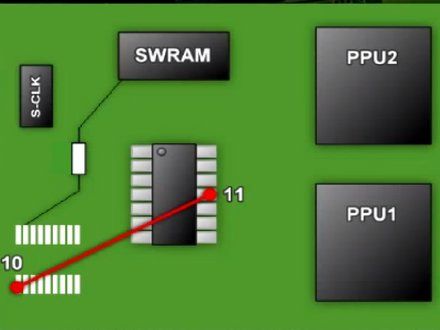

• Pic 2: Sother a wire from Super CIC Pin 11 to Old CIC Pin 10

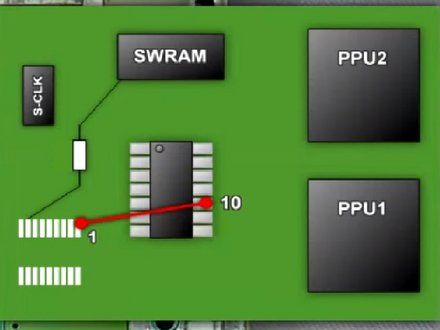

• Pic 3: Sother a wire from Super CIC Pin 10 to Old CIC Pin 1

STEP 16 :: THE WIRES PART 4::
[step 16 photo] [step 16 photo] [step 16 photo]

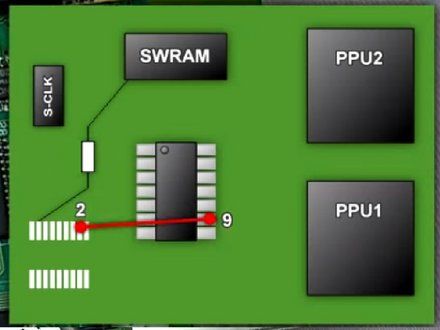

• Pic 1: Solder a wire from Super CIC Pin 9 to Old CIC Pin 2

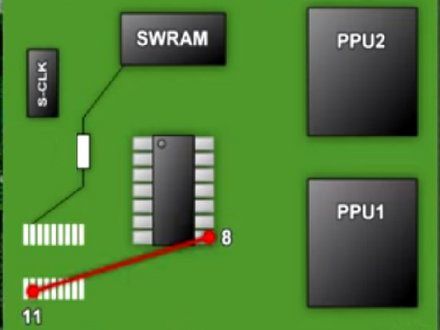

• Pic 2: Solder a wire from Super CIC Pin 8 to Old CIC Pin 11

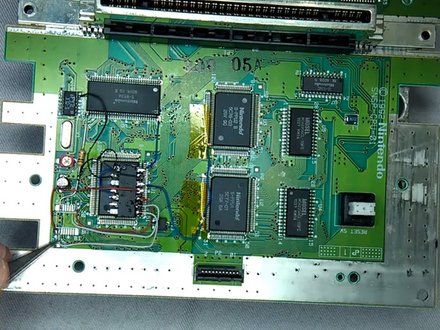

• Pic 3: You've soldered most of the wires now, lets go to the LED Mod

STEP 17 :: THE LED MOD::
[step 17 photo] [step 17 photo] [step 17 photo]

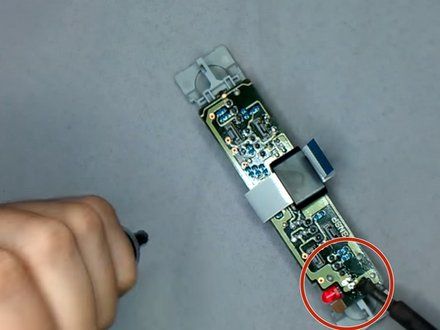

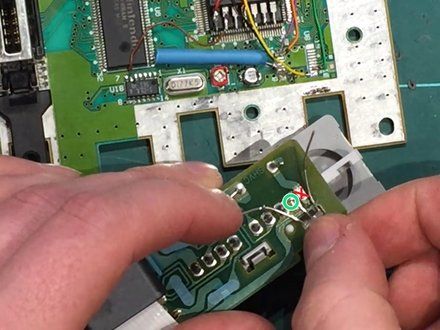

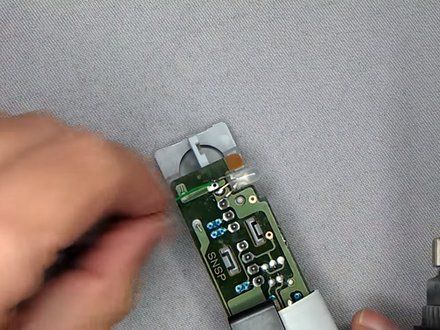

• Plug out the controller ports and solder out the LED Light.
• NOTE: When the solder points have been desoldered, you can use the tweezers (https://www.ifixit.com/en-ca/products/tweezers) to pull out the led light
• Sother on the new LED Light with the middle pin on the left solder hole
• CAUTION: Do Not sother the middle pin on the LED Light to the right solder hole as it will then be stuck in only one color!

STEP 18 :: LED RESISTORS::
[step 18 photo] [step 18 photo] [step 18 photo]

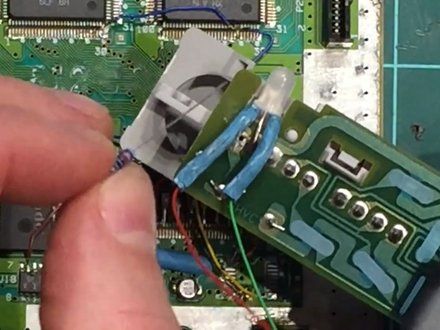

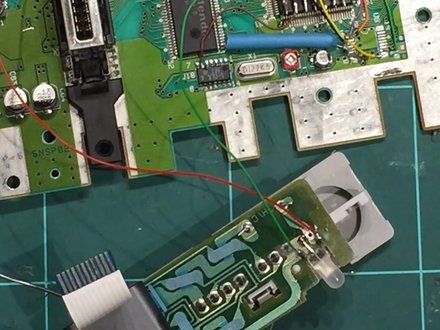

• Solder 2 wires on the left and right pins on the led light, green wire on the left pin and red wire on the right pin.
• After that you should put the wires into one heat shrink tube each, remember to heat the heat shrink tubes when its over the pins.
• Then you have to solder the 2k Resistor to the red wire and the 220 ohm Resistor to the green wire.

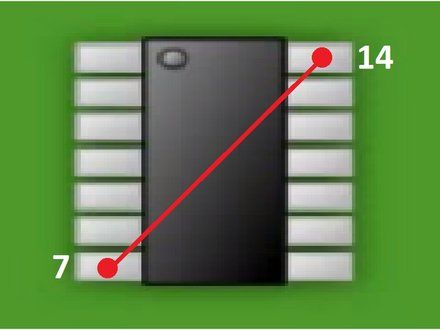

• Then the last thing you need to do is to solder a wire from Super CIC Pin 7 to Pin 14.

STEP 19 :: THE END::
[step 19 photo] [step 19 photo] [step 19 photo]

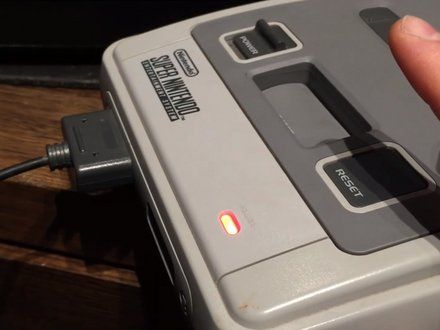

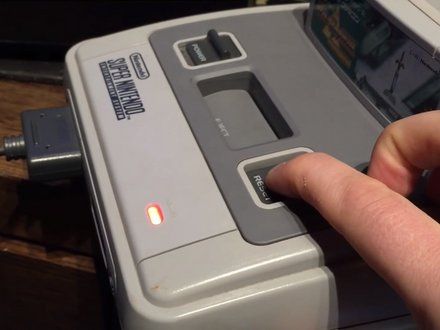

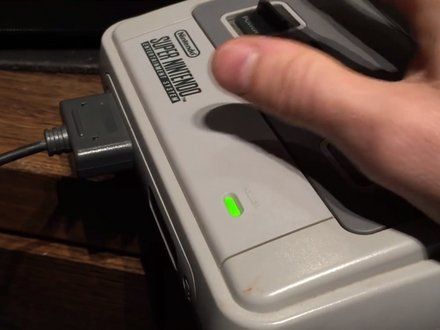

• You're Now Done! You just need to put your Super Nintendo back together and then you have a Region Free Switchless Super Nintendo!
• Green Light (PAL)
• Red Light (NTSC) [For American and Japanese Games]
• Orange Light (Auto)

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

These screenshots have been taken by 2 videoes, one from Global Garage and Chips y Bits on YouTube! I made this guide since its a little easier to read a guide with pictures like this instead of watching a 30 min video

CREDIT::
This guide is by Krisander 1998 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
