PLAYSTATION 2 SLIMLINE OPTICAL DRIVE
REPLACEMENT::
DevicePlayStation 2 Slimline
DifficultyDifficult
Time30 minutes
Steps3
This guide is by tlroesner on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

If the optical drive of your PlayStation 2 Slimline is broken, this guide will provide a step-by-step process on how to access and remove the old optical drive for repairs or replacement.

Tools: Metal Spudger; Phillips #00 Screwdriver; Phillips #1 Screwdriver


STEP 1::
[step 1 photo] [step 1 photo] [step 1 photo]

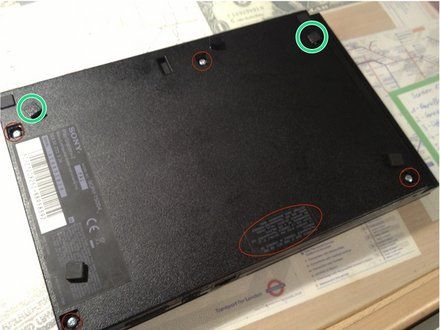

• Remove the rubber feet on two of the screw covers on the bottom of the console.

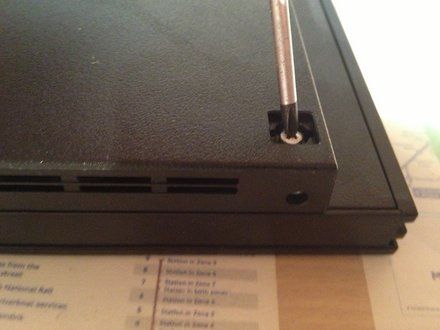

• Remove the screw covers and the screws themselves.

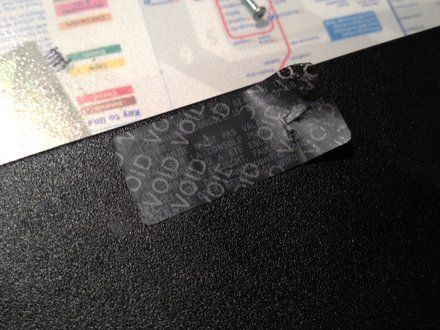

• CAUTION: Caution: One of the screws is underneath the "Do not void" seal

STEP 2::
[step 2 photo] [step 2 photo]

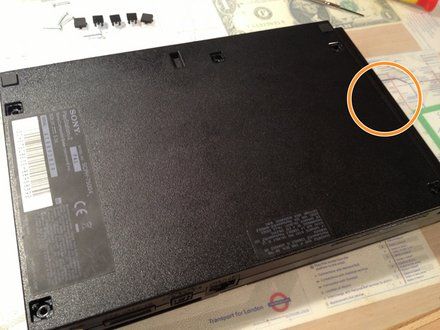

• NOTE: If all screws are removed.

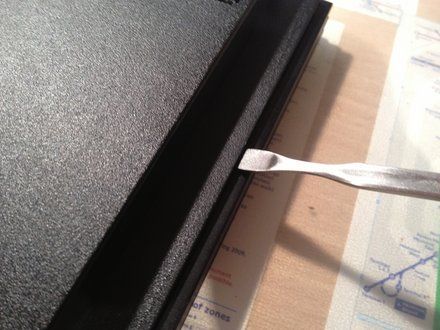

• Use a metal spunger to open the chassis

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

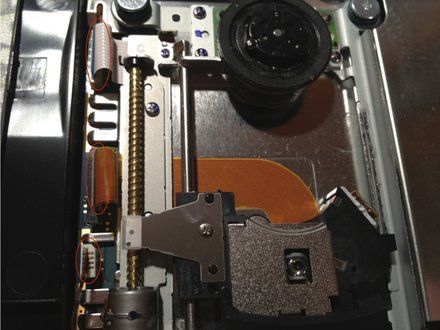

• Slip the three cables out of the sockets.

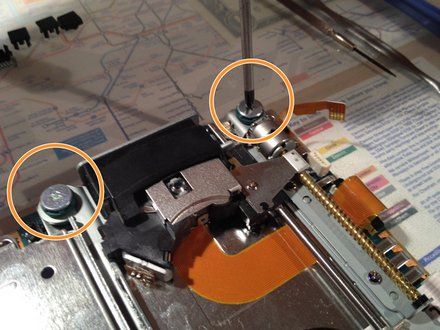

• Use a PH01 screwdriver to remove the four screws securing the optical drive

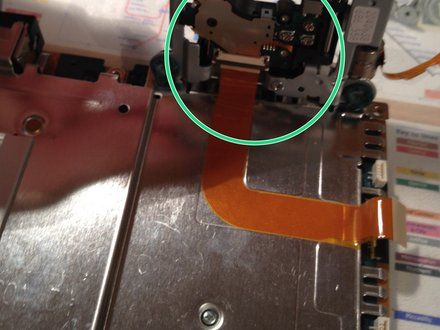

• Lift up the optical drive and remove the duct tape under the flex cable.
• NOTE: Now the optical drive is free and ready for replacement

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
