PlayStation 2 Slimline CMOS Battery Replacement

Device	PlayStation 2 Slimline
Difficulty	Easy
Time	10 - 15 minutes
Steps	3

This guide is by tlroesner on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The Sony PlayStation 2 Slim relies on a CMOS battery, essentially a modified battery designed to power the CMOS chip in the hardware. This chip is responsible for storing boot settings, system time, and date. A faulty CMOS battery can cause faults in game saves, incorrect system time, or prevent the system from powering up.

Tools: Metal Spudger; Phillips #1 Screwdriver

Parts: CMOS battery

Step 1

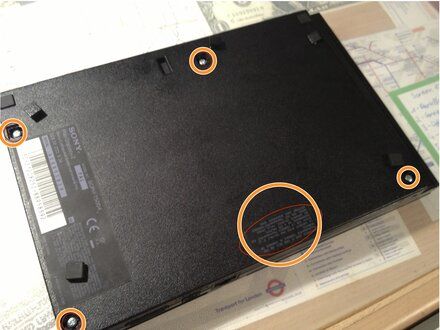

• Remove all five screws on the downside of the PS2 Slimline

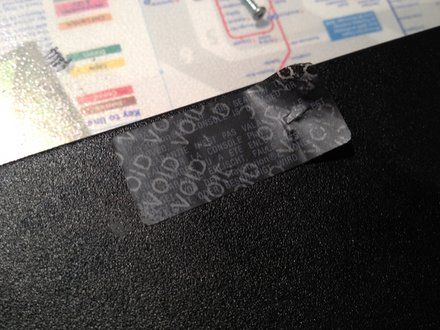

• NOTE: Underneath the "Do not remove" sticker, there will be one last screw

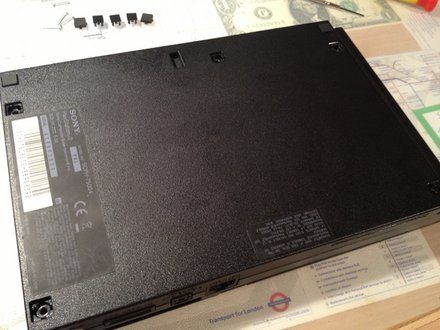

Step 2 :: Remove the plate

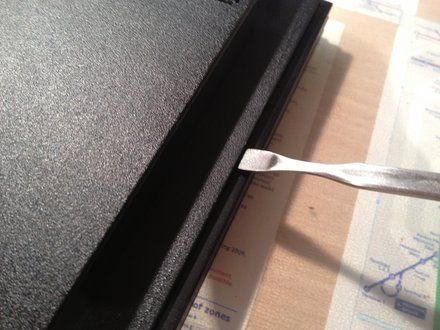

• Using a metal spudger, carefully pry open the chassis
• NOTE: Although a metal spudger is used in the tutorial, it is recommended to use plastic spudgers with most electronics as metal on metal can short circuts

Step 3 :: Remove the Battery

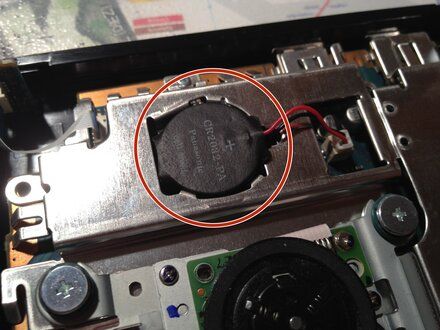

• Locate the battery on the motherboard. The battery will be a CR2032 Button Cell Battery

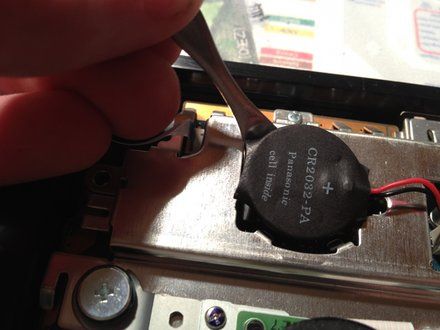

• Carefully use a metal spudger to pull the battery out of the metal housing

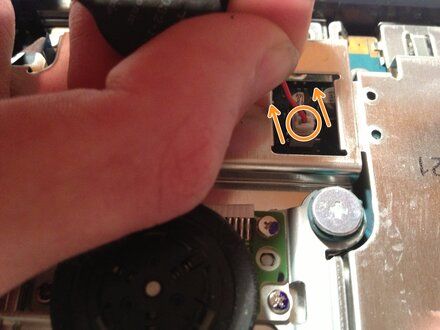

• Once the battery is fully removed, remove the connector upwards from the motherboard
• NOTE: The connector does not have any clips and can be easily removed and pushed back in with reassembly/disassembly

Conclusion

To reassemble your device, follow these instructions in reverse order.
