PLAYSTATION 2 SLIMLINE
TEARDOWN/DISASSEMBLY::
DevicePlayStation 2 Slimline
DifficultyModerate
Time45 minutes
Steps7
This guide is by tlroesner on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

A general guide to takedown and disassemble the PlayStation 2 Slimline. This will give the user access to a number of internal components such as the motherboard, the optical drive, the cooling fan, and hard drive, among others.

Tools: Metal Spudger; Phillips #00 Screwdriver; Phillips #1 Screwdriver


STEP 1::
[step 1 photo] [step 1 photo] [step 1 photo]

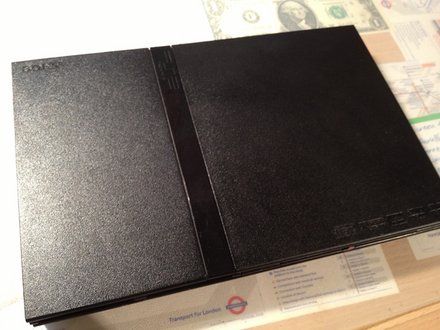

• On a flat working surface, flip the PlayStation 2 Slimline so that the bottom side is facing up.

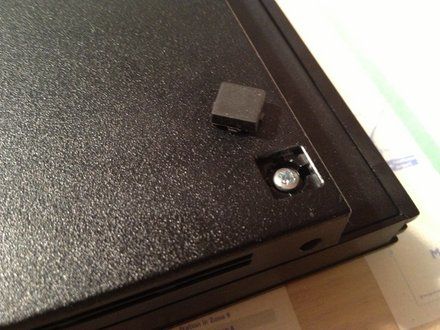

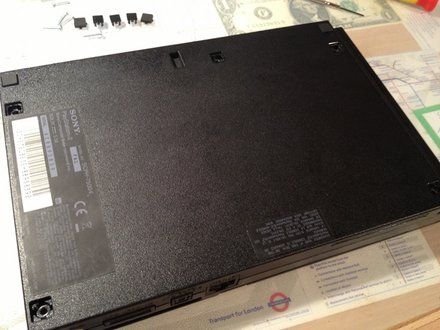

• Remove the covers over the screws, circled in red on the second image.

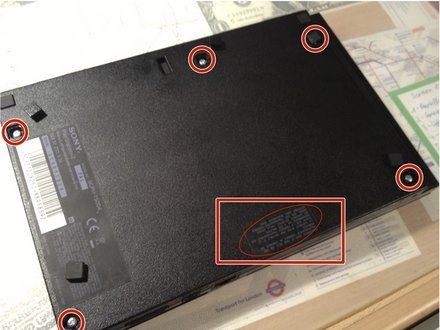

• Take a Phillip's #1 screwdriver and remove the five screws circled in red on the second image.
    • NOTE: You will have to remove the "Do Not Void" seal in order to remove the last screw.

STEP 2::
[step 2 photo] [step 2 photo]
• CAUTION: Make sure you haven't forgotten the screw under the "Do Not Void" seal.

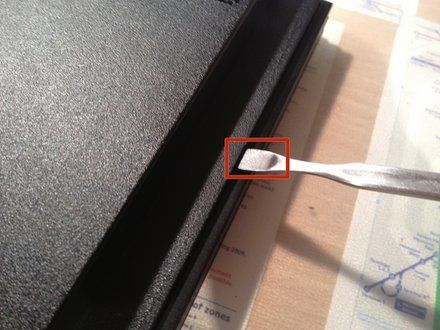

• Take a metal spudger and separate the upper half of the chasis from the lower half.
• CAUTION: For later models the DVD drive assembly is not screwed in and will fall off if you open it upside down.

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

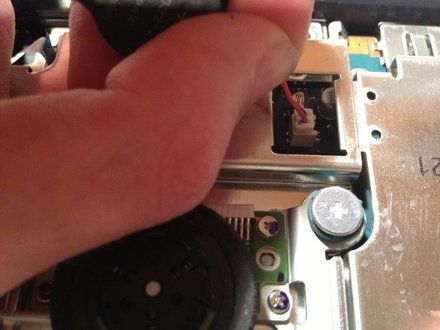

• NOTE: With the chassis open you can see the motherboard and its attachments.

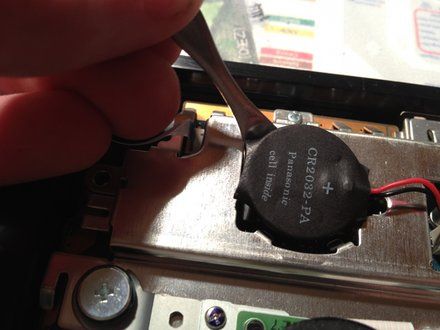

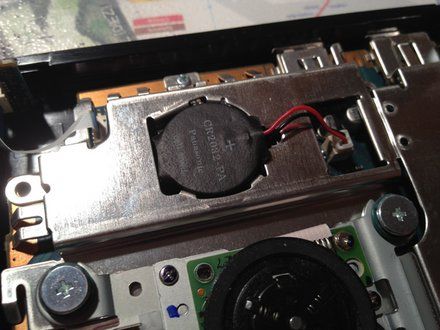

• Identify the battery, then use a spudger to pry it out. Disconnect the battery from the motherboard with your hands.

STEP 4::
[step 4 photo] [step 4 photo] [step 4 photo]

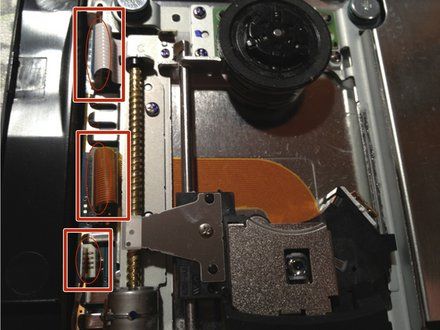

• Gently disconnect the three ribbon cables.

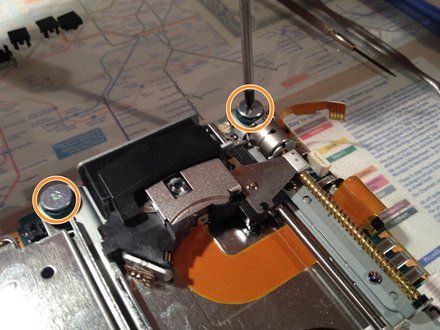

• Take a Phillips #1 screwdriver and remove the four screws on the optical drive.
    • NOTE: Two of the screws can't be seen on the picture, they are located on the opisite side from the visable ones.

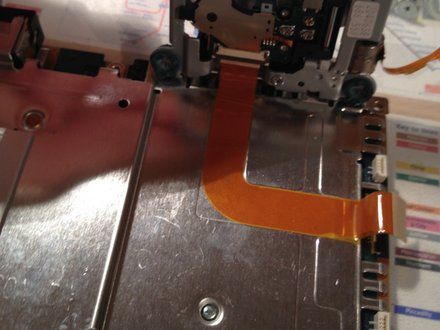

• Pull up the optical drive and carefully peel the flex cable, attached underneath the drive, from the metal plate.

STEP 5::
[step 5 photo] [step 5 photo]

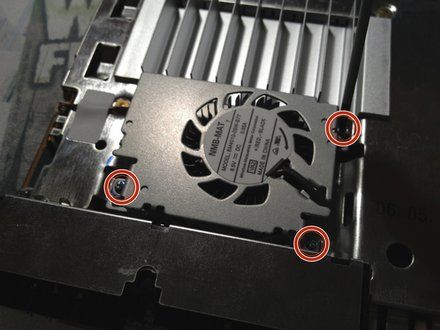

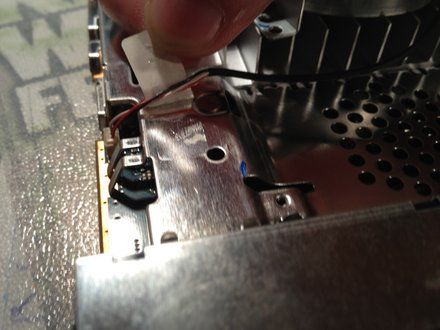

• Remove the three PH00 screws from the fan's cover.
• Then peel the duct tape back and remove the cable.

STEP 6::
[step 6 photo] [step 6 photo] [step 6 photo]

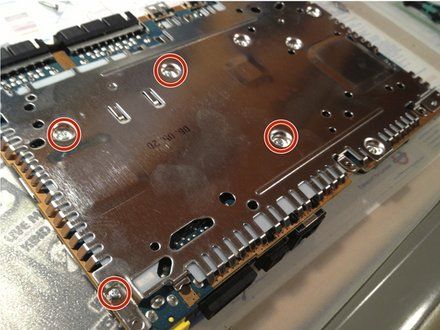

• Remove the four screws marked on the picture. These are located on the bottom side of the motherboard.

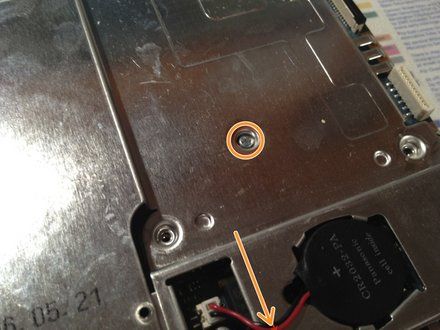

• Then flip the motherboard back over and remove the two rating screws on the upside.

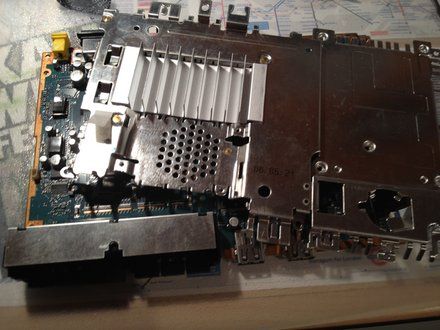

• NOTE: Now both metal plates should be ready to remove.

STEP 7::
[step 7 photo] [step 7 photo]

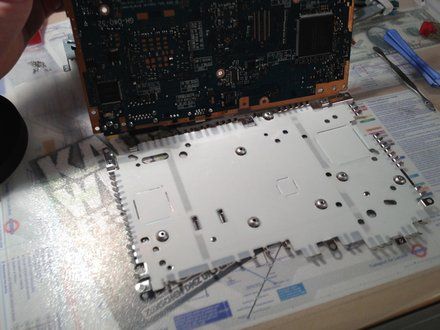

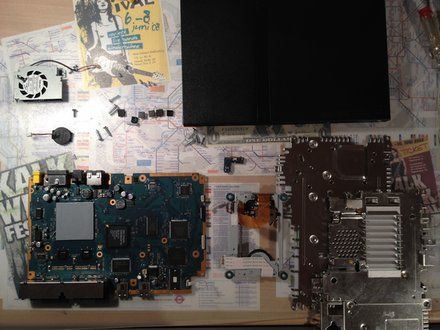

• Remove the metal plate from the bottom side of the motherboard.
• NOTE: Now everything should be disconnected and you successfully torn your PlayStation 2 Slimline down.
• NOTE: To reassemble, follow these steps in reverse.

CREDIT::
This guide is by tlroesner on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
[all repair guides]
