IBM ThinkPad 600E Display Replacement

Device	IBM Thinkpad 600E
Difficulty	Difficult
Time	30 - 40 minutes
Steps	14

This guide is by Kevin Nguyen on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show you how to replace your display from your laptop. You would need to replace it if you break your display.

Tools: Anti-Static Wrist Strap; Metal Spudger Set; Phillips #00 Screwdriver

Step 1

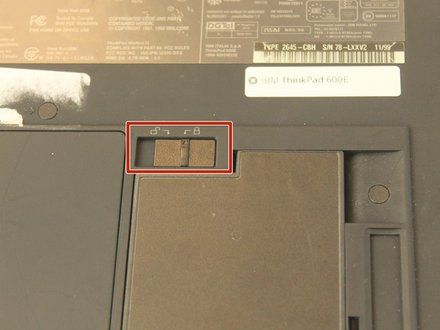

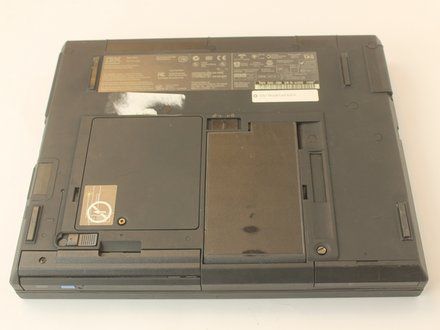

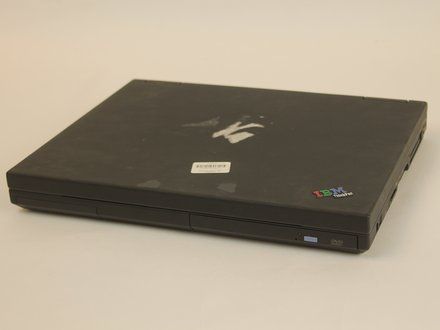

• Flip the laptop over and find the battery latch.

Step 2

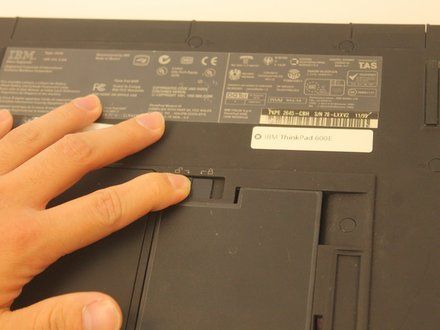

• Move the latch to the side with the unlocked symbol.

Step 3

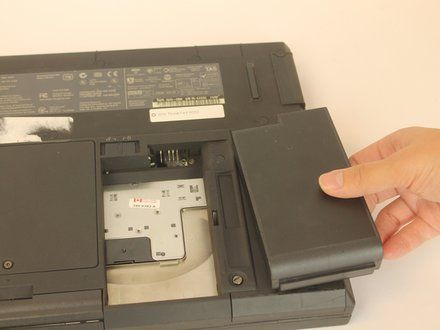

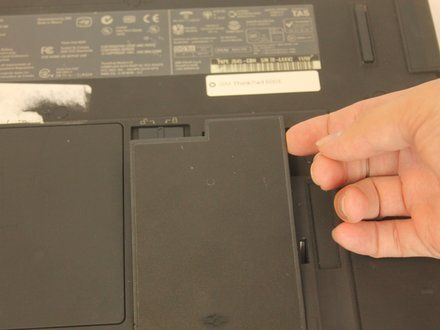

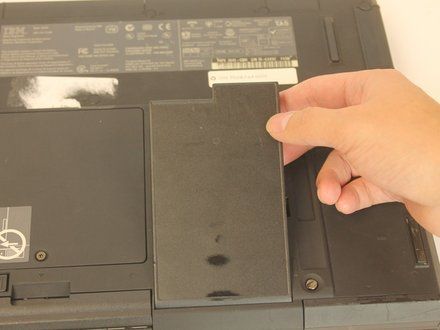

• Pry the battery out using your fingers.

Step 4

• CAUTION: Use an antistatic wrist strap (https://www.ifixit.com/en-ca/products/anti-static-wrist-strap) to avoid the risk of electric shock.

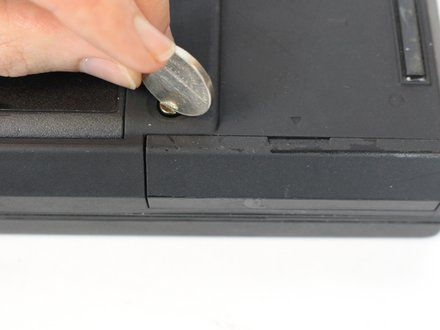

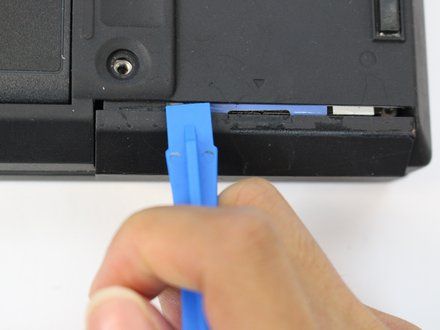

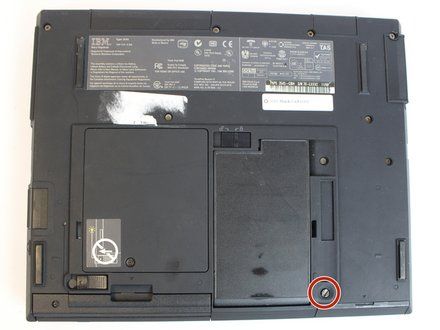

• Unscrew the coin screw for the hard drive using a coin. Pry off the HDD cover.
• NOTE: It is easier to remove the coin screw using a thicker coin, such as a nickel.

Step 5

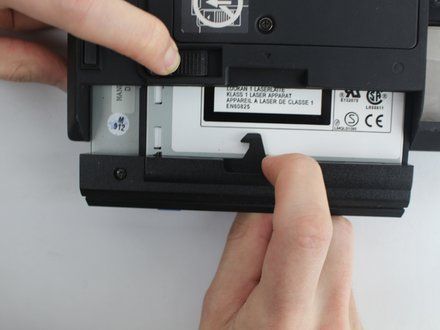

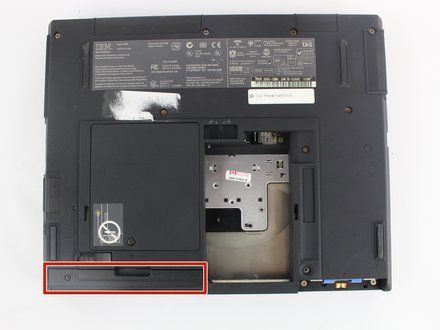

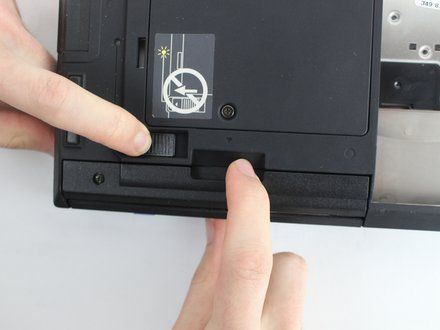

• Unlock the highlighted latch and pull the disk drive out.
• Remove the disk drive.

Step 6

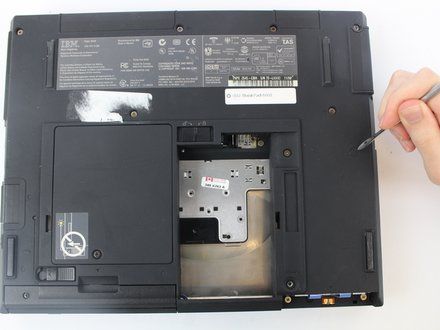

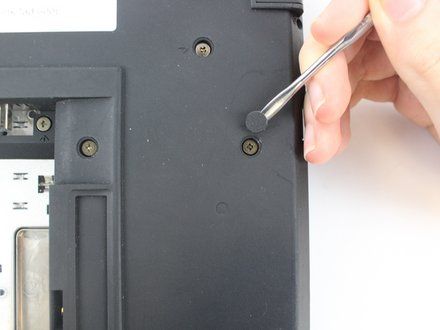

• NOTE: Most of the screws have a small, plastic covering attached with an adhesive. Use the metal spudger to pry it off. Make sure to note which screw came from which hole.

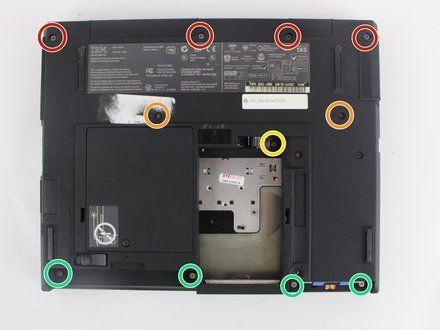

• Four 18mm long M2.5 screws
• Two 16mm long M2.5 screws
• One 4.5mm long M2.5 screws
• Four 3mm long M2.5 screws

Step 7

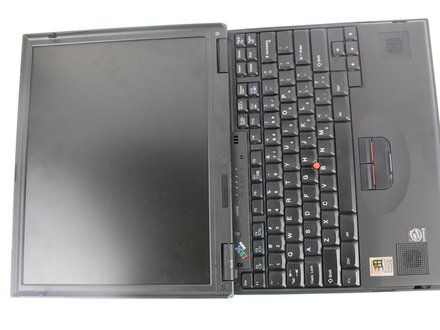

• Open the laptop all the way until it is flat.

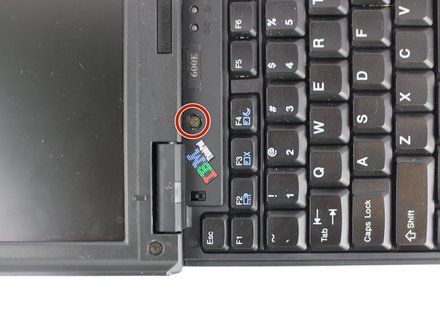

• Take the black circle off and remove the screw.
• One 4.5mm long M2.5 screw

Step 8

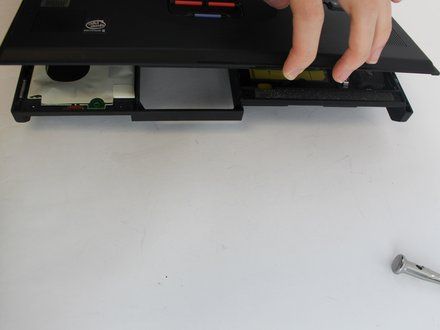

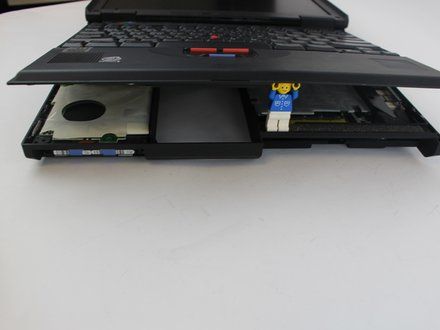

• Pry the keyboard case up from the bottom and gently pry it up from all other edges.

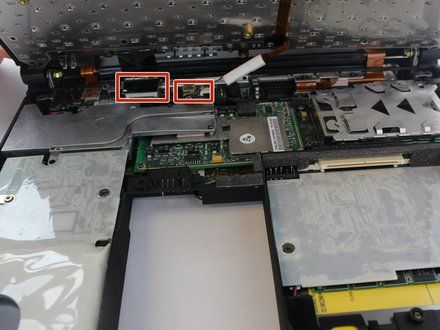

• CAUTION: Use caution when opening the case, as there are two ribbon cables attached to the keyboard case.

Step 9

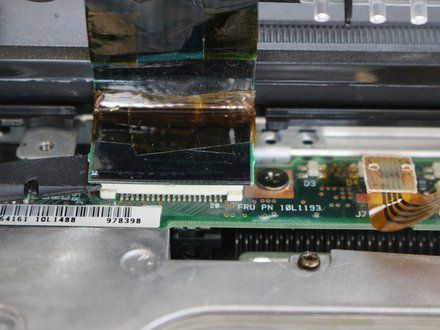

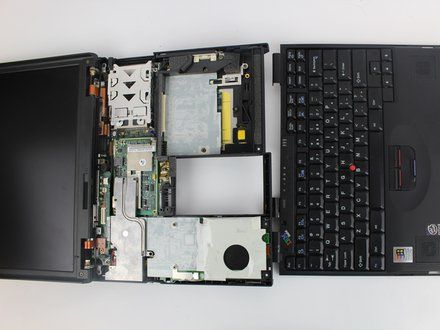

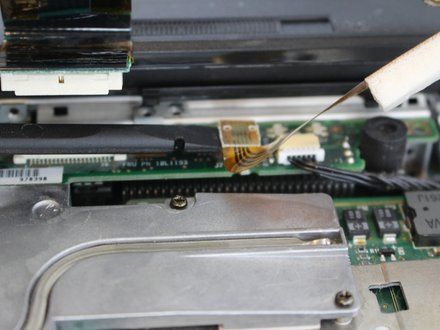

• Pry the connectors of the ribbon cables off slowly, lifting straight up. Wiggle gently side to side if necessary.

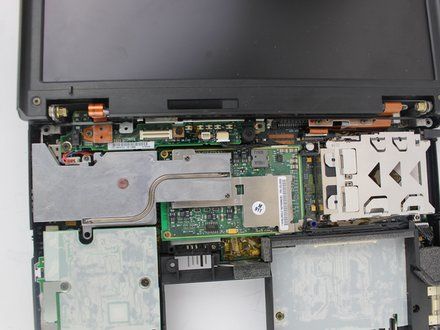

Step 10

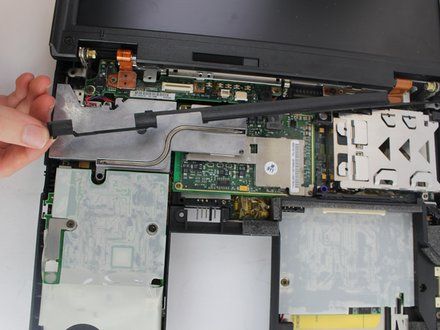

• Remove the plastic part attached to the bottom of the screen.
• Gently pull it from one side and then from another.

Step 11

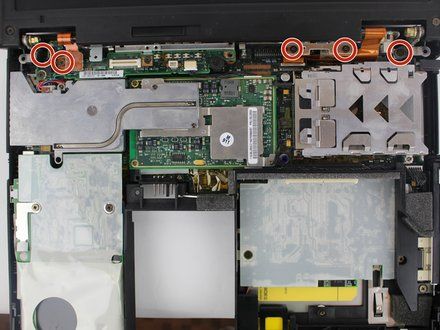

• Remove the highlighted screws.
• Five 4.8mm long M2.5 screws

Step 12

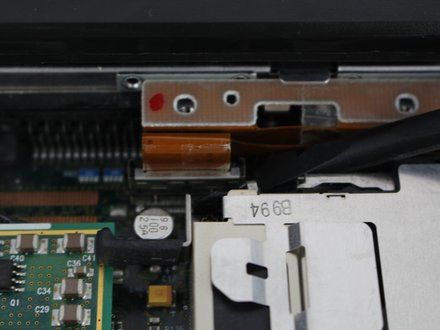

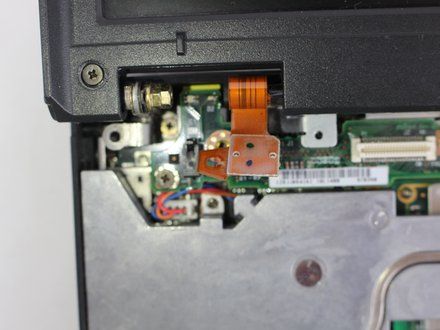

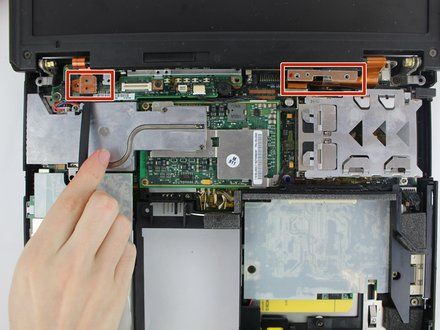

• Pry the connectors of the ribbon cables off slowly, lifting straight up. Wiggle gently side to side if necessary.

Step 13

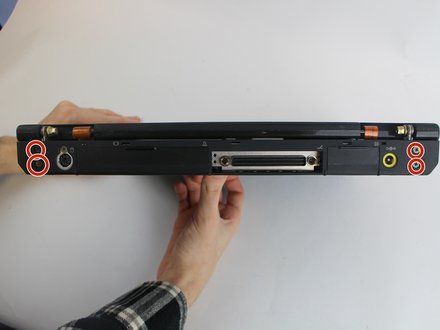

• Close the laptop and turn it around. There you will see 4 more screws.
• Unscrew highlighted screws.
• Four 4.8mm long M2.5 screws

Step 14

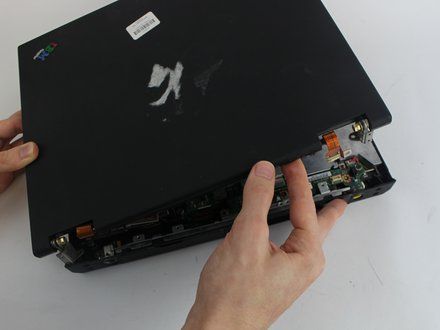

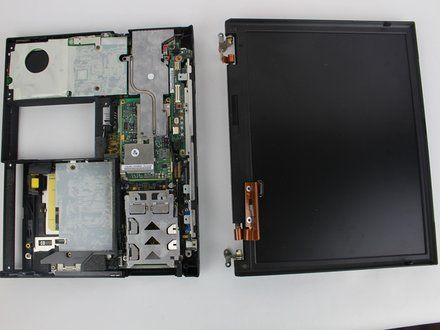

• After you've removed the screws, open the laptop and gently pull the display out.
• CAUTION: Be sure you hold it from the bottom edges while taking it out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
