PlayStation 2 controller Teardown

Device	DualShock 2
Difficulty	Moderate
Time	No estimate
Steps	3

This guide is by Georgie Patton on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Its for my stem class and teardown and reassemble a playstation 2 controller

Tools: Phillips #00 Screwdriver

Step 1

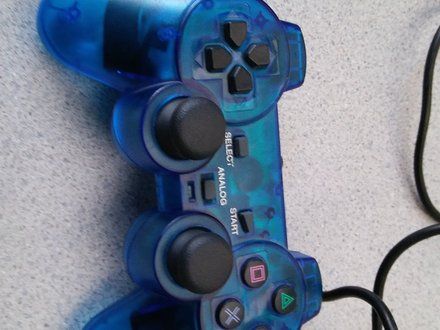

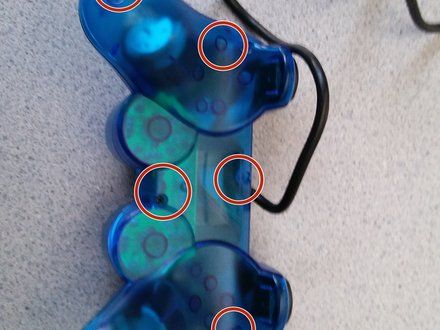

• I had to remove all the screws on the back to get the controller open to see the inside or tear it down

Step 2

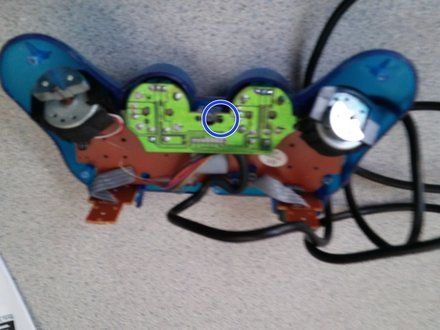

• so after i removed the back of the PS2 controller, this was the back inside of the controller and i had to remove one screw on the mother board

Step 3

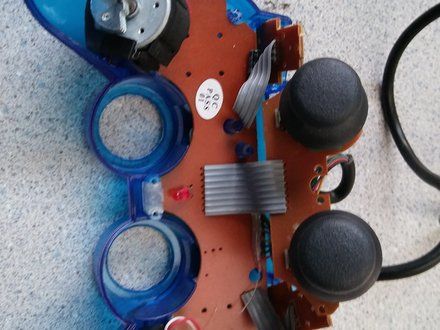

• The last step was on the other side of the controllers backside, also the inside and this is where we removed the two sticks and had to put all the screws and pieces back together.
