Game Boy Color Teardown

Device	Game Boy Color
Difficulty	Moderate
Time	No estimate
Steps	8

This guide is by Bryan Trevizo on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Pro Tech Toolkit

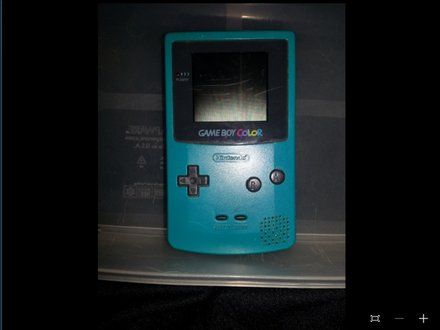

Step 1

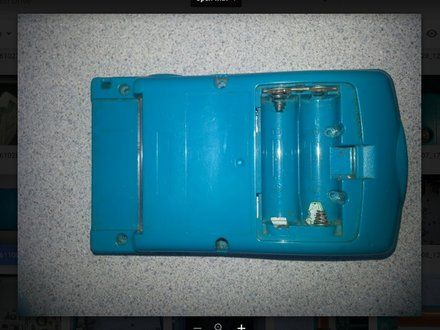

• Start with a game boy color.

Step 2

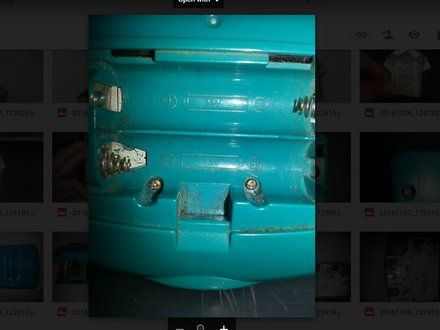

• First, you will want to remove the battery cover and take out the batteries if you have any in the unit.

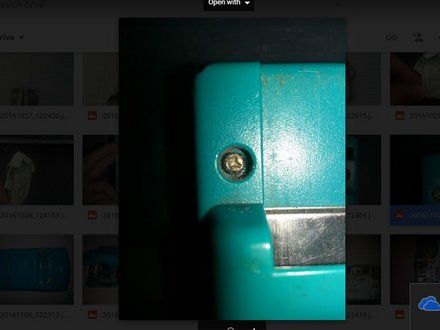

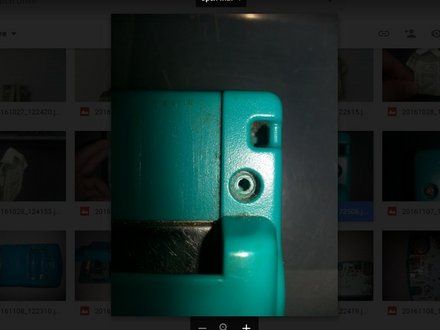

• Next, unscrew all six tri-wing screws from the back cover. Two are located at the top, two in the middle, and two at the bottom (behind the battery cover).

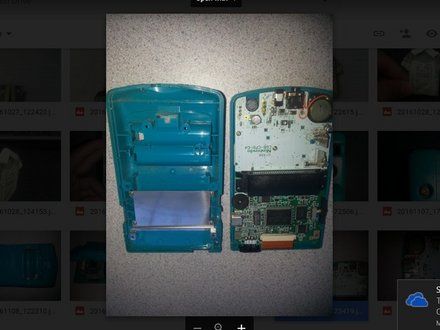

Step 3

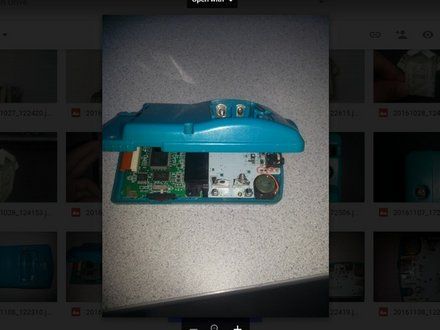

• Then once all the screws have been removed just gently take off the back cover of the game boy and set it aside .

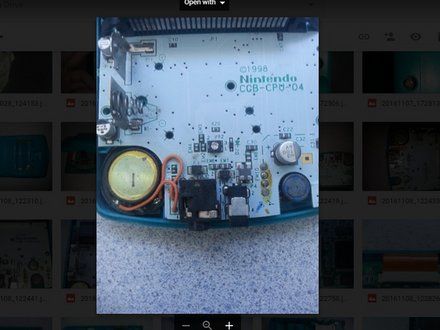

Step 4

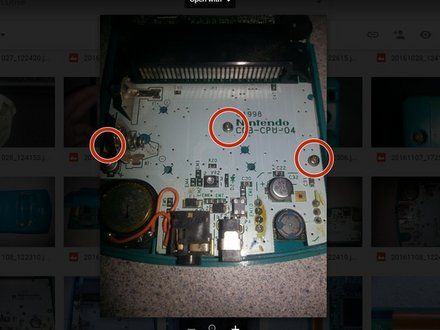

• Now that you have taken off the cover on the botom half there are three screws that need to be taken out. One of them is behind the metal part on the left and it is a little hard to see but it is simple to get out.

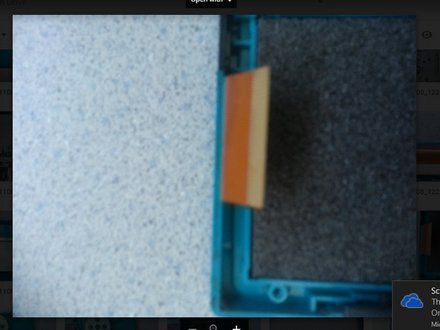

Step 5

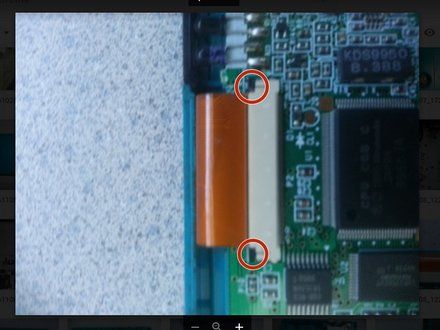

• Now don't go immediately taking off the mother board because there is a orange film (this is the LCD ribbon cable) at the top that needs to be taken out first.
• All you have to do is look carefully at each side of it. There are two little pieces of brown plastic that need to be loosened, but not taken out.
• Using either your fingernail or something small and stiff, preferably made of hard plastic or metal that won't bend, gently push the brown pieces in the direction of the orange film.
• The cable will just slide out with a little bit of force, but be careful not to tear or bend the cable when sliding it out.

Step 6

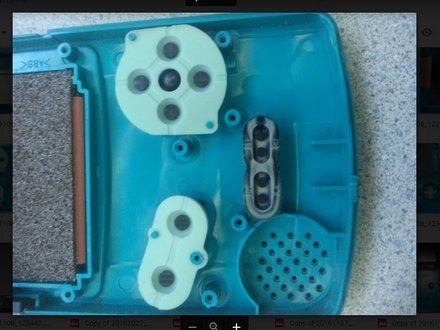

• Now the buttons will simply fall out so when taking them out just don't throw the game boy upside and make everything fall out.

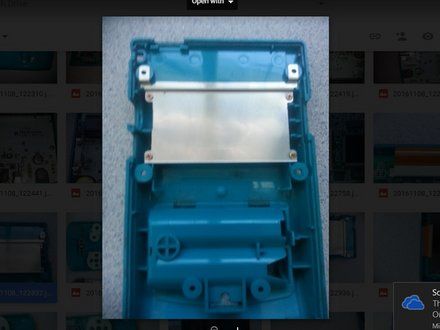

Step 7

• The last thing you're going to do is to remove the metal plate from the back piece that you set aside.
• All you need to do is unscrew the four screws holding down the metal plate. The screws are easily removed with an appropriately size phillips head screwdriver.

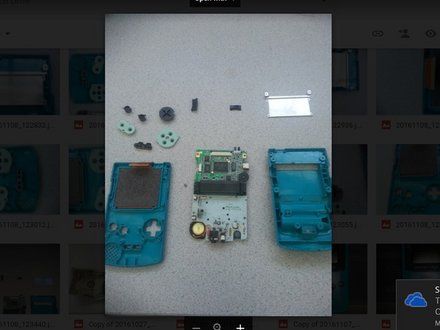

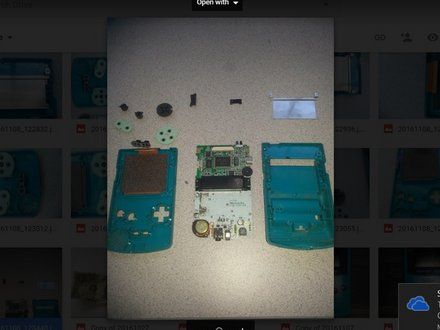

Step 8

• Once you have finished the last step you are now done ,and to put it back together just undo the process in the same order just backwards.
