XBOX TEARDOWN::
DeviceXbox
DifficultyModerate
Time1 hour
Steps9
This guide is by Justin Moreno on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The pictures I took don't clearly explain all the processes I apologize, but hopefully the captions will help you. Also I'm new to this, so sorry for bad pictures.

Tools: TR10 Torx Security Screwdriver; T15 Torx Screwdriver; Metal Spudger

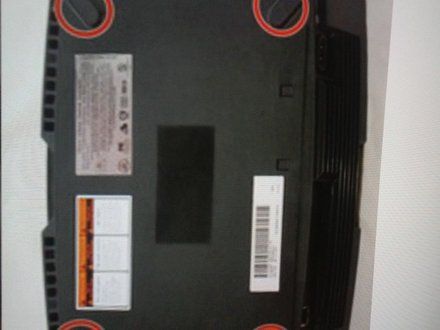

STEP 1 :: TAKING OF THE TOP::
[step 1 photo]
• Flip over the Xbox to where it shows the bar codes. Take of the black grips. Also scratch around where it has the stickers to find the screws there are a total of six, 2 of the screws are within the stickers.

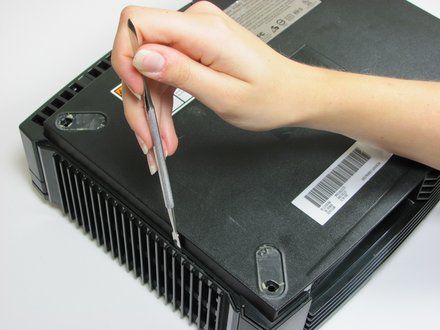

STEP 2 :: THE TOP::
[step 2 photo]
• (This photo is not mine it was from another ifixit and i will use 5 photos from them since i couldn't find the ones i took)
• When you get the screws off use the spudger to get it open by finding a crack that goes all around the xbox

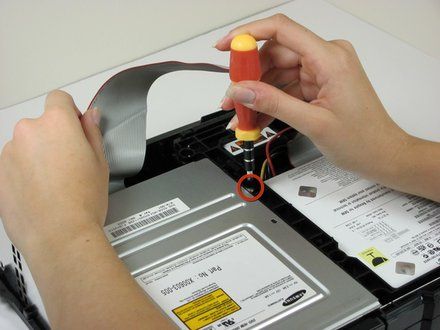

STEP 3 :: REMOVING THE HARD DRIVE PT1::
[step 3 photo]
• (This photo is not mine it was from another ifixit and i will use 5 photos from them since i couldn't find the ones i took)
• After you take of the top you will see all the circuits.
• Look around and you will find 3 screws that are holding down the disc drive and remove them.

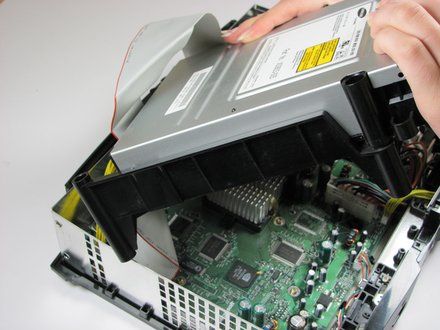

STEP 4 :: REMOVING THE HARD DRIVE PT2::
[step 4 photo]
• (This photo is not mine it was from another ifixit and i will use 5 photos from them since i couldn't find the ones i took)
• When you do that just take off the disc drive depending on what you are trying to fix just unplug the wires going to it and set it aside.

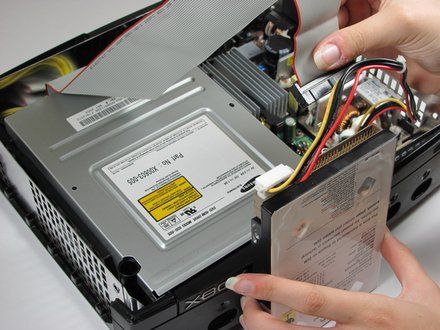

STEP 5 :: REMOVING THE DISC DRIVE::
[step 5 photo]
• (This photo is not mine it was from another ifixit and i will use 5 photos from them since i couldn't find the ones i took)
• Unplug any wires that seem to be poking out then take out the disc drive which should just come out.
• Same thing if its not your focus just put it to the side.

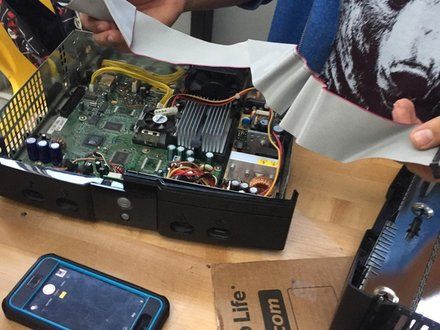

STEP 6 :: THE RIBBON::
[step 6 photo]
• The rest are my pictures
• Remove the ribbon carefully

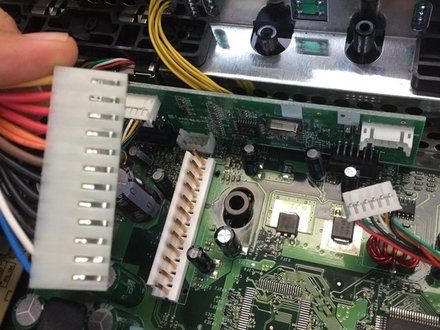

STEP 7 :: THE RAINBOW WIRE::
[step 7 photo]
• Somewhere on the motherboard there will be a multi-colored wires that are together and just simply unplug it.

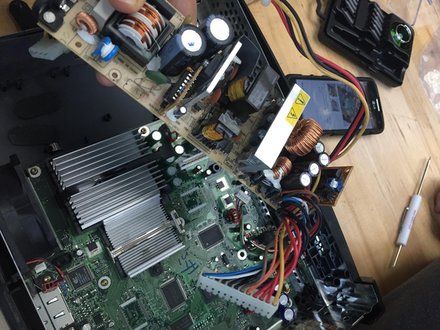

STEP 8 :: REMOVING THE TRANSFORMERS::
[step 8 photo]
• To the left of the Rainbow wire there are a lot of transformers which we will need to take out.
• There will be screws holding it down so just look around the transformers.
• Disconnect any wires that are connected to it before picking it up.
• Set it aside if its not what you are going for.

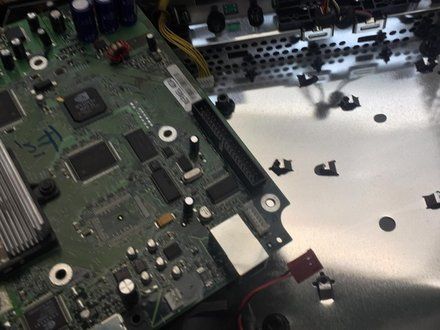

STEP 9 :: THE MOTHERBOARD::
[step 9 photo]
• When the transformers are gone look around the motherboard which should be the last electronic left.
• There also will be screws around,when you find them unscrew them and all you have to do know is carefully take out the motherboard
• Then your done at taking out the motherboard.

CREDIT::
This guide is by Justin Moreno on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
