Power Mac G4 M5183 Teardown STEM Project

Device	Power Mac G4 M5183
Difficulty	Moderate
Time	No estimate
Steps	11

This guide is by Harrison Case on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide is for my engineering class. My goal is to show you how to fully gut a Power Mac G4.

Tools: Phillips #1 Screwdriver; 2.5 mm Hex Key; iFixit Opening Tool

Step 1 :: Case

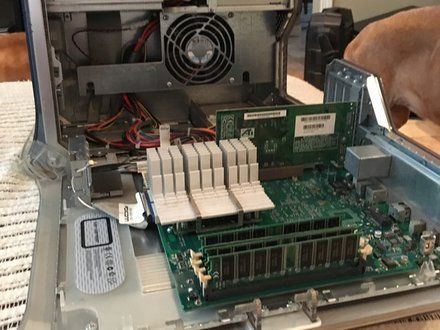

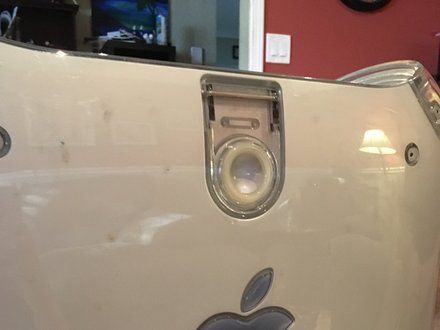

• Pull the tab to open the case.

Step 2 :: RAM

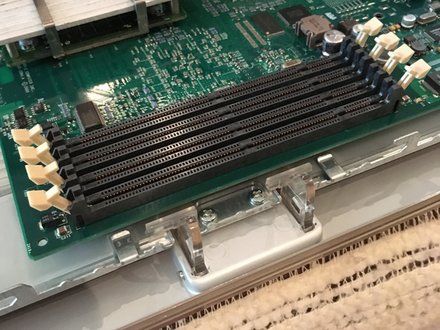

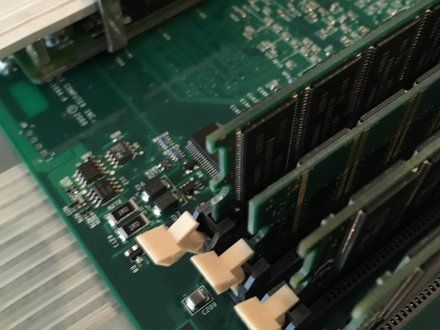

• Pull the white tabs down
• Lift up the RAM
• Repeat x4

Step 3 :: Heat-sink

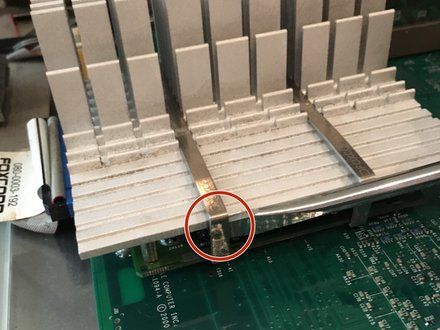

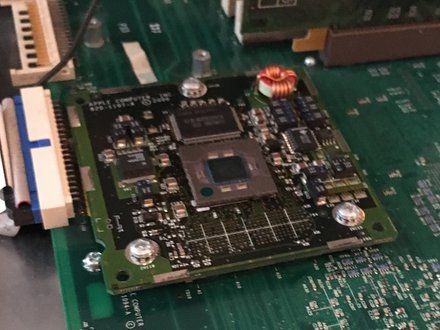

• Use a flat head screwdriver or spudger to lift up the tabs that hold down the heat-sink.
• Repeat x2
• The heat-sink should just lift right off.

Step 4 :: GPU

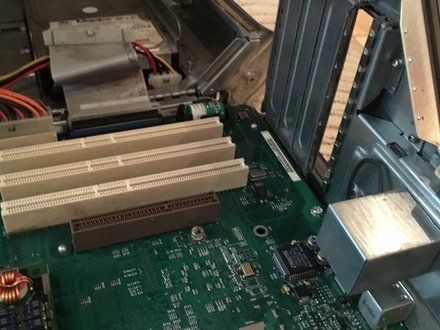

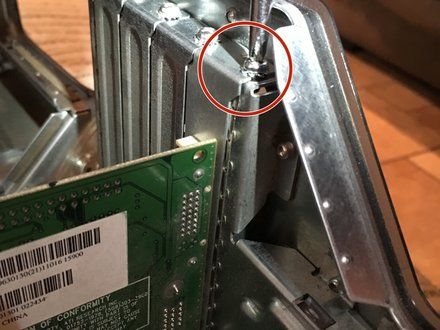

• Remove highlighted screw.
• The GPU should lift right out.

Step 5 :: Mother Board

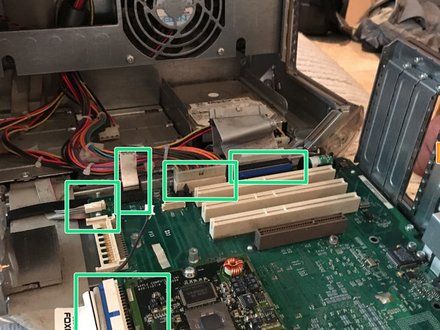

• Remove highlighted cables.

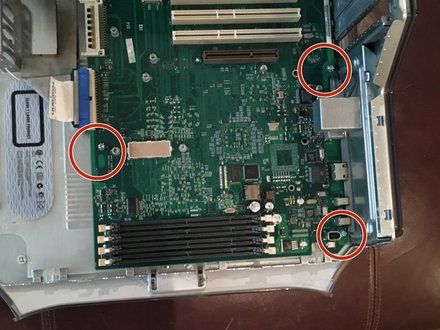

• Remove highlighted screws.

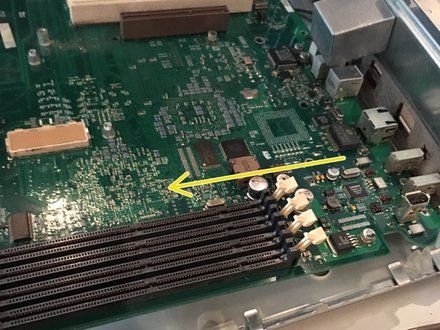

• Lift out the motherboard. (Note: pull to the left to clear the ports from the case)

Step 6 :: CPU

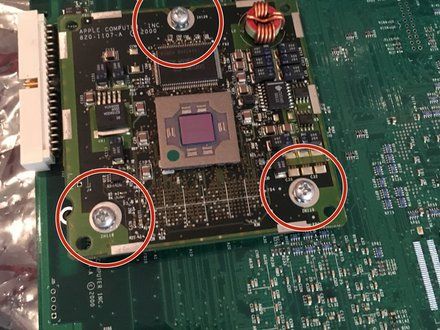

• Remove highlighted screws.

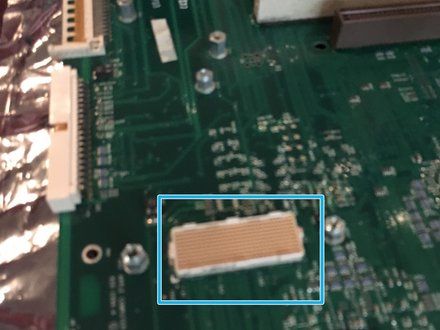

• After removing the screws, simply lift off the CPU from the connector. Use only a minimal amount of pressure when pulling the CPU from the connector.
• This is the connector after removal of the CPU.

Step 7 :: DVD/ROM drive

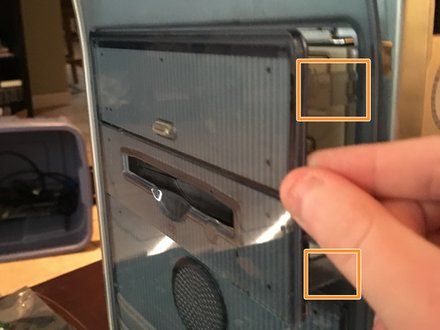

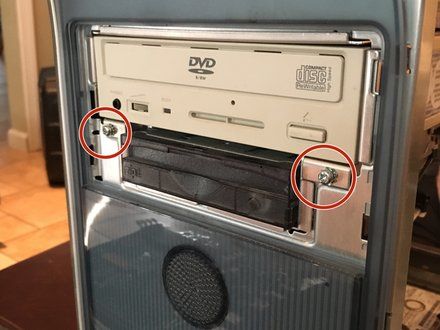

• Remove the face plate. You are supposed to press down the highlighted tabs from the inside.
• Remove highlighted screws.

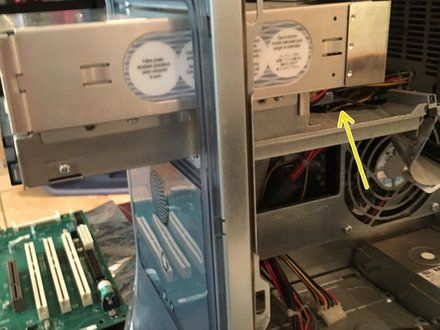

• Slide out the drive. (MAKE SURE TO UNHOOK THE CABLES)

Step 8 :: Hard drive

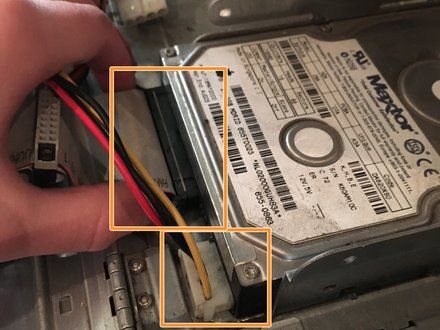

• Remove the highlighted cables.

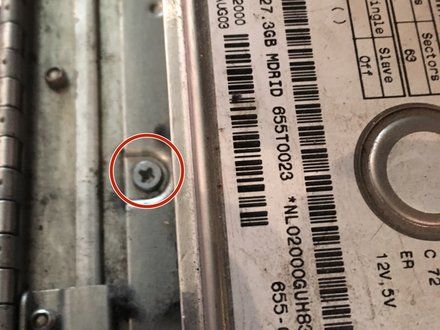

• Remove highlighted screw.

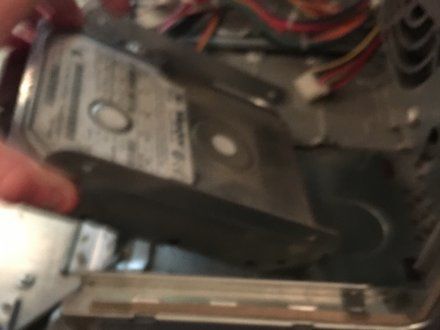

• Lift out the hard drive.

Step 9 :: Main Fan

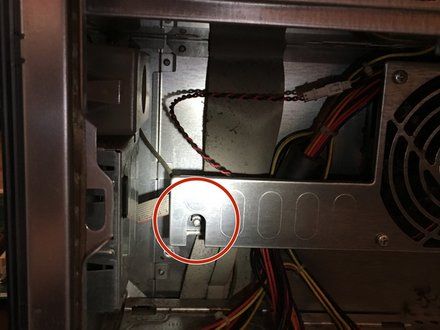

• Remove highlighted screw. ( SAME SCREW ON OPPOSITE SIDE, REMOVE THAT AS WELL.)

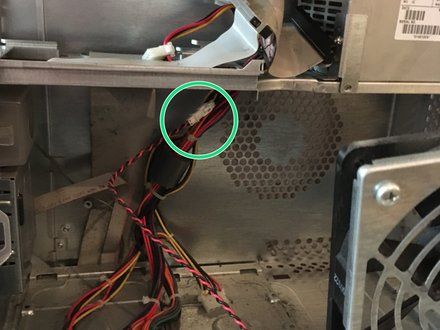

• Disconnect the connector.
• After that, just pull it out.

Step 10 :: Power Supply

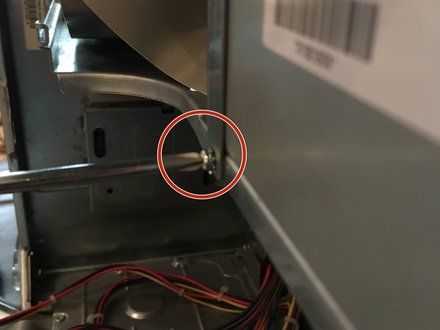

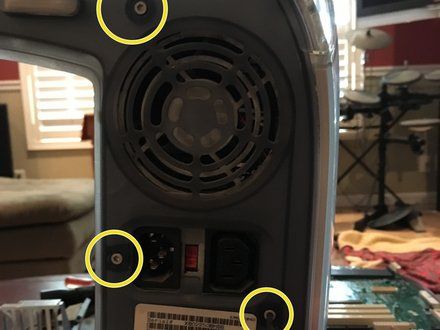

• Use a 2.5 mm hex key to remove these screws.
• Remove highlighted screw.

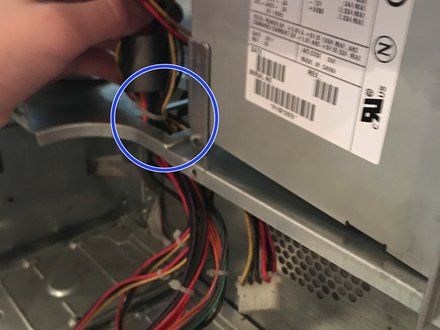

• Feed the wires through the highlighted hole, then pull out the power supply.

Step 11 :: Finished!

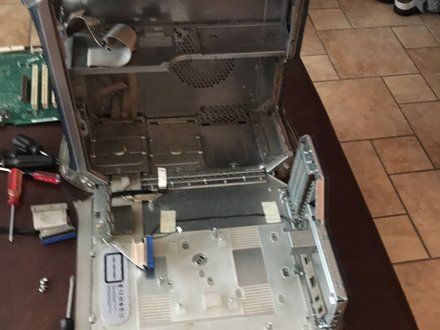

• You will be left with an empty case.
