Apple IIc Floppy Drive Replacement

Device	Apple IIc
Difficulty	Easy
Time	15 minutes
Steps	10

This guide is by Alexandria Weinberg on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

If your driver is malfunctioning or broken, this guide will show you how to replace your Apple IIc floppy Drive.

Tools: Phillips #2 Screwdriver; iFixit Opening Tool

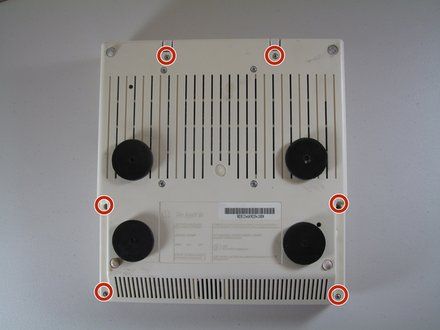

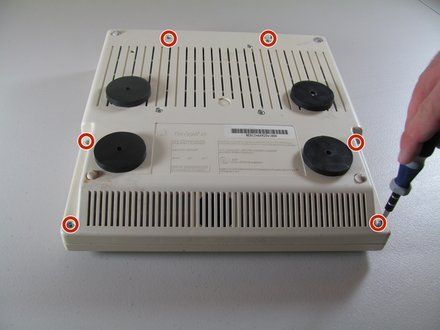

Step 1

• Remove the six 19 mm long screws with a #2 Phillips head screwdriver.

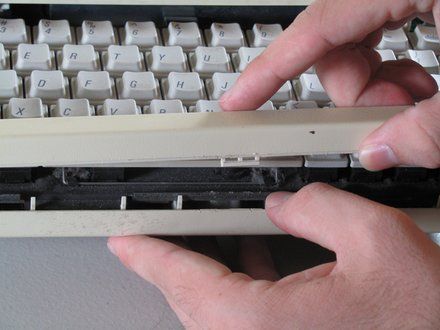

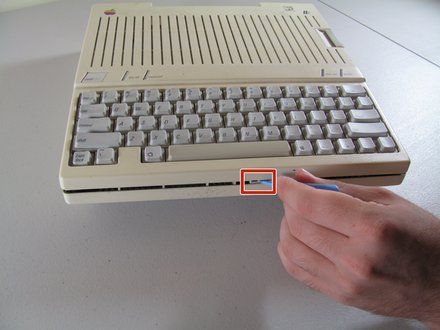

Step 2

• Release the catch by pushing it in using a plastic opening tool.
• NOTE: The catch is off-center, but in line with the middle of the speaker underneath.

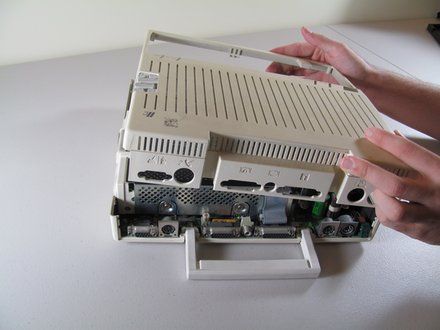

Step 3

• Slide the case toward the ports on the back, then grip under the catch and pull up while moving toward the ports to remove.

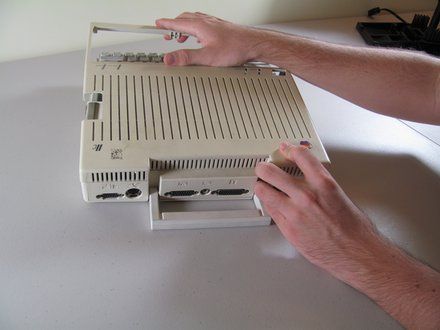

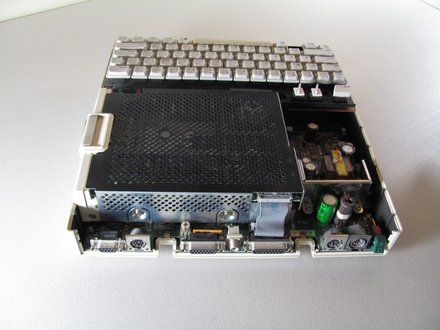

Step 4

• Lift the handle straight up to remove.

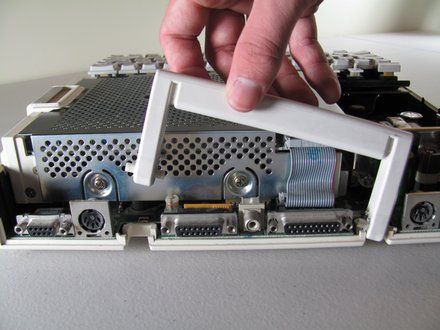

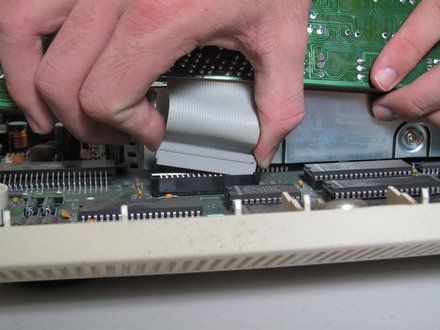

Step 5

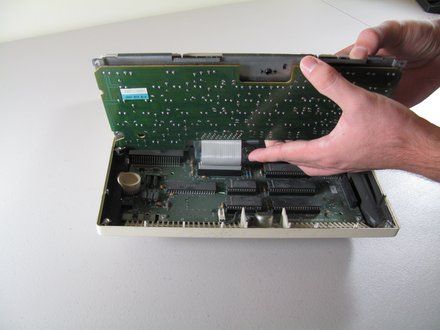

• Tilt the keyboard up while detaching the ribbon connection by pulling it straight up. You may have to wiggle the connector sideways to loosen it.
• CAUTION: Be careful not to force the ribbon while pulling it out to avoid tearing. Do not try to pull the ribbon out by pulling the keyboard as it may cause tearing.

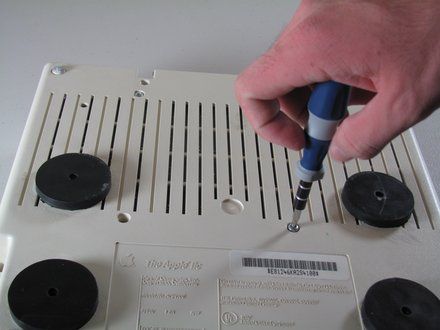

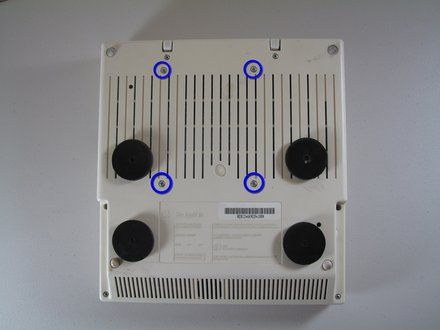

Step 6
