GAME BOY DISPLAY LINES/BARS::
DeviceGame Boy
DifficultyModerate
Time30 seconds - 1 hour
Steps5
This guide is by Mitchell on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Fixing the common problem of lines/bars on the original Nintendo Gameboy.

Tools: Soldering Iron; Phillips #0 Screwdriver; Tri-point Y0 Screwdriver


STEP 1::
[step 1 photo] [step 1 photo] [step 1 photo]

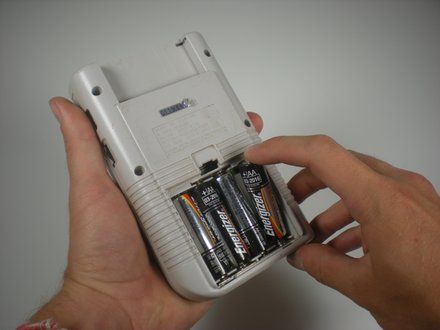

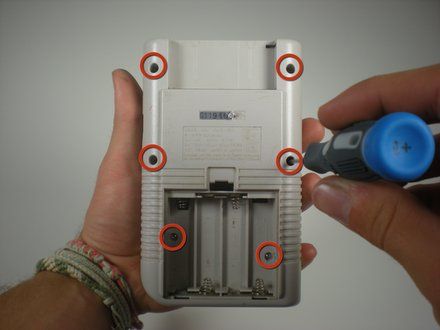

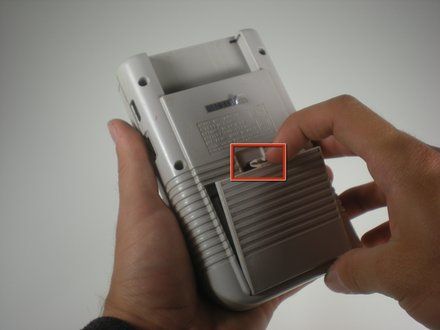

• Remove the back housing by removing the 6 Tri-Point or Philip screws.
    • NOTE: Note: The last 2 screws are in the battery compartment.

STEP 2::
[step 2 photo] [step 2 photo]

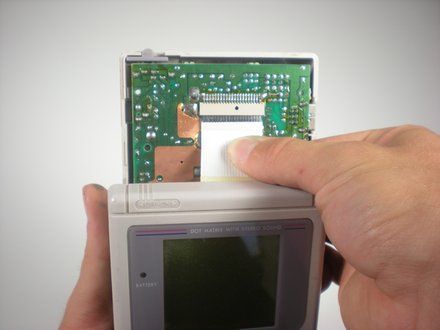

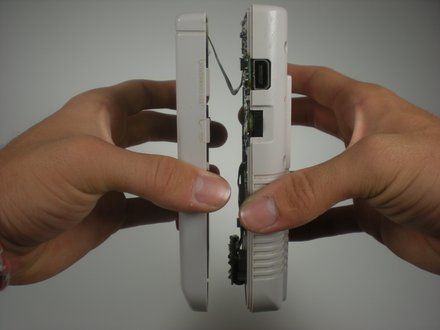

• Carefully lift up the top half of the system. Be careful, there's a ribbon cable that connects the top and bottom half of the system.
• Remove the ribbon cable for the next step.

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

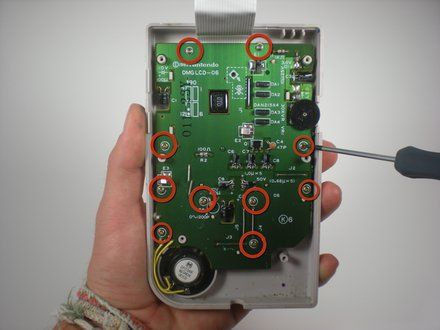

• Now there will be screws that mount the board to the front, carefully unscrew these.

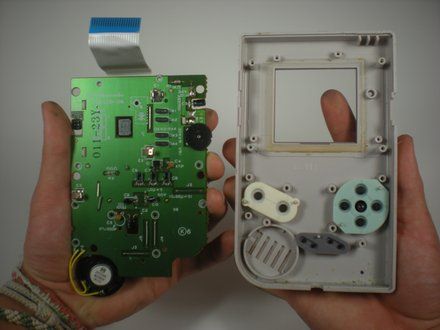

• Now remove the board from the housing.
• Now put the batteries back into the compartment, so you can test the screen while you fix it.
• Reconnect the the board to back housing with the ribbon cable.

STEP 4::
[step 4 photo]

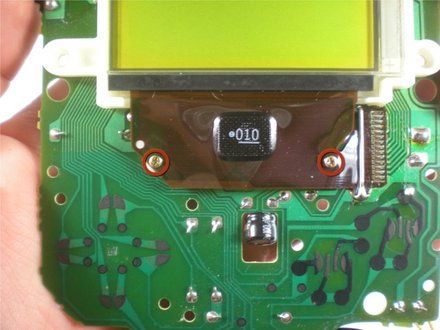

• You're now going to turn the contrast ( the slider on the left) all the way up, and take your soldering iron and gently move it back and forth on the ribbon cable below the screen.
    • CAUTION: Make sure not to touch the screen itself.
    • NOTE: Note: There may be a rubber strip covering the ribbon.

STEP 5::
• You will start to see the lines of pixels fade in and out, keep moving your iron back and forth until screen is completely black.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
