PLAYSTATION 2 SLIMLINE TEARDOWN::
DevicePlayStation 2 Slimline
DifficultyModerate
Time1 hour
Steps12
This guide is by kempc8 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will walk you through the steps of disassembling and reassembling a playstation 2 slim. A step by step guide with pictures.

Tools: Phillips #00 Screwdriver; Spudger; Tweezers; Magnetic Project Mat; ESD Gloves; Anti-Static Mat


STEP 1 :: LET'S GET STARTED::
[step 1 photo]

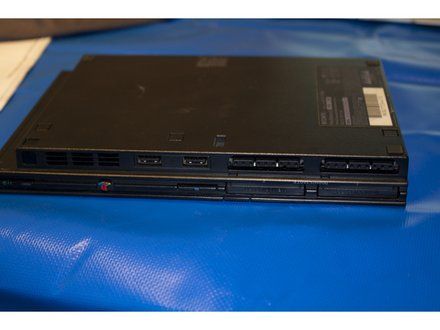

• Start with the console upside down.

STEP 2::
[step 2 photo] [step 2 photo]
• Remove the six screw covers and place on project mat.

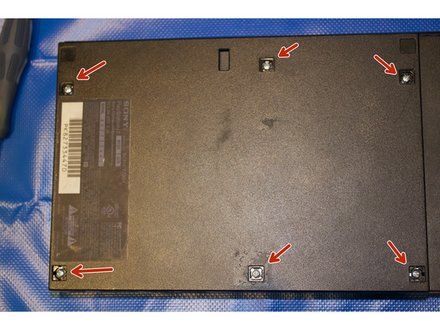

• Remove the six 4.0 mm screws on the base of the PS2. (Place on your project mat.)

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

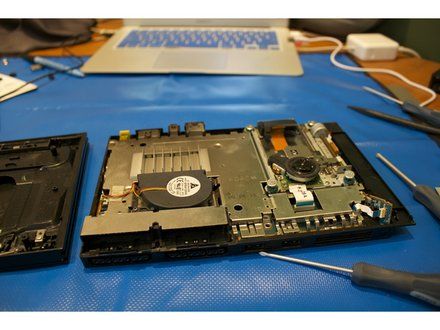

• Separate the bottom of PS2 from the top. Place to the side.

STEP 4::
[step 4 photo]
• ''This PS2 that I am tearing down has no clock battery!!"

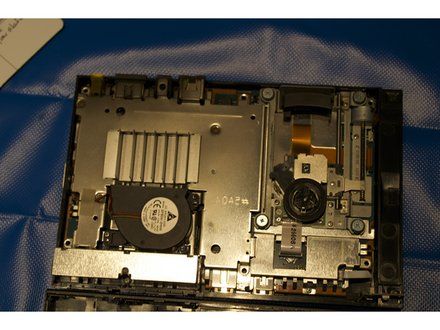

• Locate the clock battery. Take tweezers (https://www.ifixit.com/en-ca/products/tweezers) and gently disconnect from motherboard. (Place on project mat)

STEP 5::
[step 5 photo] [step 5 photo]

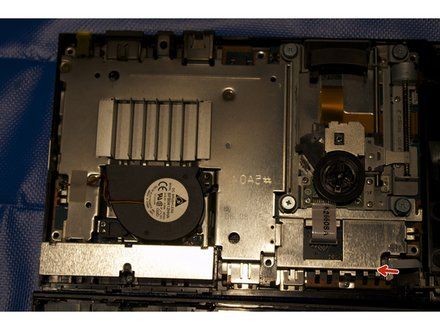

• IR sensor on the motherboard.
• Gently use a spudger to release the blue/ white ribbon from motherboard, (Place IR sensor on project mat)

STEP 6::
[step 6 photo] [step 6 photo] [step 6 photo]

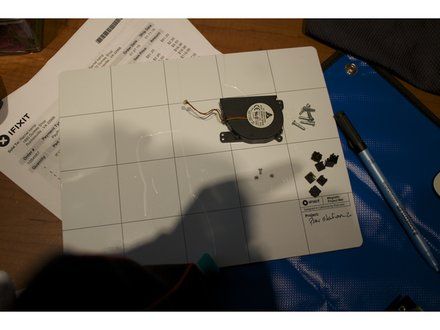

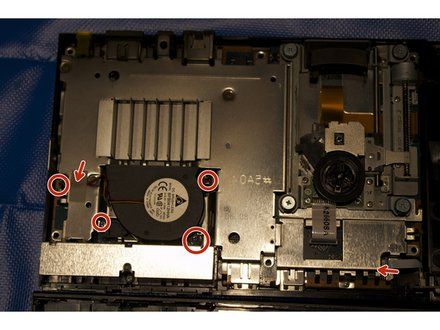

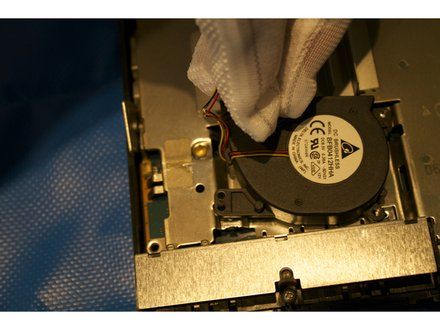

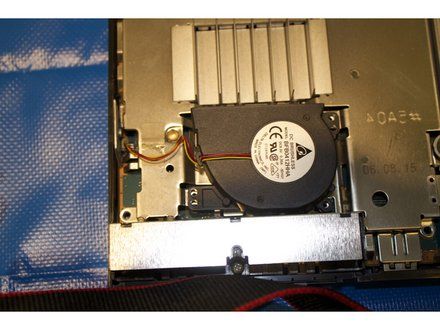

• Fan has red, black, and yellow wires under hold down tape. Remove the tape gently.
• Release the connector gently from motherboard.
• There three 1.6 mm screws around the base of the fan. Place both fan and screws on your project mat.

STEP 7::
[step 7 photo] [step 7 photo] [step 7 photo]

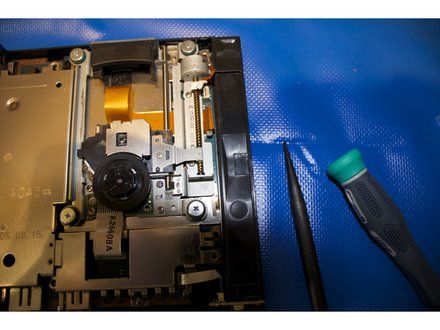

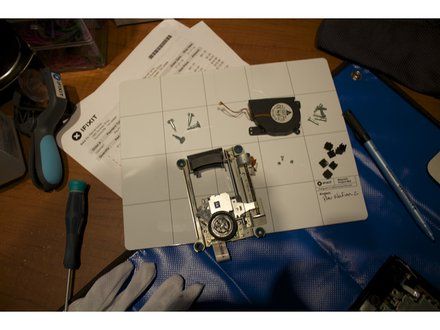

• Optical drive on the motherboard

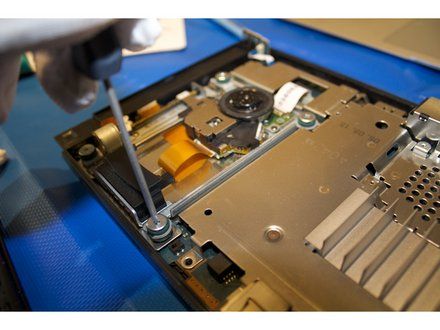

• There are four 4.0 mm screws holding the optical drive.
• Remove the four screws and place the optical drive with it's screws on your project mat.

STEP 8::
[step 8 photo]

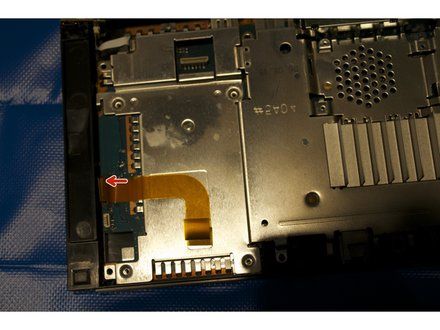

• There is a ribbon attached to the motherboard here. With your spudger, gently detach the ribbon from the motherboard's connection.

STEP 9::
[step 9 photo]

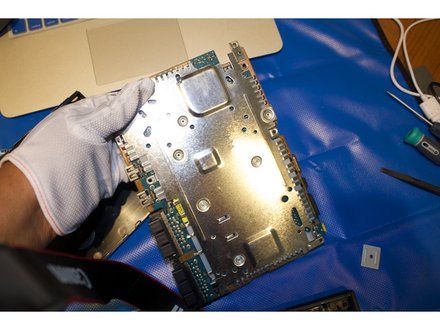

• Remove the single 2.4 mm screw located on the metal casing at the top of the motherboard.

STEP 10::
[step 10 photo] [step 10 photo]

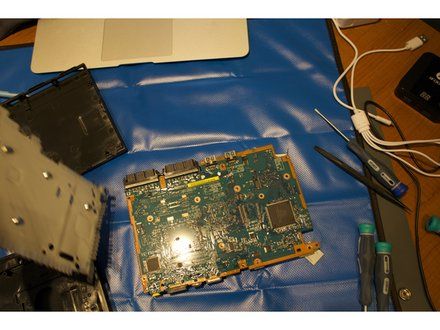

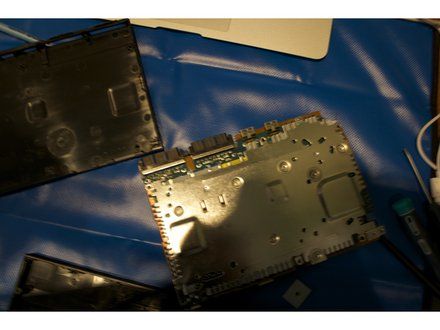

• Gently lift the metal casing from the motherboard. Place it to the side.

STEP 11::
[step 11 photo]

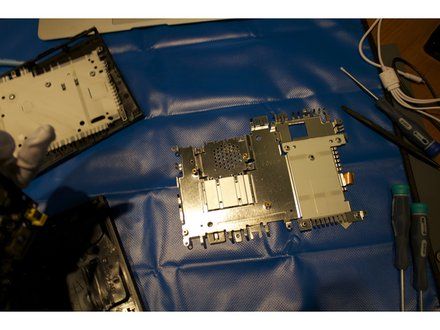

• Flip the motherboard over and remove the five screws of the second metal casing.
• Place screws on project mat and casing to the side,

STEP 12::
[step 12 photo] [step 12 photo]

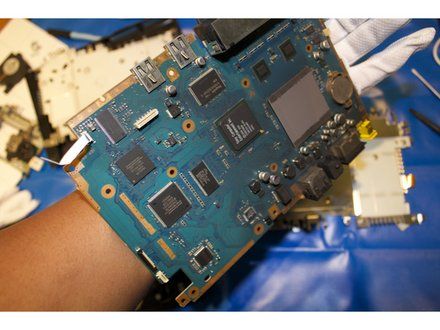

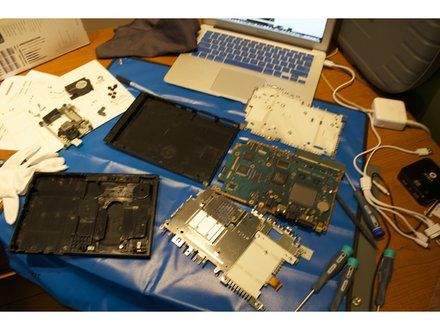

• Motherboard of PS2
• Thank you for reading through this PS2 tear down. I hope this was helpful,
