PowerBook 3400 M3553 Display Replacement

Device	PowerBook 3400 M3553
Difficulty	Difficult
Time	30 - 45 minutes
Steps	13

This guide is by Michael Mondragon on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

If your display is broken or damaged you will need to replace the entire display.

Tools: TR8 Torx Security Screwdriver

Step 1

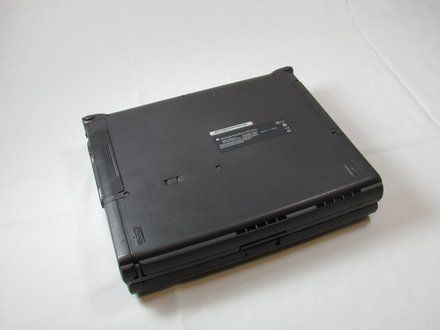

• Close the screen and turn the PowerBook over, orienting the computer upside down, using the label to guide you.

Step 2

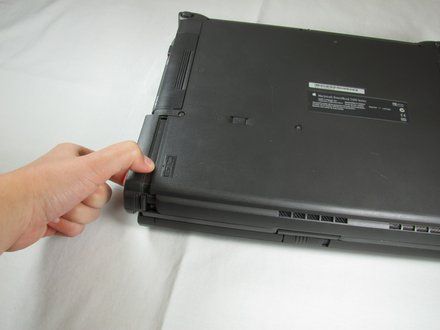

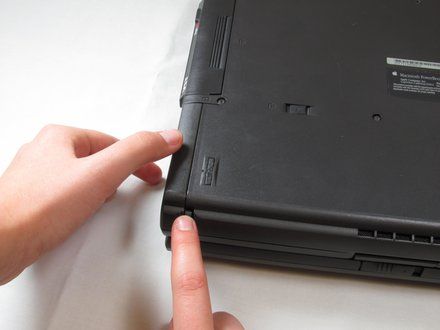

• Hold the button on the front left side and slide the battery out.

Step 3

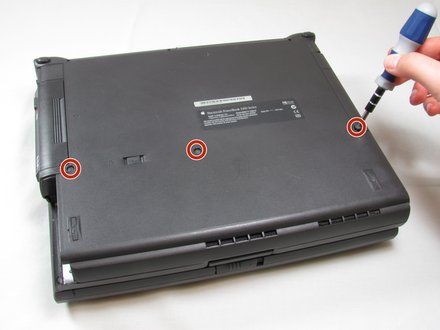

• With a Torx T8 screwdriver, remove the three Torx 24mm screws along the center of the back panel.

Step 4

• Turn the computer over and open the display. You should see that the keyboard is loose.
• CAUTION: Before attempting to remove the keyboard, note that a ribbon cable connects the keyboard to the logic board. Improper removal may damage your keyboard.

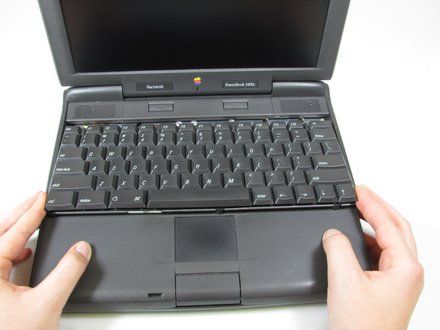

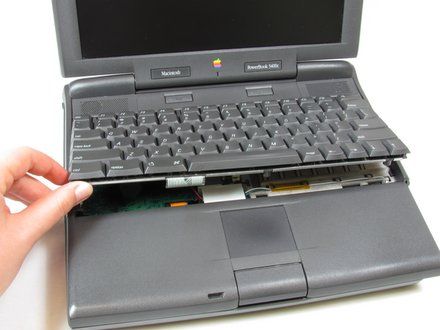

• Slightly lift the front of the keyboard up, and slide the keyboard towards yourself.

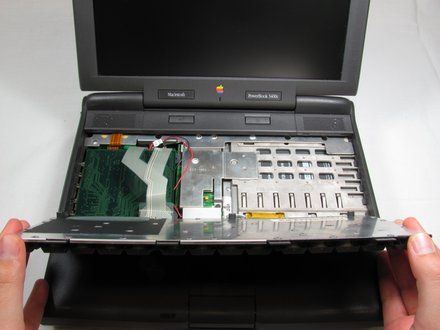

• Carefully lift the top half of the keyboard and pull it towards yourself.

Step 5

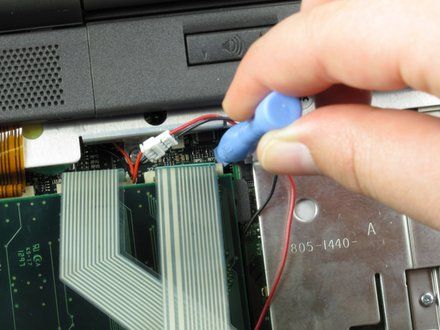

• Loosen the ribbon cables connecting the keyboard to the computer by using a plastic opening tool to lift the tabs on either side of the cable port.

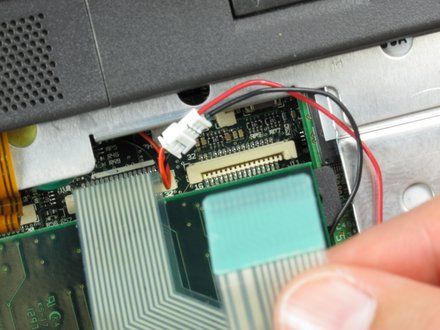

• Gently remove the ribbons from its tabs.

Step 6

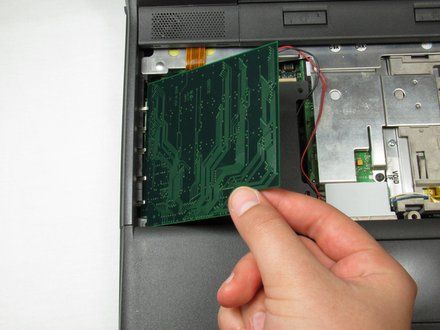

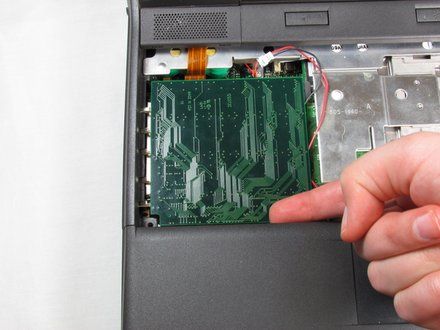

• Gently wiggle the RAM card to loosen the connection until it pulls free.

Step 7

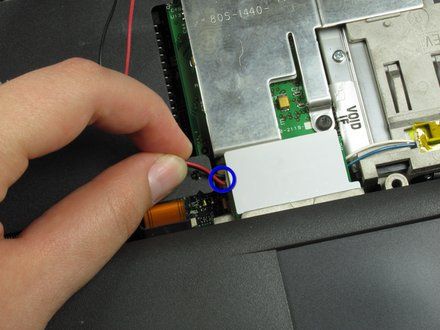

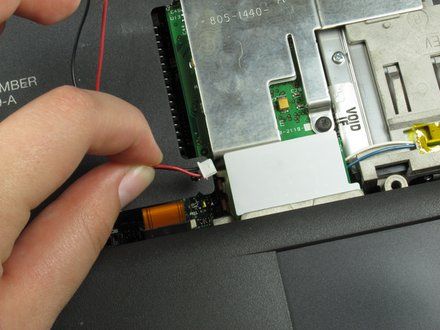

• Disconnect the wires from the port.

Step 8

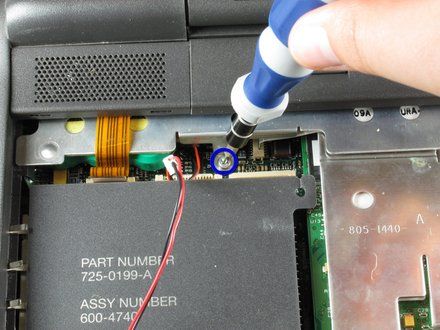

• Remove the 7mm screw connecting the speaker panel to the computer.

Step 9

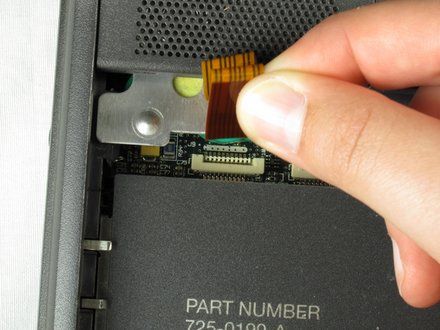

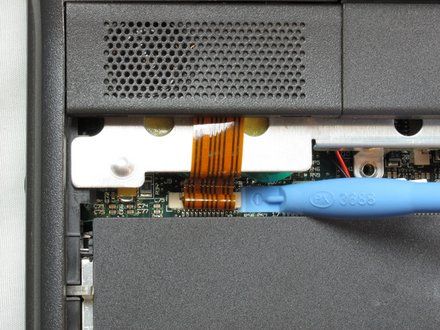

• To detach the speaker panel's ribbon cable, use a plastic opening tool to lift the tabs on both sides of the cable port.
• Once loose, pull the ribbon cable free.

Step 10

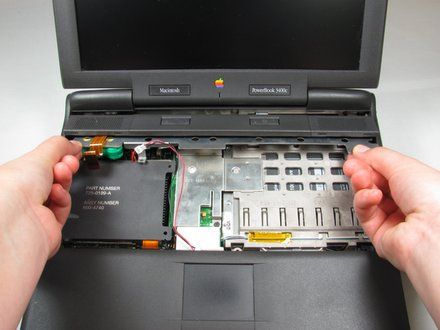

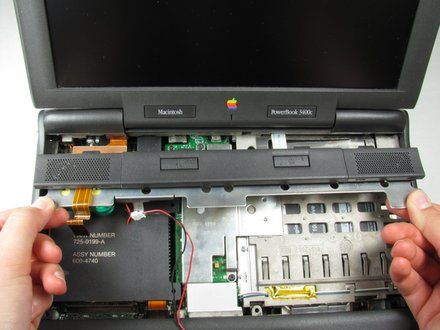

• Lift the lighting/audio panel from it's bottom corners and pull the panel towards yourself.

Step 11

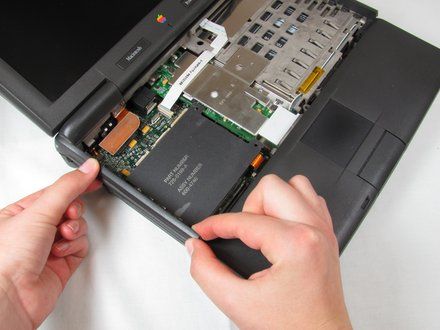

• Remove the panels on either side by gently but firmly pulling up on them with both hands.

Step 12

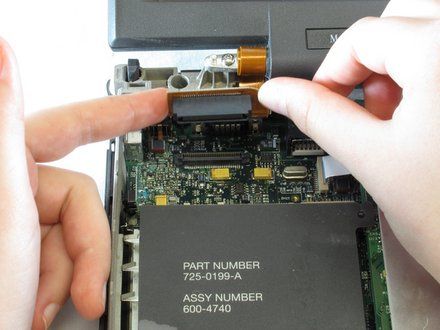

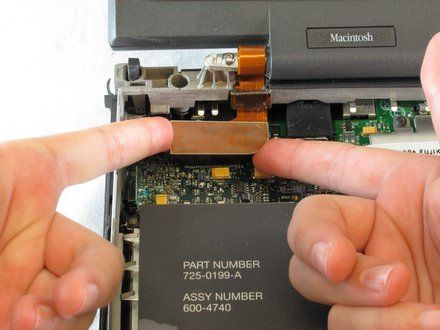

• Gently pull up on the ribbon cable connection that connects the screen to the logic board.

Step 13

• CAUTION: The two T8 13 mm torx screws hold the display screen in place. Be sure to remove the screws while supporting the screen or else it will fall.

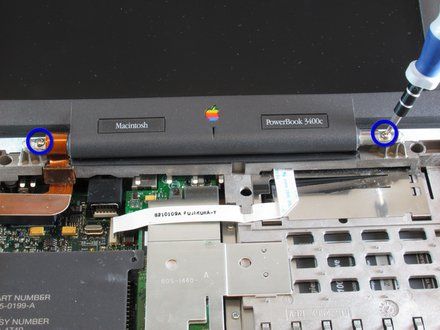

• Remove the two T8 13 mm long torx screws on either side of the display, located under the side panels.

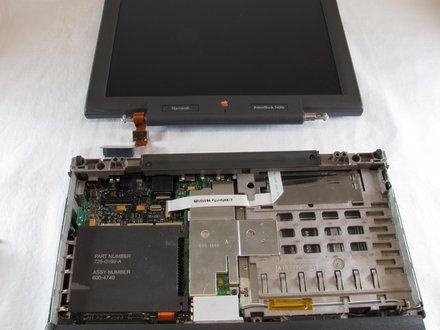

• Gently pull the display free of the computer.

Conclusion

To replace the display, follow these instructions in reverse order.
