PowerBook 3400 M3553 RAM Replacement

Device	PowerBook 3400 M3553
Difficulty	Easy
Time	5 minutes
Steps	6

This guide is by Michael Mondragon on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

In order to upgrade your PowerBook's RAM or replace a faulty RAM card you will need first remove the existing RAM card.

Tools: TR8 Torx Security Screwdriver; iFixit Opening Tool

Step 1

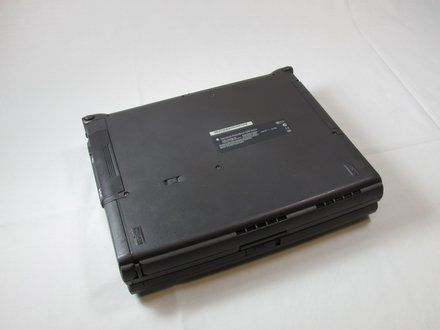

• Close the screen and turn the PowerBook over, orienting the computer upside down, using the label to guide you.

Step 2

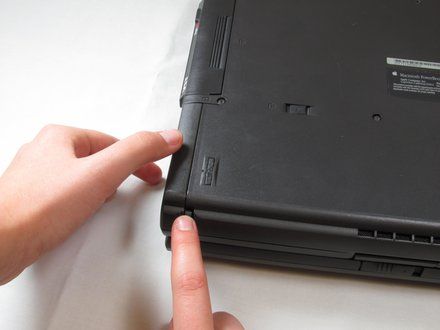

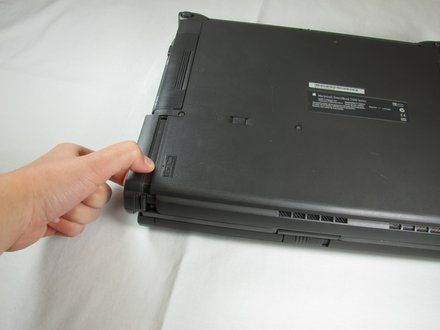

• Hold the button on the front left side and slide the battery out.

Step 3

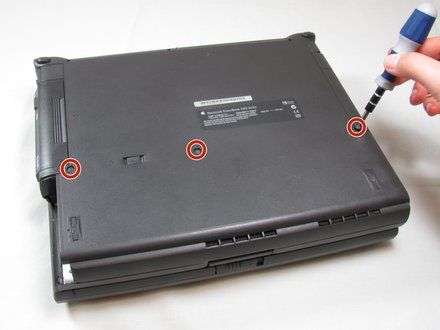

• With a Torx T8 screwdriver, remove the three Torx 24mm screws along the center of the back panel.

Step 4

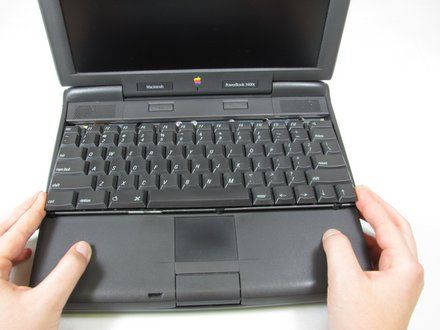

• Turn the computer over and open the display. You should see that the keyboard is loose.
• CAUTION: Before attempting to remove the keyboard, note that a ribbon cable connects the keyboard to the logic board. Improper removal may damage your keyboard.

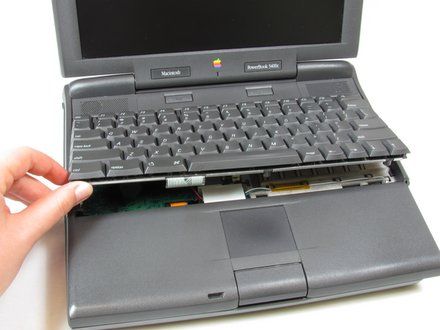

• Slightly lift the front of the keyboard up, and slide the keyboard towards yourself.

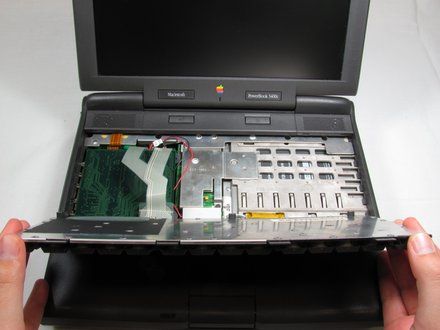

• Carefully lift the top half of the keyboard and pull it towards yourself.

Step 5

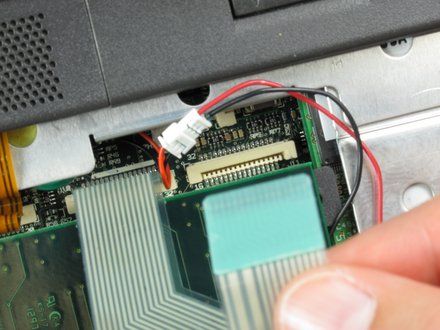

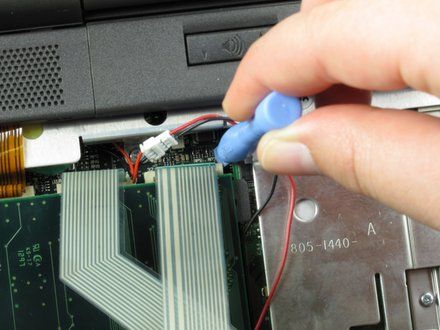

• Loosen the ribbon cables connecting the keyboard to the computer by using a plastic opening tool to lift the tabs on either side of the cable port.
• Gently remove the ribbons from its tabs.

Step 6

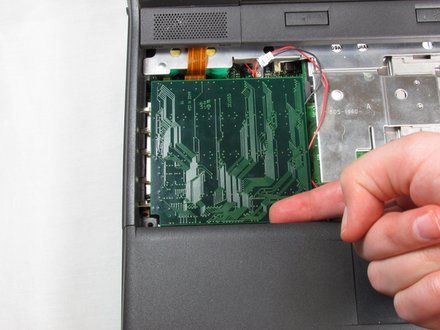

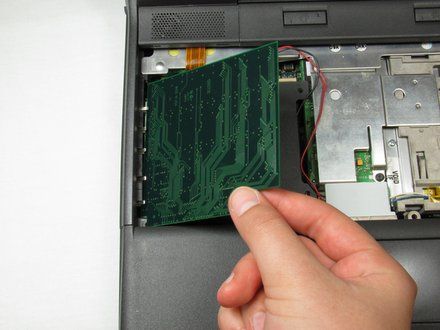

• Gently wiggle the RAM card to loosen the connection until it pulls free.

Conclusion

To install the new RAM card, follow these steps in reverse order.
