Macintosh PowerBook 1400 Series RAM Replacement

Device	Macintosh PowerBook 1400 Series
Difficulty	Moderate
Time	15 - 30 minutes
Steps	24

This guide is by Kian Dinyari on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This repair guide will give instructions on how to remove the Macintosh PowerBook 1400c RAM.

Tools: Phillips #1 Screwdriver; Spudger

Step 1

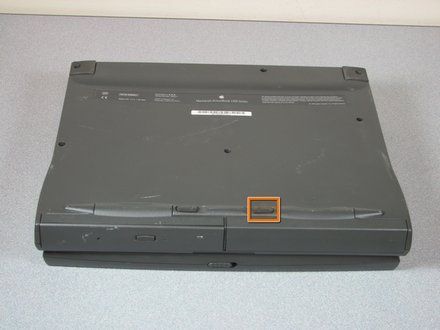

• Turn the device upside down and then locate the battery latch near the front of the device.

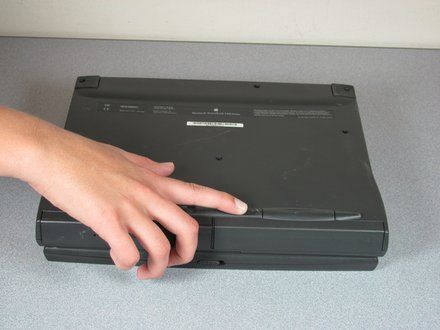

Step 2

• Slide the latch to the left to release the battery.

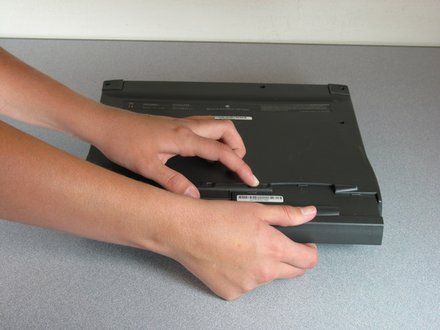

Step 3

• Continue holding the latch then gently pull the battery out of the device.
• NOTE: Place the battery in a safe location.

Step 4

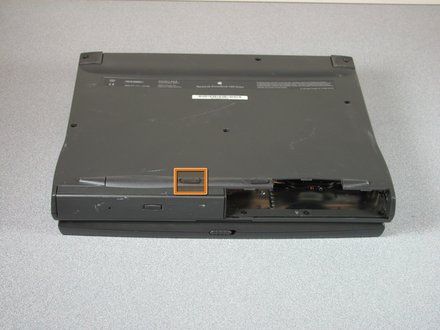

• Locate the CD-ROM Drive latch.

Step 5

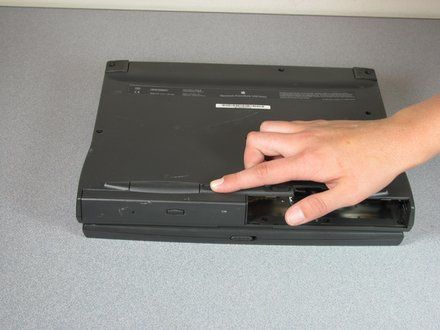

• Slide the latch to the right to release the CD ROM drive.

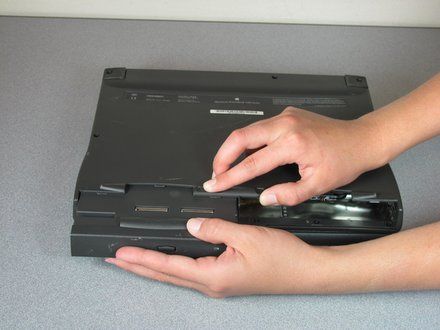

Step 6

• Continue holding the latch then gently pull the CD-ROM Drive out of the device.
• NOTE: Place the CD ROM drive in a safe location.

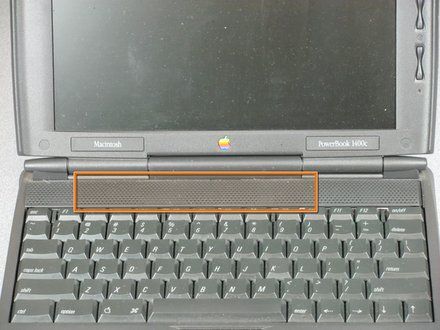

Step 7

• Locate the speaker cover.

Step 8

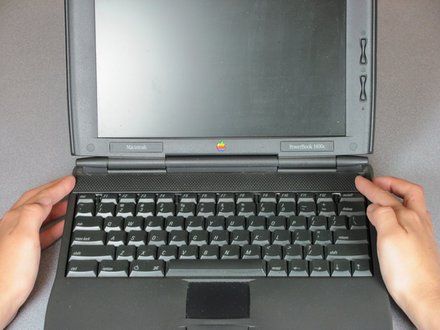

• Press firmly on each end of the speaker cover and slide it to the left.

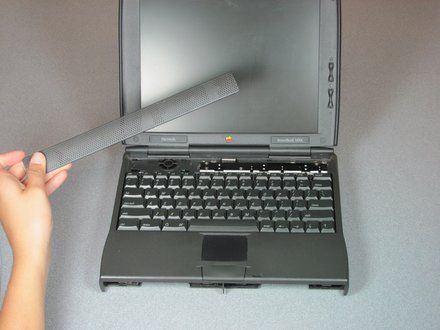

Step 9

• Gently lift the speaker cover to remove it.

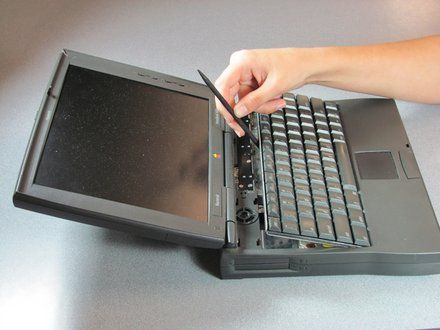

Step 10

• Lift the keyboard up from the back using a spudger(wedge side).

Step 11

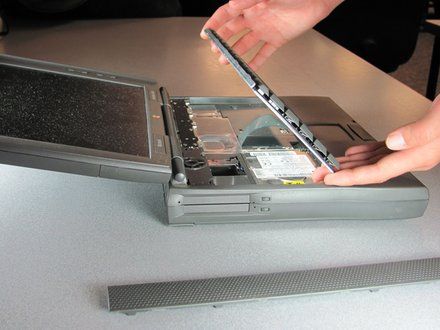

• Gently lift the keyboard until only the ribbon cable remains attached.

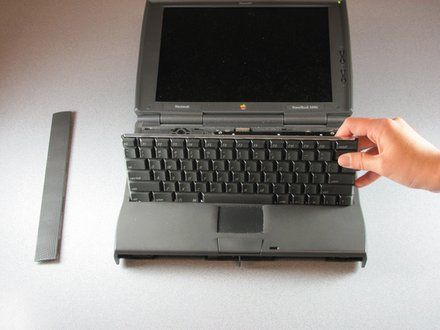

Step 12

• Tilt the keyboard away from the screen.

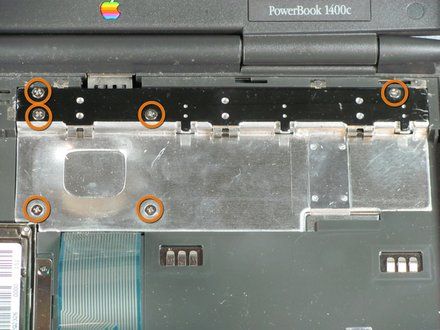

Step 13

• Locate the six screws that secure the heatsink.

Step 14

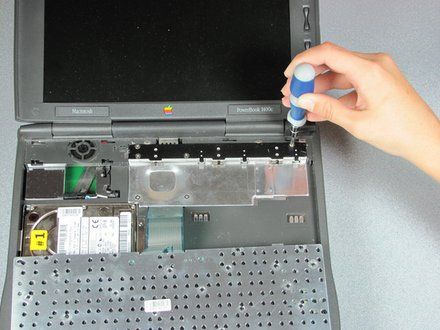

• Remove the six screws from the heatsink using the Philips #1 screwdriver.

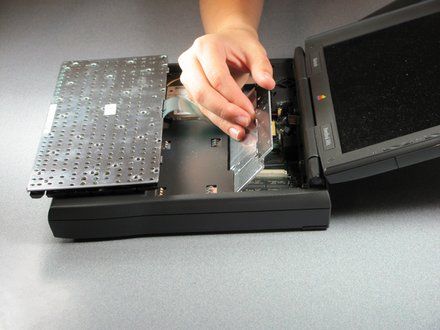

Step 15

• Lift the heatsink from the side closest to the laptop screen.

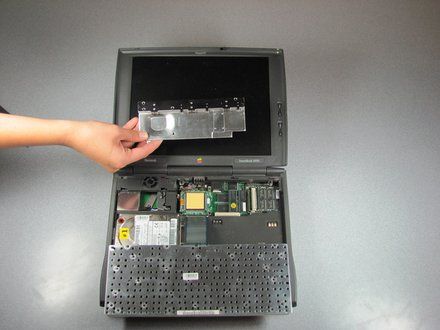

Step 16

• Remove the heatsink.

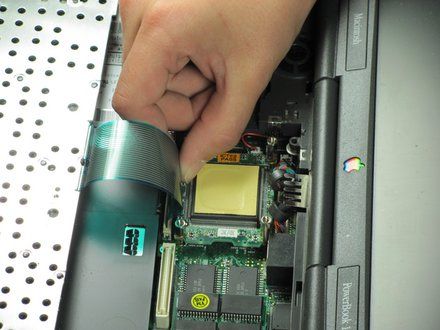

Step 17

• Gently pull up on the beige ribbon lock until it moves a short distance on both sides to separate the ribbon cable from the connector.

Step 18

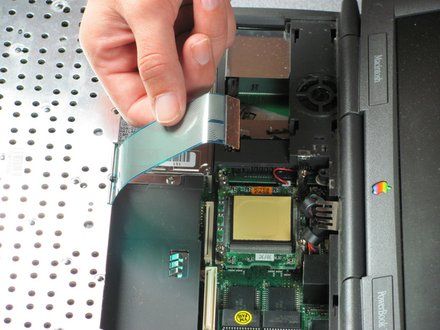

• Detach the ribbon cable.

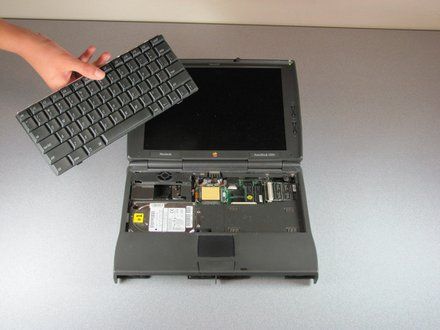

Step 19

• Remove the keyboard.

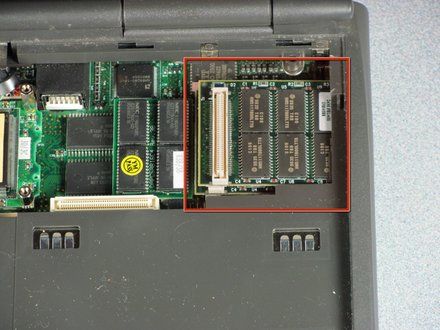

Step 20

• Identify RAM Memory stick
• NOTE: These are the upgradeable RAM Memory sticks, they must be removed first

Step 21

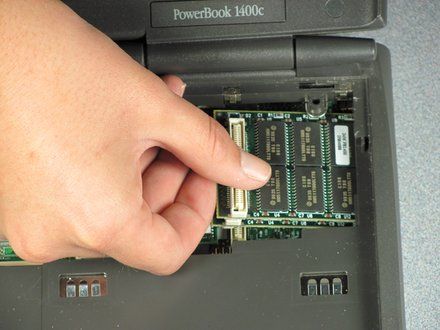

• Gently grasp the ram on the far end as shown in the picture and then pull up and away from the right side of the computer

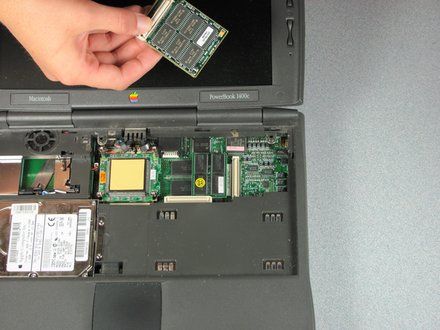

Step 22

• Remove the upgradeable RAM stick
• NOTE: If the upgradeable RAM stick is all you are repairing you can end the guide here, however to remove the factory installed RAM please continue

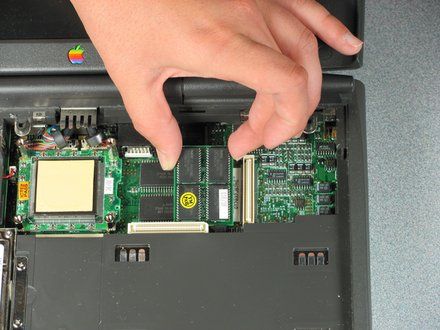

Step 23

• Gently grasp the factory installed RAM by grabbing each end as shown in the picture and pull the stick directly up

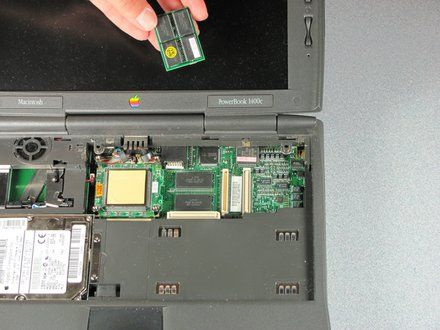

Step 24

• Remove the factory installed RAM memory module

Conclusion

To reassemble your device, follow these instructions in reverse order.
