| | Replacing the Macintosh PowerBook 1400c Monitor |
| Device | Macintosh PowerBook 1400 Series |
| Difficulty | Moderate |
| Time | No estimate |
| Steps | 39 |
This guide is by Taylor Chris on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
This repair guide will give you step by step instructions on how to remove the Macintosh PowerBook 1400c Monitor.
Tools: Phillips #0 Screwdriver; Phillips #1 Screwdriver; Spudger |
|

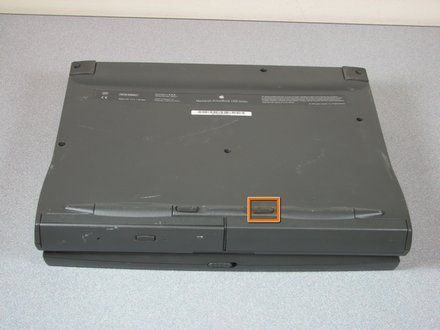

| Step 1 | ![[step 1 photo]](5397/step01-1.jpg) Turn the device upside down and then locate the battery latch near the front of the device.
|
|

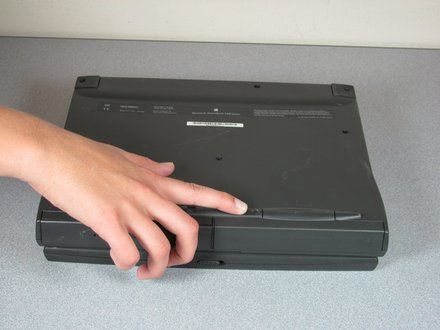

| Step 2 | ![[step 2 photo]](5397/step02-1.jpg) Slide the latch to the left to release the battery.
|
|

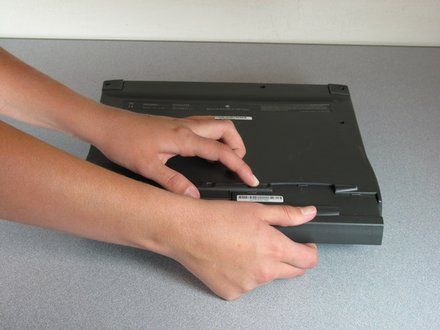

| Step 3 | ![[step 3 photo]](5397/step03-1.jpg) Continue holding the latch then gently pull the battery out of the device. NOTE: Place the battery in a safe location.
|
|

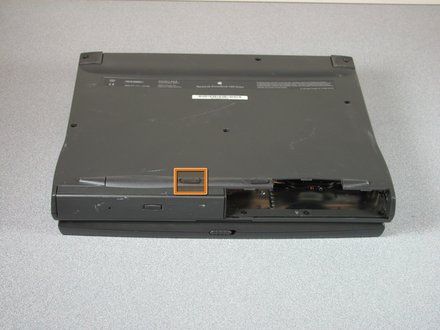

| Step 4 | ![[step 4 photo]](5397/step04-1.jpg) Locate the CD-ROM Drive latch.
|
|

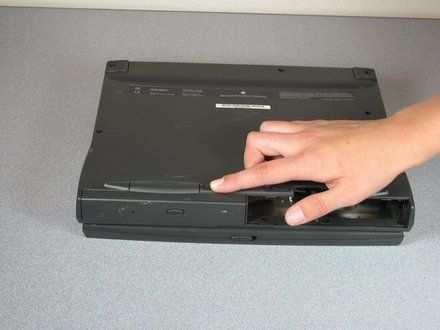

| Step 5 | ![[step 5 photo]](5397/step05-1.jpg) Slide the latch to the right to release the CD ROM drive.
|
|

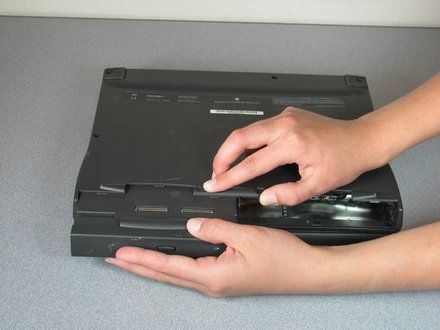

| Step 6 | ![[step 6 photo]](5397/step06-1.jpg) Continue holding the latch then gently pull the CD-ROM Drive out of the device. NOTE: Place the CD ROM drive in a safe location.
|
|

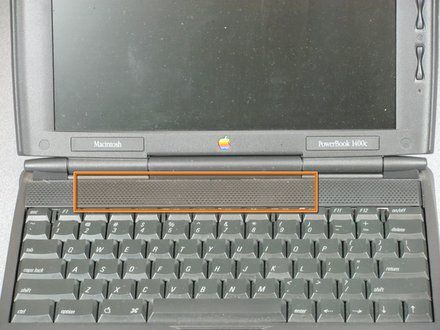

| Step 7 | ![[step 7 photo]](5397/step07-1.jpg) Locate the speaker cover.
|
|

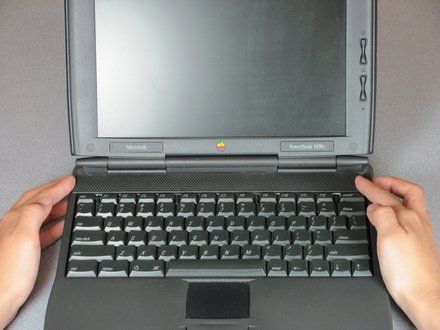

| Step 8 | ![[step 8 photo]](5397/step08-1.jpg) Press firmly on each end of the speaker cover and slide it to the left.
|
|

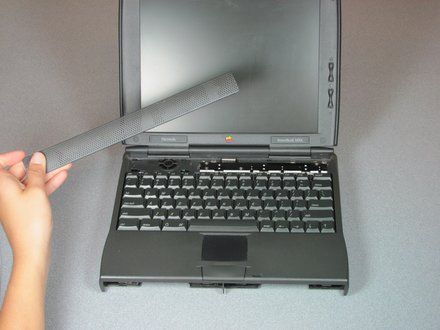

| Step 9 | ![[step 9 photo]](5397/step09-1.jpg) Gently lift the speaker cover to remove it.
|
|

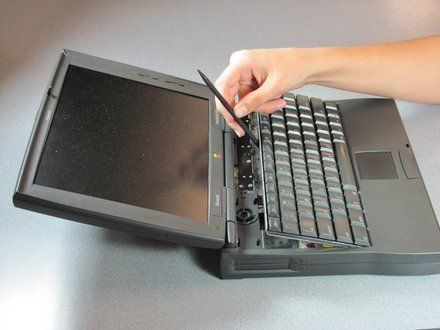

| Step 10 | ![[step 10 photo]](5397/step10-1.jpg) Lift the keyboard up from the back using a spudger(wedge side).
|
|

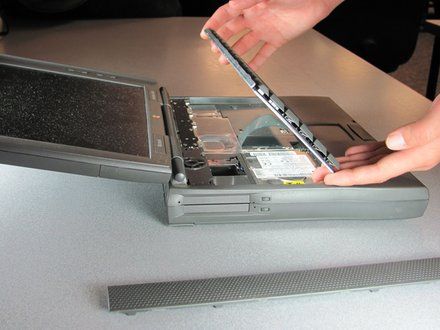

| Step 11 | ![[step 11 photo]](5397/step11-1.jpg) Gently lift the keyboard until only the ribbon cable remains attached.
|
|

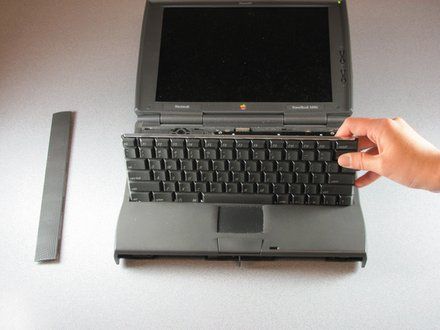

| Step 12 | ![[step 12 photo]](5397/step12-1.jpg) Tilt the keyboard away from the screen.
|
|

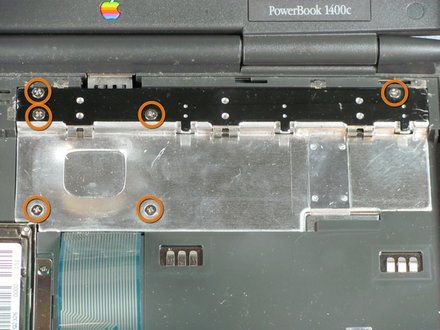

| Step 13 | ![[step 13 photo]](5397/step13-1.jpg) Locate the six screws that secure the heatsink.
|
|

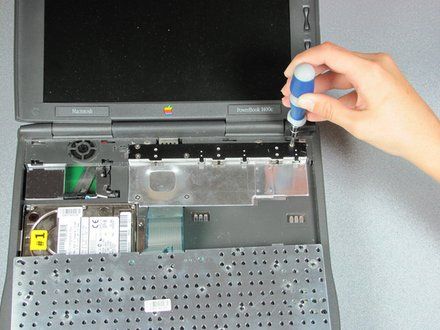

| Step 14 | ![[step 14 photo]](5397/step14-1.jpg) Remove the six screws from the heatsink using the Philips #1 screwdriver.
|
|

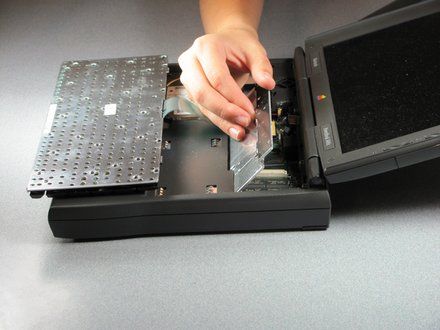

| Step 15 | ![[step 15 photo]](5397/step15-1.jpg) Lift the heatsink from the side closest to the laptop screen.
|
|

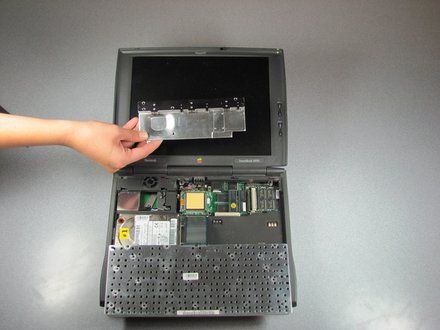

| Step 16 | ![[step 16 photo]](5397/step16-1.jpg) Remove the heatsink.
|
|

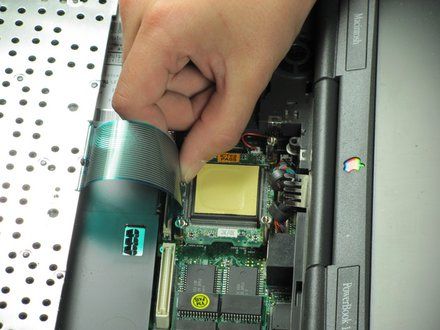

| Step 17 | ![[step 17 photo]](5397/step17-1.jpg) Gently pull up on the beige ribbon lock until it moves a short distance on both sides to separate the ribbon cable from the connector.
|
|

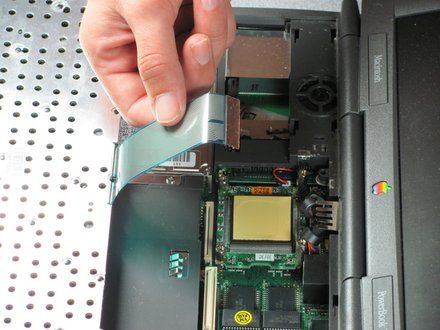

| Step 18 | ![[step 18 photo]](5397/step18-1.jpg) Detach the ribbon cable.
|
|

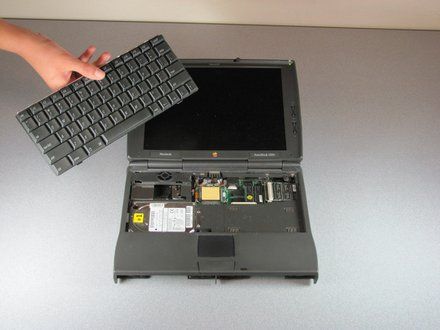

| Step 19 | ![[step 19 photo]](5397/step19-1.jpg) Remove the keyboard.
|
|

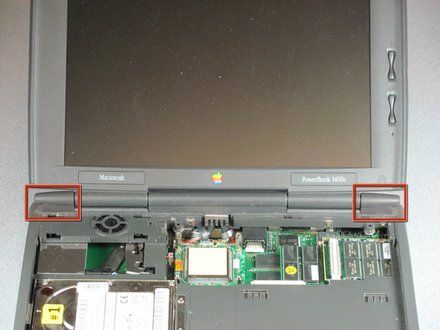

| Step 20 | ![[step 20 photo]](5397/step20-1.jpg) Identify the right and left monitor end caps.
|
|

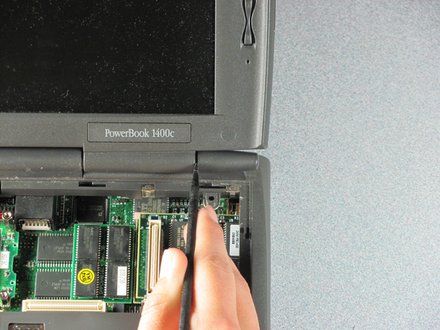

| Step 21 | ![[step 21 photo]](5397/step21-1.jpg) Pry off the end caps by putting a spudger between the monitor hinge and the end cap and prying outwards.
|
|

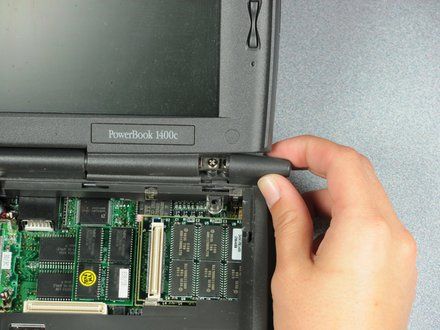

| Step 22 | ![[step 22 photo]](5397/step22-1.jpg) Once the end cap has been loosened by the spudger, pull outwards on the end caps.
|
|

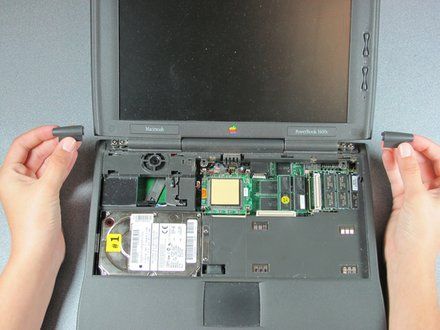

| Step 23 | ![[step 23 photo]](5397/step23-1.jpg) Completely remove both end caps.
|
|

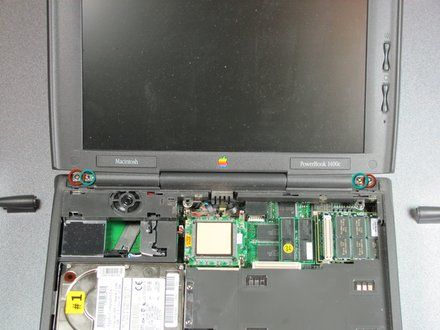

| Step 24 | ![[step 24 photo]](5397/step24-1.jpg) Identify the 4 total screw under the end caps (2 under each end cap). The two outside 16mm long screws The two inside 5.4mm long screws
|
|
| Step 25 | ![[step 25 photo]](5397/step25-1.jpg) Lay the monitor all the way back.
|
|

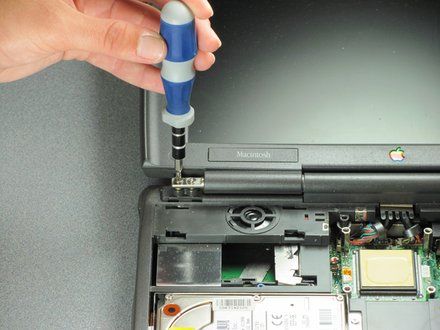

| Step 26 | ![[step 26 photo]](5397/step26-1.jpg) Remove the 4 screws using the Phillips #0 screwdriver.
|
|

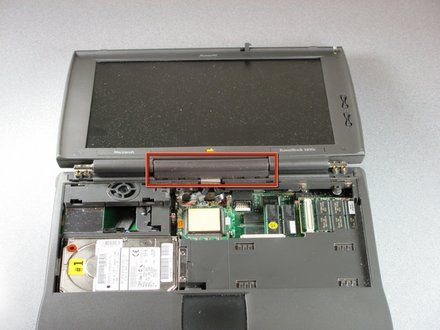

| Step 27 | ![[step 27 photo]](5397/step27-1.jpg) Identify the center cap of the monitor.
|
|

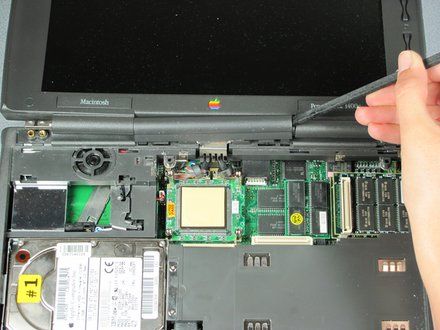

| Step 28 | ![[step 28 photo]](5397/step28-1.jpg) Pry the center cap off by placing the spudger between the hinge and the center cap and prying upwards.
|
|

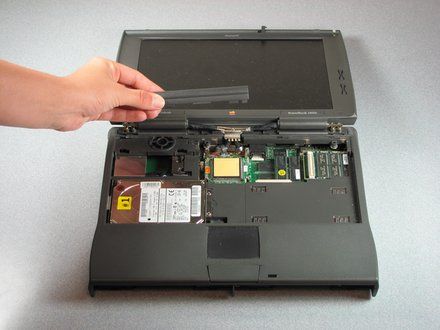

| Step 29 | ![[step 29 photo]](5397/step29-1.jpg) Detach the center cap completely.
|
|

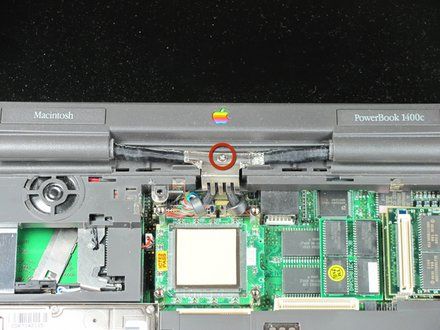

| Step 30 | ![[step 30 photo]](5397/step30-1.jpg) Identify the one 12.6mm long screw under the center cap.
|
|

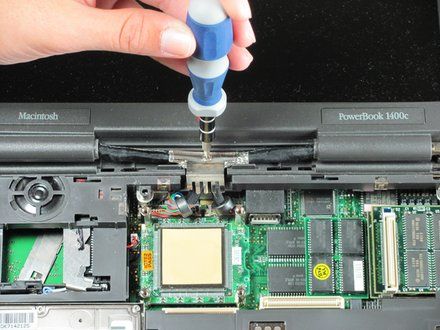

| Step 31 | ![[step 31 photo]](5397/step31-1.jpg) Remove the center screw with a Phillips #0 screwdriver.
|
|

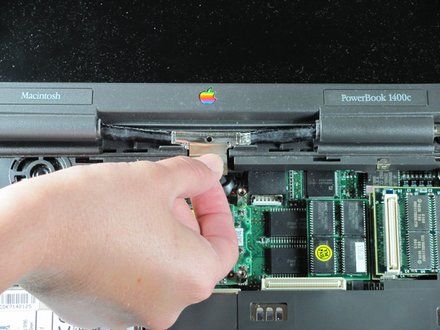

| Step 32 | ![[step 32 photo]](5397/step32-1.jpg) Lift upwards on the metal cover under the screw.
|
|

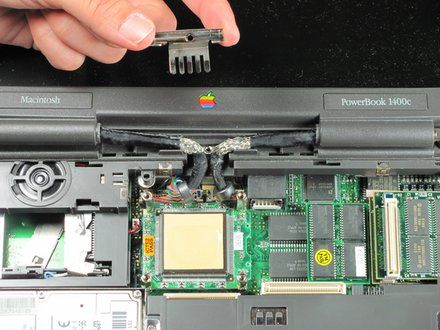

| Step 33 | ![[step 33 photo]](5397/step33-1.jpg) Completely remove the metal cover.
|
|

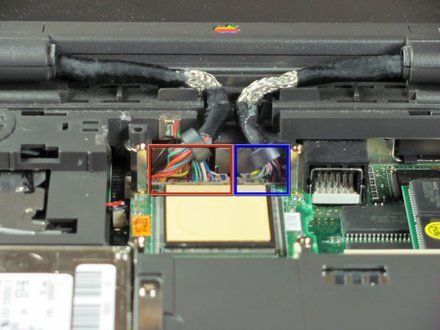

| Step 34 | ![[step 34 photo]](5397/step34-1.jpg) Identify where the left and right monitor cords are attached to the logic board The base of the left monitor cord The base of the right monitor cord
|
|

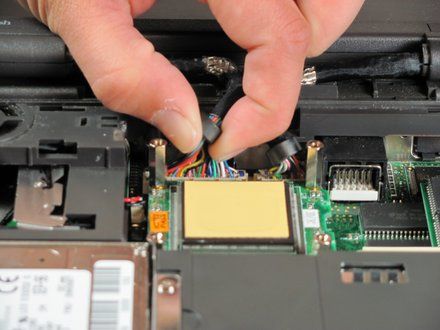

| Step 35 | ![[step 35 photo]](5397/step35-1.jpg) To detach the left monitor cord grab the left monitor cord at the base of the cord and pull vertically up.
|
|

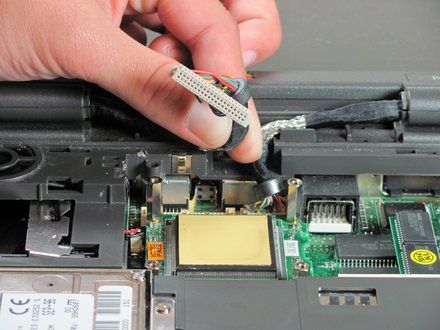

| Step 36 | ![[step 36 photo]](5397/step36-1.jpg) Completely detach the left monitor cord from the logic board.
|
|

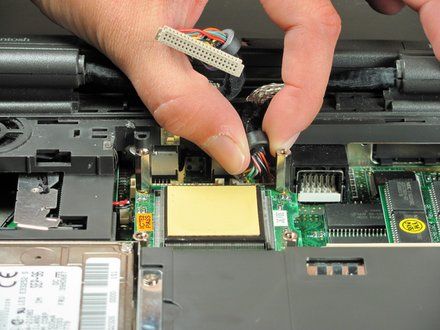

| Step 37 | ![[step 37 photo]](5397/step37-1.jpg) To detach the right monitor cord grab the right monitor cord at the base of the cord and pull vertically up.
|
|

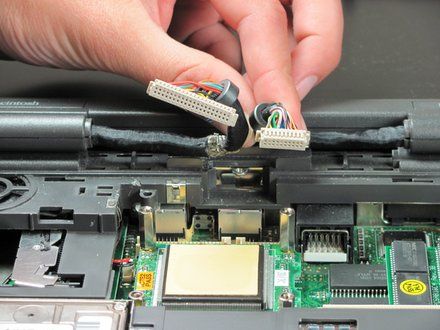

| Step 38 | ![[step 38 photo]](5397/step38-1.jpg) Completely detach the right monitor cord from the logic board.
|
|

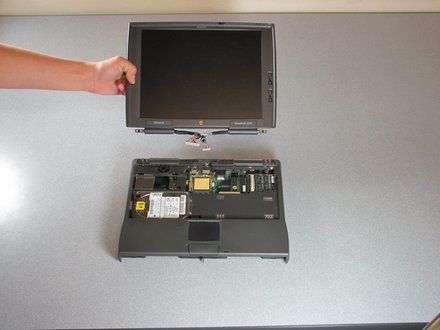

| Step 39 | ![[step 39 photo]](5397/step39-1.jpg) Completely remove the monitor from the computer.
|
|
| Conclusion | | Once the monitor has been removed, to attach the new monitor follow these instructions in reverse order. |
|
|
