SONY PLAYSTATION 2 SCPH-79002 - FAN
REPLACEMENT::
DeviceSony Playstation 2 SCPH-79002
DifficultyModerate
Time5 - 10 minutes
Steps6
This guide is by Zach luc on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will teach you how to replace the fan of the Sony Playstation 2.

Tools: Essential Electronics Toolkit

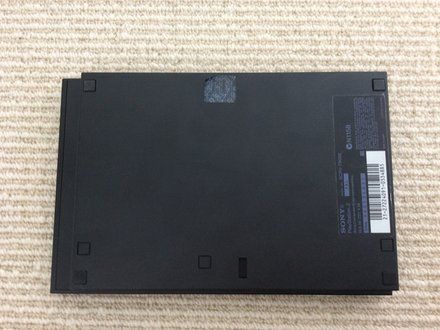

STEP 1 :: BEGINNING::
[step 1 photo]
• Flip your machine over

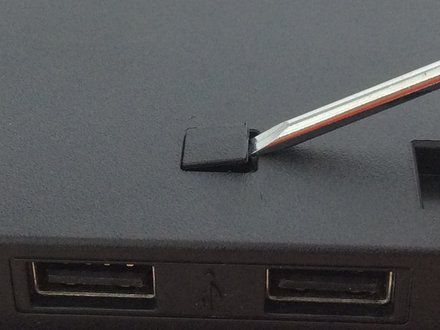

STEP 2 :: TABS::
[step 2 photo]
• Grab a spudger and take off the tabs, like so.

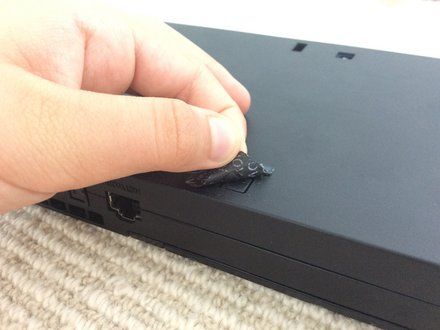

STEP 3 :: WARRANTY STICKER::
[step 3 photo]
• CAUTION: There is a warranty sticker that hides a tab, peeling it off will VOID your warranty!

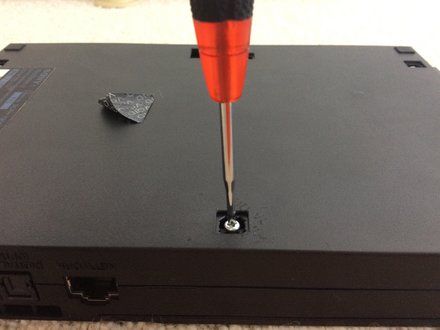

STEP 4 :: SCREWS::
[step 4 photo]
• Unscrew the screws

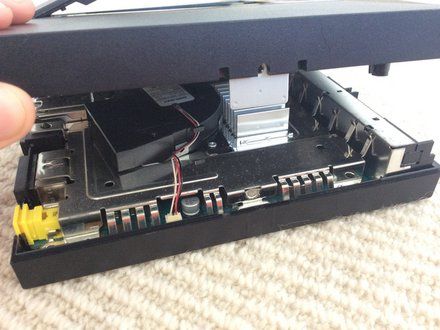

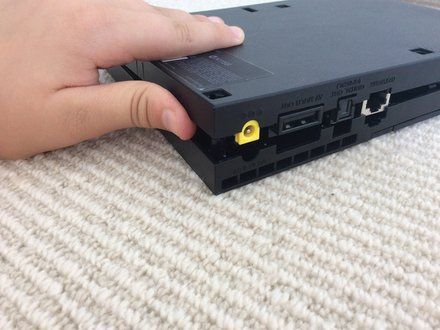

STEP 5 :: TAKE OFF THE BACK::
[step 5 photo] [step 5 photo]
• Once you've done that, take off the back of the console.

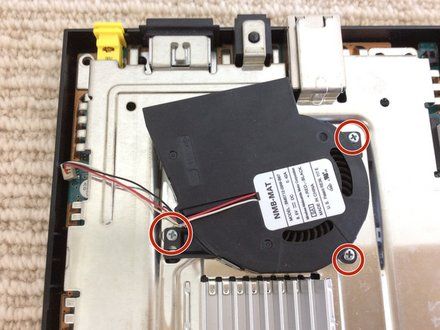

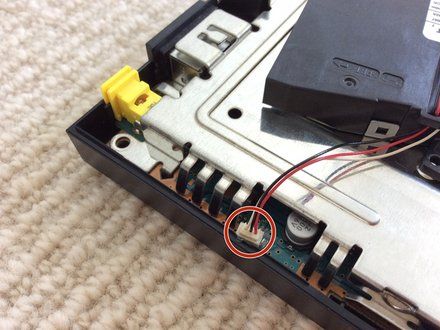

STEP 6 :: TAKE OFF THE FAN::
[step 6 photo] [step 6 photo]
• There are 3 screws that you need to unscrew, then you need to get a pair of tweezers (https://www.ifixit.com/en-ca/products/tweezers) and use a strong pull up.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Zach luc on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
