NINTENDO ENTERTAINMENT SYSTEM
CONTROLLER CABLE REPLACEMENT::
DeviceNintendo Entertainment System Controller
DifficultyModerate
Time15 minutes
Steps3
This guide is by themap504 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This is a fairly straight forward repair. Soldering skills are required.

Still possible even if you've only soldered twice in your life and are afraid you'll make a mess of it. You know who you are ;)

Tools: Phillips #1 Screwdriver; Soldering Workstation


STEP 1 :: BACK COVER REMOVAL::
[step 1 photo] [step 1 photo]

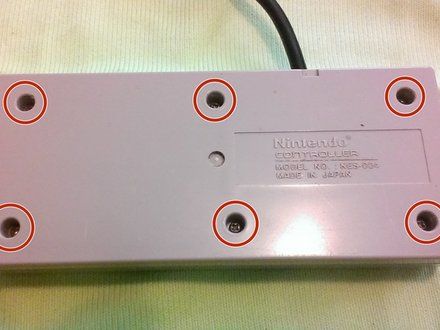

• Remove the 6 8mm screws in the back cover using a #1 Philips screwdriver.

STEP 2 :: LOOSEN CABLE::
[step 2 photo]

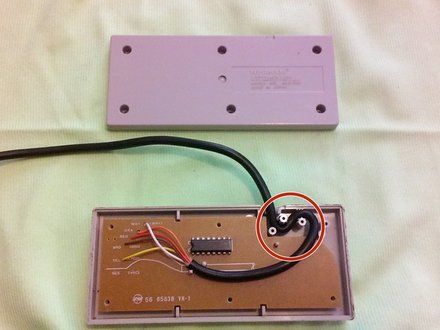

• Lift the back cover off the controller.
• Remove the cable from its holders to facilitate PCB removal.

STEP 3 :: PCB REMOVAL::
[step 3 photo]

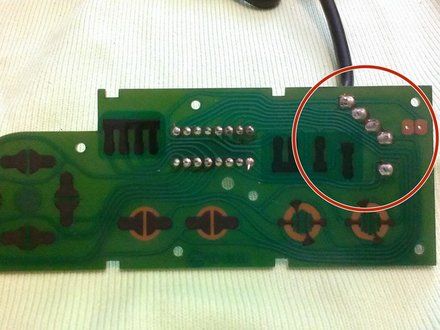

• Lift the PCB straight up and out of the controller. Turn the board over to access the solder joints for the cable.
• Desolder the 5 connections and solder in your new cable.
• NOTE: Wire colors are printed on the reverse side of the board.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by themap504 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
