SEGA GENESIS II TEARDOWN::
DeviceSega Genesis II
DifficultyModerate
TimeNo estimate
Steps12
This guide is by Thor Odinson on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This is a Sega Genesis model 2. In this tear down you will be able to see what the inside of the Sega Genesis should look like.

Tools: Essential Electronics Toolkit


STEP 1::
[step 1 photo]

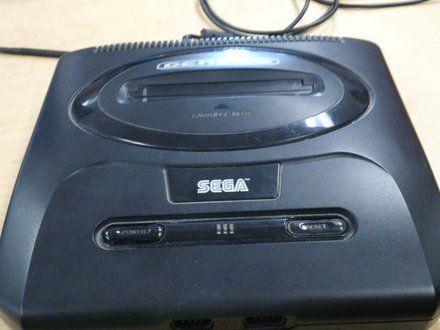

• Flip the system over

STEP 2 :: REMOVING THE SCREWS::
[step 2 photo] [step 2 photo]

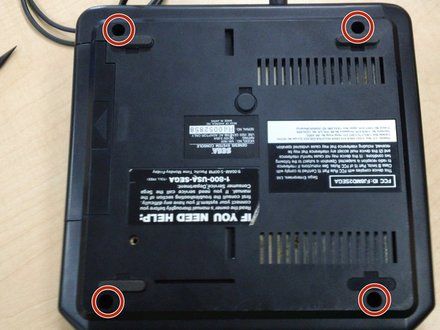

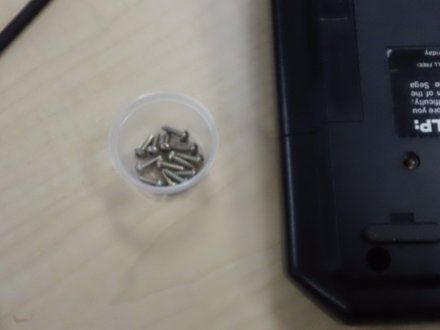

• Remove the four outer screws (you may want a small cup to keep your screws in.)

STEP 3::
[step 3 photo]

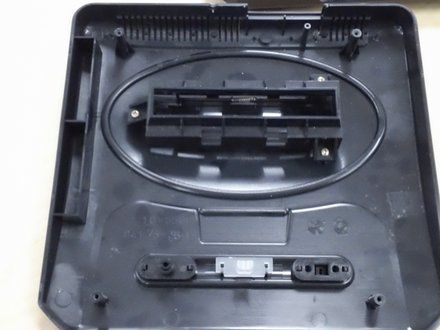

• Take plastic top off.

STEP 4 :: REMOVING THE SCREWS::
[step 4 photo]

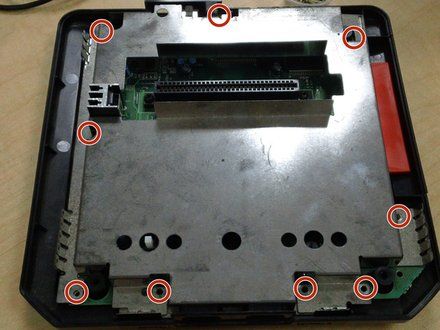

• Remove the nine inner screws.

STEP 5::
[step 5 photo]

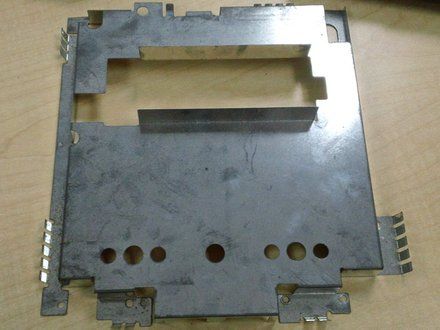

• Remove metal piece.

STEP 6::
[step 6 photo]

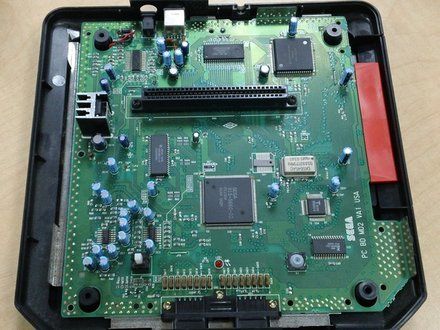

• You now have access to your circuit board. (If you wish to remove the circuit board, continue.)

STEP 7::
[step 7 photo]

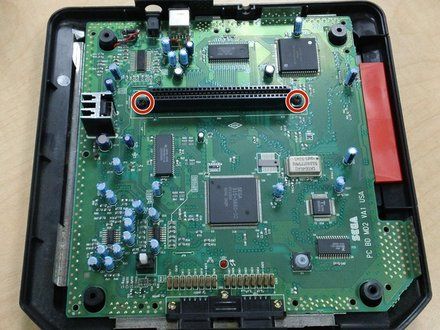

• Remove the two screws highlighted in picture to remove the circuit board.

STEP 8::
[step 8 photo]

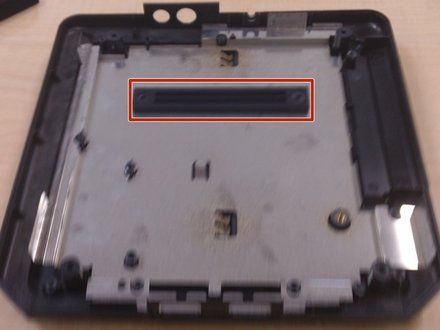

• Lift the black piece of plactic up.

STEP 9::
[step 9 photo]

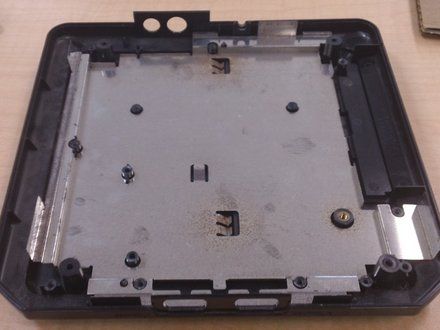

• Lift up the metal piece.

STEP 10::
[step 10 photo]

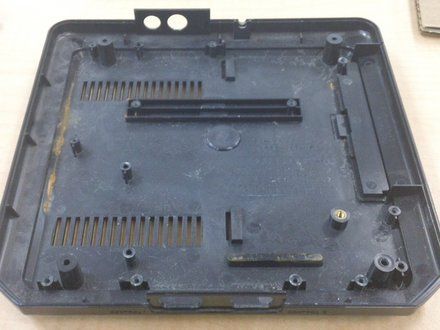

• You now have access to the inside of the bottom plastic piece.

STEP 11 :: CIRCUIT BOARD::
[step 11 photo] [step 11 photo] [step 11 photo]

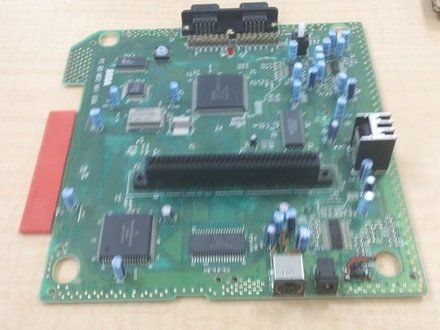

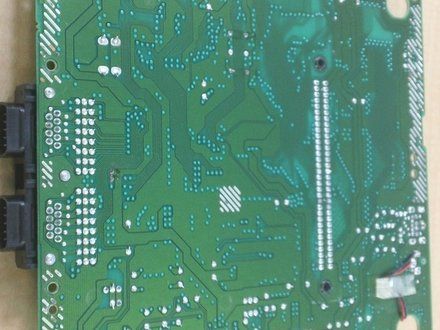

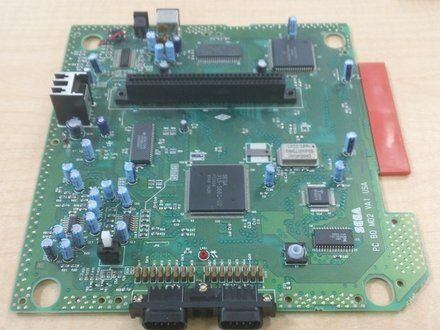

• This is the circuit board.

STEP 12 :: REASSEMBLE::
[step 12 photo]

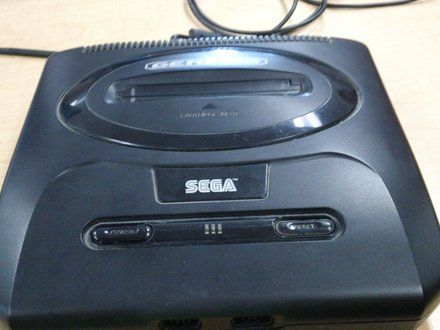

• Do the steps backwards to reassemble.
