| | Sega CD Genesis Connector Replacement |
| Device | Sega CD |
| Difficulty | Moderate |
| Time | 20 - 40 minutes |
| Steps | 11 |
This guide is by Ryan Kotzebue on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
Tools: Phillips #00 Screwdriver; Spudger |
|
| Step 1 |

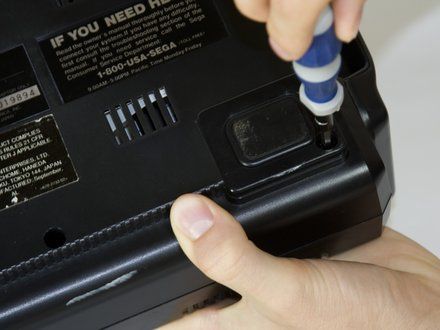

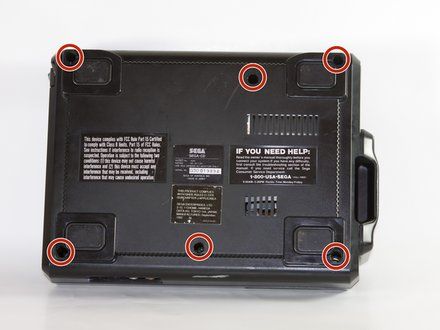

![[step 1 photo]](4193/step01-2.jpg) Using a Phillips head screwdriver remove six screws from the bottom of the console. The six screws are marked.
|
|

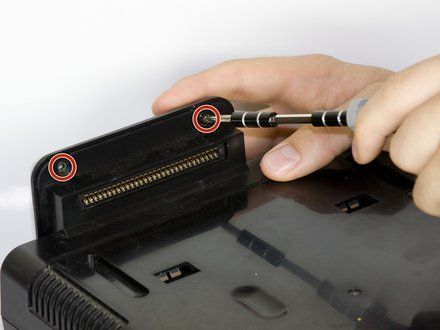

| Step 2 | ![[step 2 photo]](4193/step02-1.jpg) Remove the two screws that attach the Genesis' connector to the rest of the console. The two screws are marked in the diagram.
|
|

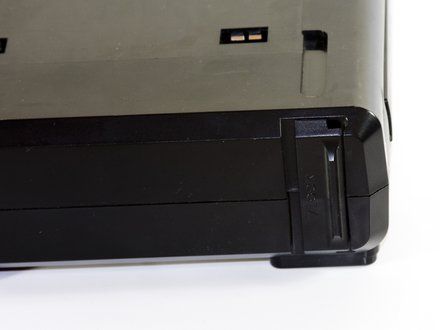

| Step 3 | ![[step 3 photo]](4193/step03-1.jpg) Slide the lock tab to the left to separate the halves of the console.
|
|

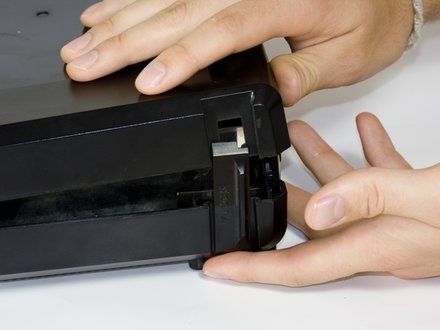

| Step 4 | ![[step 4 photo]](4193/step04-1.jpg) Lift from the left side to remove the top of the case.
|
|

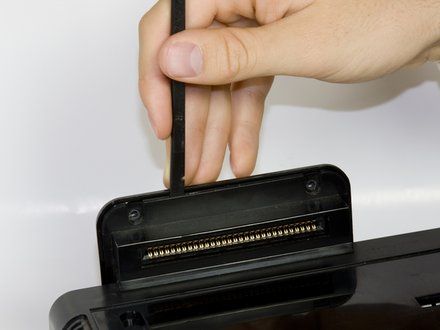

| Step 5 | ![[step 5 photo]](4193/step05-1.jpg) Using the spudger, pry the cover off of the Genesis attachment.
|
|

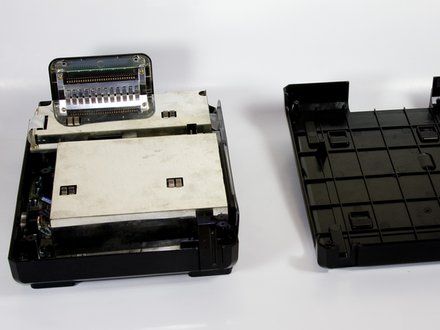

| Step 6 | ![[step 6 photo]](4193/step06-1.jpg) Lift the top of the case to remove the cover.
|
|

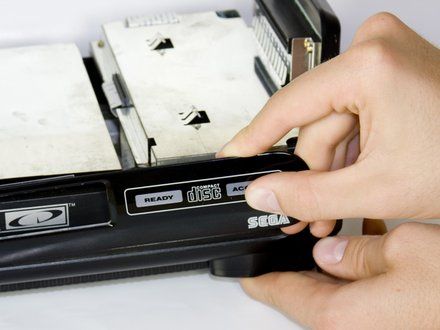

| Step 7 | ![[step 7 photo]](4193/step07-1.jpg) Remove the faceplate by pulling it up, then out.
|
|
| Step 8 |

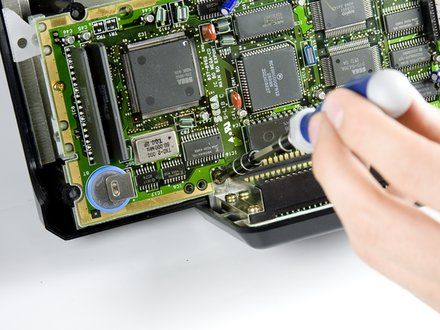

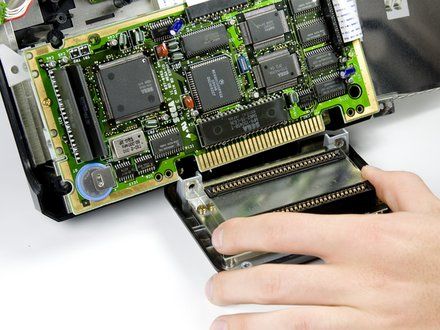

![[step 8 photo]](4193/step08-2.jpg) Using a #00 Philips screwdriver remove the two screws that attach the Genesis adapter to the console. Disconnect the adapter from the console by carefully pulling the adapter out.
|
|

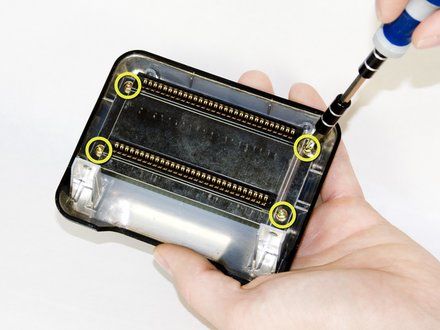

| Step 9 | ![[step 9 photo]](4193/step09-1.jpg) Remove the four screws from the metal plate as shown using a #00 Philips screwdriver. The four half inch bronze screws are indicated by the yellow marking circles.
|
|
| Step 10 |

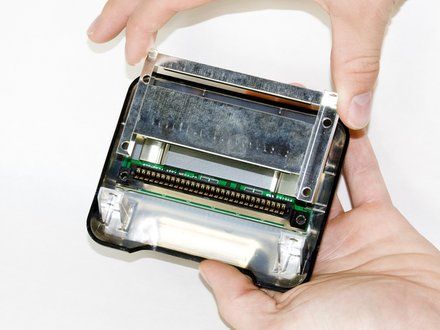

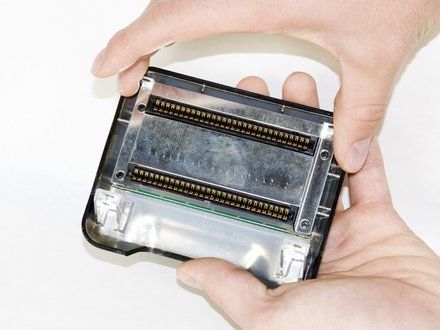

![[step 10 photo]](4193/step10-2.jpg) Carefully remove the metal cover from the connector by sliding the cover up and out.
|
|
| Step 11 |

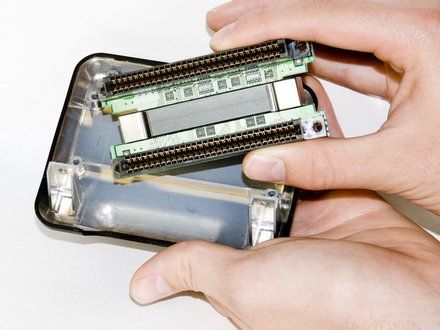

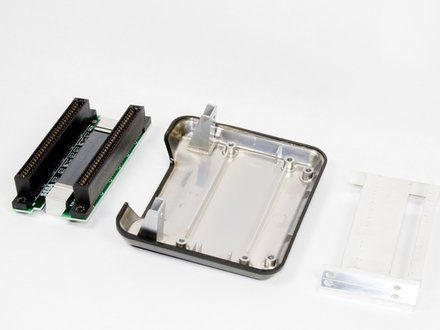

![[step 11 photo]](4193/step11-2.jpg) Remove the connector from the housing.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
