Disassembling IBM ThinkPad A30 CD Drive

Device	IBM ThinkPad A30
Difficulty	Very easy
Time	5 minutes
Steps	3

This guide is by Jessica on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Take the battery out before removing the CD drive.

Step 1

• NOTE: Flip the ThinkPad over so that it is upside down.

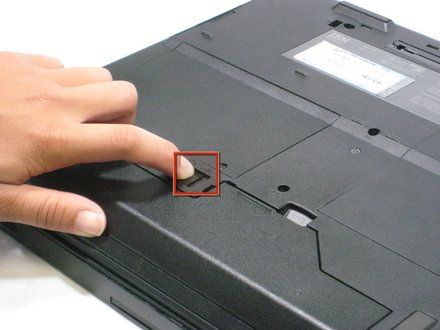

• Slide the highlighted tab to the left.

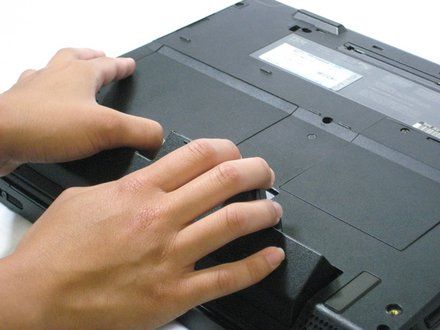

• With your finger on the tab, remove the battery by lifting it upwards away from the laptop.

Step 2

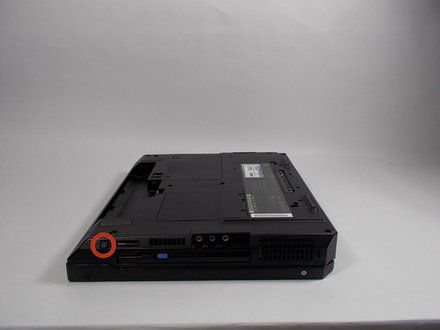

• Hold the laptop in the same orientation as the picture. Then, locate the switch immediately above and to the left of the drive.

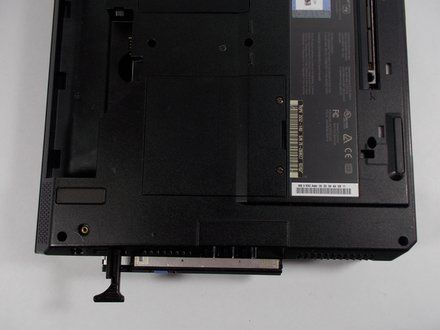

• Slide the switch to the right. A black plastic tab will pop out.

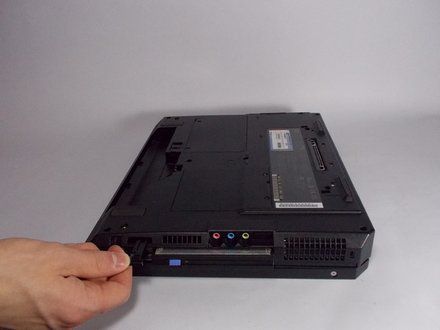

• Pull the plastic tab to expose the CD drive.
• If there is a problem with your tab, whether it doesn't pop out or it doesn't expose the CD drive, please check the corresponding entry in the troubleshooting page.

Step 3

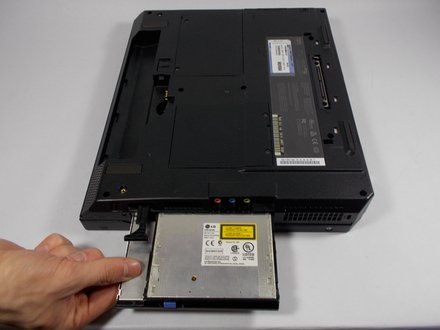

• Carefully pull the CD drive out from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
