Disassembling IBM ThinkPad A30 Speakers

Device	IBM ThinkPad A30
Difficulty	Moderate
Time	No estimate
Steps	28

This guide is by Alan on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

In this step-by-step guide, you will be removing the speakers from the Thinkpad A30 for replacement.

Tools: Phillips #00 Screwdriver

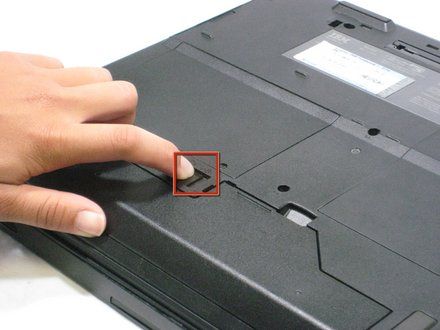

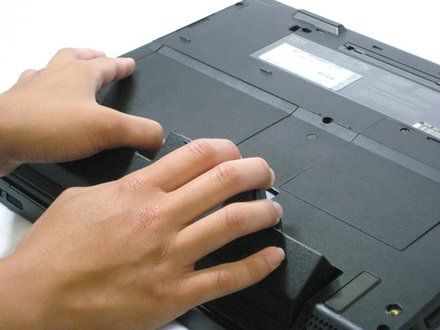

Step 1

• NOTE: Flip the ThinkPad over so that it is upside down.
• Slide the highlighted tab to the left.
• With your finger on the tab, remove the battery by lifting it upwards away from the laptop.

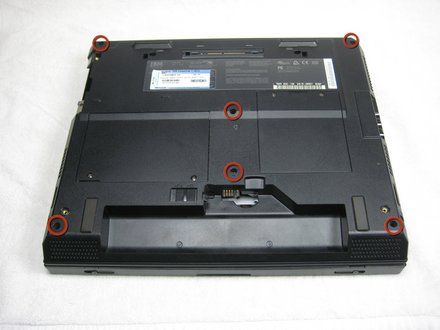

Step 2

• NOTE: Make sure the laptop is upside down and oriented in the direction shown.
• Remove the six 16.7mm screws inside the circled holes.

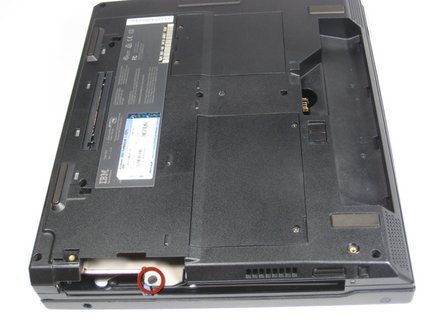

Step 3

• Rotate the ThinkPad so that the hard drive bay is facing you.
• Remove the black cover to reveal a 14.8mm screw.
• Remove the uncovered screw with a Phillips #0 screwdriver.

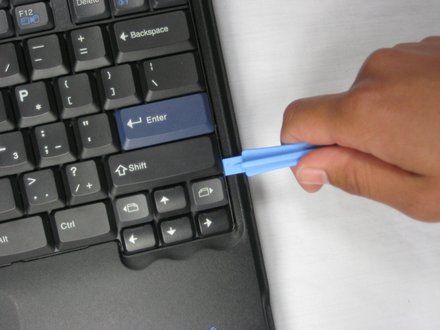

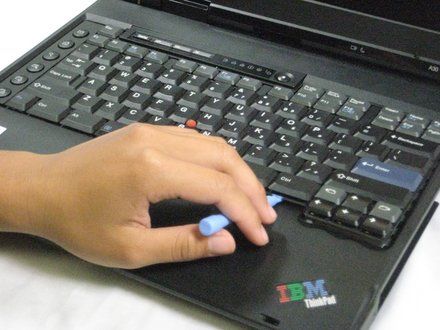

Step 4

• NOTE: Flip the ThinkPad over and open the LCD panel.
• Pry apart the keyboard with a plastic opening tool or with your fingers.

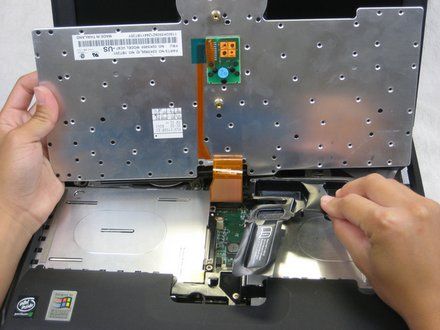

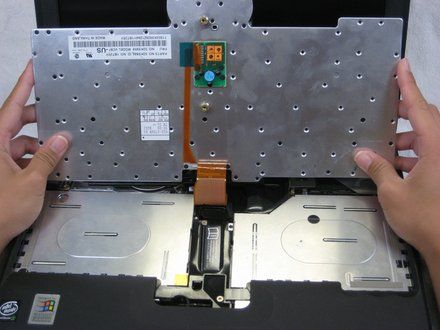

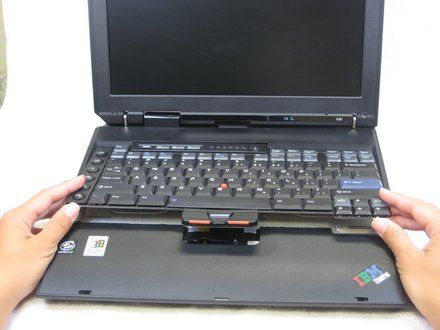

Step 5

• CAUTION: Be careful not to pull out the keyboard carelessly; there is a connector underneath it!
• Lift the front end of the keyboard as shown.
• Using your fingers, remove the black film cover.

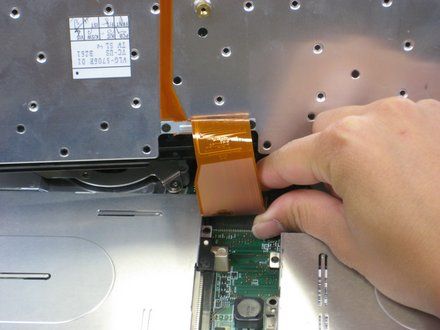

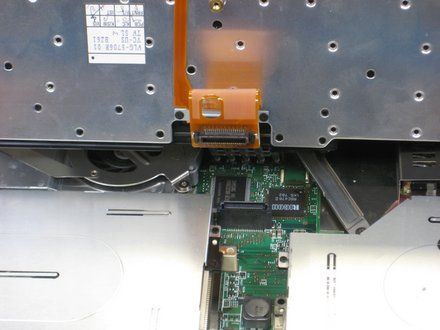

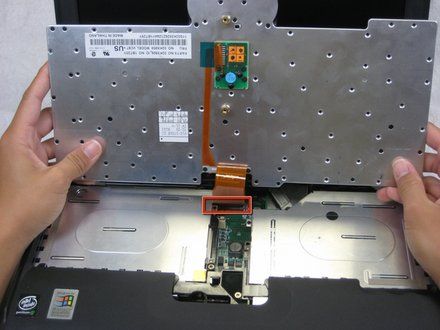

Step 6

• Locate the connector attached to the motherboard.
• Disconnect the ribbon cable by removing the connector.

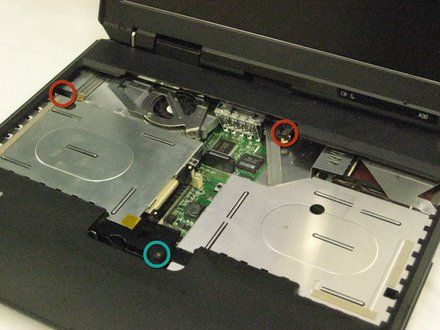

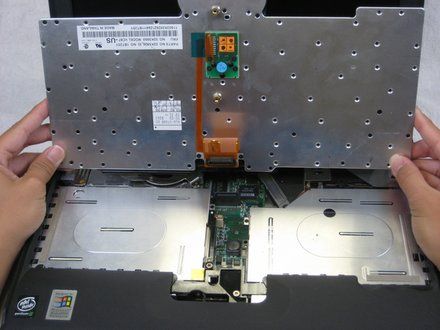

Step 7

• Lift and remove the keyboard.
• Remove the two 5.6mm screws.
• Remove the 16.7mm screw.

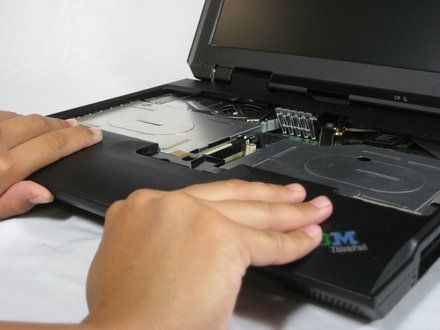

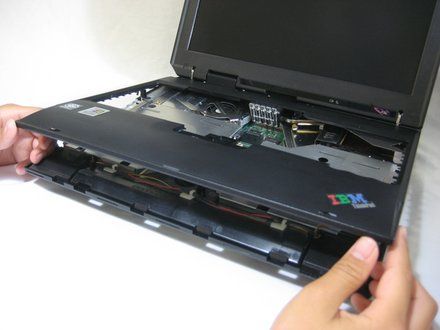

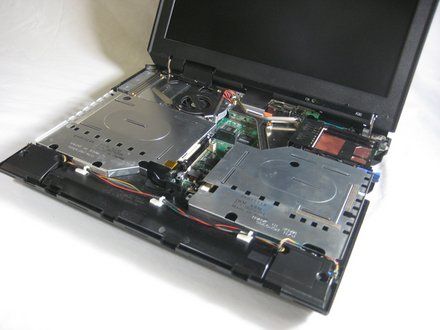

Step 8

• CAUTION: You will need to use a little force. Be wary of the tabs.
• Pry off the upper case with your hands.

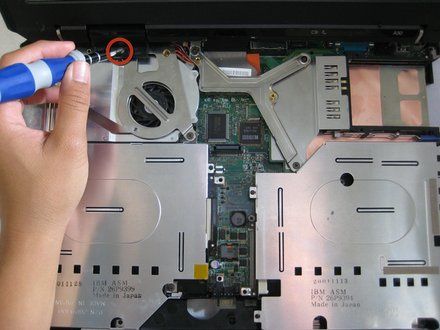

Step 9

• Remove the 5.6mm screw that holds the LCD to the upper case.

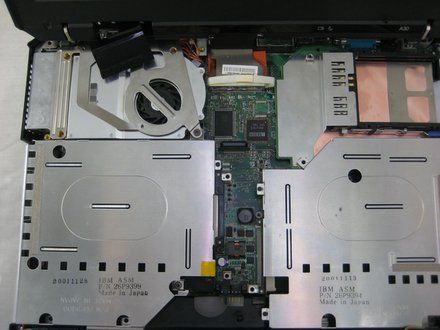

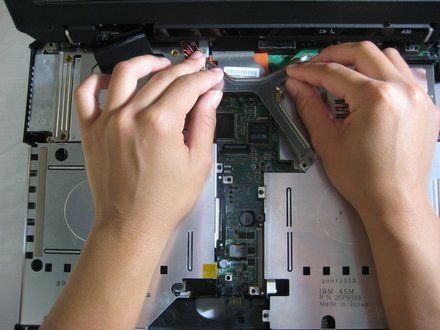

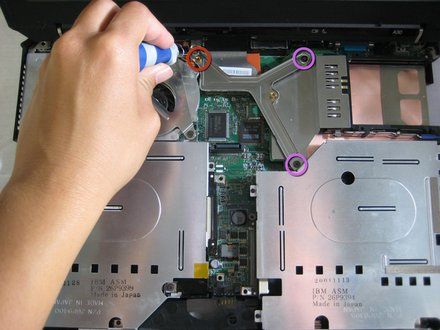

Step 10

• Remove the 5.6mm screw on the left side of the three-pronged connector.
• Remove the other two 16.7mm screws.
• Lift and remove connector.

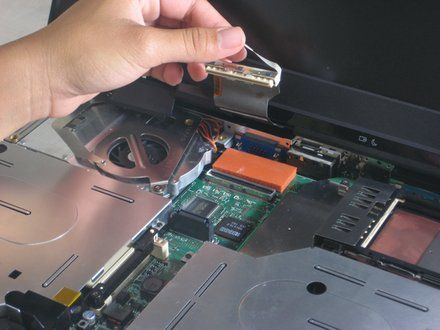

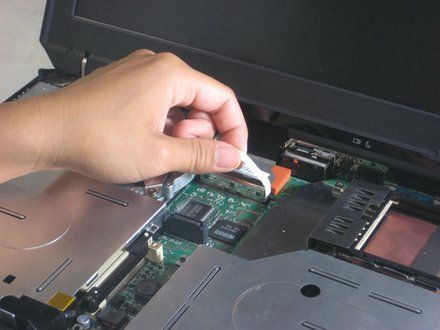

Step 11

• Pull out the white tab connecting the LCD to the motherboard.

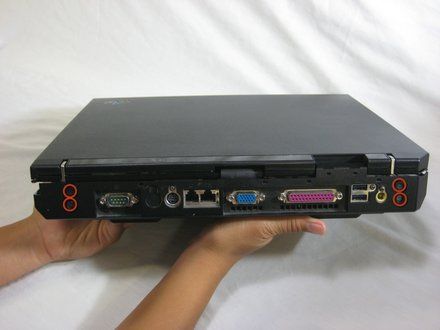

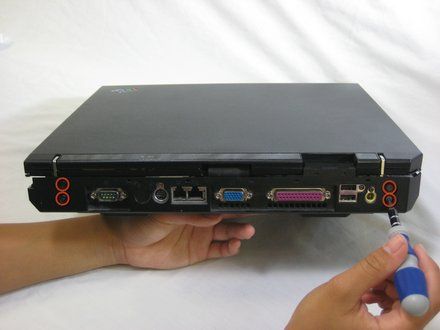

Step 12

• Turn the laptop so that the back is facing you.
• Remove the four 5.6mm long screws.

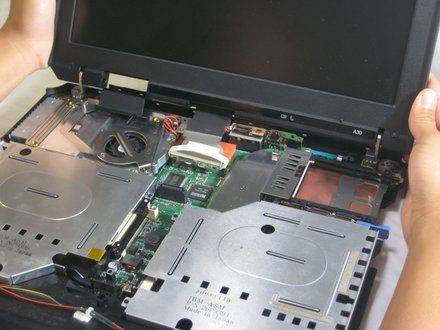

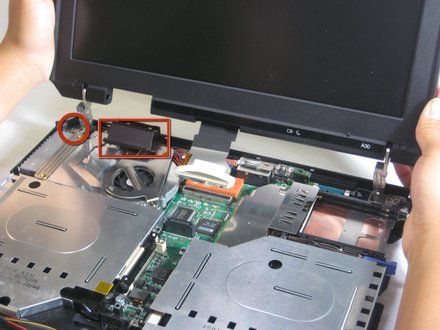

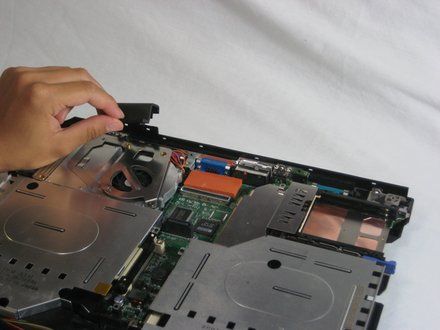

Step 13

• NOTE: Place the laptop so that the LCD is facing you again.
• Gently lift the LCD monitor up and out.
• Remove the black plastic tab.

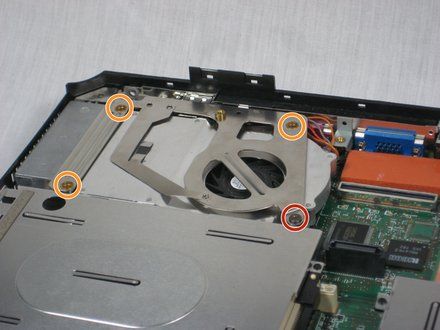

Step 14

• Remove the following screws from the fan retention bracket:
• Single 5.6 mm screw.
• Three 16.1 mm screws.

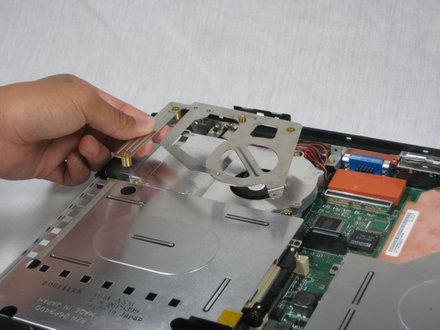

Step 15

• Lift the heatsink bracket up.

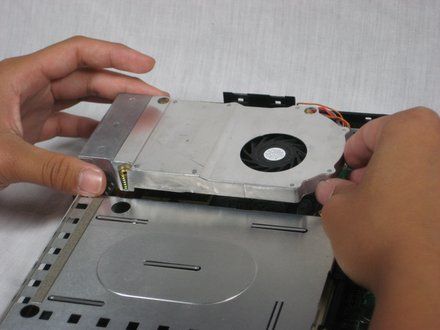

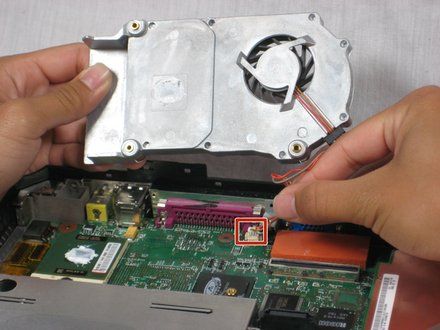

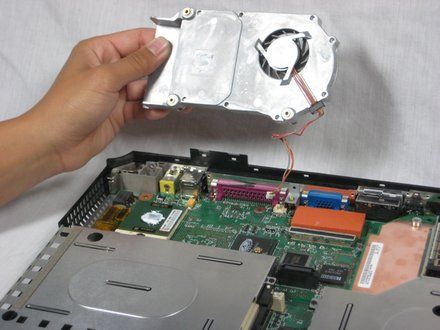

Step 16

• CAUTION: Be careful not to pull too hard. There is a cable attached to the fan.
• Lift the fan/heatsink assembly up.
• Locate the fan power cable and pull upwards near the connector.
• Remove the fan/heatsink assembly.

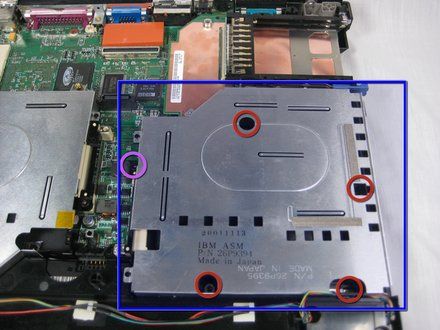

Step 17

• Locate the floppy drive bay.
• Remove the four 5.6mm screws.
• Remove the 16mm screw.

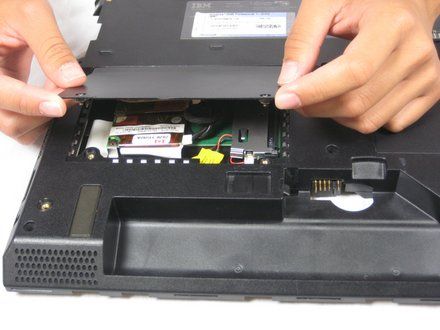

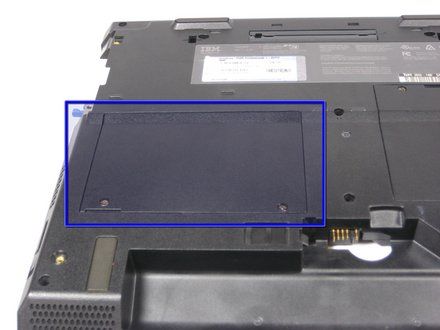

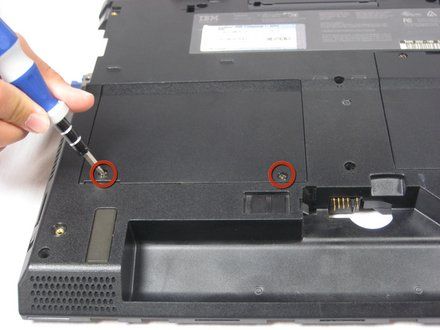

Step 18

• Turn the laptop over so the battery is facing you.
• Locate the modem and ethernet card bay.
• Remove the two 5.3mm cover screws.
• Gently lift the cover.

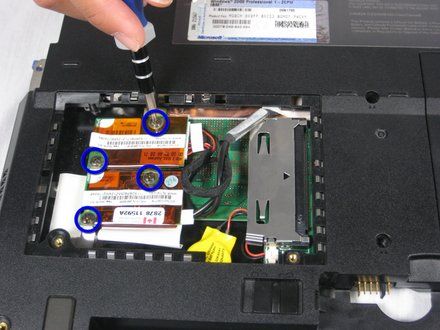

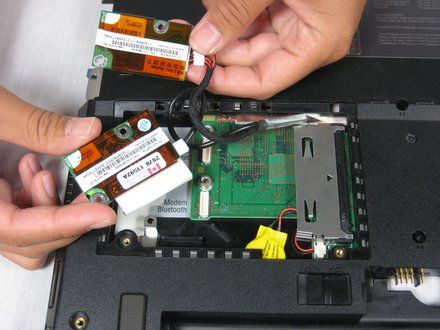

Step 19

• Remove the four 9.1mm screws attached to the modem and ethernet cards.
• CAUTION: When lifting the cards, be careful not to rip out the cables!
• Gently lift the modem and ethernet cards.

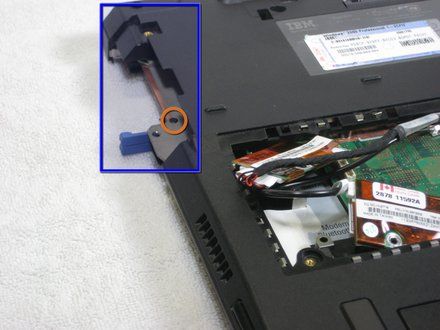

Step 20

• Locate the hard drive slot.
• Remove the 8.8mm screw with a Phillips #0 screwdriver.

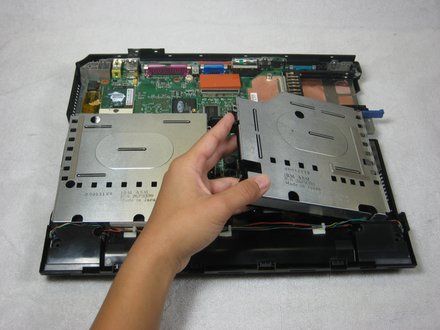

Step 21

• Turn the laptop over again and orient it as shown.
• Lift the left side of the floppy disk bay and and pull it out.
• NOTE: The black lever will pop out.

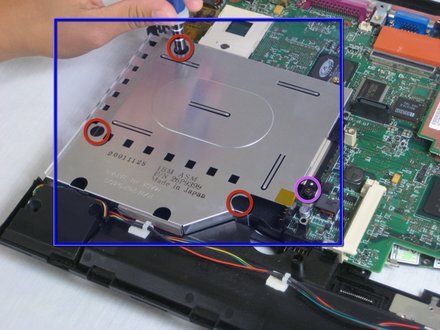

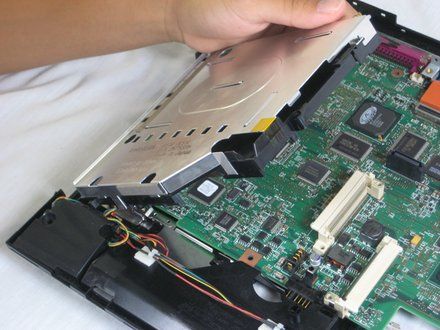

Step 22

• Locate the CD Drive Bay
• Remove the three 5.6mm screws.
• Remove the 16mm screw.
• Lift the right side and pull the CD drive bay out.
• NOTE: The black lever will pop out.

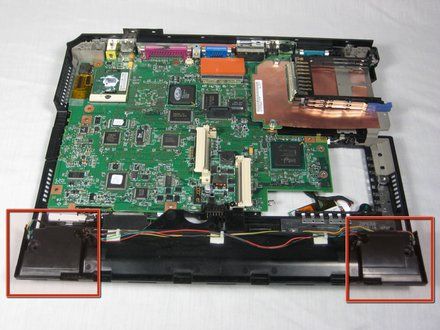

Step 23
