Disassembling IBM ThinkPad A30 BIOS Battery

Device	IBM ThinkPad A30
Difficulty	Easy
Time	2 - 5 minutes
Steps	2

This guide is by Alan on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Remove the ThinkPad A30 BIOS battery.

The following steps will be shown:

Battery removal
BIOS battery removal

Tools: Phillips #0 Screwdriver

Step 1

• NOTE: Flip the ThinkPad over so that it is upside down.

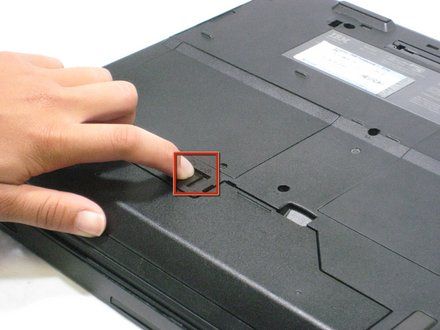

• Slide the highlighted tab to the left.

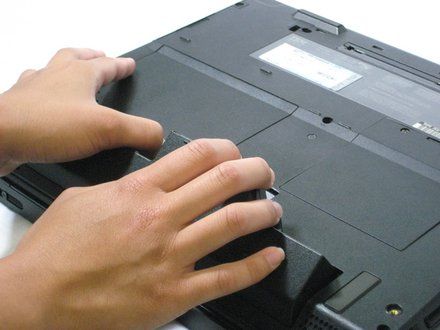

• With your finger on the tab, remove the battery by lifting it upwards away from the laptop.

Step 2

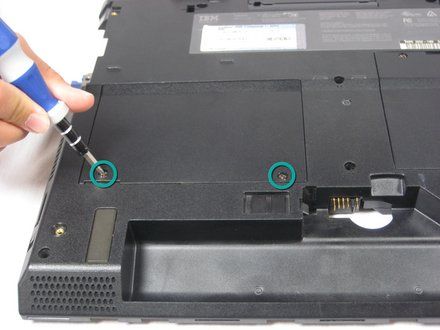

• Remove the two 5.3mm cover screws.

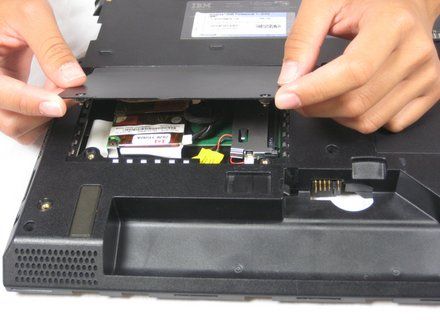

• Gently lift the cover.

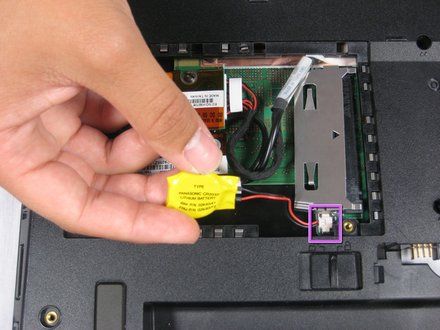

• Take out the BIOS battery by unplugging it from the computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
