Disassembling IBM ThinkPad A30 Hard Drive

Device	IBM ThinkPad A30
Difficulty	Moderate
Time	5 minutes
Steps	2

This guide is by Jessica on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Remove the ThinkPad A30 hard drive.

The following steps will be shown:

Battery removal
Hard drive removal

Tools: Phillips #1 Screwdriver

Step 1

• NOTE: Flip the ThinkPad over so that it is upside down.

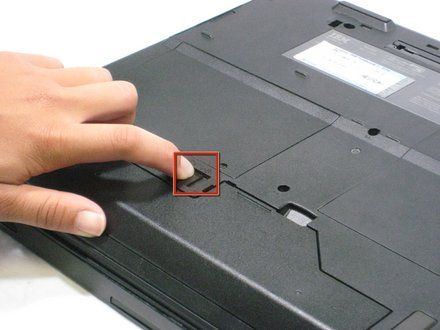

• Slide the highlighted tab to the left.

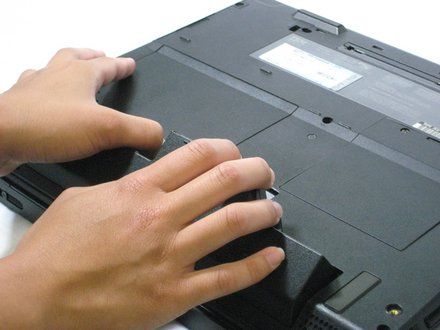

• With your finger on the tab, remove the battery by lifting it upwards away from the laptop.

Step 2

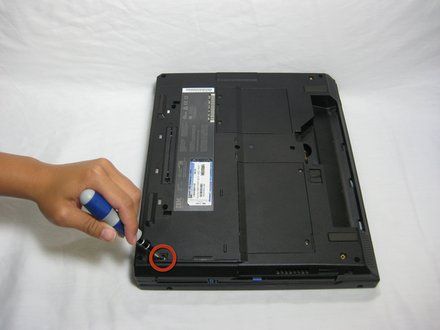

• Remove the highlighted screw with a Phillips #1 screwdriver.

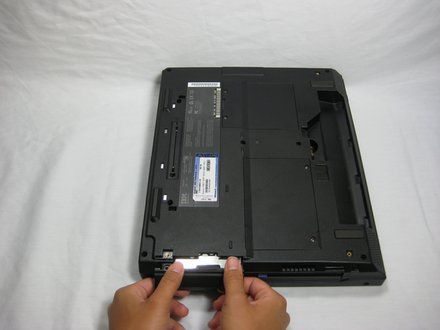

• Pull the hard drive out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
