Disassembling IBM ThinkPad A30 CPU

Device	IBM ThinkPad A30
Difficulty	Moderate
Time	No estimate
Steps	18

This guide is by Jessica on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Flathead 3/32" or 2.5 mm Screwdriver

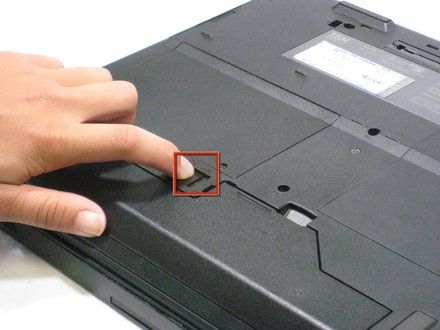

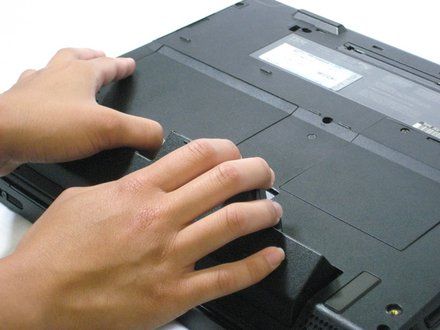

Step 1

• NOTE: Flip the ThinkPad over so that it is upside down.
• Slide the highlighted tab to the left.
• With your finger on the tab, remove the battery by lifting it upwards away from the laptop.

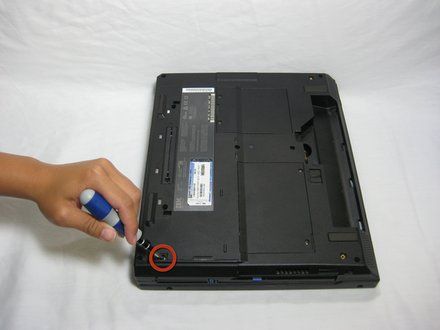

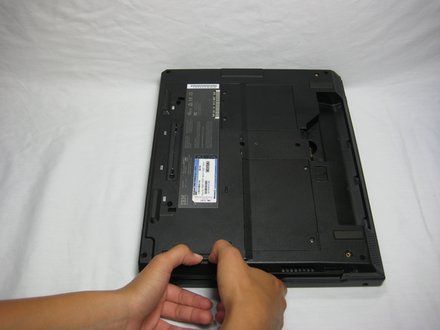

Step 2

• Remove the highlighted screw with a Phillips #1 screwdriver.
• Pull the hard drive out.

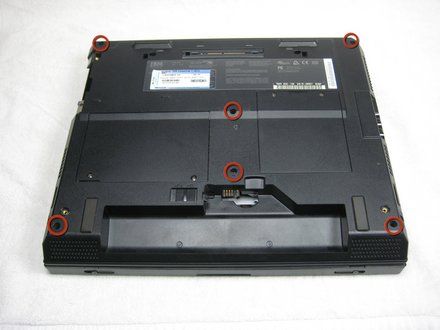

Step 3

• NOTE: Make sure the laptop is upside down and oriented in the direction shown.
• Remove the six 16.7mm screws inside the circled holes.

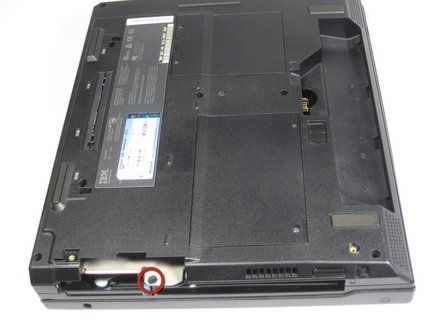

Step 4

• Rotate the ThinkPad so that the hard drive bay is facing you.
• Remove the black cover to reveal a 14.8mm screw.
• Remove the uncovered screw with a Phillips #0 screwdriver.

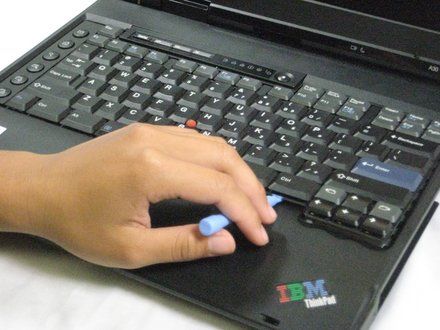

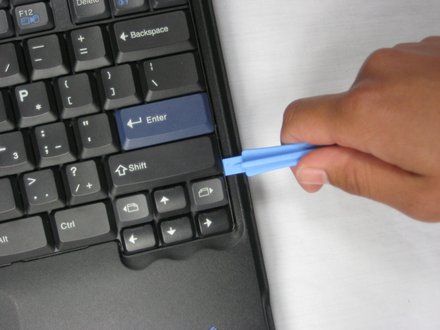

Step 5

• NOTE: Flip the ThinkPad over and open the LCD panel.
• Pry apart the keyboard with a plastic opening tool or with your fingers.

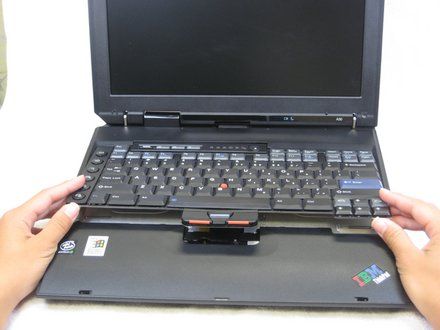

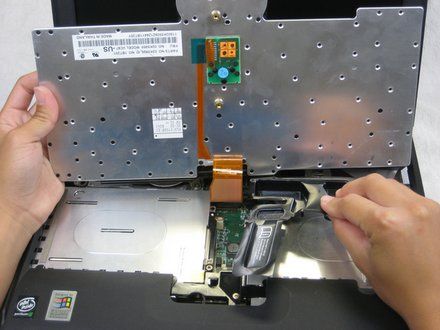

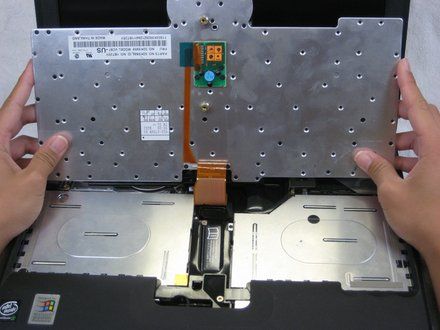

Step 6

• CAUTION: Be careful not to pull out the keyboard carelessly; there is a connector underneath it!
• Lift the front end of the keyboard as shown.
• Using your fingers, remove the black film cover.

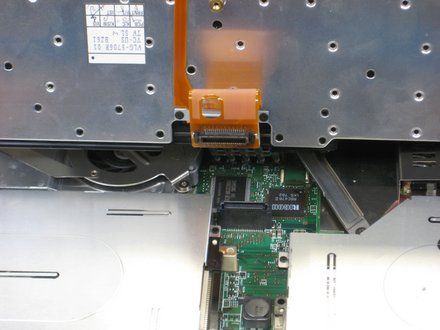

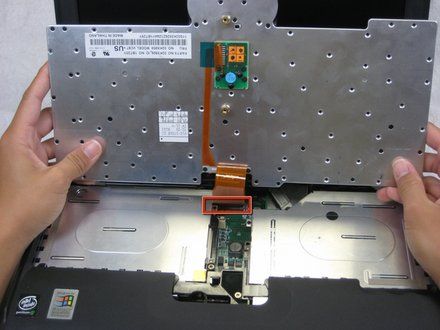

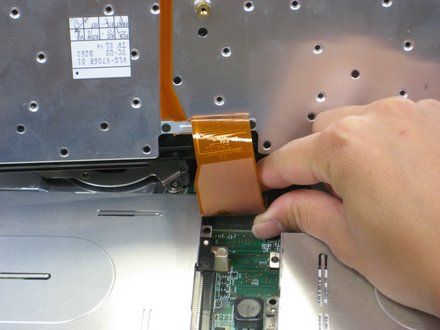

Step 7

• Locate the connector attached to the motherboard.
• Disconnect the ribbon cable by removing the connector.

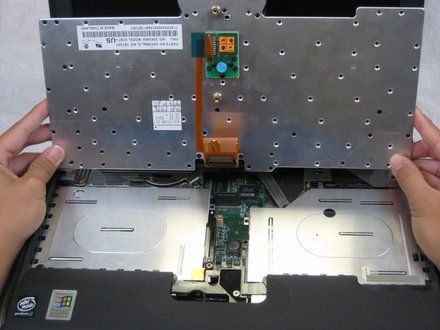

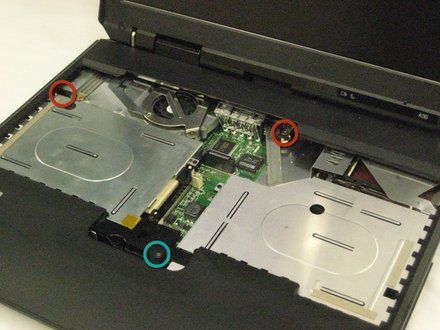

Step 8

• Lift and remove the keyboard.
• Remove the two 5.6mm screws.
• Remove the 16.7mm screw.

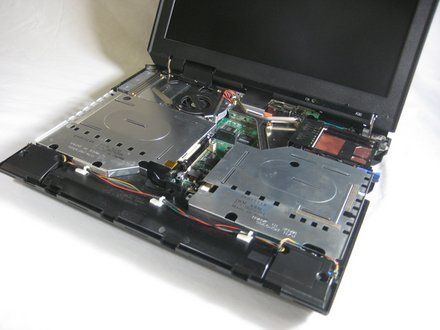

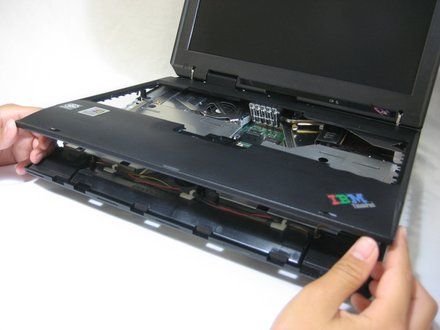

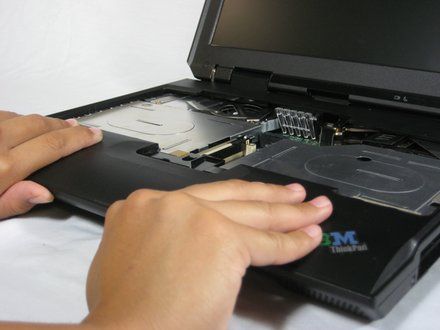

Step 9

• CAUTION: You will need to use a little force. Be wary of the tabs.
• Pry off the upper case with your hands.

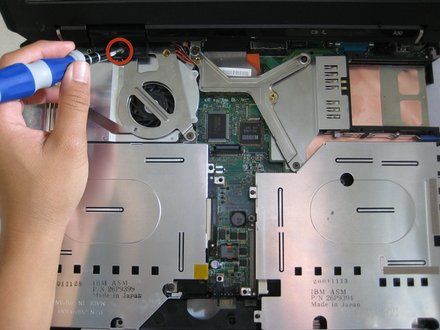

Step 10

• Remove the 5.6mm screw that holds the LCD to the upper case.

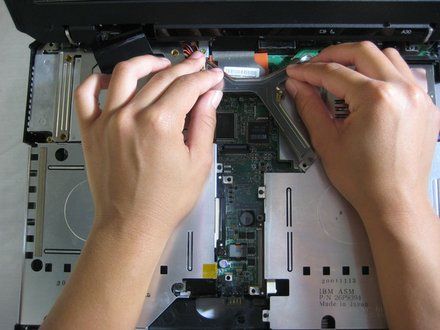

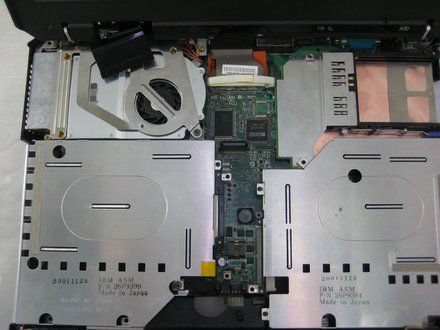

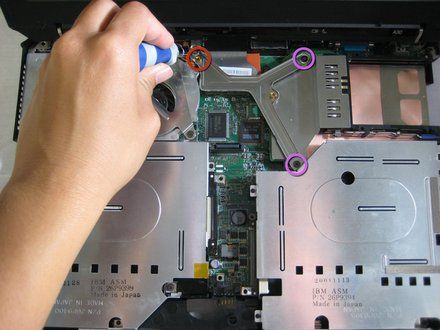

Step 11

• Remove the 5.6mm screw on the left side of the three-pronged connector.
• Remove the other two 16.7mm screws.
• Lift and remove connector.

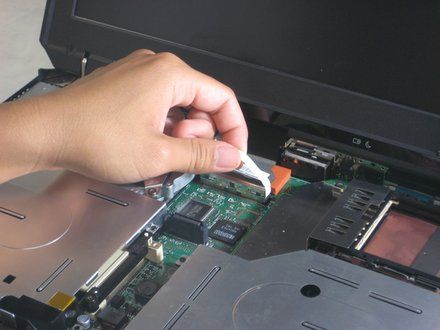

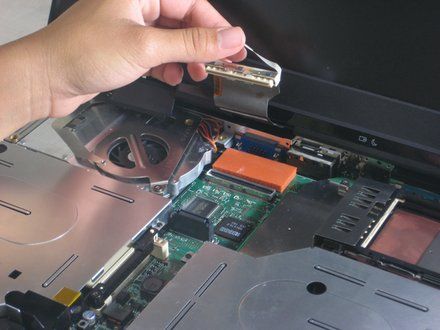

Step 12

• Pull out the white tab connecting the LCD to the motherboard.

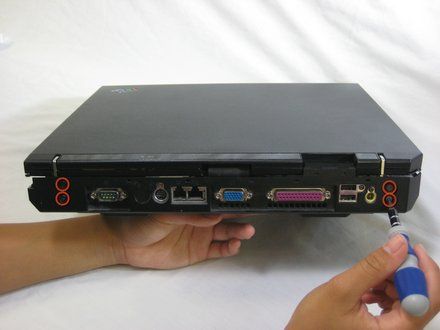

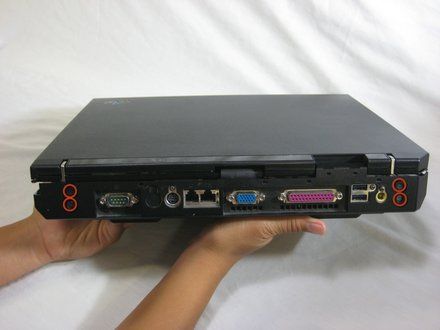

Step 13

• Turn the laptop so that the back is facing you.
• Remove the four 5.6mm long screws.

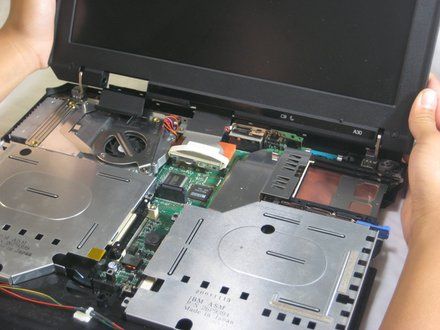

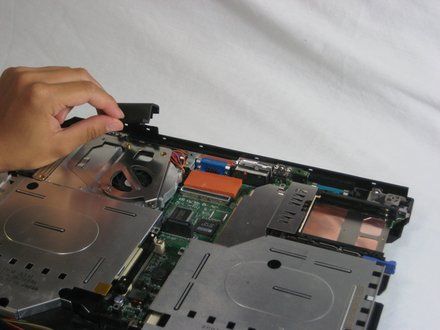

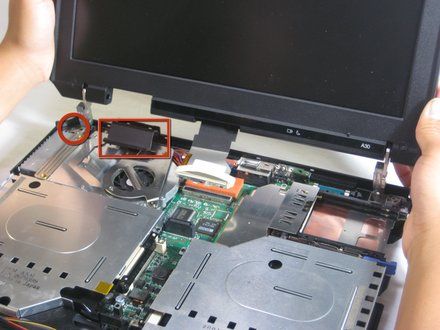

Step 14

• NOTE: Place the laptop so that the LCD is facing you again.
• Gently lift the LCD monitor up and out.
• Remove the black plastic tab.

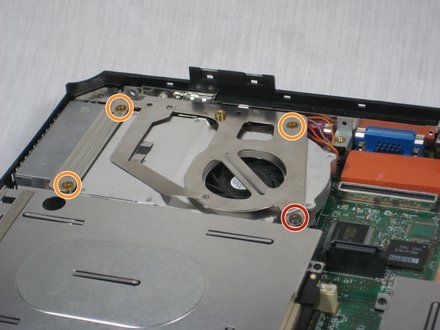

Step 15

• Remove the following screws from the fan retention bracket:
• Single 5.6 mm screw.
• Three 16.1 mm screws.

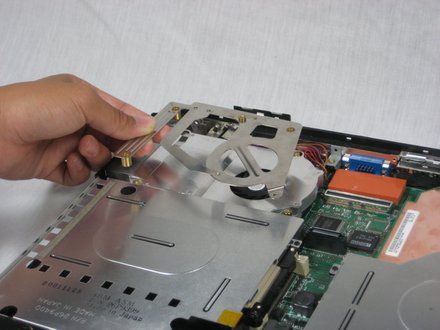

Step 16

• Lift the heatsink bracket up.

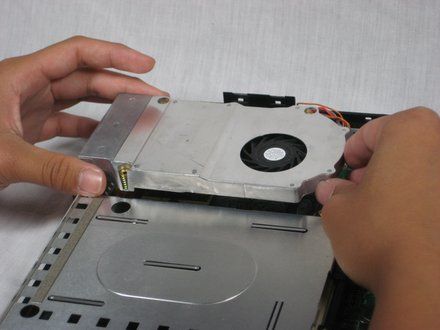

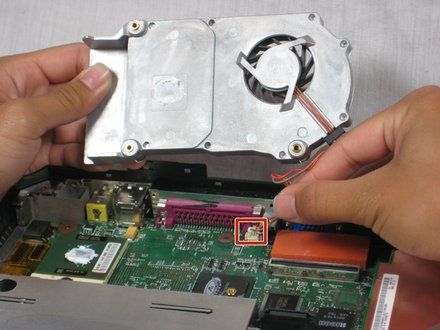

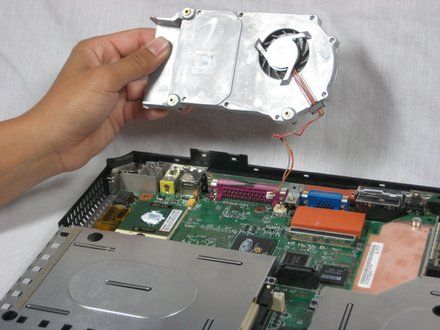

Step 17

• CAUTION: Be careful not to pull too hard. There is a cable attached to the fan.
• Lift the fan/heatsink assembly up.
• Locate the fan power cable and pull upwards near the connector.
• Remove the fan/heatsink assembly.

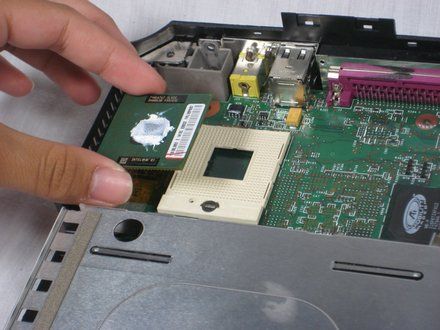

Step 18

• Use a flathead to turn the screw 180 degrees.
• Remove the CPU by lifting it upwards.
• NOTE: If the CPU is reusable, place it in an antistatic bag and away from moisture.

Conclusion

To reassemble your device, follow these instructions in reverse order.
