Sega CD Plastic Housing Removal
DeviceSega CD
DifficultyEasy
Time5 - 10 minutes
Steps7
This guide is by Ryan Kotzebue on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The purpose of this replacement guide is to remove the Sega plastic casing to expose the internal content for further repair.

Tools: Spudger; Phillips #00 Screwdriver


Step 1
[step 1 photo] [step 1 photo]

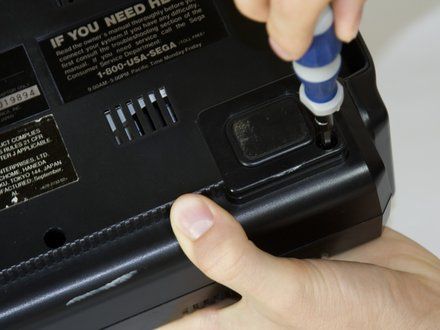

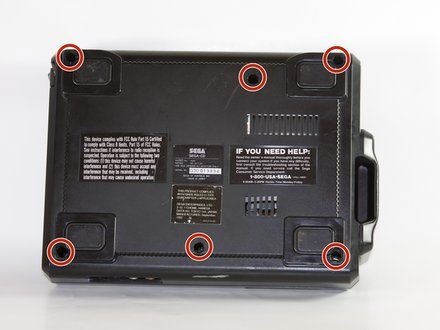

• Using a Phillips head screwdriver remove six screws from the bottom of the console.
    • The six screws are marked.

Step 2
[step 2 photo]

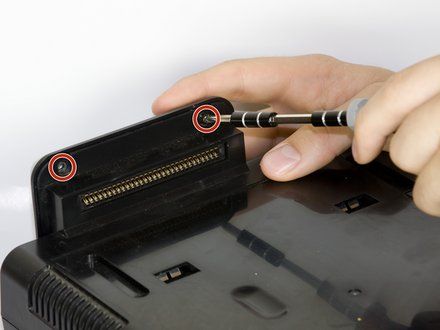

• Remove the two screws that attach the Genesis' connector to the rest of the console.
    • The two screws are marked in the diagram.

Step 3
[step 3 photo]

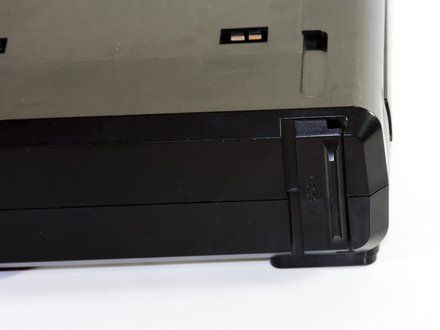

• Slide the lock tab to the left to separate the halves of the console.

Step 4
[step 4 photo]

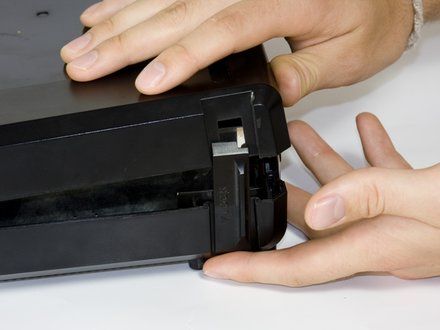

• Lift from the left side to remove the top of the case.

Step 5
[step 5 photo]

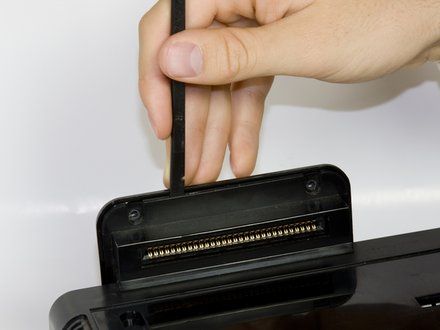

• Using the spudger, pry the cover off of the Genesis attachment.

Step 6
[step 6 photo]

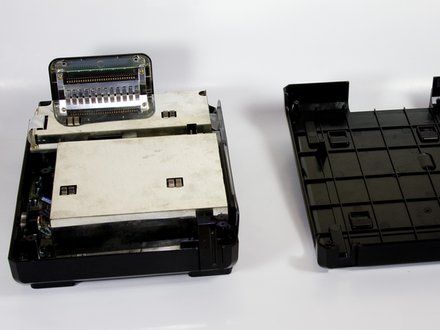

• Lift the top of the case to remove the cover.

Step 7
[step 7 photo]

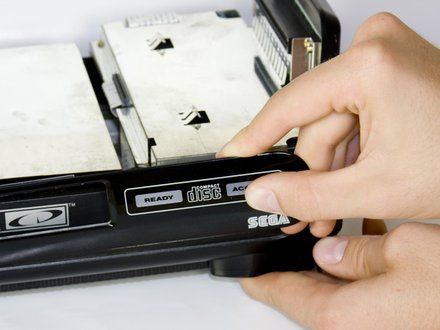

• Remove the faceplate by pulling it up, then out.

Conclusion
To reassemble the device, follow these instructions in reverse order.
