SUPER NINTENDO POWER SWITCH
REPLACEMENT::
DeviceSuper Nintendo
DifficultyModerate
Time15 minutes
Steps4
This guide is by Cameron Deines on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show you how to remove the power switch connected to the motherboard. Steps can be followed in reverse to install a new power switch.

Tools: Gamebit 4.5mm; Phillips #2 Screwdriver

Parts: Super Nintendo Power switch


STEP 1::
[step 1 photo]

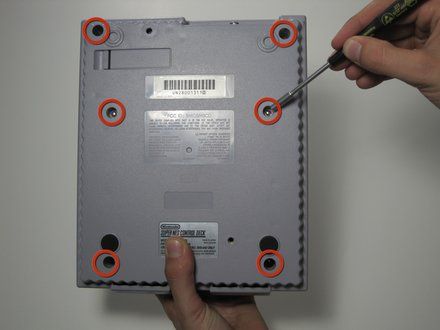

• Remove the six screws located on the underside of the system using the Gamebit 4.5mm screwdriver.

STEP 2::
[step 2 photo] [step 2 photo] [step 2 photo]

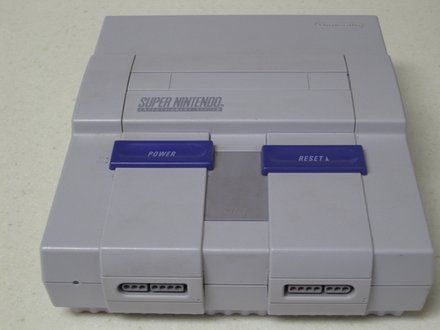

• Carefully flip the unit back over.

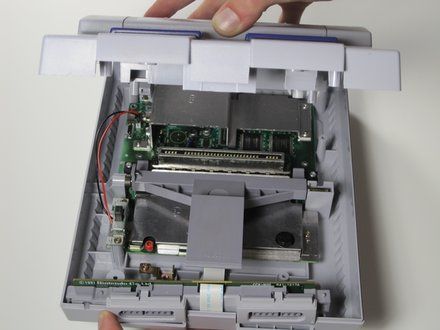

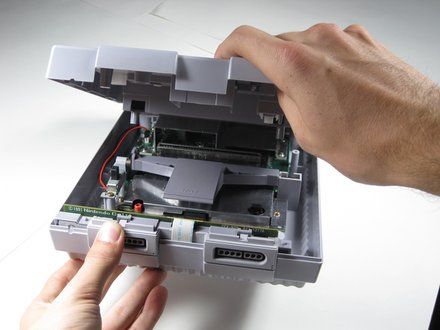

• Locate the seam. Lift and separate the upper half of the case from the lower half of the case.

STEP 3::
[step 3 photo]

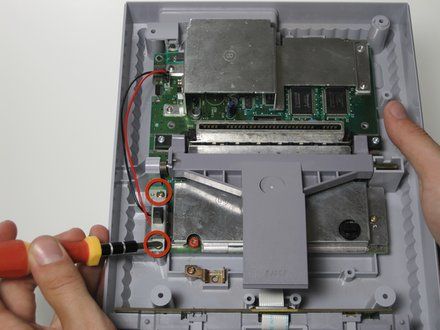

• Remove the two 11.7 mm Phillips #2 screws connecting the power switch to the motherboard.

STEP 4::
[step 4 photo] [step 4 photo]

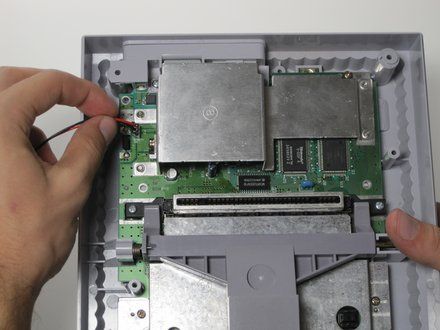

• NOTE: The power switch is connected to the motherboard near the top left of the console.

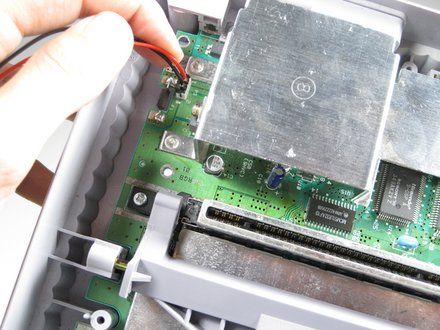

• Carefully pull the connector from its socket on the motherboard. You may need to wiggle it out as you pull.
    • CAUTION: Do not detach the connector by pulling on the wires. This could damage the wires or the socket.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
