Super Nintendo Super Nintendo Outer Case Replacement

This guide is by Cameron Deines on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show you how to open up your Super Nintendo.

Tools: Gamebit 4.5mm

Step 1

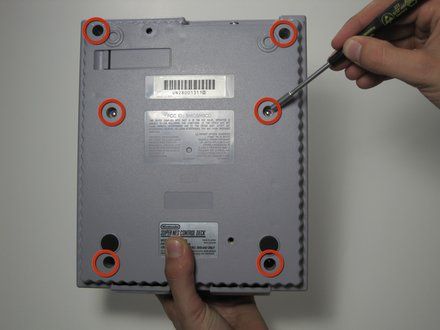

• Remove the six screws located on the underside of the system using the Gamebit 4.5mm screwdriver.

Step 2

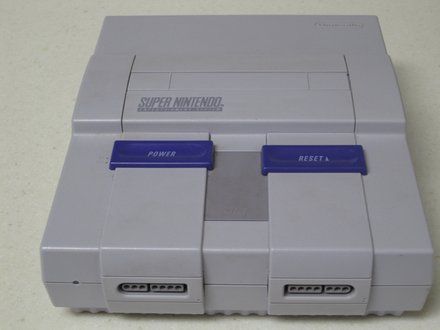

• Carefully flip the unit back over.

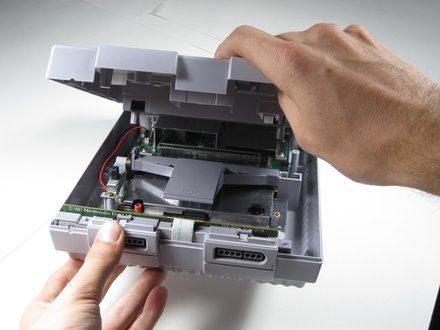

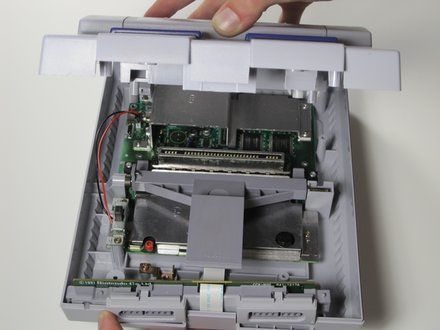

• Locate the seam. Lift and separate the upper half of the case from the lower half of the case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
