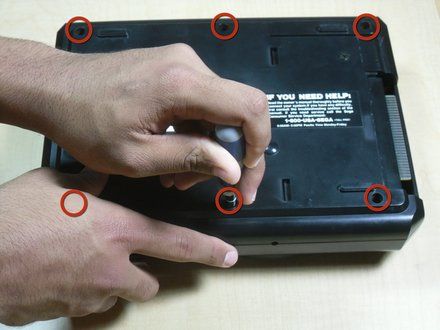

|  | ![[step 1 photo]](3754/step01-1.jpg) Remove the six screws from the underside of the console with a Phillips #1 screwdriver.
|
|
|
|  |  |  |

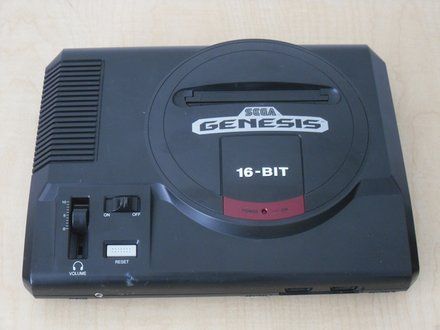

|  | ![[step 2 photo]](3754/step02-1.jpg) Flip the Sega Genesis upright.
|
|
|
|  |  |  |

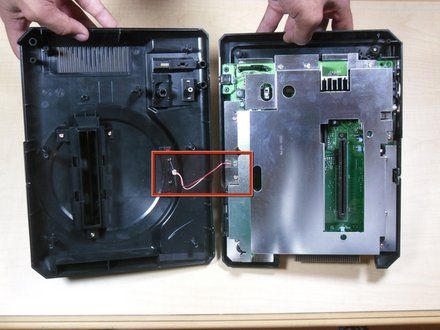

|  | ![[step 3 photo]](3754/step03-1.jpg) Gently lift the top casing. CAUTION: Note: the case will be connected to the main board by LED wires.
|
|
|
|  |  |  |

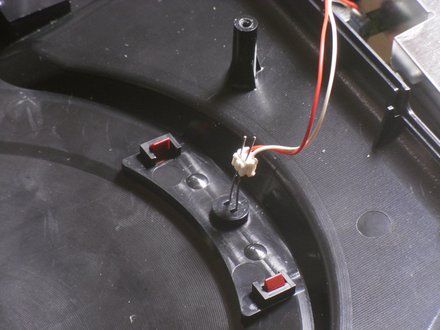

|  | ![[step 4 photo]](3754/step04-1.jpg) Bend out the LED leads into vertical positions.
|
|
|
|  |  |  |

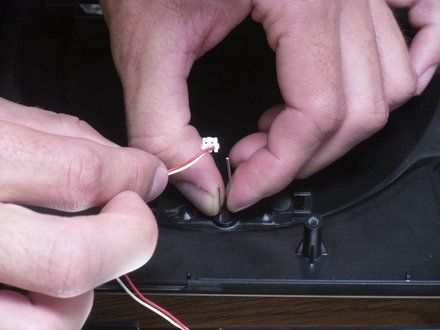

|  | ![[step 5 photo]](3754/step05-1.jpg) Slide the LED wire apparatus off the lead pins. CAUTION: Note: observe which color wire corresponds with which length of pin.
|
|
|
|  |  |  |

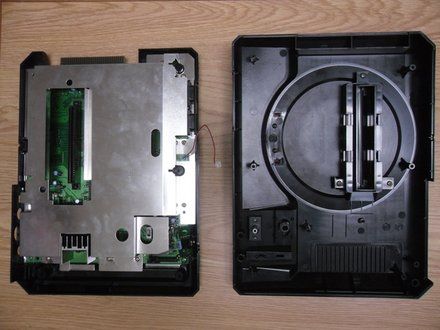

|  | ![[step 6 photo]](3754/step06-1.jpg) Separate the main board from the outer case.
|
|
|
|  |  |  |

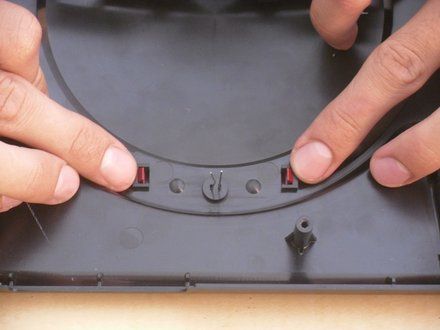

|  | ![[step 7 photo]](3754/step07-1.jpg) Remove plastic "Power / On" cover by pushing tabs together.
|
|
|
|  |  |  |

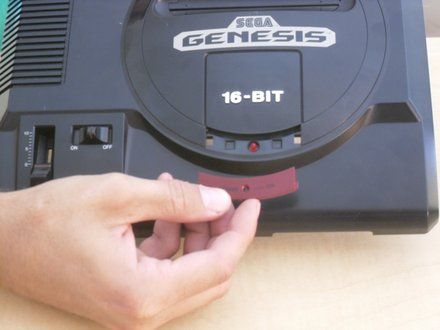

|  | ![[step 8 photo]](3754/step08-1.jpg) Pull "Power / On" cover away from the console cover.
|
|
|
|  |  |  |

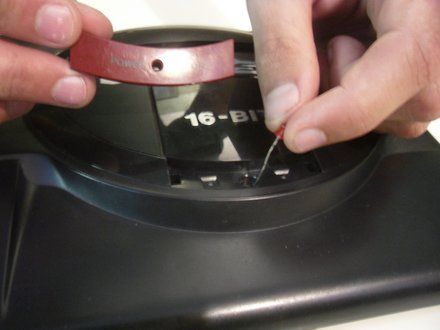

|  | ![[step 9 photo]](3754/step09-1.jpg) From the outside of the top cover, remove LED.
|
|
|
|  |  |  |

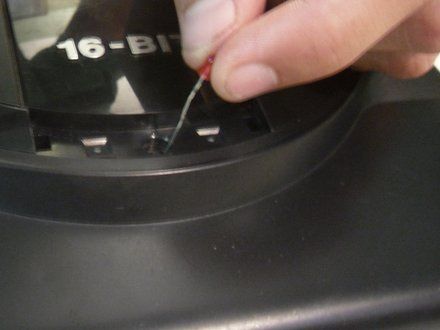

|  | ![[step 10 photo]](3754/step10-1.jpg) Insert new LED (Click here to buy LED. (http://www.superbrightleds.com/cgi-bin/store/index.cgi?action=DispPage&Page2Disp=/led_prods.htm&utm_source=bing&utm_medium=cpc&utm_term=buy%20sega%20genesis%20power%20led&utm_content=gen1&utm_campaign=General))
|
|
|
|  |  |  |

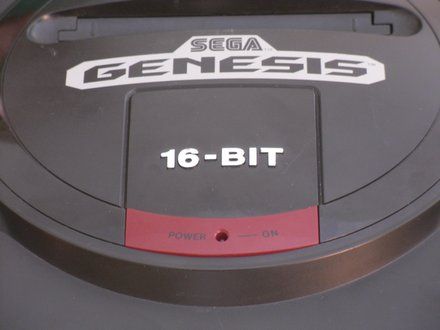

|  | ![[step 11 photo]](3754/step11-1.jpg) Re-insert "Power / On" cover until it clicks into place.
|
|
|
|  |  |  |
|  | | To reassemble your device, follow these instructions in reverse order. When installing the new LED, make sure that the longer of the two legs is inserted into the side of the connector with the red wire. |
|
|
|  |  |  |
|
