SEGA GENESIS OUTER CASE REPLACEMENT::
DeviceSega Genesis
DifficultyModerate
Time10 minutes
Steps6
This guide is by Erik Bjornstrom on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This repair guide will take you through all the steps for removing the outer case of the Sega Genesis.

Tools: Phillips #1 Screwdriver


STEP 1::
[step 1 photo]

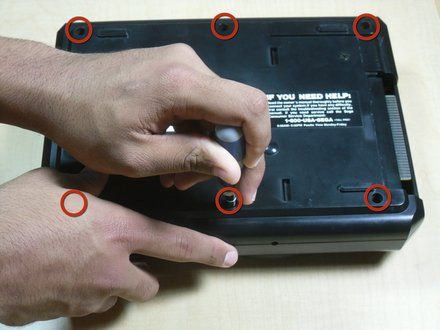

• Remove the six screws from the underside of the console with a Phillips #1 screwdriver.

STEP 2::
[step 2 photo]

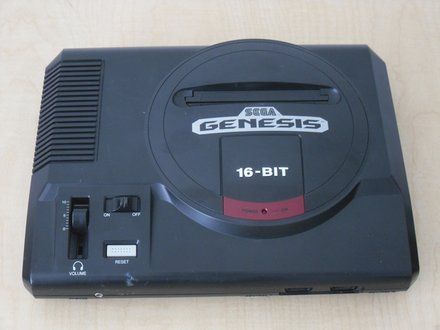

• Flip the Sega Genesis upright.

STEP 3::
[step 3 photo]

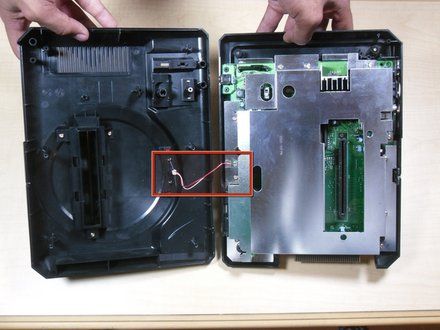

• Gently lift the top casing.
• CAUTION: Note: the case will be connected to the main board by LED wires.

STEP 4::
[step 4 photo]

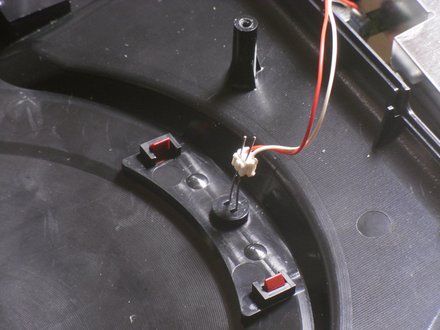

• Bend out the LED leads into vertical positions.

STEP 5::
[step 5 photo]

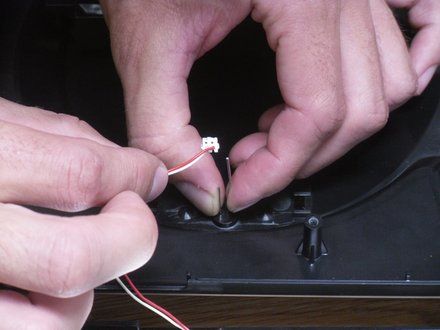

• Slide the LED wire apparatus off the lead pins.
• CAUTION: Note: observe which color wire corresponds with which length of pin.

STEP 6::
[step 6 photo]

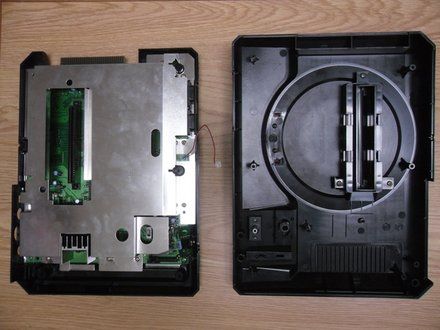

• Separate the main board from the outer case.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
