Nintendo GameCube Regional Modification Selector Switch

Device	Nintendo GameCube
Difficulty	Moderate
Time	15 - 25 minutes
Steps	18

This guide is by Grandmaster Xiffle on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

So, you bought a cool japanese import game for the GameCube, but your US formatted console won't play it. You're in luck! There's a simple mod you can do to switch back and forth between NTSC-U and NTSC-J.

Tools: Lead-Free Solder; Wire Stripper; Soldering Iron; Gamebit 4.5mm

Parts: Double Throw Switch; 28 Gauge Wire

Step 1

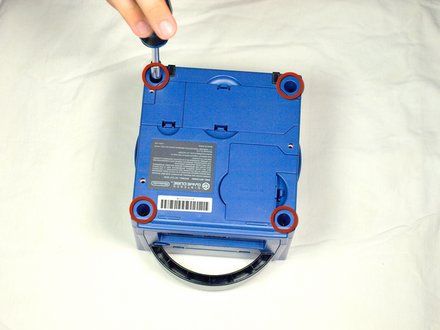

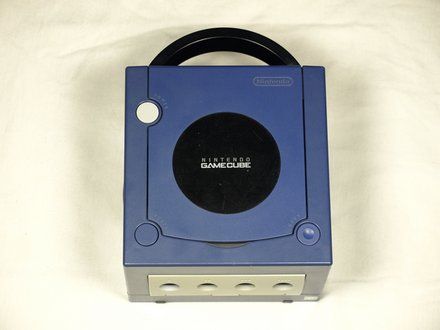

• Turn over the Gamecube so that the bottom side is facing up.

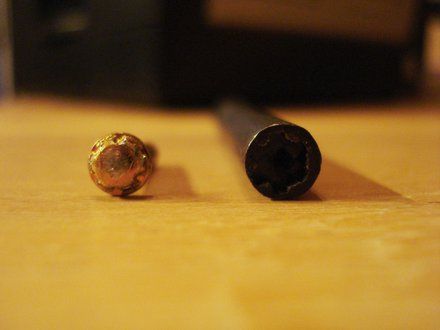

• Use the 4.5 mm Gamebit screwdriver to remove all four screws.

Step 2

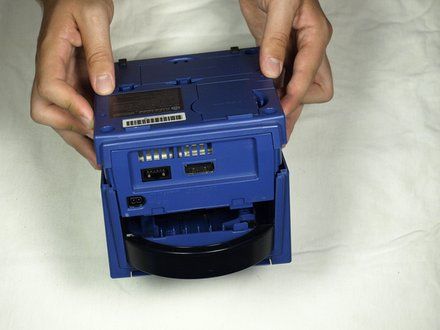

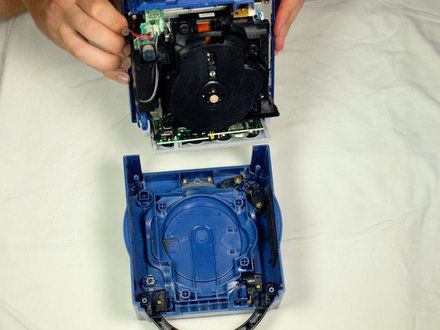

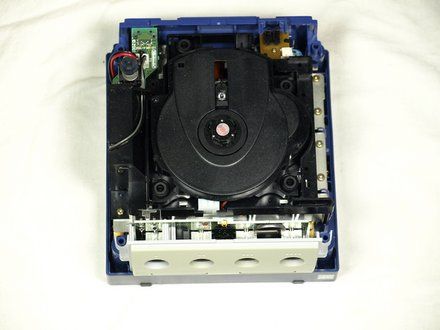

• With the bottom side of the GameCube facing upward and the screws removed, carefully pull the outer shell of the unit away from the top half.
• Move the GameCube so that the inside is facing upwards.

Step 3 :: Removing the back panel

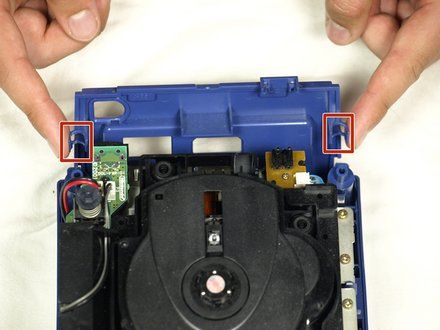

• Gently press down on the clips located on either side of the back panel.
• Carefully remove the back panel from the GameCube.

Step 4

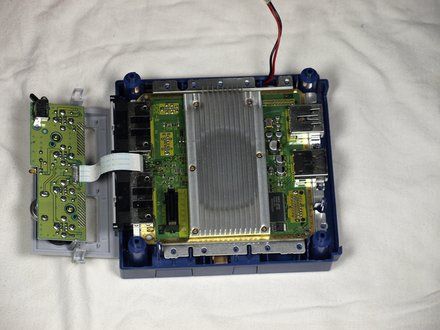

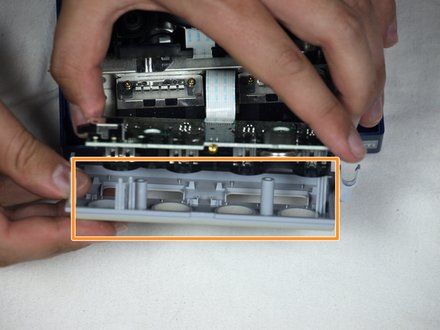

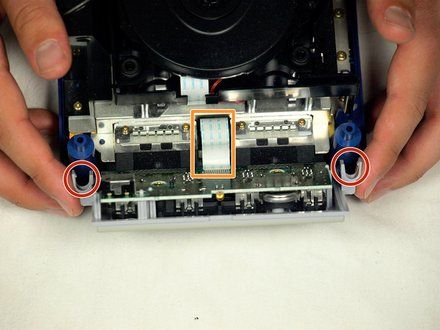

• Unclip the controller ports at the front of the unit.
• CAUTION: A ribbon cable (outlined in orange) is still attached to the unit. Do not disconnect this cable.
• REMINDER: Controller ports are where the controllers plug into the game console, and are a half circular shape.

Step 5 :: Separate the casing

• NOTE: This step may not be necessary depending on your end goal

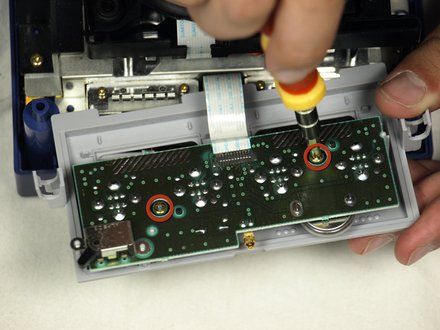

• Use a Phillips #2 screwdriver to remove the two screws on the back of the control port.
• Carefully separate the gray outer casing of the control port and the circuit board.

Step 6

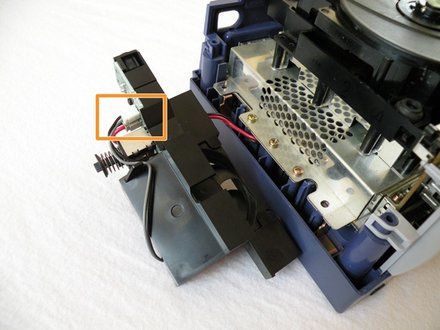

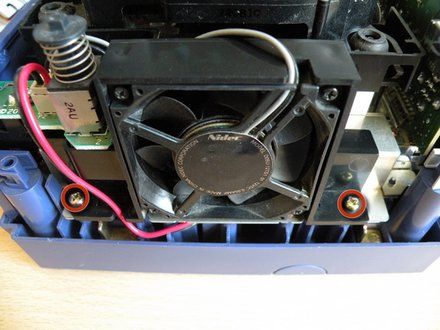

• The left side of the unit contains the cooling fan and its housing.
• Carefully remove the two screws attaching the cooling fan housing to the unit.
• CAUTION: Do not detach the red and black cooling fan wire from the main unit. Boxed in orange.

Step 7

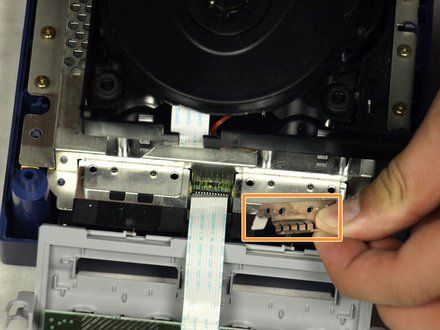

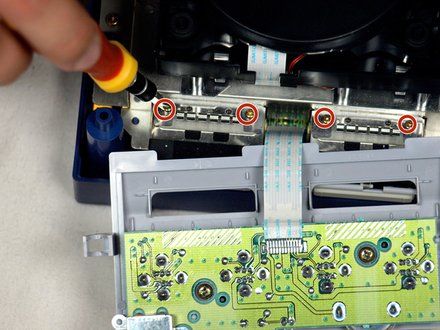

• Remove the four Phillips #1 screws retaining the ground springs.
• Carefully remove the ground springs from the main unit.

Step 8

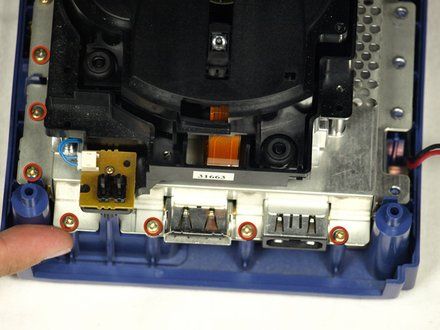

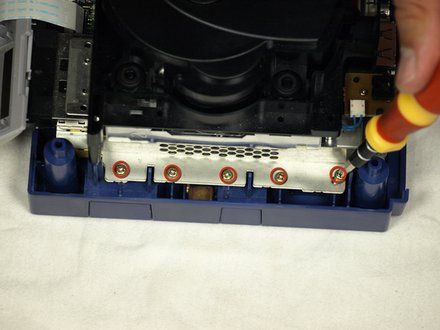

• The optical drive is secured to a metal plate.
• Using a Phillips #2 screwdriver, unscrew the twelve screws that are around the outer edge of the optical drive.

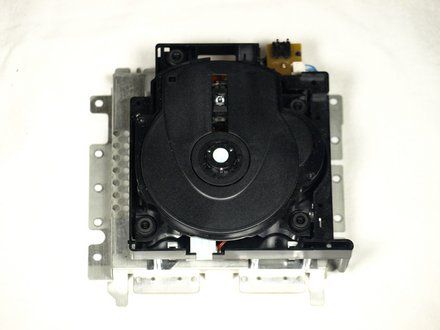

Step 9 :: Remove the assembly

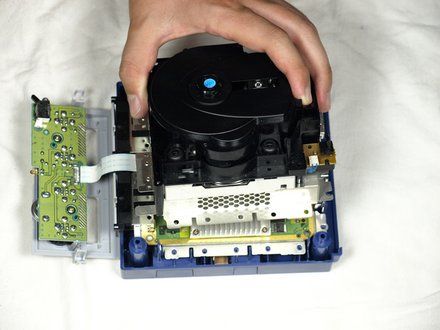

• Carefully separate the optical drive assembly from the rest of the GameCube unit.
• The optical drive assembly is secured to the motherboard underneath by a slot; some force may be required to carefully free the assembly.
• The metal plate and the actual optical drive will remain attached.

Step 10

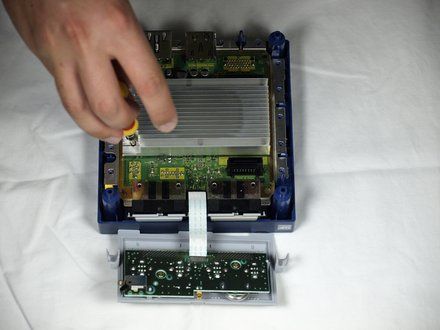

• With the Optical Drive Assembly removed, your GameCube should now look like this.
• Remove the 6 screws (circled in orange) on the heat sink using a #1 Phillips screwdriver.

Step 11

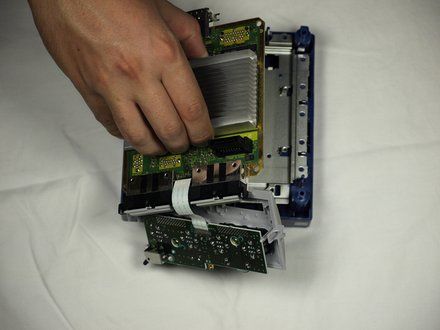

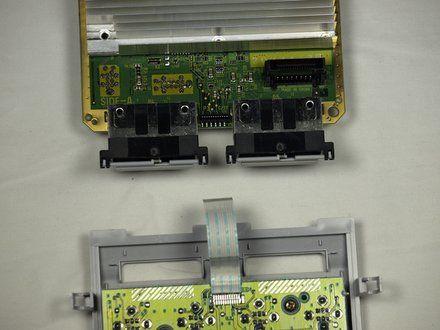

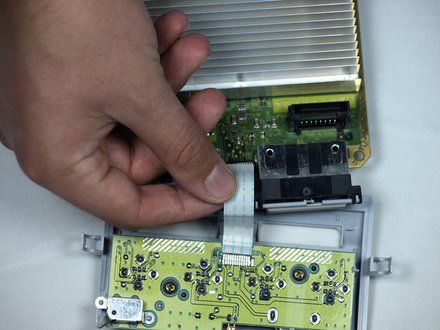

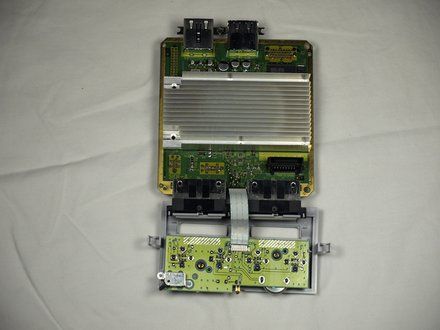

• Gently lift the motherboard from base (as shown in second picture).

Step 12

• Carefully disconnect the ribbon cable connecting the motherboard with the front panel.
• NOTE: At this point you can replace the old motherboard with a new one and enjoy your now-functional GameCube!

Step 13 :: Teardown completed

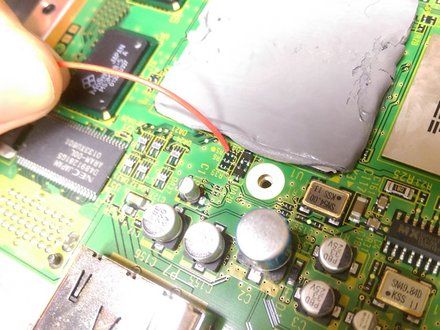

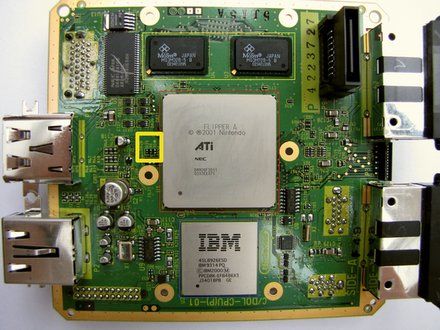

• Locate the R5 and R6 pads.
• They are situated to the right of where the heat sink's back middle screw was. If you are working with an American system (like me), the R5 pads will be empty. On a Japanese console, R6 will be empty.

Step 14 :: Make connections

• Solder the wires to either side of the empty pad (R5 for American consoles, R6 for Japanese).
• REMINDER: US products are NTSC-U format, while Japanese NTSC-J. European models are PAL and are not addressed in this guide.

Step 15 :: Quality control

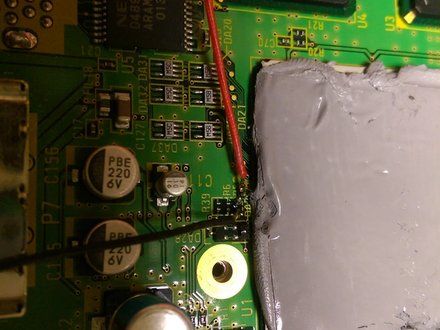

• CAUTION: Make sure that the wires are not soldered to each other. If they are, this will become a permanent change.
• CAUTION: When reinstalling the heat sink, I used a bit of electrical tape to avoid shorting the R5 connections.

Step 16 :: Install the switch

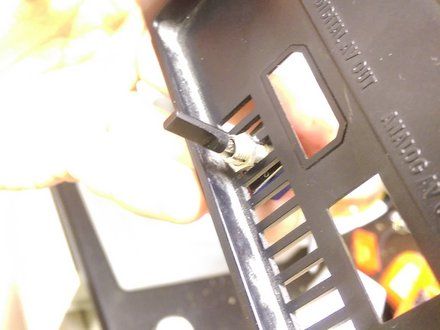

• Insert the switch. In this example, a slot was removed from the vent to allow a larger switch. Make sure your switch is firmly attached and that its position will allow it to fit into the system.

Step 17 :: Making connections

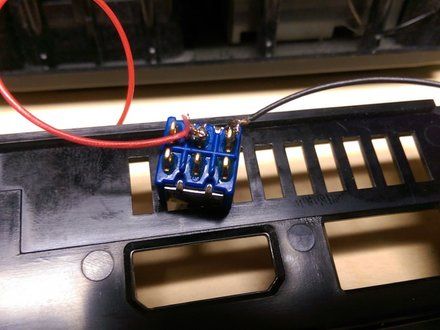

• Solder the two sides from the R pads to your switch. Attach one to either middle terminal and attach the other wire to the terminal above or below the other.
• NOTE: Use a two pole double throw switch if you want to add an indicator light.

Step 18 :: Get it together

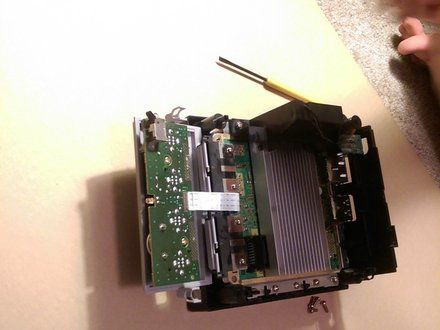

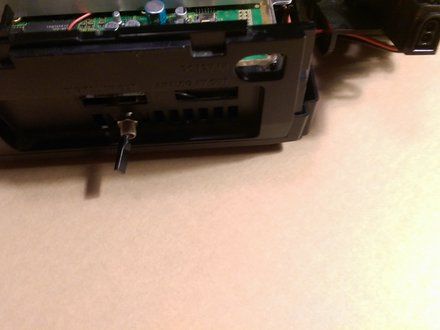

• Reassemble. Route the new wires so that they won't be pinched during reassembly and be sure they can't get pulled.
• REMINDER: Make sure you reverse the directions exactly or you'll find yourself doing steps over.

Conclusion

To reassemble your device, follow these instructions in reverse order.
