| | Game Boy Speaker Replacement |
| Device | Game Boy |
| Difficulty | Difficult |
| Time | No estimate |
| Steps | 10 |
This guide is by Andrew Tramposch on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
This guide explains how to replace the speaker in a first-generation Nintendo Game Boy system.
Tools: Phillips #00 Screwdriver; Lead-Free Solder; Soldering Iron |
|
| Step 1 :: Batteries |

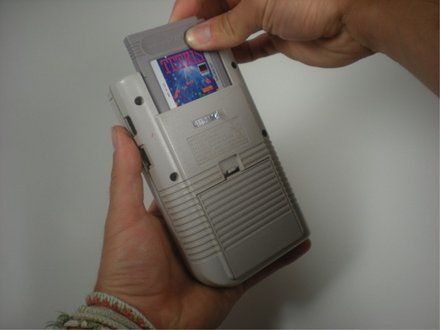

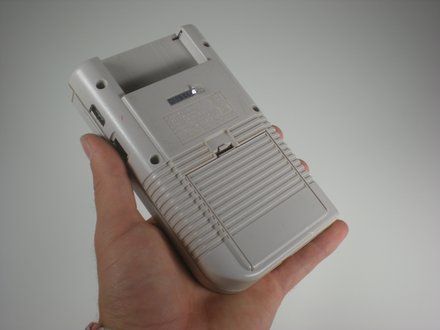

![[step 1 photo]](3374/step01-2.jpg) Switch your Game Boy off and remove the cartridge.
|
|
| Step 2 |

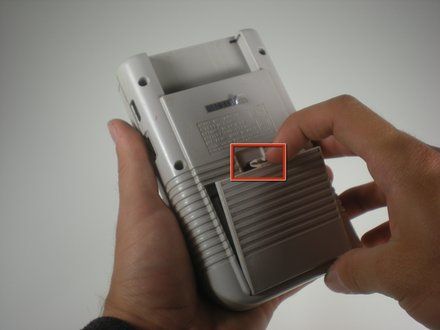

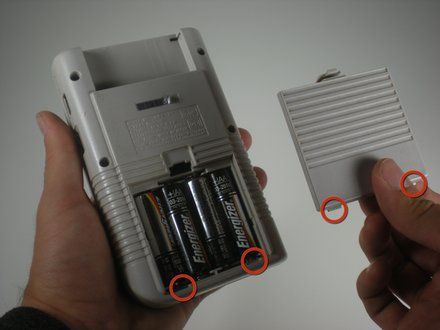

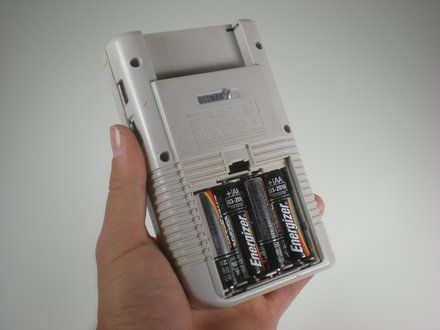

![[step 2 photo]](3374/step02-3.jpg) Use a fingernail (or small coin) to push down on the battery door latch and remove the battery door. NOTE: The release latch is a plastic spring clip. If your Game Boy is getting on in years, be careful as the plastic may be brittle. REMINDER: When you're replacing the cover, be sure to get its two plastic tabs into the slots in the bottom of the battery compartment before pushing the cover back in place.
|
|
| Step 3 |

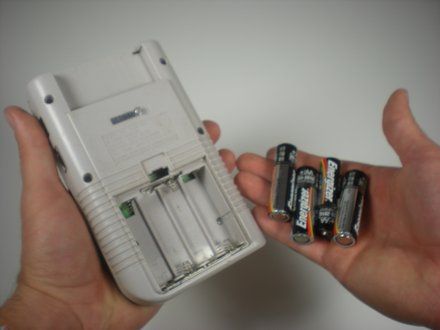

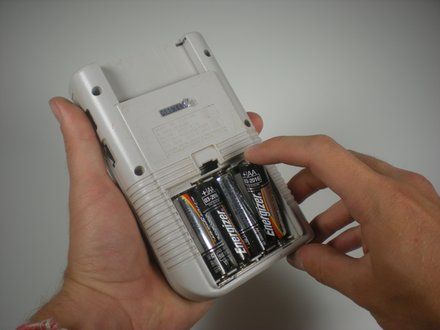

![[step 3 photo]](3374/step03-2.jpg) Use a fingernail to pry each battery outward from the positive (+) terminal to remove them. CAUTION: Dispose of used batteries properly! NOTE: Remove the batteries from your Game Boy before storing it for more than a month or so.
|
|

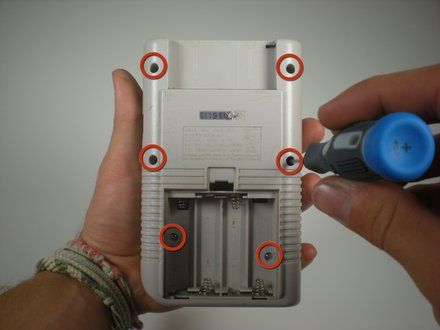

| Step 4 | ![[step 4 photo]](3374/step04-1.jpg) Remove the six Triwing screws from the back of the device.
|
|

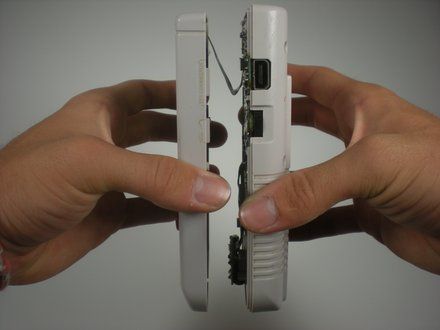

| Step 5 | ![[step 5 photo]](3374/step05-1.jpg) Gently separate the device's front casing from the back casing after you remove the screws. CAUTION: Be careful not to completely separate the casing halves, as they are still joined by a large ribbon cable that may be damaged.
|
|

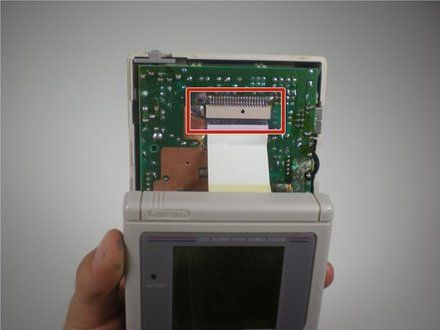

| Step 6 | ![[step 6 photo]](3374/step06-1.jpg) Slide the front side of the casing down to expose the ribbon cable connector.
|
|

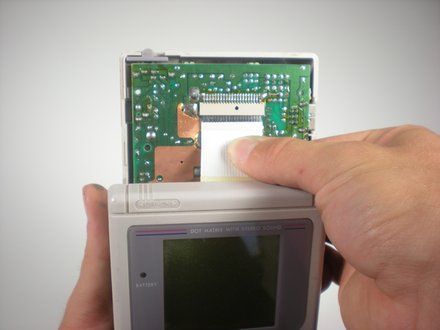

| Step 7 | ![[step 7 photo]](3374/step07-1.jpg) Grip the ribbon connector with your thumb and forefinger. Pull down gently until the connector, not the ribbon itself, comes out of its socket. Separate the front and back casings.
|
|

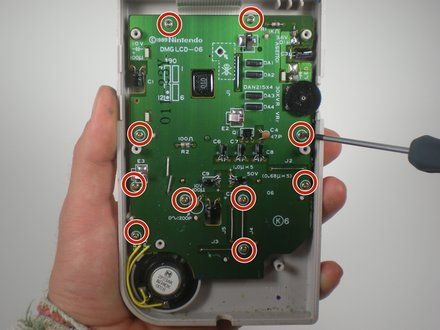

| Step 8 | ![[step 8 photo]](3374/step08-1.jpg) Remove the 10 Phillips #00 screws from the motherboard.
|
|

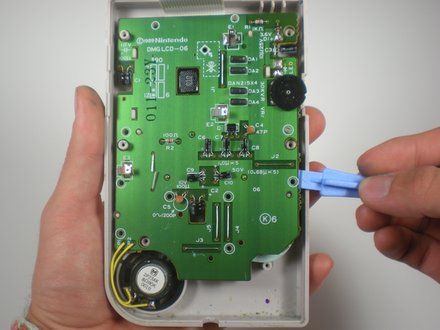

| Step 9 |

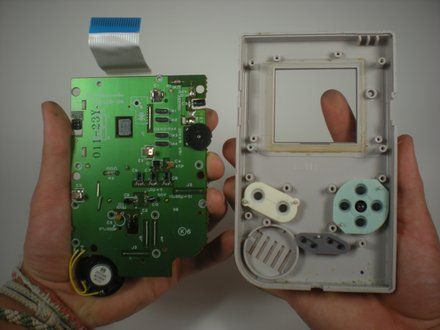

![[step 9 photo]](3374/step09-2.jpg) Use a plastic opening tool to gently lift the motherboard up and remove it from the front plastic case. CAUTION: Use caution when lifting the board since the speaker is attached.
|
|

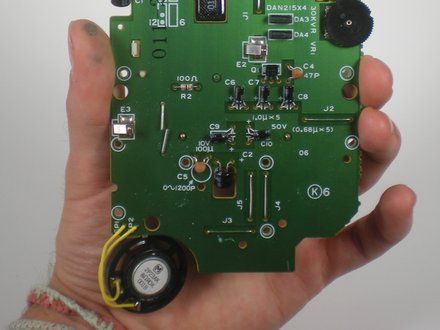

| Step 10 |

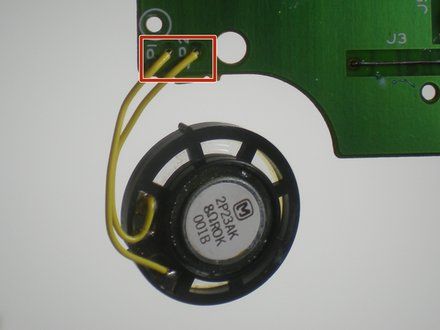

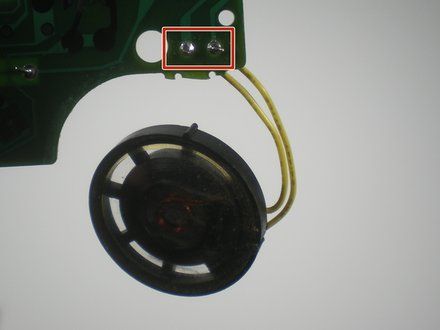

![[step 10 photo]](3374/step10-3.jpg) Desolder the two wires connecting the speaker to the motherboard. Remove the speaker. NOTE: If you're new to soldering, refer to this guide (https://www.ifixit.com/Guide/How+To+Solder+and+Desolder+Connections/750) for tips that will help with desoldering the speaker wires and/or soldering the new ones in place.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
