COMMODORE 64 CENTRAL PROCESSING UNIT
(CPU) REPLACEMENT::
DeviceCommodore 64
DifficultyEasy
Time1 minute
Steps5
This guide is by Silvanus Clarke on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The Central Processing Unit (CPU) or Micro Processing Unit (MPU) is the 8-bit processor for the Commodore 64.

Tools: Phillips #00 Screwdriver; Scissors

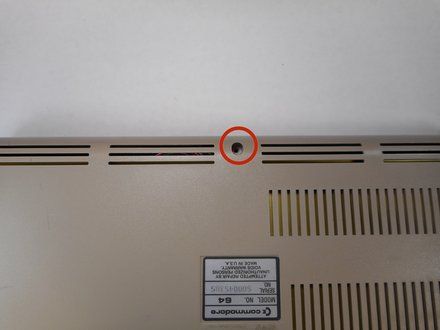

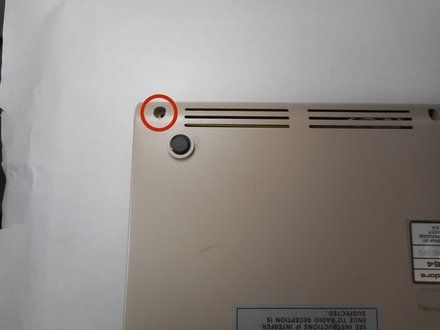

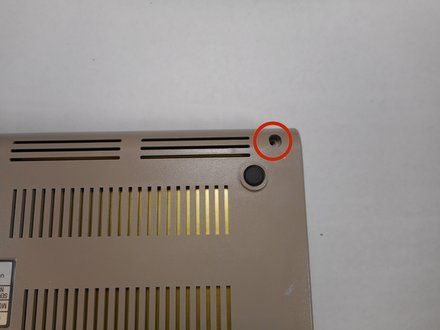

STEP 1 :: REMOVING SCREWS::
[step 1 photo] [step 1 photo] [step 1 photo]
• 1. Remove three 6.75mm ph2 screw heads from the casing

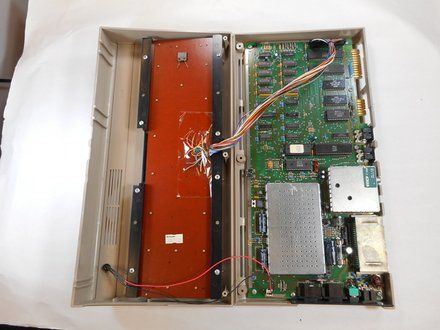

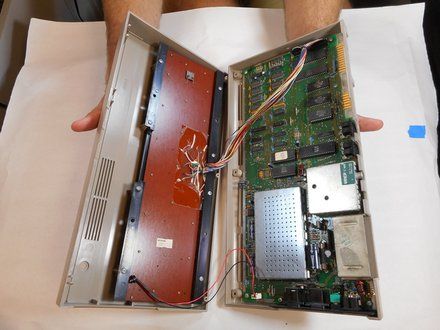

STEP 2 :: OPENING::
[step 2 photo] [step 2 photo]
• 2. Split the case of the C64 open by pulling up on the case towards you
• CAUTION: Do not pull too hard that you break the clips.

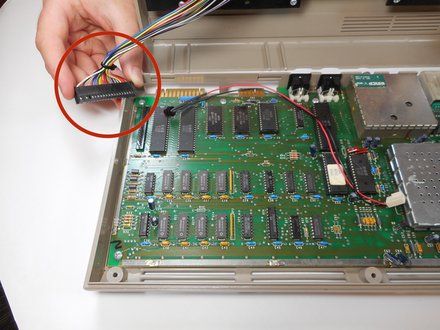

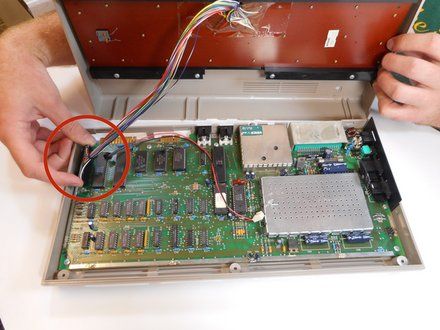

STEP 3 :: DETACH KEYBOARD FROM THE
MOTHERBOARD::
[step 3 photo] [step 3 photo]
• 1. Detach the multi-colored wire bundles connected to the motherboard.

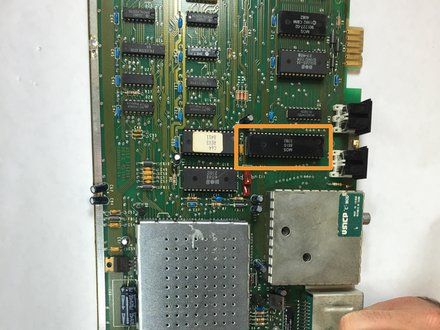

STEP 4 :: LOCATE THE CPU::
[step 4 photo]
• Locate the CPU chip which is labeled 'MOS 6510 3782'

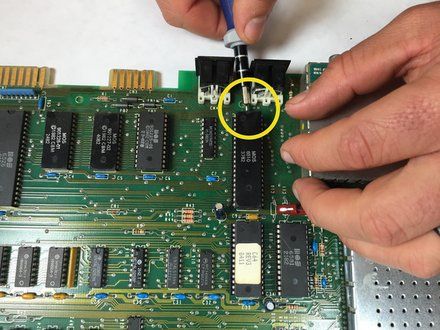

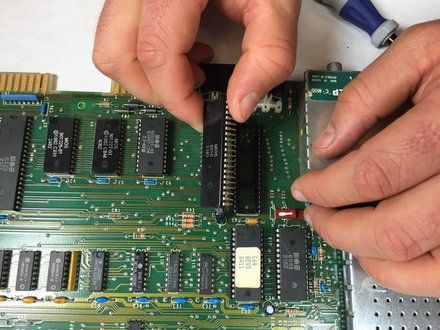

STEP 5 :: REMOVING THE CPU CHIP::
[step 5 photo] [step 5 photo]
• 3. Loosen the CPU chip with a Phillips screwdriver. Then use your hand to pry up the CPU chip from the motherboard.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Silvanus Clarke on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
