COMMODORE 64 VIC CHIP REPLACEMENT::
DeviceCommodore 64
DifficultyVery easy
Time1 minute
Steps5
This guide is by Silvanus Clarke on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The Video Interface Controller (VIC) is is the graphics chip for the C64.

Tools: Phillips #00 Screwdriver

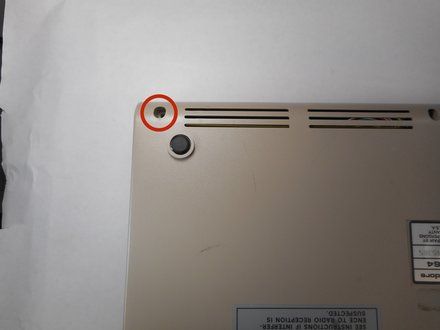

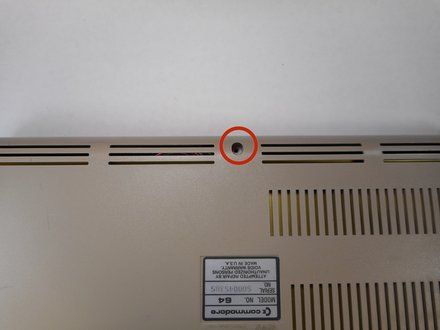

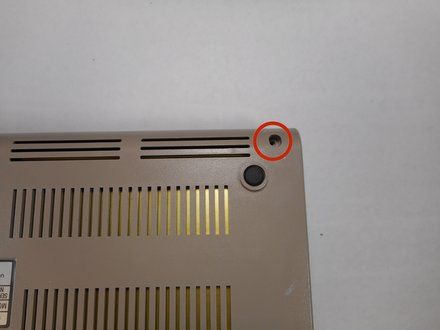

STEP 1 :: REMOVING SCREWS::
[step 1 photo] [step 1 photo] [step 1 photo]
• 1. Remove three 6.75mm ph2 screw heads from the casing

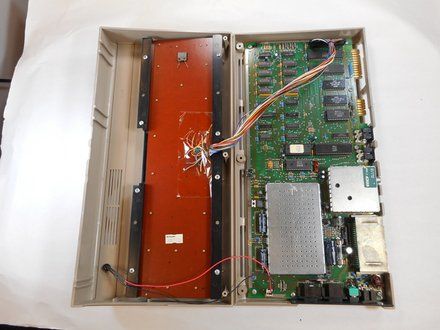

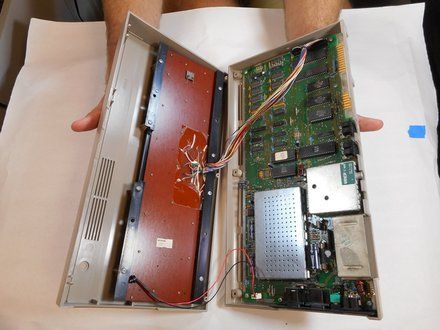

STEP 2 :: OPENING::
[step 2 photo] [step 2 photo]
• 2. Split the case of the C64 open by pulling up on the case towards you
• CAUTION: Do not pull too hard that you break the clips.

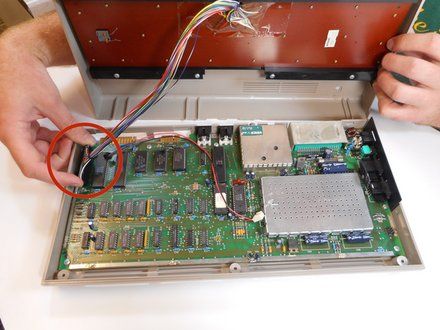

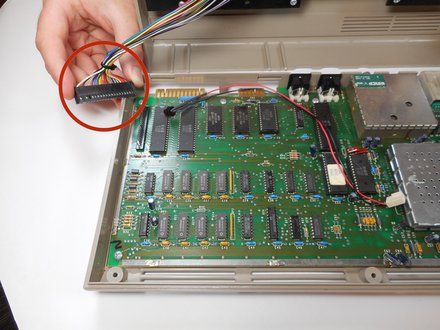

STEP 3 :: DETACH THE KEYBOARD FROM THE
MOTHERBOARD::
[step 3 photo] [step 3 photo]
• 1. Detach the multi-colored wire bundles that's connected to the motherboard

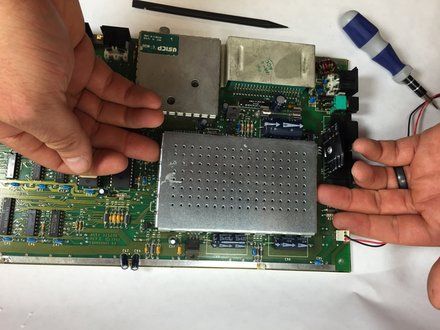

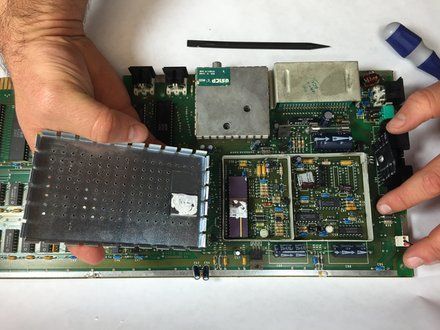

STEP 4 :: PULL UP THE VIC PLATE::
[step 4 photo] [step 4 photo]
• 2. Without using any tools prop up the metal VIC plate with both hands to expose the VIC chip.

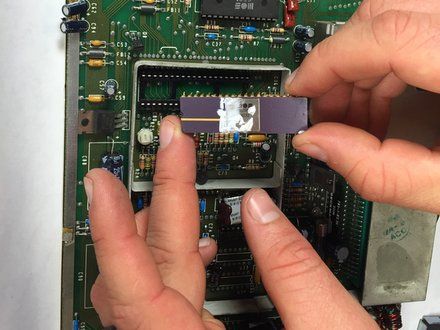

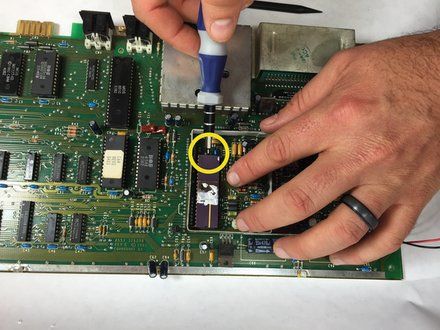

STEP 5 :: REMOVING THE CHIP::
[step 5 photo] [step 5 photo]
• 3. Use a Phillips screwdriver to pry up the VIC chip. Then, use your hands and with small pressure pull it away to remove it from the motherboard.
• NOTE: You can insert a new VIC chip by making it clip back in on the board

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Silvanus Clarke on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
