Commodore 64 Opening the Case Prerequisite Guide

Device	Commodore 64
Difficulty	Moderate
Time	1 minute
Steps	2

This guide is by Silvanus Clarke on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The Commodore 64, also known as the C64, C-64, C= 64, or occasionally CBM 64 or VIC-64, is an 8-bit home computer introduced in January 1982 by Commodore International.

Tools: Phillips #2 Screwdriver

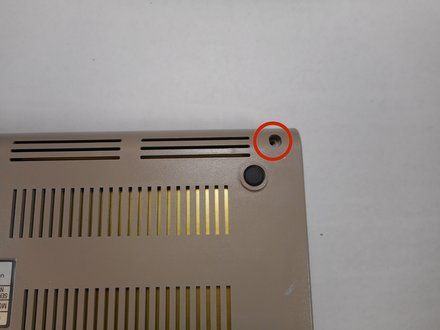

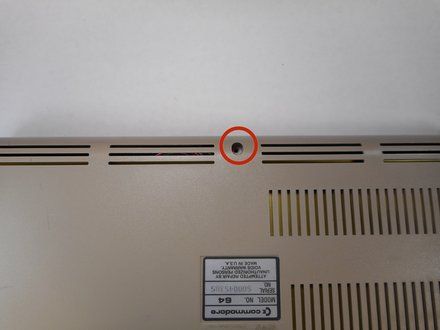

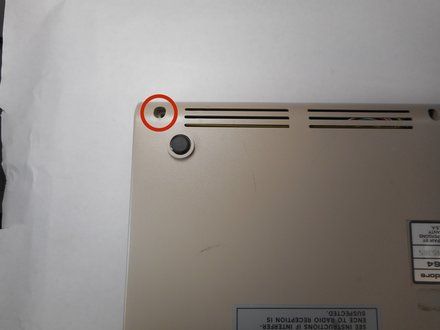

Step 1 :: Removing screws

• 1. Remove three 6.75mm ph2 screw heads from the casing

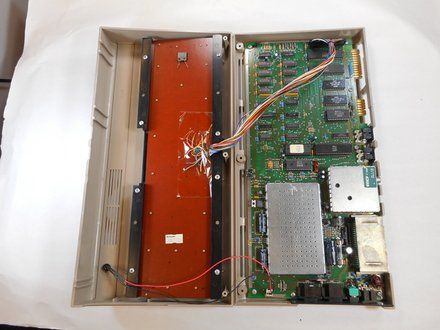

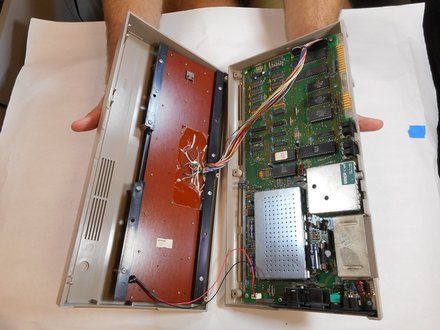

Step 2 :: Opening

• 2. Split the case of the C64 open by pulling up on the case towards you
• CAUTION: Do not pull too hard that you break the clips.

Conclusion

To reassemble your device, follow these instructions in reverse order.
