Disassembling Power Mac G4 Cube Outer Case

Device	Power Mac G4 Cube
Difficulty	Easy
Time	5 minutes
Steps	4

This guide is by Ryan Chun on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

It is the first step in repairing the internal components of the cube.

Tools: TR10 Torx Security Screwdriver

Step 1

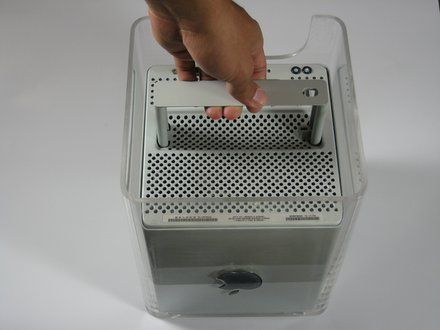

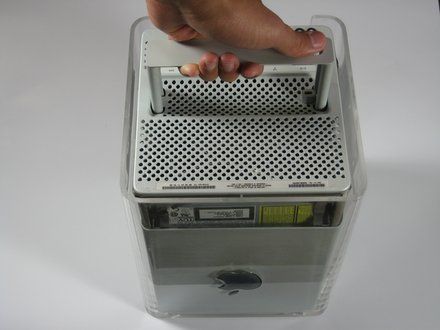

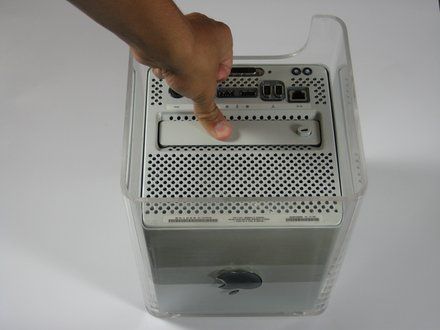

• Release the back handle of the PowerMac. Slowly pull out the cube by holding the end of the handle. Watch for any parts that may become entangled with the outer case.
• Push back the handle after you have taken the core out of the case.

Step 2

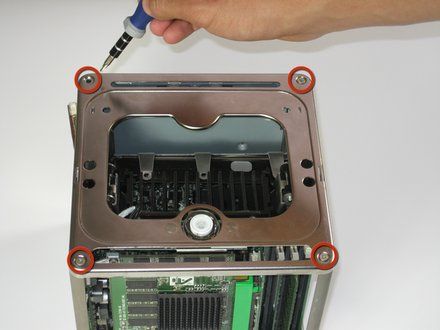

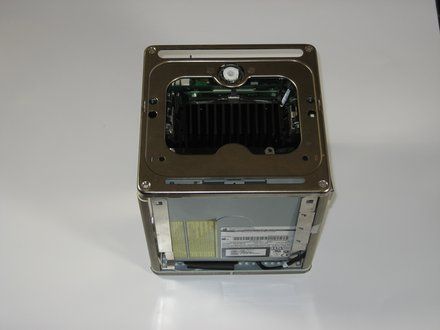

• Place the cube upside down and remove the four T10 Torx screws on the front plate. Then remove the two screws on each side.

Step 3

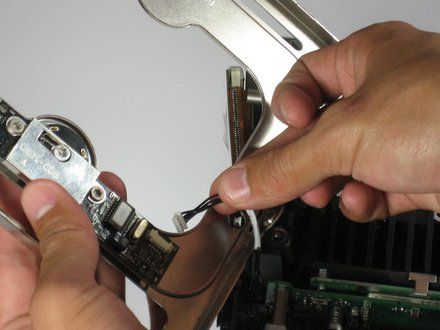

• CAUTION: Slowly lift the plate off the cube and disconnect the power cord.

Step 4

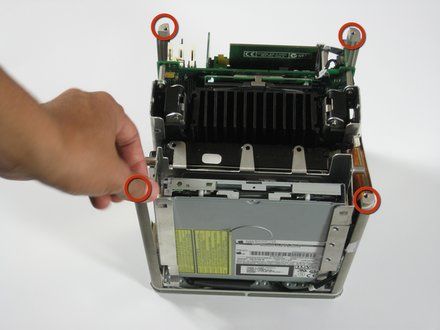

• Remove the four pillars from each corner.
• NOTE: The pillars should come out fairly easily.

Conclusion

To reassemble your device, follow these instructions in reverse order.
