| | Game Boy Pocket Motherboard Replacement |
| Device | Game Boy Pocket |
| Difficulty | Moderate |
| Time | 20 - 40 minutes |
| Steps | 6 |
This guide is by Adriana Rahrig on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
If your Game Boy Pocket does not turn on, you may need to replace the motherboard. The motherboard, the main printed circuit board (PCB), is the central hub where all the parts that make a Game Boy Pocket function meet--such as the sound, power, and visual component. A faulty motherboard can result in a loss of power and functionality in your Game Boy Pocket.
Before using this guide, make sure to test your Game Boy Pocket with fresh batteries. Doing so confirms that the motherboard is the faulty part.
Before beginning, power down your device and remove all batteries.
Tools: Y1 Tri-point Screwdriver; Phillips #1 Screwdriver; iFixit Opening Tool |
|
| Step 1 |

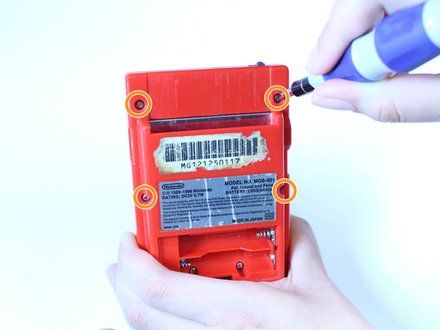

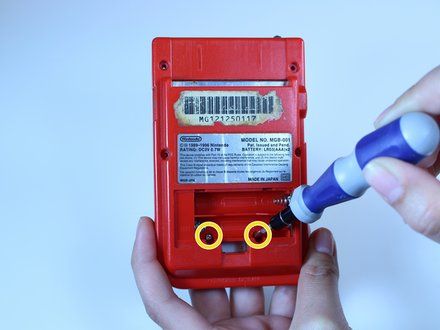

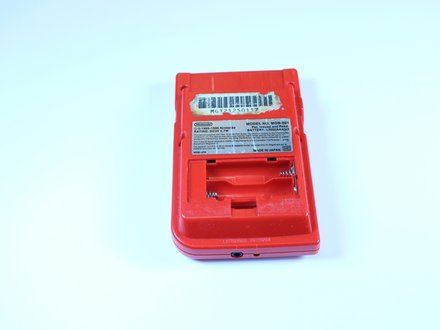

![[step 1 photo]](33517/step01-3.jpg) Place the Game Boy Pocket face-down on a clean, flat surface. Use a Y1 tri-wing screwdriver and turn counterclockwise to remove the four external screws. Use a Y1 tri-wing screwdriver and turn counterclockwise to remove the two screws inside the battery compartment.
|
|
| Step 2 |

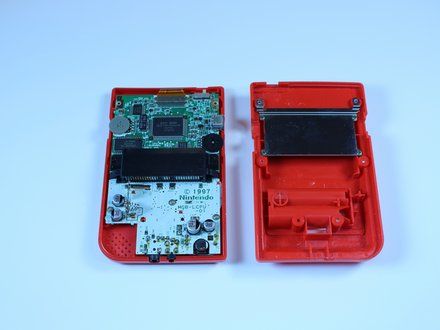

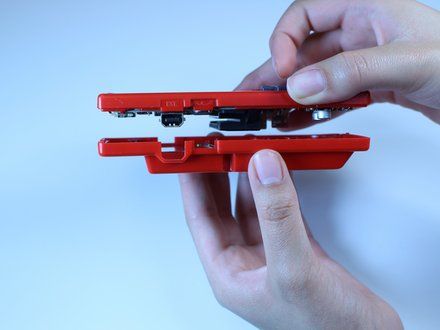

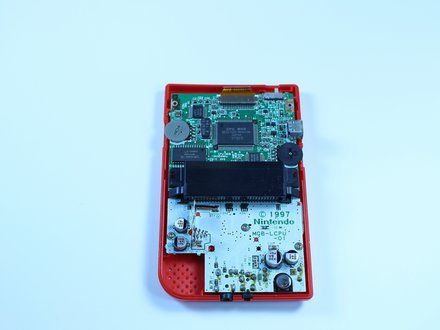

![[step 2 photo]](33517/step02-3.jpg) Place your hands on the front and back covers of the Game Boy Pocket, and carefully separate the device. NOTE: Set the back cover aside. You will need it to reassemble the device.
|
|

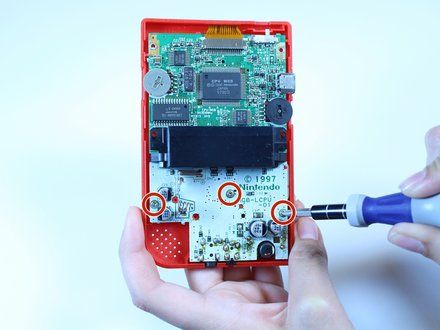

| Step 3 :: Motherboard | ![[step 3 photo]](33517/step03-1.jpg) Use a Phillips #1 screwdriver and turn counterclockwise to remove the three screws on the motherboard.
|
|
| Step 4 |

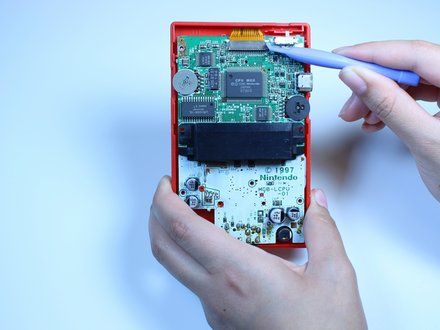

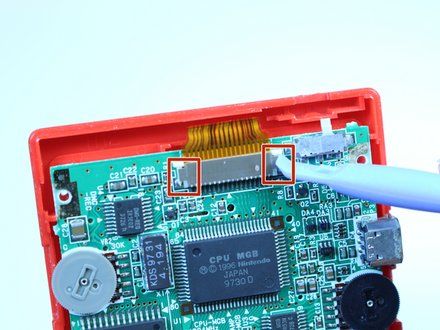

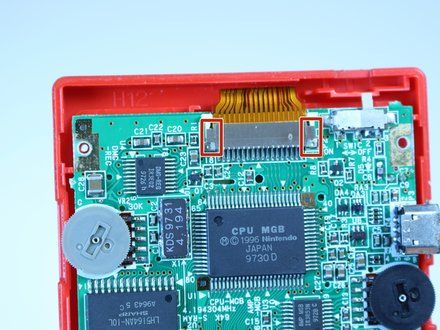

![[step 4 photo]](33517/step04-3.jpg) Use a plastic opening tool to dislodge and remove the clip securing the ribbon cable. Make sure you apply pressure on both sides of the clip to loosen it.
|
|
| Step 5 |

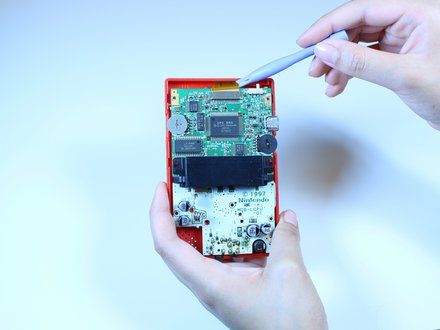

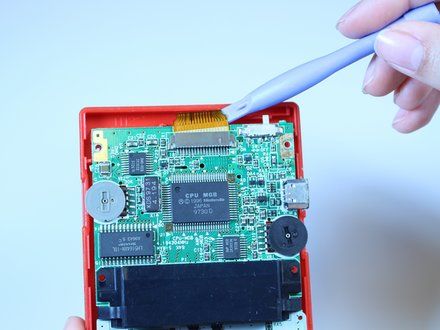

![[step 5 photo]](33517/step05-2.jpg) Use a plastic opening tool to dislodge the ribbon cable. CAUTION: Be gentle to prevent tearing the ribbon.
|
|
| Step 6 |

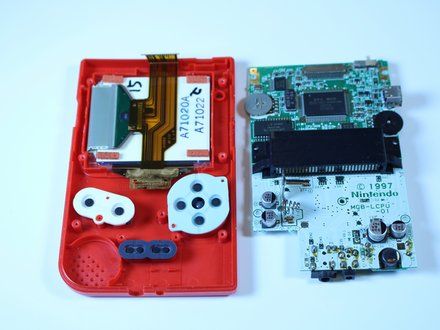

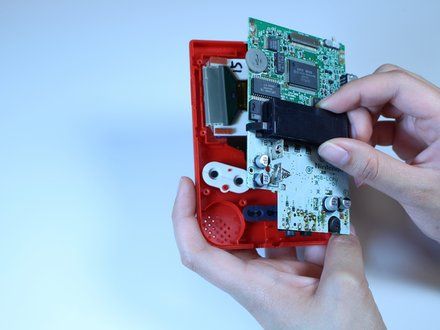

![[step 6 photo]](33517/step06-2.jpg) Grab the black piece protruding from the motherboard, and lift up to remove the motherboard.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
