Atari 5200 Number Pad Cleaning or Replacement
DeviceAtari 5200
DifficultyModerate
Time15 - 45 minutes
Steps5
This guide is by Alan Abelson on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The number pad, while not used in many games, can become unresponsive over time due to dislodged/dirty sensors. Reseating and cleaning them can improve number pad responsiveness of your Atari 5200.

Tools: Phillips #2 Screwdriver; Metal Spudger


Step 1 :: Open the controller
[step 1 photo] [step 1 photo] [step 1 photo]

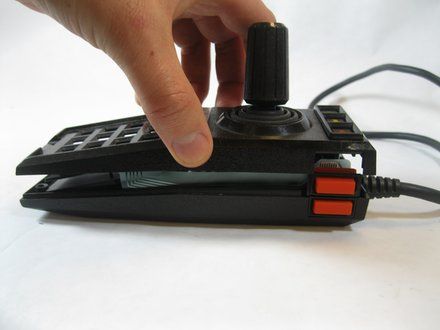

• Turn the controller over.

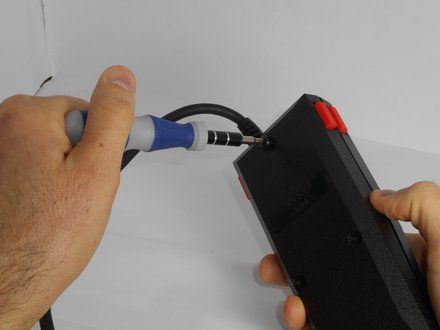

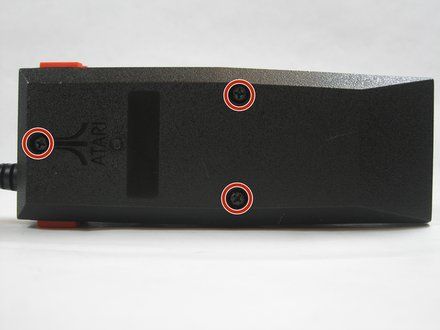

• Remove the three 6mm screws from the back.

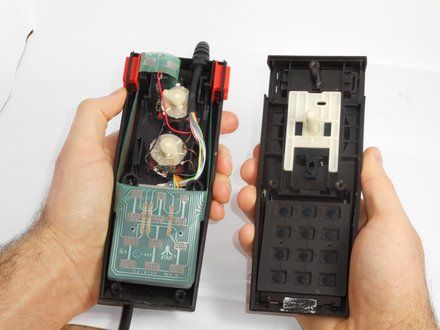

• Carefully slide and pull the two parts of the controller shell apart, exposing the innards.
• CAUTION: Do not move the joystick when reassembling. This will break your alignment. The less the joystick is moved, the easier it will be to realign the joystick.

Step 2 :: Cleaning/Reseating (number pad front and back)
[step 2 photo] [step 2 photo] [step 2 photo]

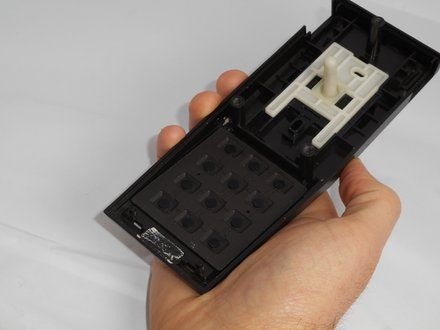

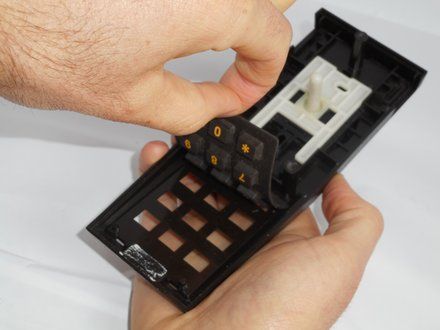

• Take out the rubber button module of the number pad.
• Blow out dust on the number pad sensors with compressed air.
• Wipe the sensors clean with a cloth dabbed with alcohol.

Step 3 :: Reassembly Part 1
[step 3 photo] [step 3 photo]

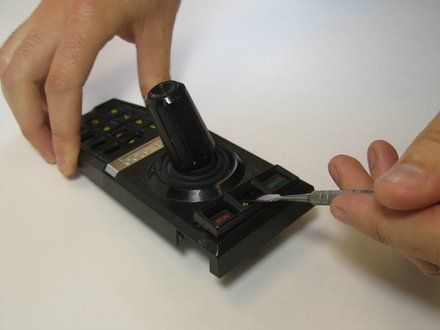

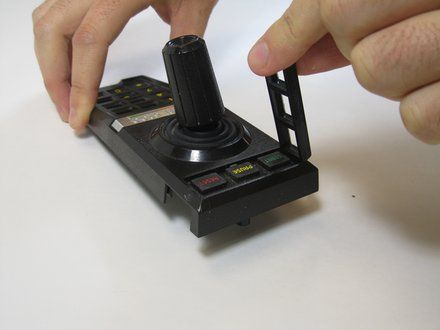

• Use a spudger to remove the top frame.
• Take off the plate.
• Remove the rubber buttons.

Step 4 :: Reassembly Part 2
[step 4 photo] [step 4 photo]

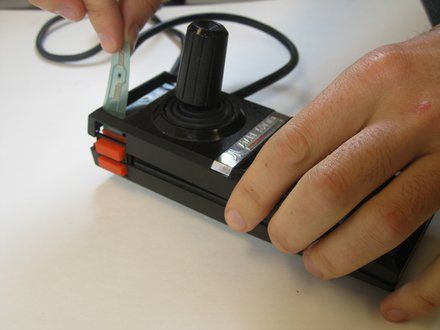

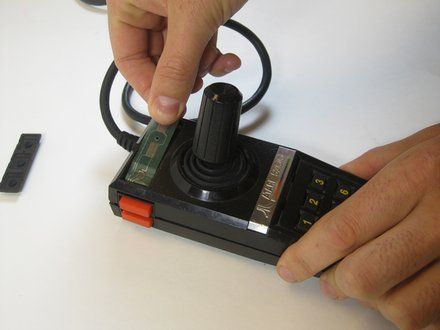

• Pull the circuit strip through the new space.
• Realign the top and bottom of the controller.

Step 5 :: Reassembly Part 3
[step 5 photo] [step 5 photo] [step 5 photo]

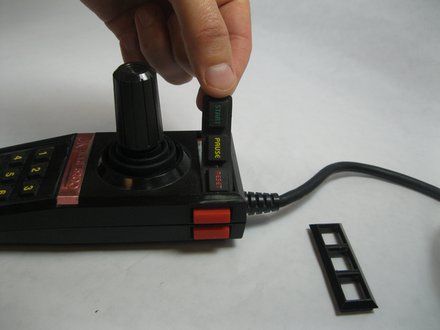

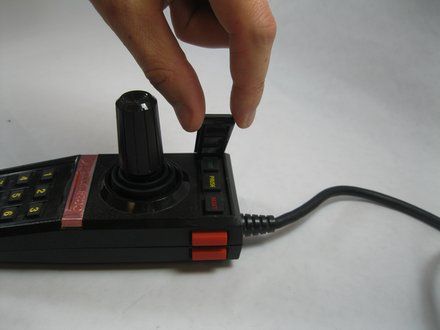

• Return the buttons to the top of the controller.
• Snap the frame back into place.
• Screw the screws back into place.

Conclusion
To reassemble your device, follow these instructions in reverse order.
