ATARI 5200 GAME CARTRIDGE DISASSEMBLY::
DeviceAtari 5200
DifficultyModerate
Time15 - 30 minutes
Steps5
This guide is by Zach Petryszyn on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

These cartridges often will freeze due to a poor connection to the mainboard. Opening it and removing excess dust will improve the connection, reducing the amount of freezing.

Tools: Compressed Air; Soft Cloth; High Content Rubbing Alcohol; Phillips #000 Screwdriver

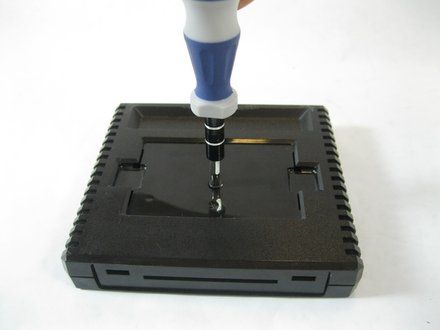

STEP 1 :: OPENING UP THE CARTRIDGE::
[step 1 photo] [step 1 photo] [step 1 photo]

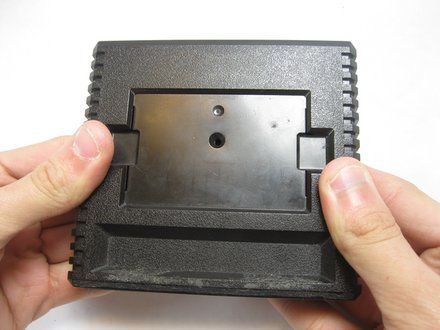

• Flip the cartridge over.
• Unscrew the single screw on the back.

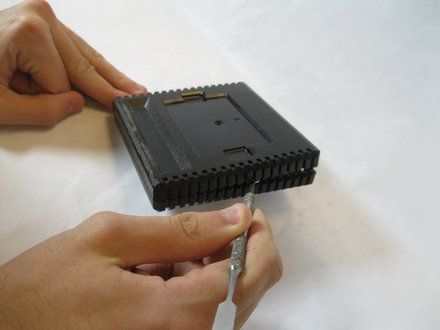

• Carefully pry apart the casing. There are six (6) tabs that need to be released, three (3) each side. If you're not careful they will break. (experience has taught me)
• Set aside any case parts after dissassembly.

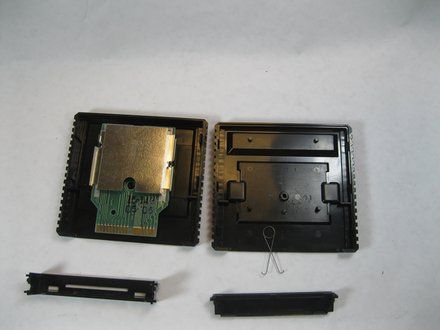

STEP 2 :: CLEANING THE PARTS::
[step 2 photo]
• Unscrew the board casing, and remove it.
• Use a compressed air can to blow off any excess dust off the board.
• Use an alcohol-dabbed cloth to wipe down the gold-plated contacts of the board.

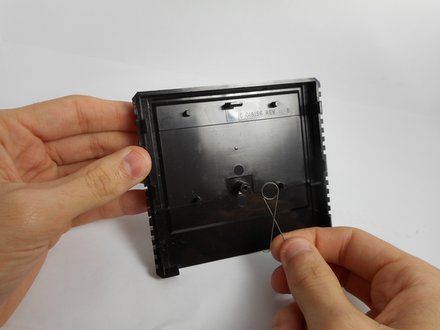

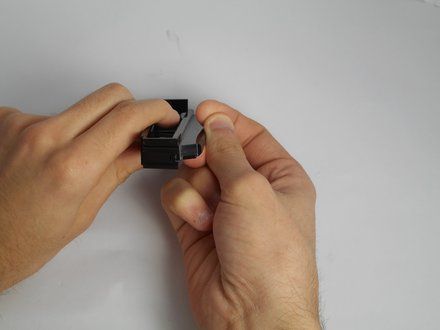

STEP 3 :: REASSEMBLY::
[step 3 photo] [step 3 photo] [step 3 photo]

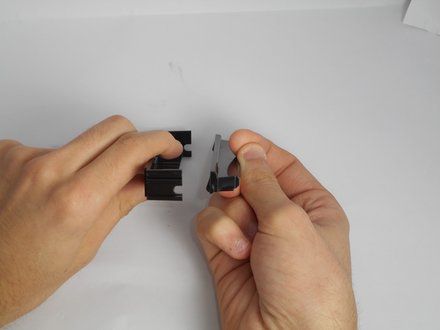

• Place the two contact protectors together.
• Place the spring on the knob in the cartridge.

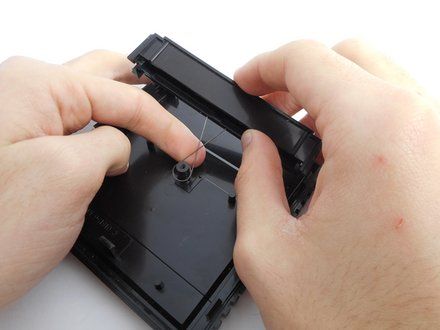

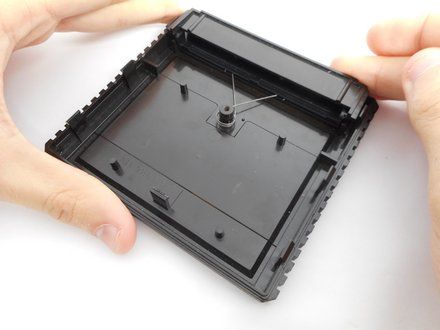

STEP 4 :: REASSEMBLY, PART 2::
[step 4 photo] [step 4 photo] [step 4 photo]

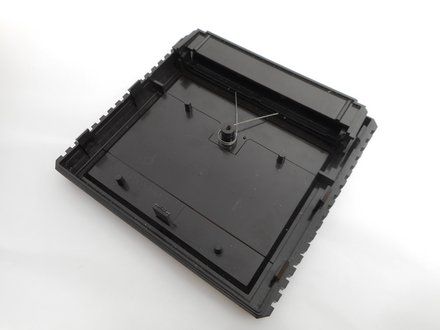

• Thread the spring into the connected plates.
• Push the plates into the cartridge against the pressure of the spring.

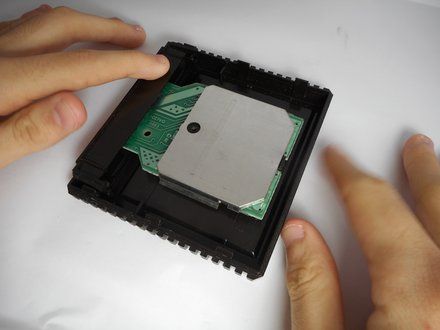

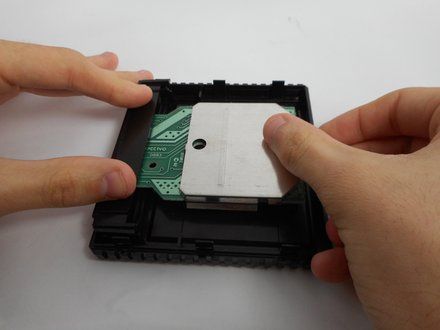

STEP 5 :: FINISHING UP::
[step 5 photo] [step 5 photo] [step 5 photo]

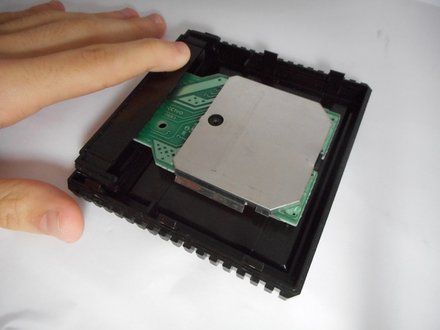

• Place the chip in the case.
• NOTE: It should "pop" into place.
• Screw the other side of the case on.

CONCLUSION::
Be sure to test the game, and if freezing still occurs, check the contacts once again.
