COMPAQ EVO N1000V TOP COVER
REPLACEMENT::
DeviceCompaq Evo N1000v
DifficultyDifficult
Time30 - 45 minutes
Steps27
This guide is by Alex Hernandez on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

A guide on how to remove the Top Cover of your Compaq Evo N1000v laptop.

Tools: Phillips #00 Screwdriver; Spudger; TR8 Torx Security Screwdriver


STEP 1::
[step 1 photo]
• Flip the laptop over with the rear panel facing forward.

STEP 2::
[step 2 photo]
• Using a TR8 Torx screwdriver, remove the two T8 Torx screws that secure the LED cover to the base enclosure.

STEP 3::
[step 3 photo]

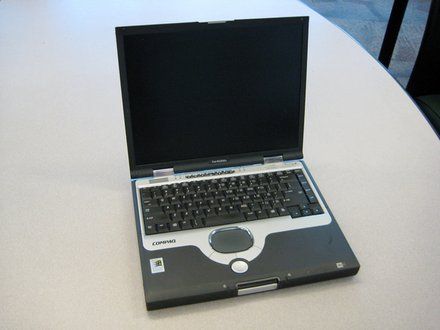

• Flip the laptop back over with the front facing forward. Open the screen.

STEP 4::
[step 4 photo]

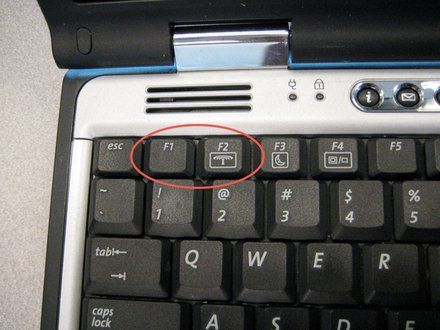

• Locate the F1 and F2 keys near the top left corner of the keyboard.

STEP 5::
[step 5 photo]

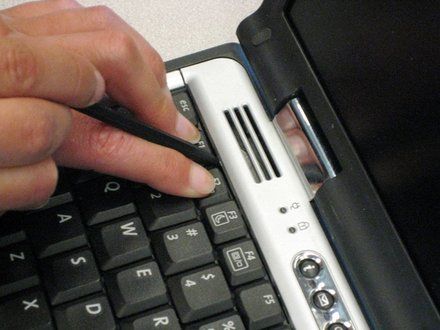

• While holding the F1 and F2 keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

STEP 6::
[step 6 photo]

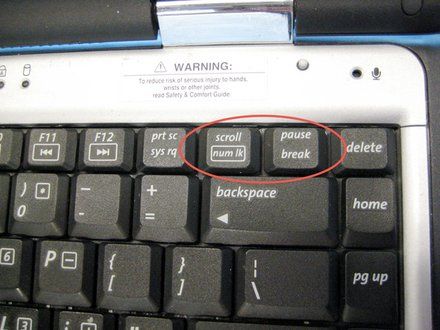

• Locate the Scroll and Pause keys near the top right corner of the keyboard.

STEP 7::
[step 7 photo]

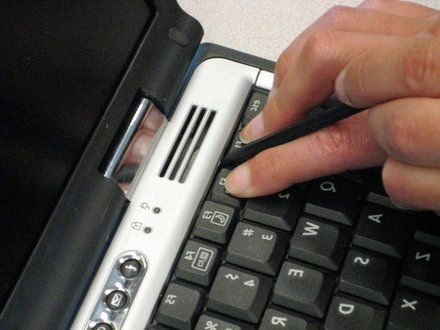

• While holding the Scroll and Pause keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

STEP 8::
[step 8 photo] [step 8 photo]

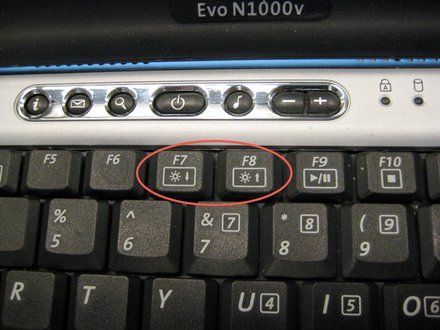

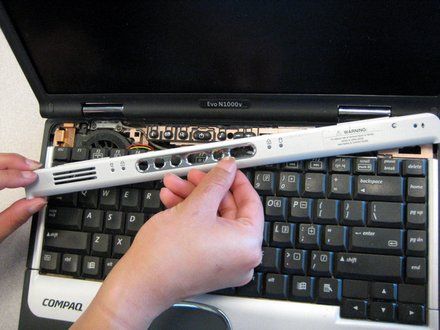

• Insert a spudger between the F7 and F8 keys. Lift up to remove the LED cover.

STEP 9::
[step 9 photo]

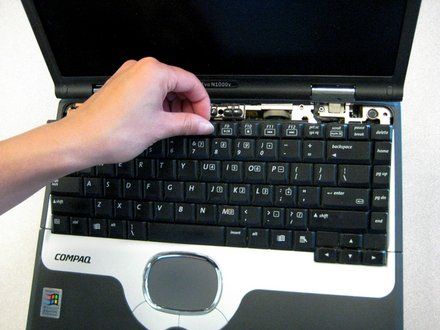

• Lift the back edge of the keyboard and pull towards the screen.

STEP 10::
[step 10 photo]

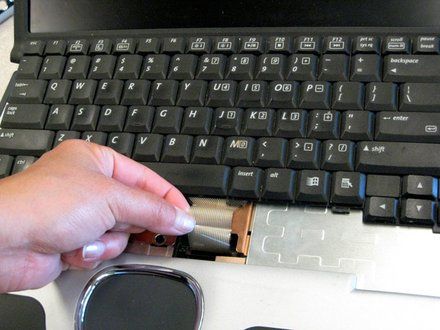

• Pull the cable and lift up to release.

STEP 11::
[step 11 photo]

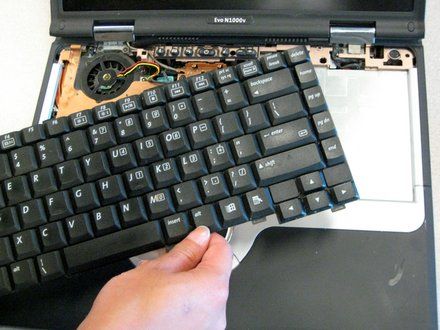

• Remove the keyboard.

STEP 12::
[step 12 photo]

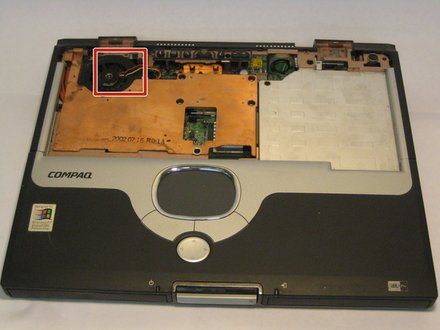

• Disconnect the cable connecting the fan to the system board.

STEP 13::
[step 13 photo]

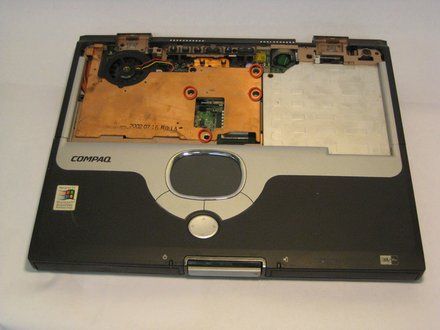

• Remove the four screws from the heat sink.

STEP 14::
[step 14 photo]

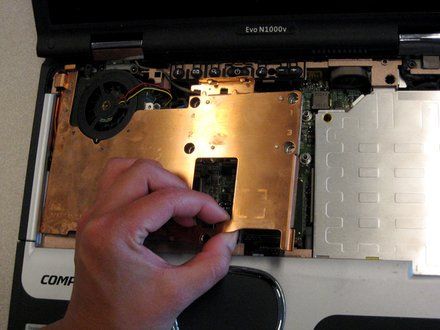

• Pull the the heat sink up and out of the computer.

STEP 15::
[step 15 photo]
• Close the laptop and flip it so the rear panel is facing up.

STEP 16::
[step 16 photo]

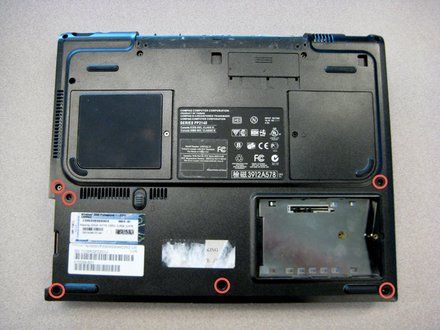

• Using the TR8 Torx screwdriver, remove the six screws from the back case.

STEP 17::
[step 17 photo]
• Remove the battery.

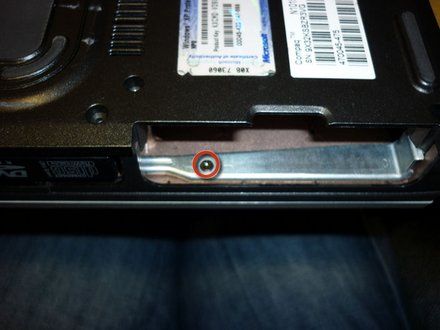

• Remove the screw from the metal support on the case edge with a Torx T8 screwdriver.
• Flip the laptop over again so the top is facing up.
• Open the laptop screen and face it towards you.

STEP 18::
[step 18 photo]

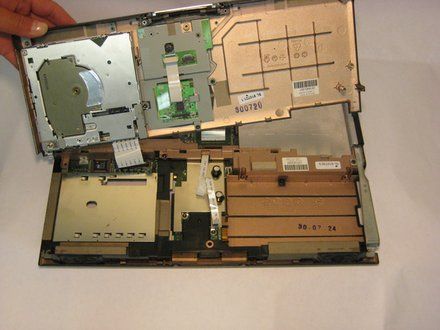

• Lift the the palm rest up from the front edge of the laptop and swing it towards the screen.
• CAUTION: Be gentle as it is connected by some cables.

STEP 19::
[step 19 photo]

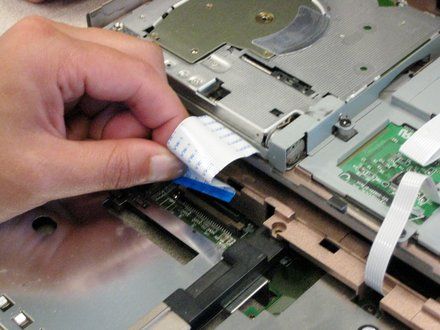

• Disconnect the ribbon connector (https://www.ifixit.com/Guide/Recognizing+&+Disconnecting+Cable+Connectors/25629) from the socket.

STEP 20::
[step 20 photo]

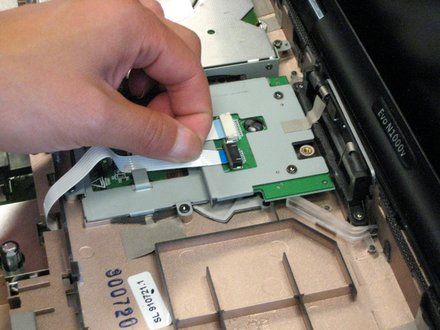

• Disconnect the second ribbon cable.

STEP 21::
[step 21 photo]

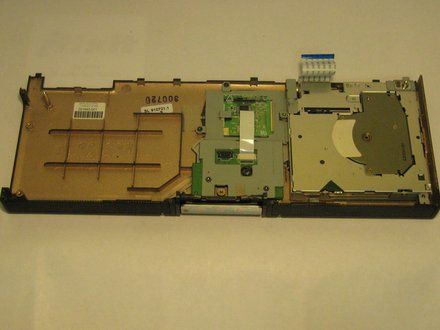

• Remove the palm rest.

STEP 22::
[step 22 photo]
• Turn the laptop bottom side up.

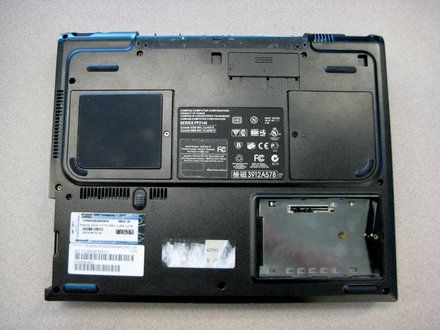

STEP 23::
[step 23 photo]
• Remove the two TM 2.5mm x 8.0mm screws that secure the top cover to the base.

STEP 24::
[step 24 photo]

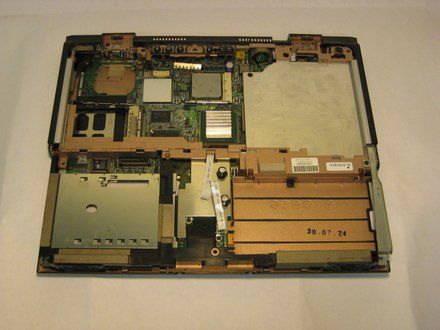

• Turn the base top side up with the front facing forward.

STEP 25::
[step 25 photo]
• Remove the three TM 2.5 mm x 5.0 mm screws that secure the top cover to the base.

STEP 26::
[step 26 photo]

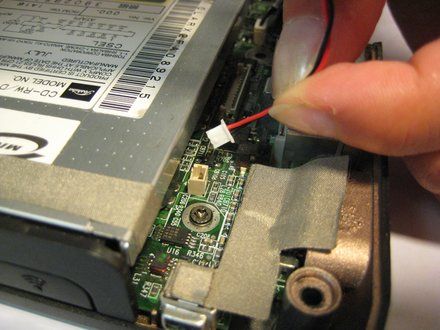

• Lift the top cover straight up about one inch, then slide forward until the microphone cable is exposed.
• Disconnect the microphone cable from the system board.

STEP 27::
[step 27 photo]

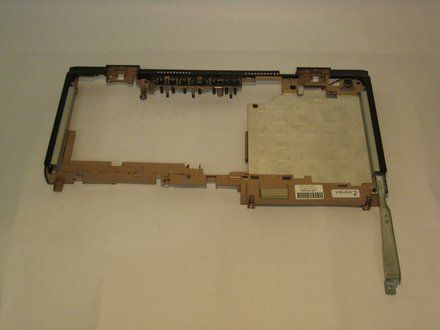

• Remove the top cover from the base.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
