REPLACING IBM THINKPAD 560Z SPEAKER::
DeviceIBM ThinkPad 560z
DifficultyModerate
Time10 - 15 minutes
Steps11
This guide is by Derek Driscoll on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

How to replace the speaker.

Tools: 6-in-1 Screwdriver; Phillips #00 Screwdriver; iFixit Opening Tool; Spudger


STEP 1 :: BATTERY REMOVAL::

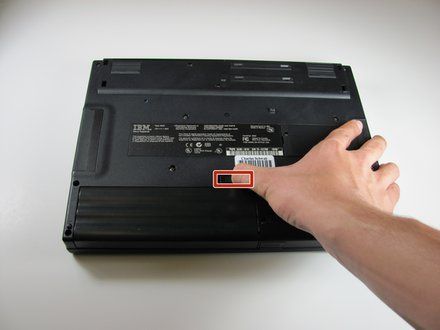

[step 1 photo]
• Slide the battery release latch to the right.
• Pull out the battery out towards the front of the device.

STEP 2::

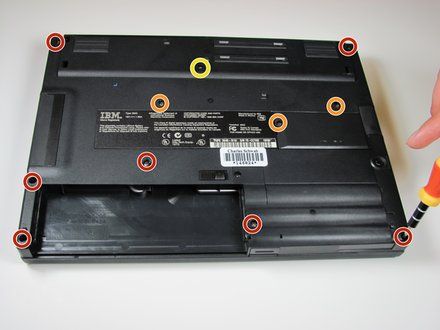

[step 2 photo]
• Remove the 7 mm Phillips #0 screws.
• Remove the 10 mm Phillips #0 screws.
• Remove the 14 mm Phillips #0 screw.

STEP 3::
[step 3 photo] [step 3 photo]

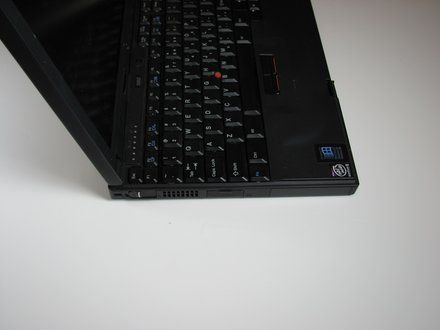

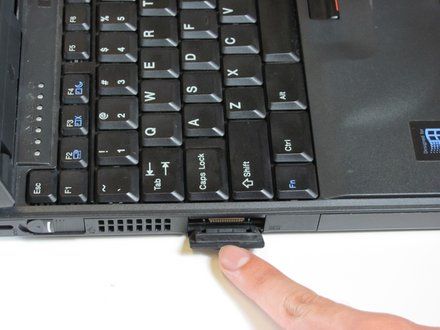

• Open the flap on the left hand side.

STEP 4::

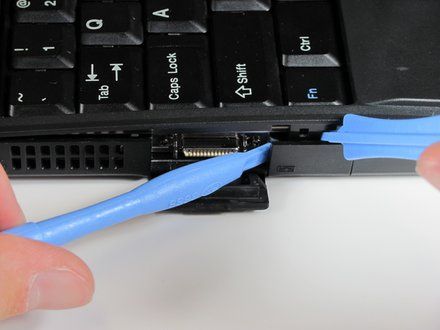

[step 4 photo] [step 4 photo]

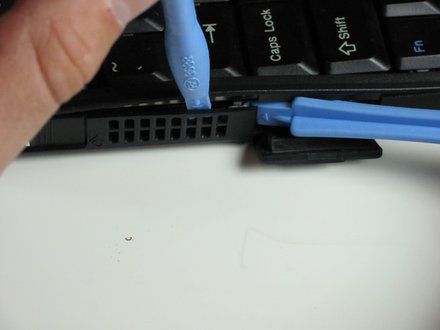

• Insert the plastic opening tools between the right and left sides of the latch.
• Pry the right side of the latch, and then pry the left side to detach the laptop's cover.

STEP 5::

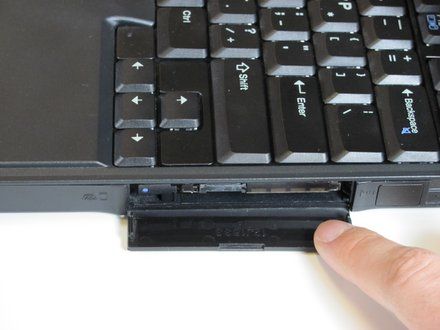

[step 5 photo] [step 5 photo]

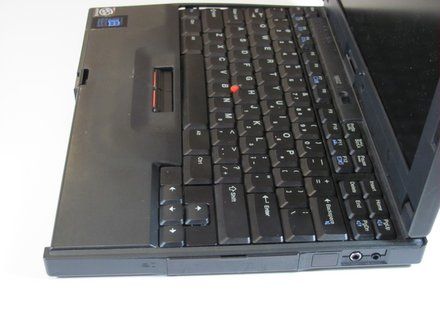

• Open the flap on the right side.

STEP 6::
[step 6 photo]

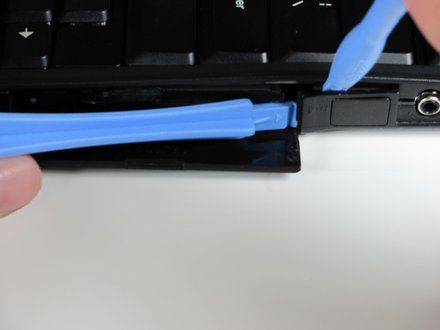

• Insert the plastic opening tools towards the right side of the latch.
• Gently pry the right side out to release the top cover.

STEP 7::

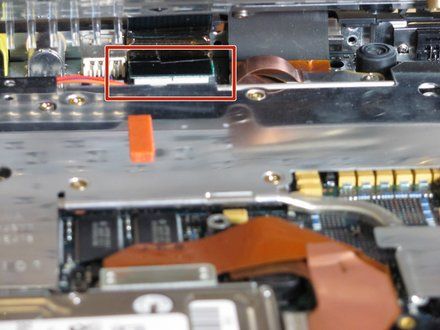

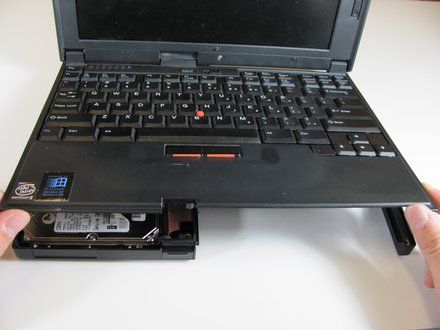

[step 7 photo] [step 7 photo]
• Lift the keyboard slowly.
• CAUTION: A cable connects the keyboard to the motherboard. If you are not careful, you will damage the cable.

STEP 8::
[step 8 photo]

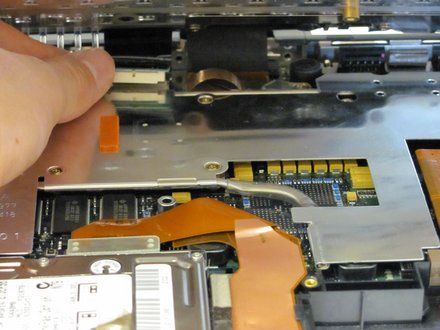

• Use your fingers or a spudger to detach the connector.

STEP 9::

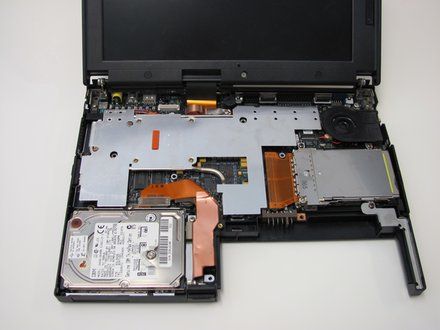

[step 9 photo] [step 9 photo]

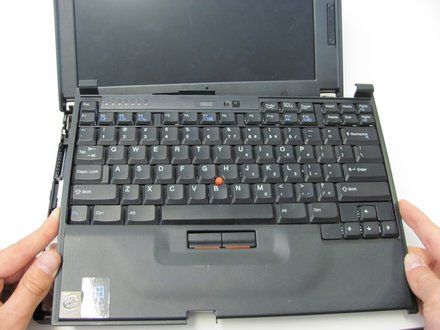

• Carefully lift and remove the keyboard.

STEP 10::
[step 10 photo] [step 10 photo]

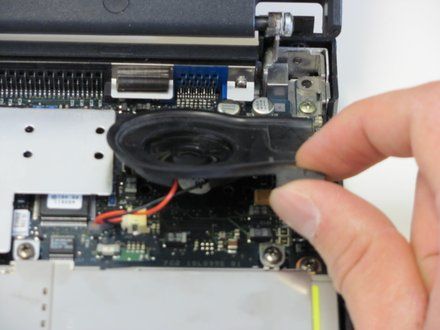

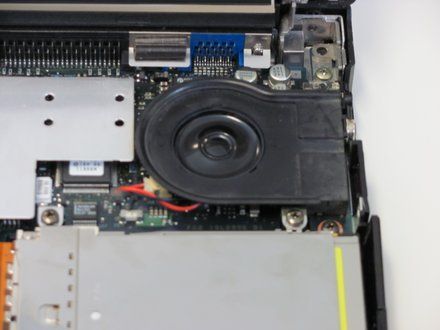

• Slowly and carefully lift the speaker with your fingers.
• CAUTION: The port that the speaker plugs into can be easily removed from the motherboard if not careful! Unplug the speaker with extreme caution!

STEP 11::

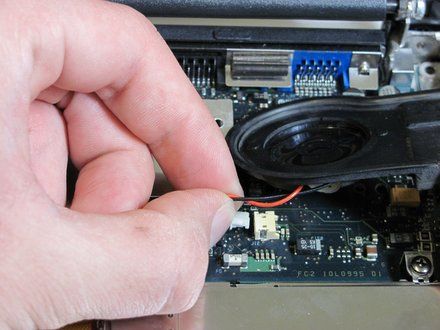

[step 11 photo] [step 11 photo]

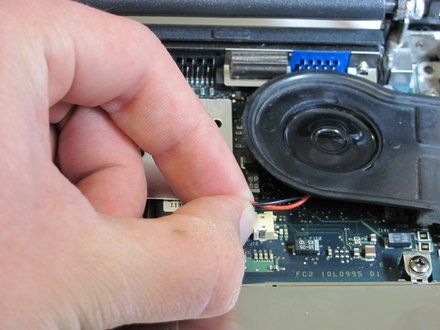

• Use your fingers to unplug the wires from the connector.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
