(TC) PLAYSTATION TEARDOWN::
DevicePlayStation
DifficultyModerate
TimeNo estimate
Steps13
This guide is by Nick on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Phillips #0 Screwdriver


STEP 1::

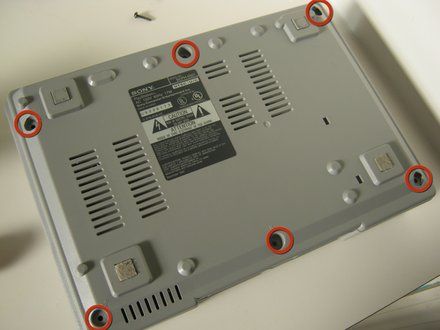

[step 1 photo]
• Flip the unit upside down to access the six screws on the bottom.
• Remove the six screws indicated with a Phillips-head screwdriver. All the screws are of the same length.

STEP 2::

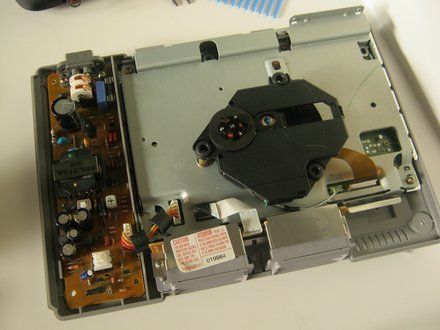

[step 2 photo]
• Turn the unit back over, and pull the top half up and away from the device.

STEP 3::
[step 3 photo]

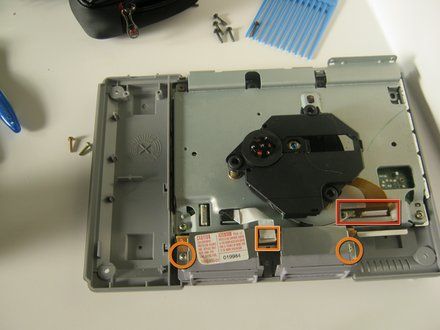

• Unplug the laser assembly's power cable and ribbon cable from the main board.
• Remove the two screws on the memory card/controller port, disconnect the ribbon cable, and lift it out of the case.

STEP 4::

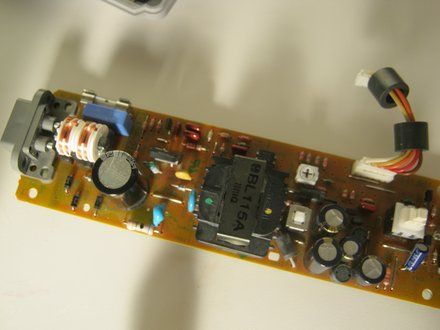

[step 4 photo] [step 4 photo]

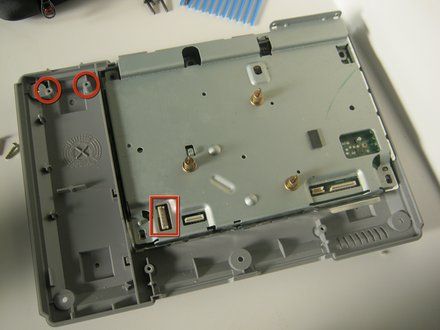

• To remove the power supply, disconnect the cable and remove the two screws, then lift it out of the case.

STEP 5::

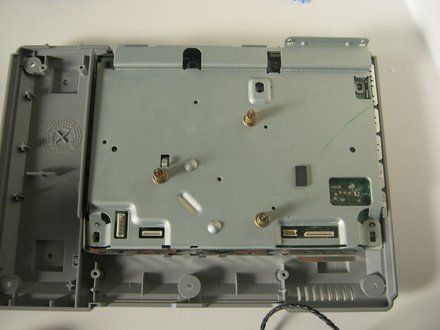

[step 5 photo] [step 5 photo]

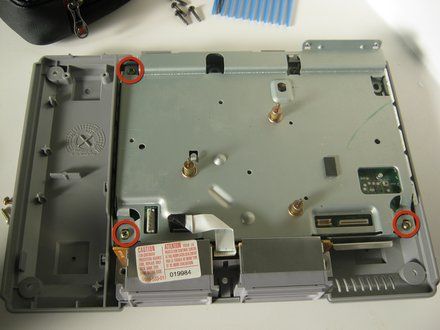

• Remove the 3 screws from the shield.

STEP 6::

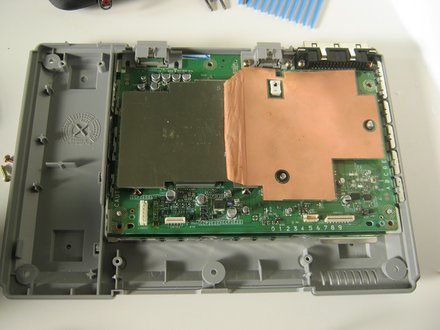

[step 6 photo] [step 6 photo]

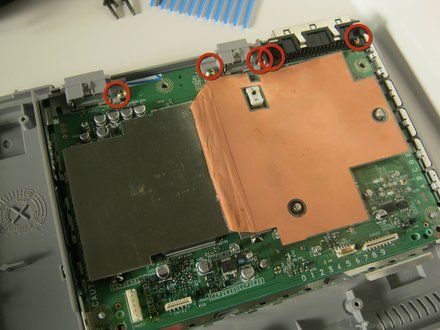

• Remove the 5 Phillips screws.
• You can now lift the main board out of the case.

STEP 7::
[step 7 photo] [step 7 photo]

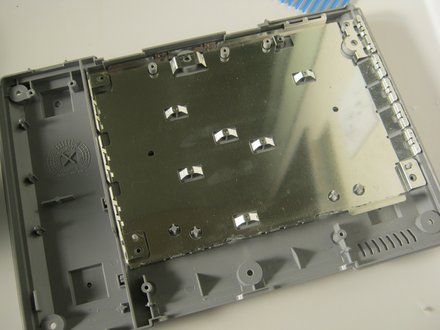

• Lift the RF shield out of the case.

STEP 8::
[step 8 photo] [step 8 photo]

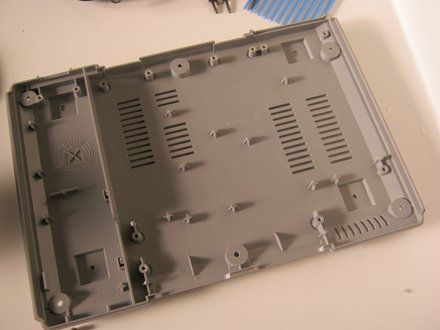

• Reinstall the RF shield by dropping it in and lining up the slots and tabs.

STEP 9::

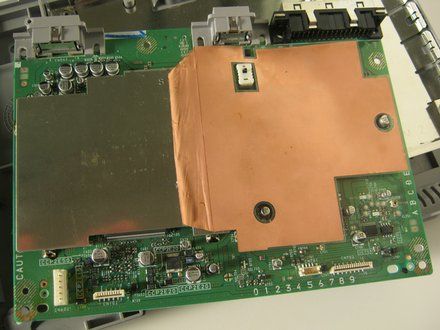

[step 9 photo] [step 9 photo]
• Replace the main board. Only install the screws indicated in red.

STEP 10::

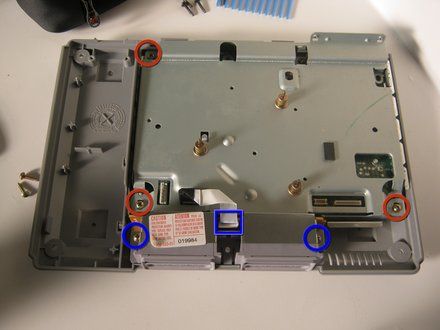

[step 10 photo]
• Replace the top shield, and secure with the 3 screws indicated.
• Reinstall the memory card / controller module. Connect the ribbon cable and replace the 2 screws.

STEP 11::
[step 11 photo]

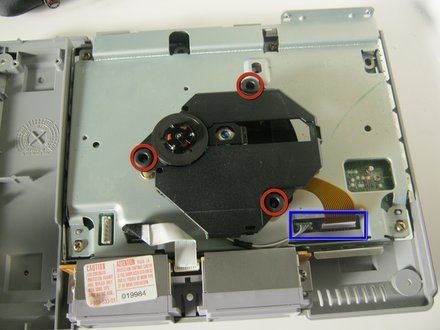

• Align the optical drive assembly with the three pegs.
• Reconnect the power and data cables for the optical drive.

STEP 12::
[step 12 photo]

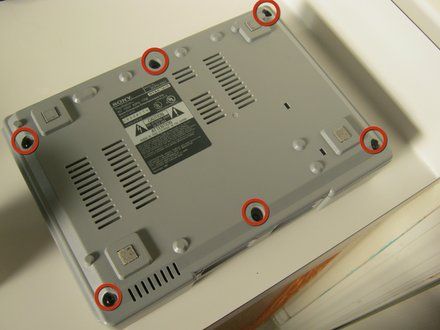

• Slide the cover on the system in the same way you took it off and replace the black screws indicated.

STEP 13::

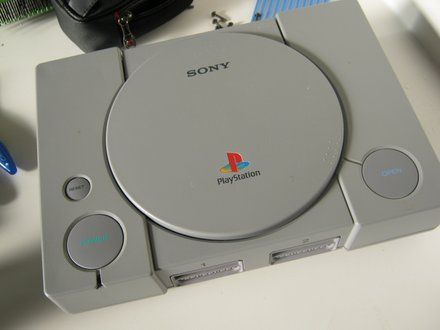

[step 13 photo]
• Plug in the console and turn it on.
• Thanks for looking at my teardown!
