Compaq Evo N1000v Palm Rest Replacement

Device	Compaq Evo N1000v
Difficulty	Moderate
Time	40 minutes - 1 hour
Steps	18

This guide is by Alex Hernandez on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Carpal Tunnel Syndrome is one of the worst outcomes that comes from poor wrist placement. Wrist placement that comes from typing on a keyboard, or more specifically, on a laptop keyboard. The purpose of the palm rest is to ensure proper wrist posture, and its purpose is dedicated to ensuring that no lifelong inconveniences come of it.

In this guide, you will be guided step by step in order to properly disassemble and replace the palm rest for a Compaq Evo N1000v.

There is no special skillset required for this fix, besides a slight learning curve that comes with the learning the surface-level intricacies that come with opening up a laptop.

Tools: Phillips #00 Screwdriver; Spudger; TR8 Torx Security Screwdriver

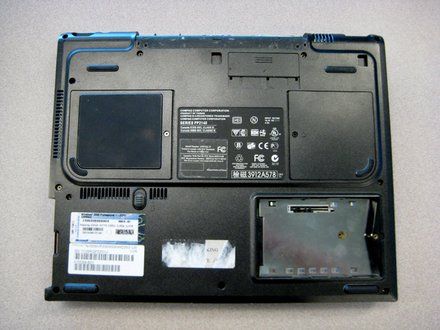

Step 1

• Flip the laptop over with the rear panel facing forward.

Step 2

• Using a TR8 Torx screwdriver, remove the two T8 Torx screws that secure the LED cover to the base enclosure.

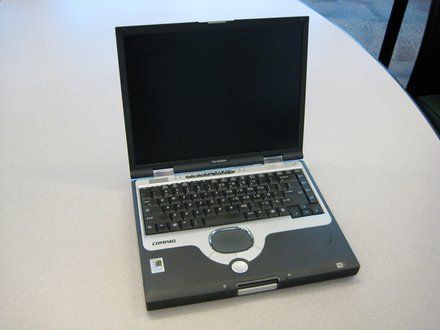

Step 3

• Flip the laptop back over with the front facing forward. Open the screen.

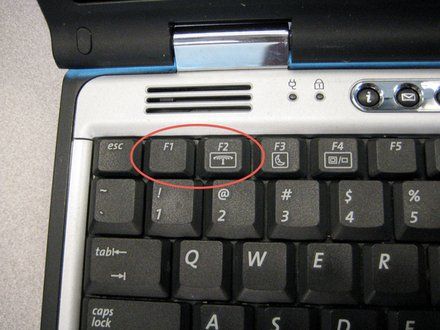

Step 4

• Locate the F1 and F2 keys near the top left corner of the keyboard.

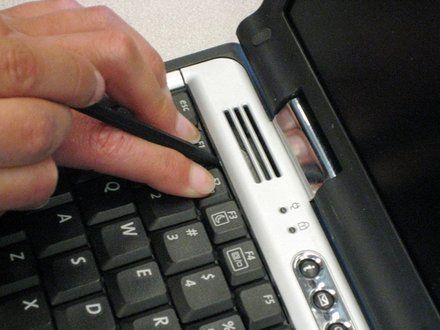

Step 5

• While holding the F1 and F2 keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

Step 6

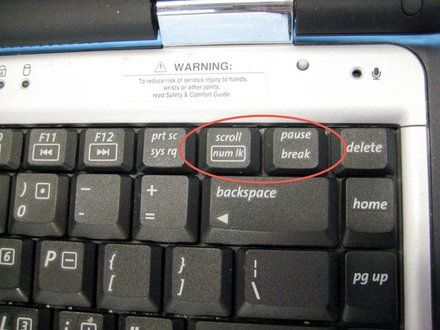

• Locate the Scroll and Pause keys near the top right corner of the keyboard.

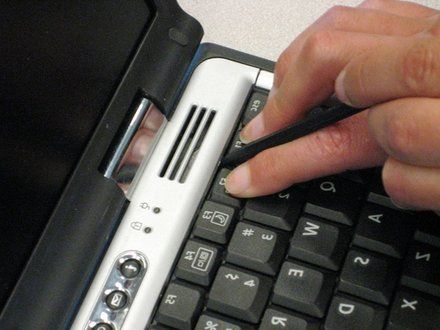

Step 7

• While holding the Scroll and Pause keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

Step 8

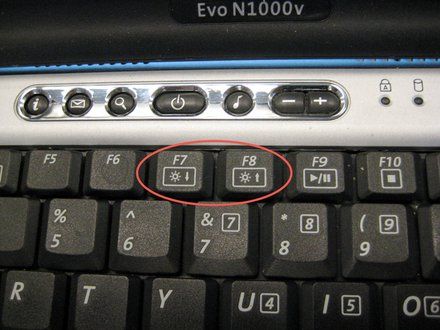

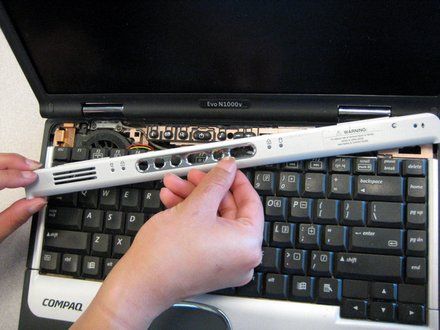

• Insert a spudger between the F7 and F8 keys. Lift up to remove the LED cover.

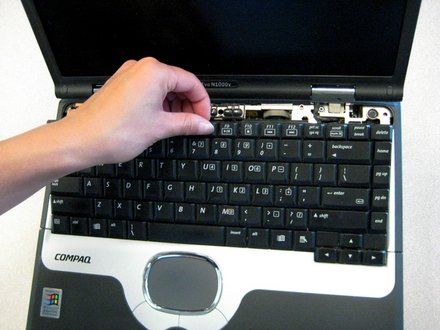

Step 9

• Lift the back edge of the keyboard and pull towards the screen.

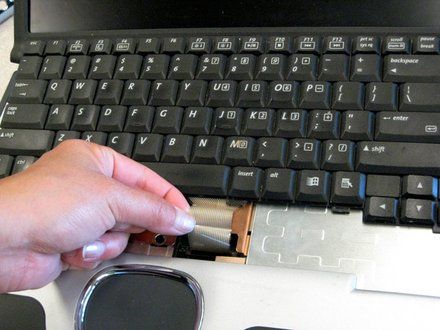

Step 10

• Pull the cable and lift up to release.

Step 11

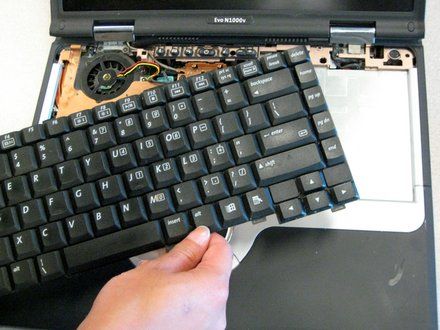

• Remove the keyboard.

Step 12

• Close the laptop and flip it so the rear panel is facing up.

Step 13

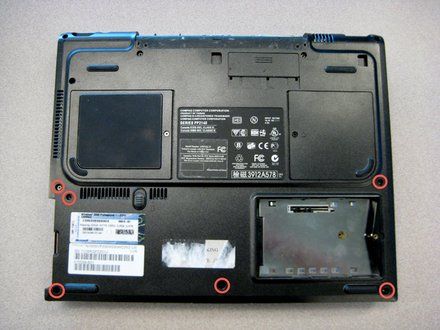

• Using the TR8 Torx screwdriver, remove the six screws from the back case.

Step 14

• Remove the battery.

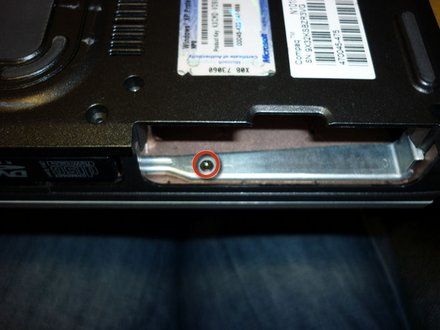

• Remove the screw from the metal support on the case edge with a Torx T8 screwdriver.
• Flip the laptop over again so the top is facing up.
• Open the laptop screen and face it towards you.

Step 15

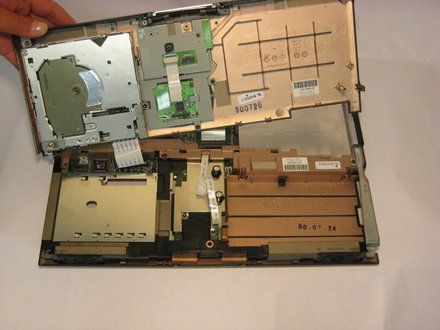

• Lift the the palm rest up from the front edge of the laptop and swing it towards the screen.
• CAUTION: Be gentle as it is connected by some cables.

Step 16

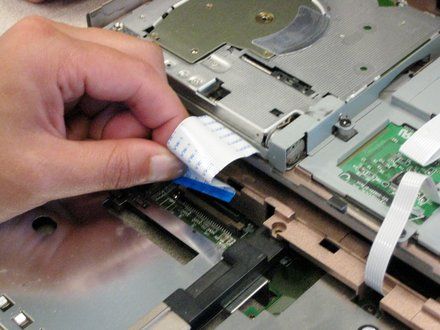

• Disconnect the ribbon connector (https://www.ifixit.com/Guide/Recognizing+&+Disconnecting+Cable+Connectors/25629) from the socket.

Step 17

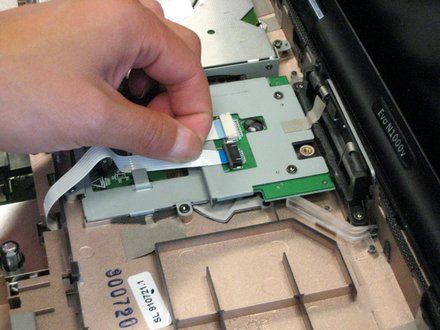

• Disconnect the second ribbon cable.

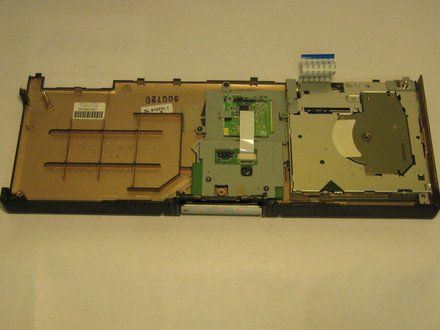

Step 18

• Remove the palm rest.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Credit
