GAME BOY CARTRIDGE BATTERY REPLACEMENT::
DeviceGame Boy Cartridge
DifficultyModerate
Time5 - 30 minutes
Steps6
This guide is by Zane Hogue on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

I will show you how to properly replace a battery in a gameboy cartridge game using a soldering iron

Tools: Soldering Iron

Parts: CR2025 Game Console Cartridge Battery


STEP 1 :: IDENTIFICATION::
[step 1 photo] [step 1 photo] [step 1 photo]

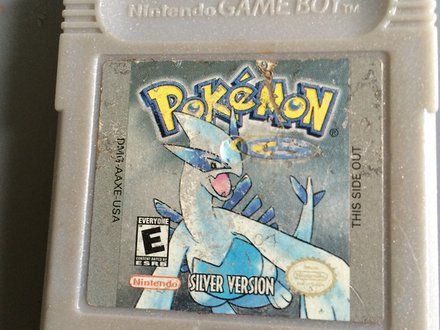

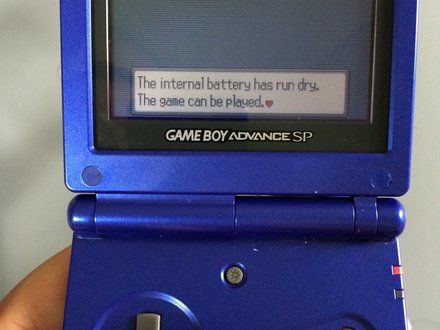

• The first step is to locate the problem. The Game Boy will give you a message such as this.

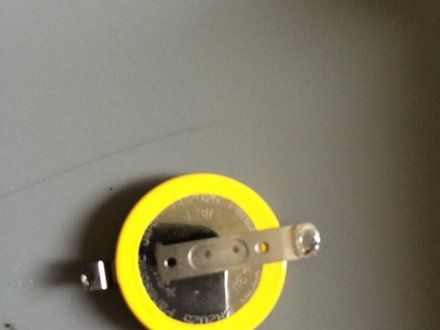

• The battery you will need for this cartridge (an original game Boy game) is a CR2025 3V battery.

STEP 2::
[step 2 photo] [step 2 photo] [step 2 photo]

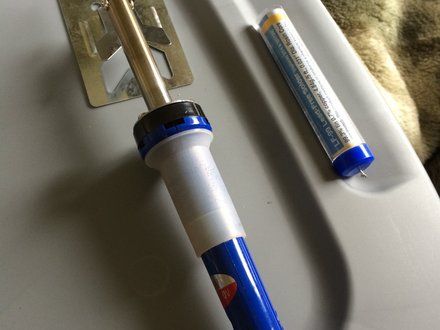

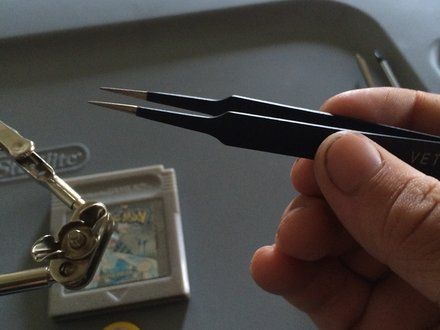

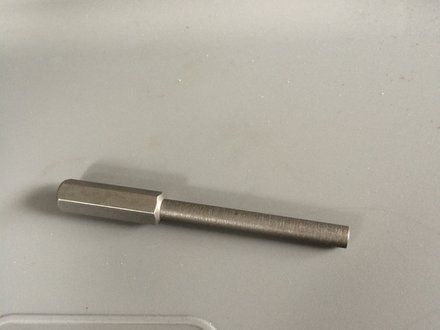

• Get your soldering iron heated, gather your tools, tweezers (https://www.ifixit.com/en-ca/products/tweezers), and a Steel 3.8mm Screwdriver Security Bit

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

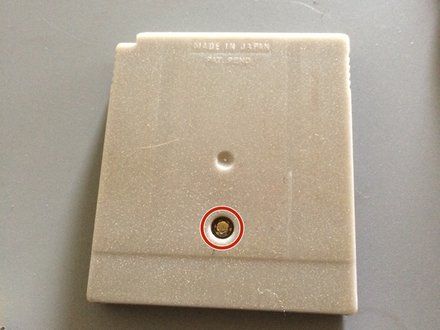

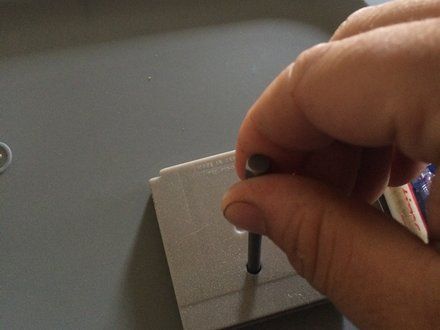

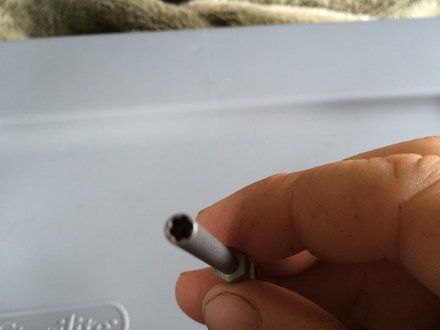

• On the back side of the cartridge is a proprietary security bit and you will have to remove it.

STEP 4::
[step 4 photo] [step 4 photo] [step 4 photo]

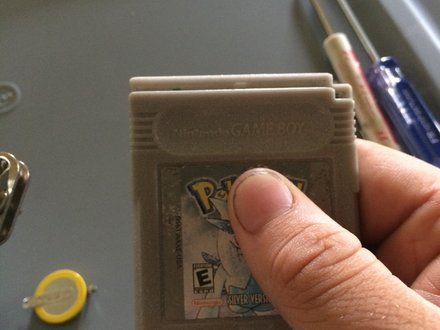

• Next you will need to slide the front face of the cartridge down to expose the motherboard

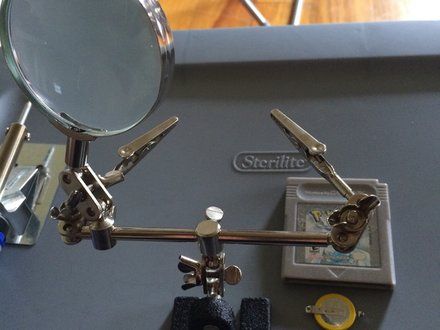

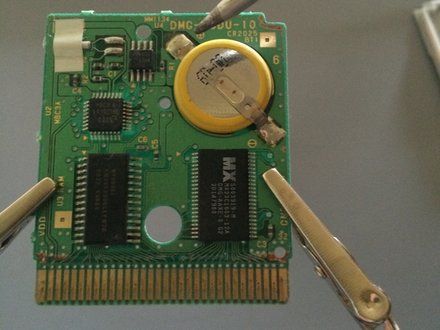

• Remove the board from the plastic housing and clamp it in a vice with alligator clips for stability

STEP 5::
[step 5 photo] [step 5 photo] [step 5 photo]

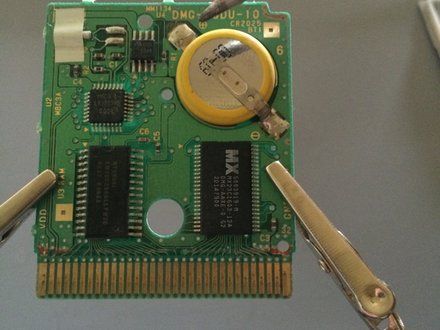

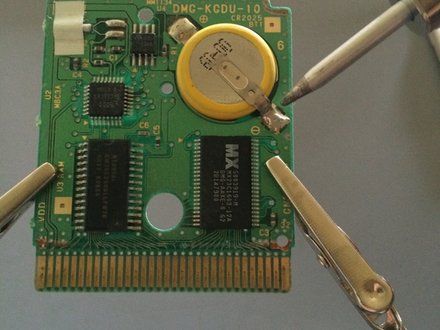

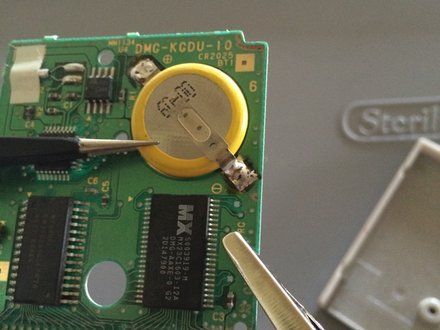

• Use the soldering iron (https://www.ifixit.com/en-ca/products/fixhub-power-series-smart-soldering-iron) to gently heat the top tab while at the same time using the tweezers to pull the top tab away from the board
• Then do the same to the bottom tab until the battery is free, be sure no to heat the board too much and only where it is soldered
• Install the new battery in reverse order heating the solder first then setting the tabs on the hot solder, a little more solder may be needed to hold it in place, once it is cool check that the battery is secure

STEP 6::
[step 6 photo] [step 6 photo]

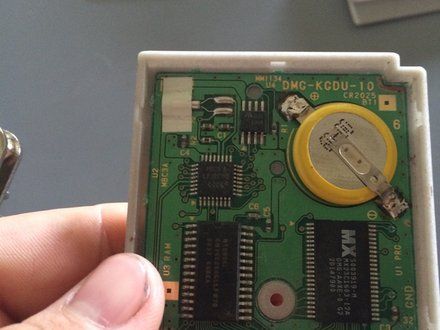

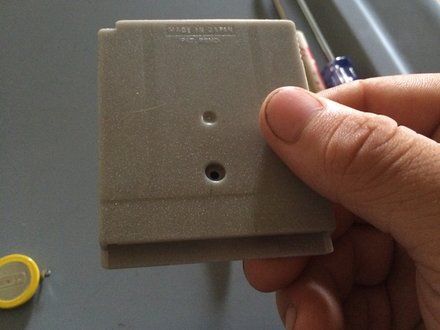

• The final step is to set the board back into the plastic housing slide the cover shut and tighten the screw

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Zane Hogue on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
