SONY PLAYSTATION SCPH-9002 TEARDOWN::
DevicePlayStation
DifficultyModerate
TimeNo estimate
Steps10
This guide is by imacg517 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

I have a PlayStation 1, and i have decided to make a new teardown of it.

I'm spanish, so my english is a bit poor, and sorry for the mistakes made in this teardown.

Without further delay, we start.

Tools: iFixit Opening Tool; Spudger; 64 Bit Driver Kit


STEP 1::
[step 1 photo] [step 1 photo]

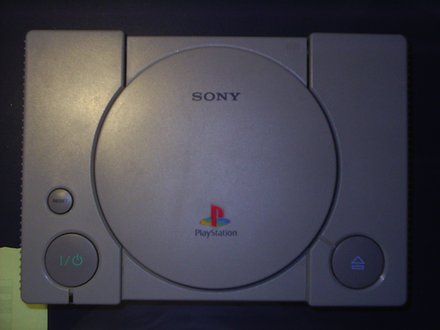

• Here's the PS1.

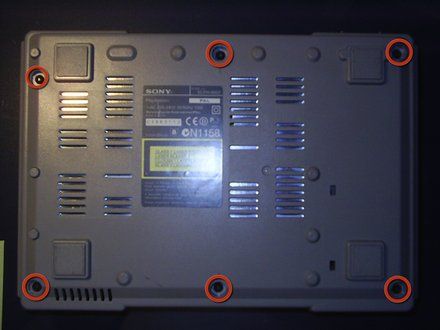

• Turn the PS1 over and remove the six screws.
• Note: part number +BV 3X14

STEP 2::
[step 2 photo]

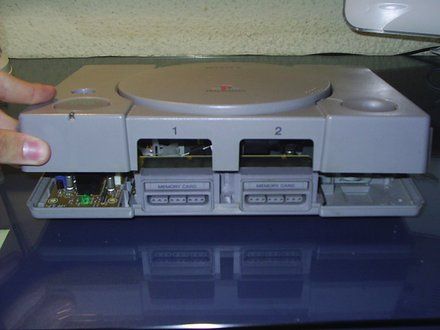

• Remove the top cover. It's very easy.

STEP 3::
[step 3 photo]

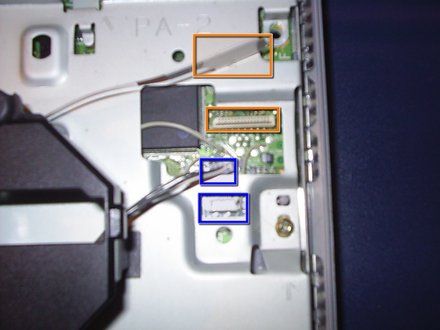

• Disconnect both CD-ROM connectors.
    • CD connector one and the socket it connects to.
    • CD connector two and the socket it connects to.
    • Note: part number DEVICE OPTICAL KSM-440AEM

STEP 4::
[step 4 photo] [step 4 photo]

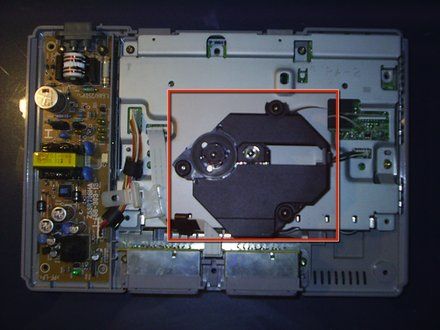

• Remove the CD-ROM reader. You should be able to pull it out gently, although you may have to wiggle it around a bit to loosen the rubber holders.

STEP 5::
[step 5 photo]

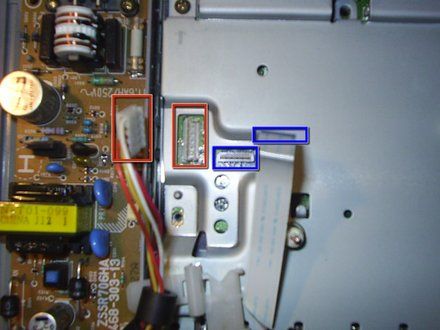

• Detach both cables. They go to the power supply and to the memory cards and controller connectors.

STEP 6::
[step 6 photo]

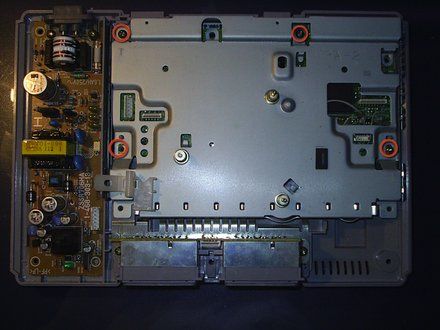

• Remove the four screws and the metal cover.

STEP 7::
[step 7 photo] [step 7 photo]

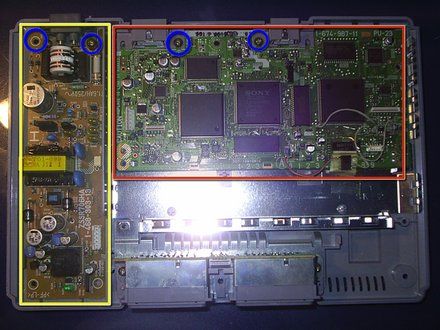

• Now you have the motherboard!
• And the power supply.
• Remove the four screws from the motherboard and the power supply.

STEP 8::
[step 8 photo]

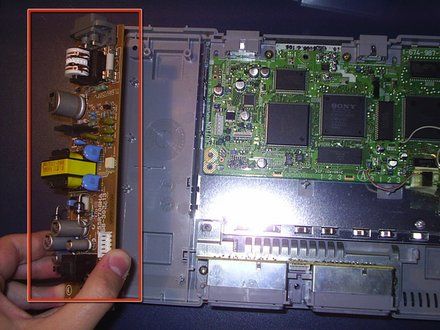

• Once the screws are removed, remove the power supply.

STEP 9::
[step 9 photo]

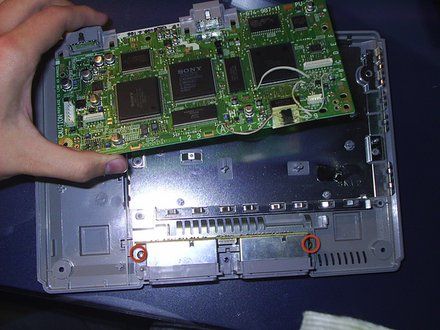

• Remove the motherboard, and both of the screws from the memory card/ controller connection mechanism.

STEP 10::
[step 10 photo]

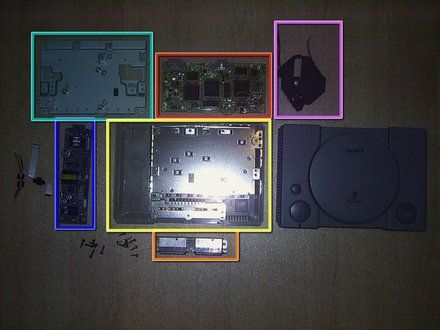

• Now, you have all your PlayStation 1 parts!
    • Main Board
    • Lower Casing
    • EMI Shield
    • Power Supply
    • Disk Reader
    • Memory Card/ Controller Mechanism
