| |  Replacing IBM ThinkPad 560z RAM |
| Device | IBM ThinkPad 560z |
| Difficulty | Easy |
| Time | 5 minutes |
| Steps | 5 |
This guide is by Derek Driscoll on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
How to remove the RAM for repairs or replacement.
Tools: Phillips #1 Screwdriver |
|

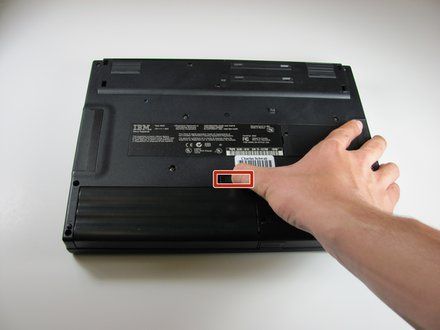

| Step 1 :: Battery Removal | ![[step 1 photo]](2595/step01-1.jpg)
• Slide the battery release latch to the right.
• Pull out the battery out towards the front of the device.
|
|

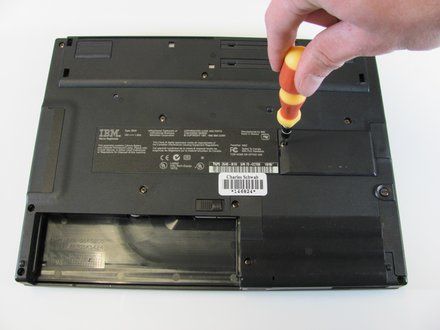

| Step 2 | ![[step 2 photo]](2595/step02-1.jpg)
• Remove a single phillips head screw.
|
|

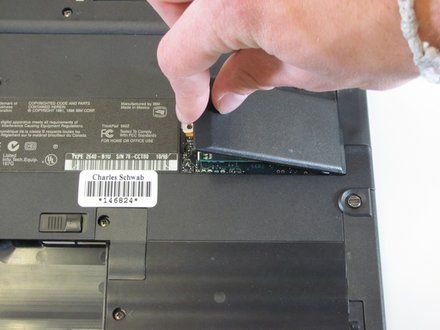

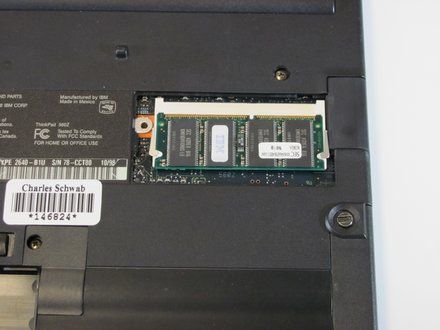

| Step 3 | ![[step 3 photo]](2595/step03-1.jpg)
![[step 3 photo]](2595/step03-2.jpg)
• Lift the cover to reveal the RAM.
|
|

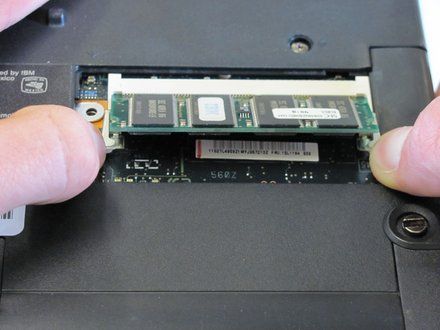

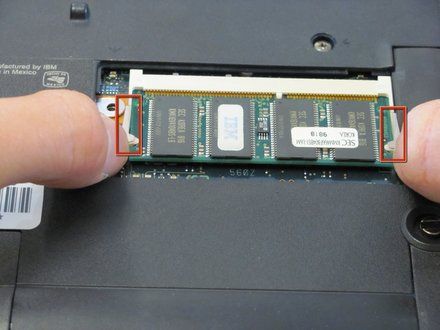

| Step 4 | ![[step 4 photo]](2595/step04-1.jpg)
![[step 4 photo]](2595/step04-2.jpg)
• Use your fingers to push apart the clamps holding the RAM.
|
|

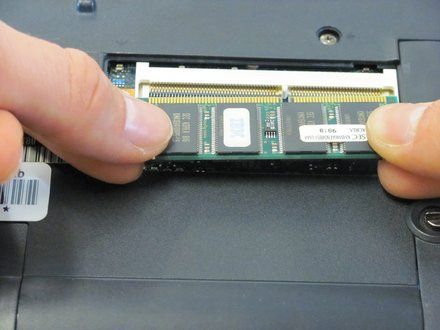

| Step 5 | ![[step 5 photo]](2595/step05-1.jpg)
• Use your fingers to pull out the RAM.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
