| | Sega Game Gear Headphone Jack/Volume Wheel Replacement |
| Device | Sega Game Gear |
| Difficulty | Moderate |
| Time | No estimate |
| Steps | 8 |
This guide is by Brandon Page on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
Guide to replace the small logic board that contains the 3.5mm headphone jack as well as the volume wheel.
Tools: Phillips #00 Screwdriver; Gamebit 4.5mm; Tweezers |
|

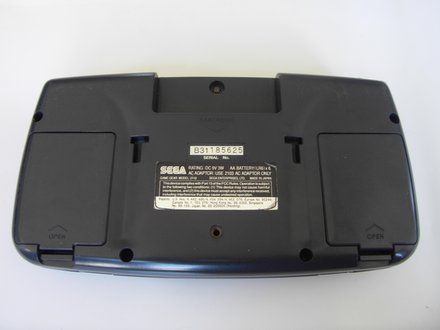

| Step 1 | ![[step 1 photo]](2453/step01-1.jpg) Place your device upside down and locate the two battery compartments.
|
|

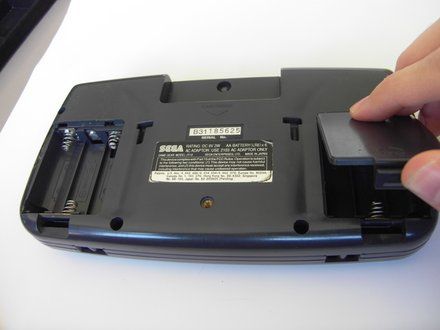

| Step 2 | ![[step 2 photo]](2453/step02-1.jpg) Press on the tabs at the bottom of the battery covers then lift up to remove. Remove batteries if they are present.
|
|

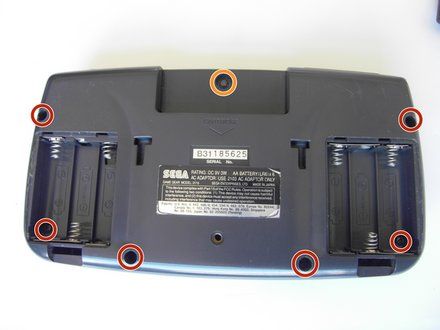

| Step 3 | ![[step 3 photo]](2453/step03-1.jpg) Remove the following screws: Six Phillips screws One 4.5 mm Gamebit screw
|
|

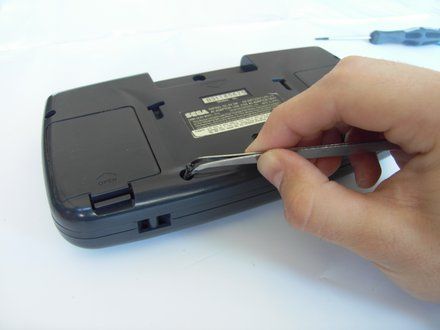

| Step 4 | ![[step 4 photo]](2453/step04-1.jpg) Use tweezers (https://www.ifixit.com/en-ca/products/tweezers) to take all other screws out.
|
|
| Step 5 |

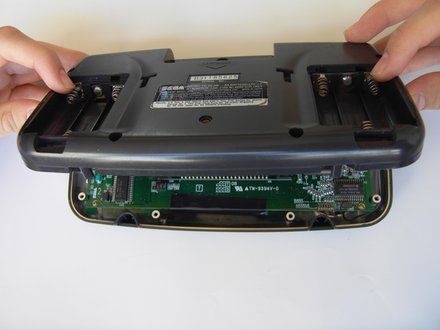

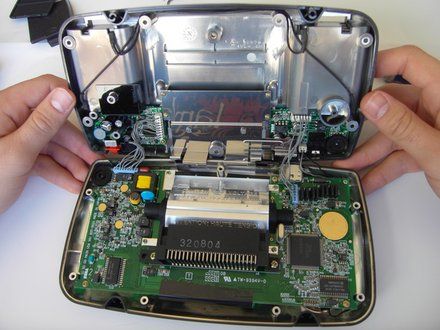

![[step 5 photo]](2453/step05-2.jpg) Gently open the case by unfolding it over the top of the Sega Game Gear. CAUTION: Do not pull the back of the case away, as cables are connected between both sides.
|
|
| Step 6 |

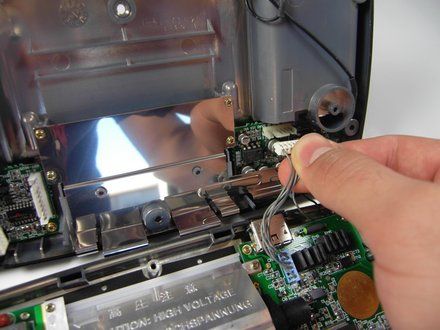

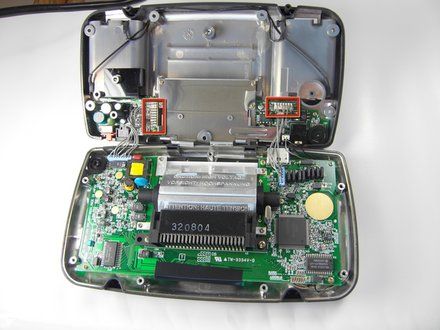

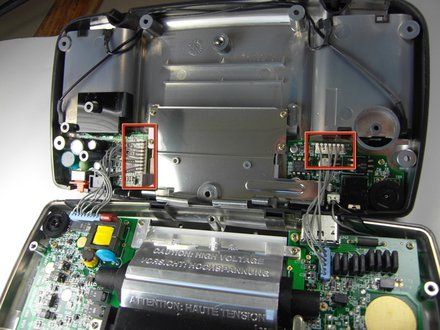

![[step 6 photo]](2453/step06-3.jpg) Carefully unplug the 2 white-tipped connectors on the top cover.
|
|
| Step 7 |

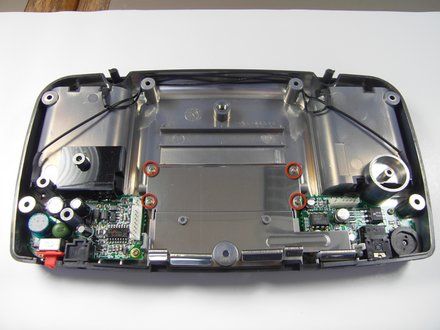

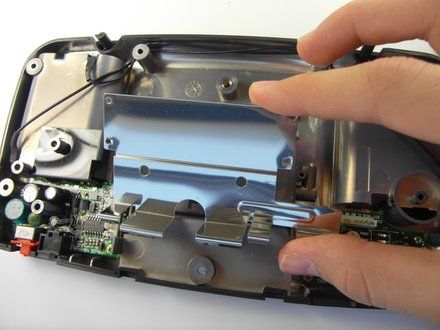

![[step 7 photo]](2453/step07-2.jpg) Unscrew the screws to remove the metal covering.
|
|

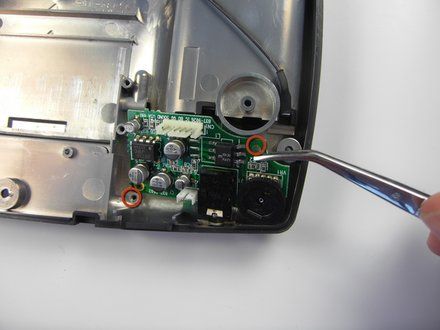

| Step 8 | ![[step 8 photo]](2453/step08-1.jpg) NOTE: The screws that need to be removed are missing from this picture. Remove the two screws from the highlighted locations.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
