COMPAQ EVO N1000V HEAT SINK
REPLACEMENT::
DeviceCompaq Evo N1000v
DifficultyModerate
Time30 - 50 minutes
Steps14
This guide is by kim on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Older laptops, like the Compaq Evo N1000v, run hot because of a broken or less efficient heat spreader or heat sink. The heat spreader is indispensable for dissipating heat from the processor and other components with a temperature above the normal limit, where thermal throttling or even permanent hardware damage can occur. This will, in turn, make sure that a replacement of the heat spreader will go a long way in ensuring your laptop runs efficiently and reliably, enhance heat distribution, and avoid overheating. This guide demonstrates how to replace the heat sink in your Compaq Evo N1000v to maintain high system performance.

You may need to apply new thermal paste to your device if the heat sink doesn't come with it pre-applied. This guide (https://www.ifixit.com/Guide/How+to+Apply+Thermal+Paste/744) will show you how to apply thermal paste.

Before you begin, make sure that your device is powered off and disconnected from the charger.

Tools: Phillips #00 Screwdriver; Spudger; TR8 Torx Security Screwdriver


STEP 1::
[step 1 photo]

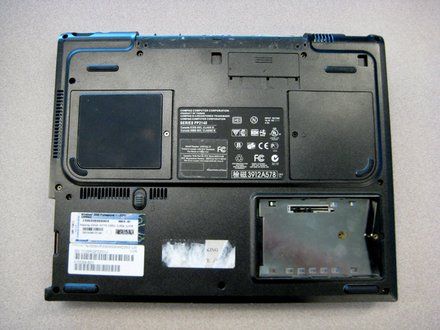

• Flip the laptop over with the rear panel facing forward.

STEP 2::
[step 2 photo]
• Using a TR8 Torx screwdriver, remove the two T8 Torx screws that secure the LED cover to the base enclosure.

STEP 3::
[step 3 photo]

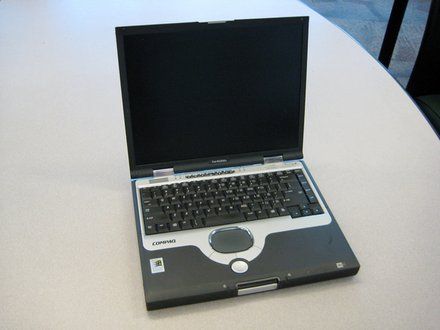

• Flip the laptop back over with the front facing forward. Open the screen.

STEP 4::
[step 4 photo]

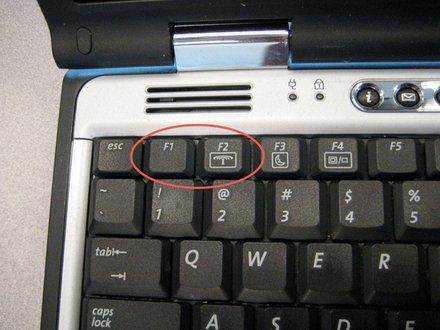

• Locate the F1 and F2 keys near the top left corner of the keyboard.

STEP 5::
[step 5 photo]

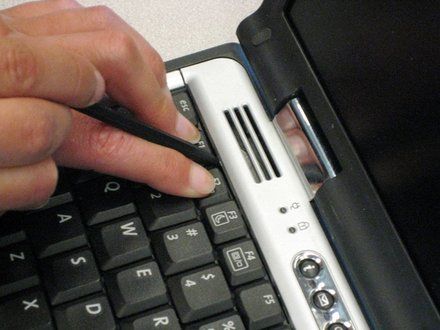

• While holding the F1 and F2 keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

STEP 6::
[step 6 photo]

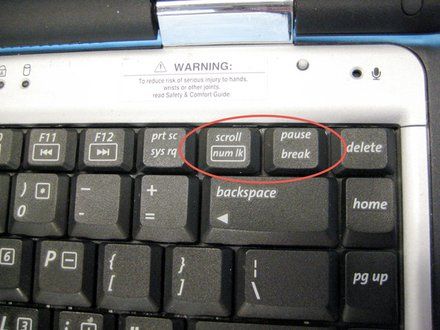

• Locate the Scroll and Pause keys near the top right corner of the keyboard.

STEP 7::
[step 7 photo]

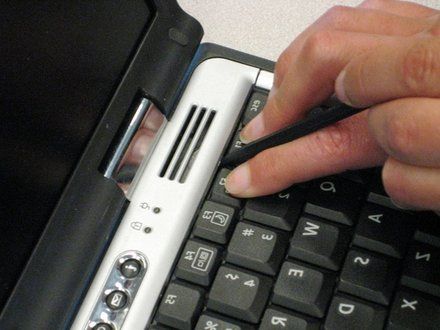

• While holding the Scroll and Pause keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

STEP 8::
[step 8 photo] [step 8 photo]

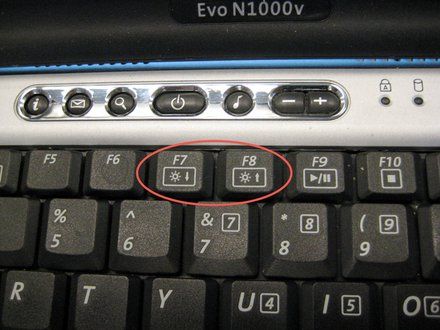

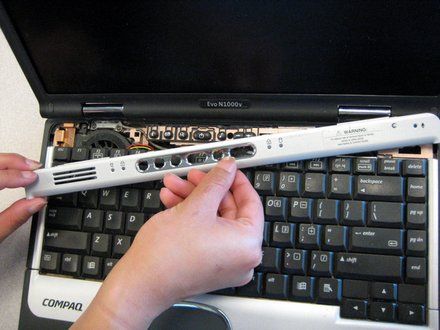

• Insert a spudger between the F7 and F8 keys. Lift up to remove the LED cover.

STEP 9::
[step 9 photo]

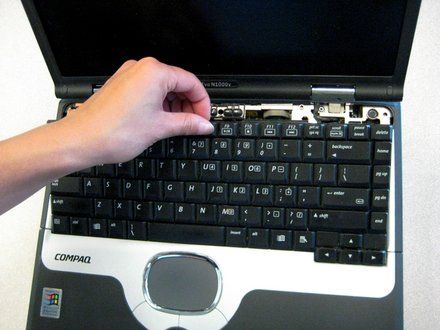

• Lift the back edge of the keyboard and pull towards the screen.

STEP 10::
[step 10 photo]

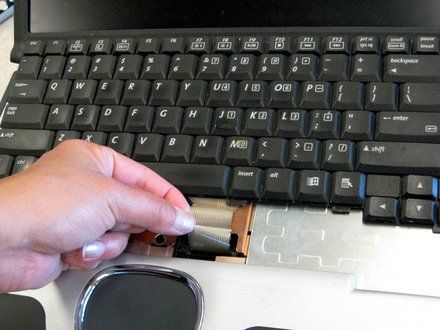

• Pull the cable and lift up to release.

STEP 11::
[step 11 photo]

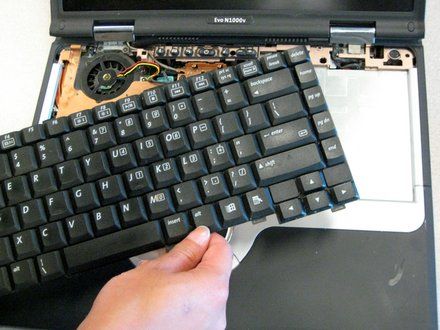

• Remove the keyboard.

STEP 12::
[step 12 photo]

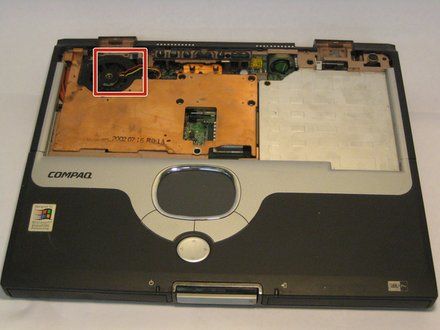

• Disconnect the cable connecting the fan to the system board.

STEP 13::
[step 13 photo]

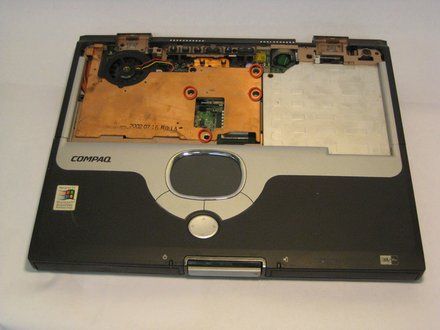

• Remove the four screws from the heat sink.

STEP 14::
[step 14 photo]

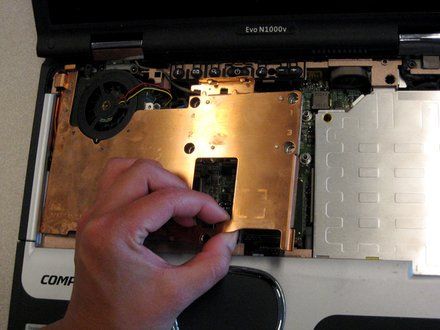

• Pull the the heat sink up and out of the computer.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order. Take your e-waste to an R2 or e-Stewards certified recycler (https://www.ifixit.com/Wiki/E-Waste).

CREDIT::
This guide is by kim on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
