Compaq Evo N1000v Keyboard Replacement

Device	Compaq Evo N1000v
Difficulty	Easy
Time	15 - 30 minutes
Steps	11

This guide is by kim on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Among all the parts of your Compaq Evo N1000v, the keyboard could be one of the most utilized parts, which might have a tendency to wear out or malfunction or completely die out after some time. In many cases, the laptop keyboard does not have to be physically damaged; some keys do not work or deteriorate on the whole before you know it is time to replace it for a smooth user experience. A new keyboard will offer responsiveness and comfort while typing, adding to the overall longevity of your laptop. This guide will walk you through replacing the keyboard in your Compaq Evo N1000v, making your laptop feel like new again and reliable for everyday use.

Before you begin this repair, make sure that your laptop is off and disconnected from the charger.

Tools: Spudger; TR8 Torx Security Screwdriver

Step 1

• Flip the laptop over with the rear panel facing forward.

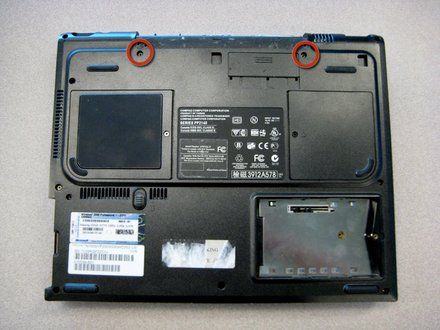

Step 2

• Using a TR8 Torx screwdriver, remove the two T8 Torx screws that secure the LED cover to the base enclosure.

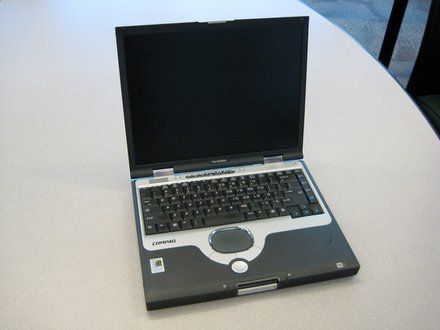

Step 3

• Flip the laptop back over with the front facing forward. Open the screen.

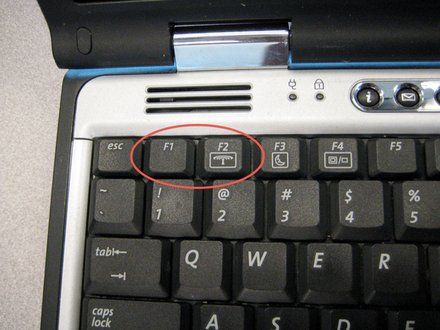

Step 4

• Locate the F1 and F2 keys near the top left corner of the keyboard.

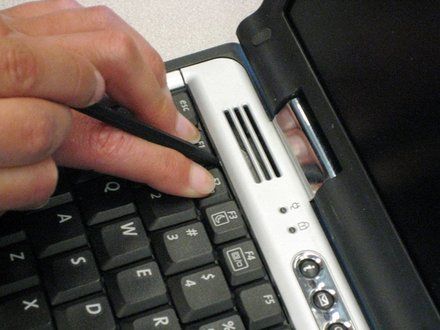

Step 5

• While holding the F1 and F2 keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

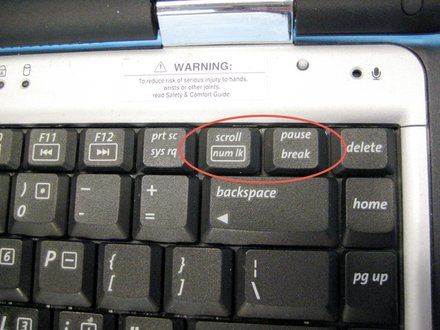

Step 6

• Locate the Scroll and Pause keys near the top right corner of the keyboard.

Step 7

• While holding the Scroll and Pause keys, insert a spudger between the keys into the notch in the LED cover. Lift up.

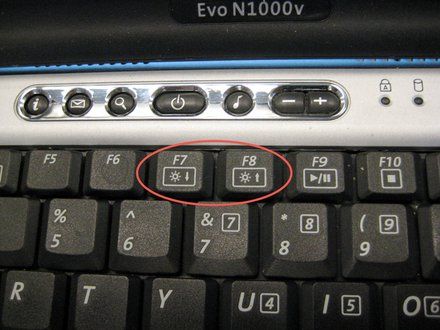

Step 8

• Insert a spudger between the F7 and F8 keys. Lift up to remove the LED cover.

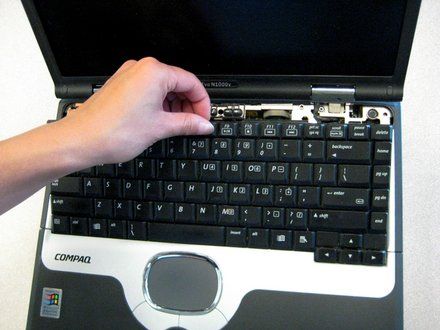

Step 9

• Lift the back edge of the keyboard and pull towards the screen.

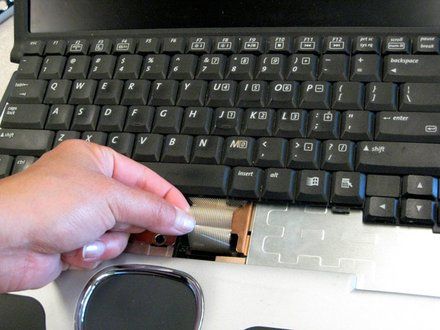

Step 10

• Pull the cable and lift up to release.

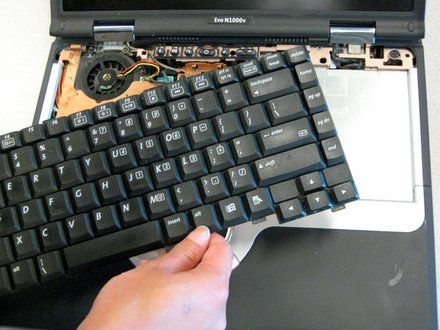

Step 11

• Remove the keyboard.

Conclusion

To reassemble your device, follow these instructions in reverse order. Take your e-waste to an R2 or e-Stewards certified recycler (https://www.ifixit.com/Wiki/E-Waste).
