IBM THINKPAD 560Z SCREEN REPLACEMENT::
DeviceIBM ThinkPad 560z
DifficultyEasy
Time5 - 15 minutes
Steps6
This guide is by John Allande on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will demonstrate how to remove and replace the screen on an IBM ThinkPad 560z. A Phillips 00 screwdriver and a push pin are needed for this process.

Tools: Fingers; Phillips #00 Screwdriver; Push Pin


STEP 1 :: BATTERY REMOVAL::
[step 1 photo]

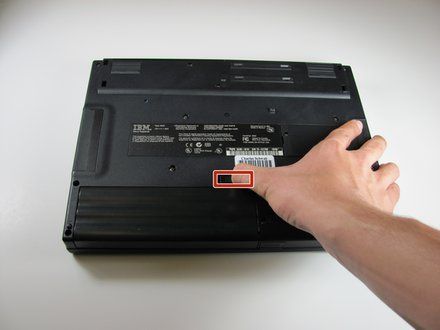

• Slide the battery release latch to the right.
• Pull out the battery out towards the front of the device.

STEP 2 :: SCREW COVER REMOVAL::
[step 2 photo] [step 2 photo]

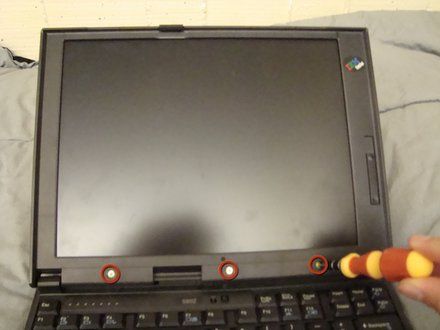

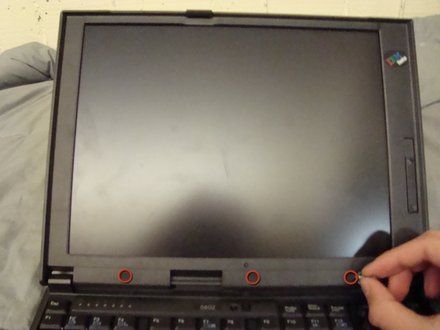

• Remove the plastic screw covers, then remove the 3 Phillips screws under them.

STEP 3 :: SCREEN BEZEL REMOVAL::
[step 3 photo]

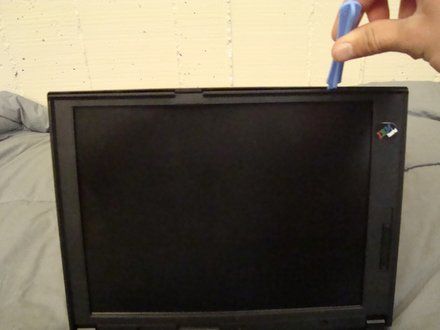

• Insert the plastic opening tool between the front cover and back cover to pry open the screen case, then carefully pull the bezel off.

STEP 4 :: LCD REMOVAL PREPERATION::
[step 4 photo]

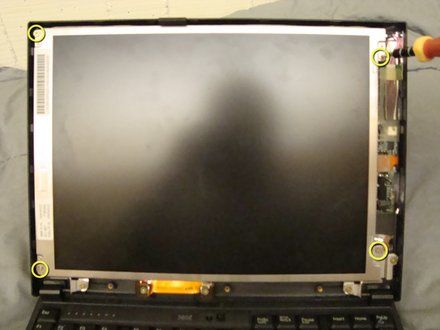

• Remove the four Phillips head screws.

STEP 5 :: RIBBON CABLE DISCONNECTION::
[step 5 photo]

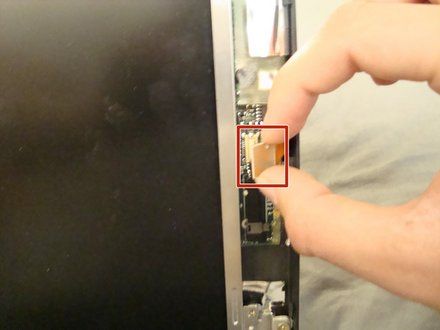

• Using your fingers or an Opening Tool, detach the connector on the right side of the screen.

STEP 6 :: LCD REMOVAL::
[step 6 photo] [step 6 photo]

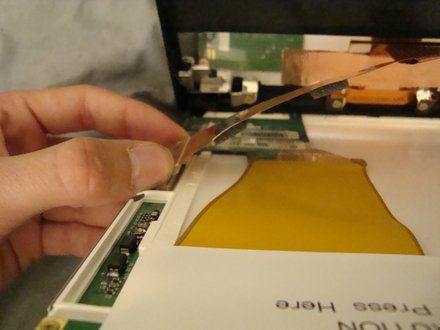

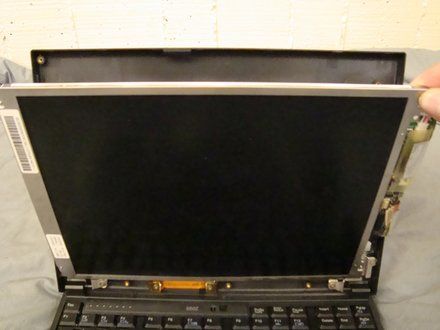

• Slowly pull back the screen from the top and disconnect the ribbon cable from the back to completely free the screen from the laptop.
    • CAUTION: The connector is very fragile, so be careful.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
